What Does TC-ER-JP Mean? The Ultimate Residential Tray Cable Standard

Understanding the Basics for Joist Pull Ratings, Generator Loops, and Conduit-Free Wood Framing

For decades, Type TC (Tray Cable) was strictly a commercial and industrial product. It was confined to open metal trays on factory floors and heavy chemical processing plants.

However, updates to National Electrical Code (NEC) Section 336.10 completely shattered those boundaries by introducing a highly specific, residential-friendly upgrade to the tray cable standard: the JP (Joist Pull) rating.

When you see a cable jacket printed with the legend TC-ER-JP, you are looking at a versatile, legal powerhouse designed to streamline residential generator installations, HVAC loops, and high-amperage EV charging networks.

Breaking Down the Acronym

To understand why this cable has become the modern installer’s secret weapon, you have to look at the three distinct compliance standards packed into its print line:

• TC (Tray Cable): Certified under the UL 1277 manufacturing standard. It features a multi-conductor assembly protected by a heavy-duty, flame-retardant, and sunlight-resistant outer jacket—typically PVC or CPE.

• ER (Exposed Run): Indicates the cable assembly has successfully survived severe laboratory crush and physical impact evaluations. Because it matches the mechanical strength of metal-clad (MC) cable, code allows it to drop through open air without protective pipe housing.

• JP (Joist Pull): The ultimate residential upgrade. Earning a "JP" designation means the cable has passed specialized physical pull testing over structural edges. This legally certifies the outer jacket to be pulled through holes bored in wood framing studs and ceiling joists without getting caught, tearing, or sacrificing its structural thickness.

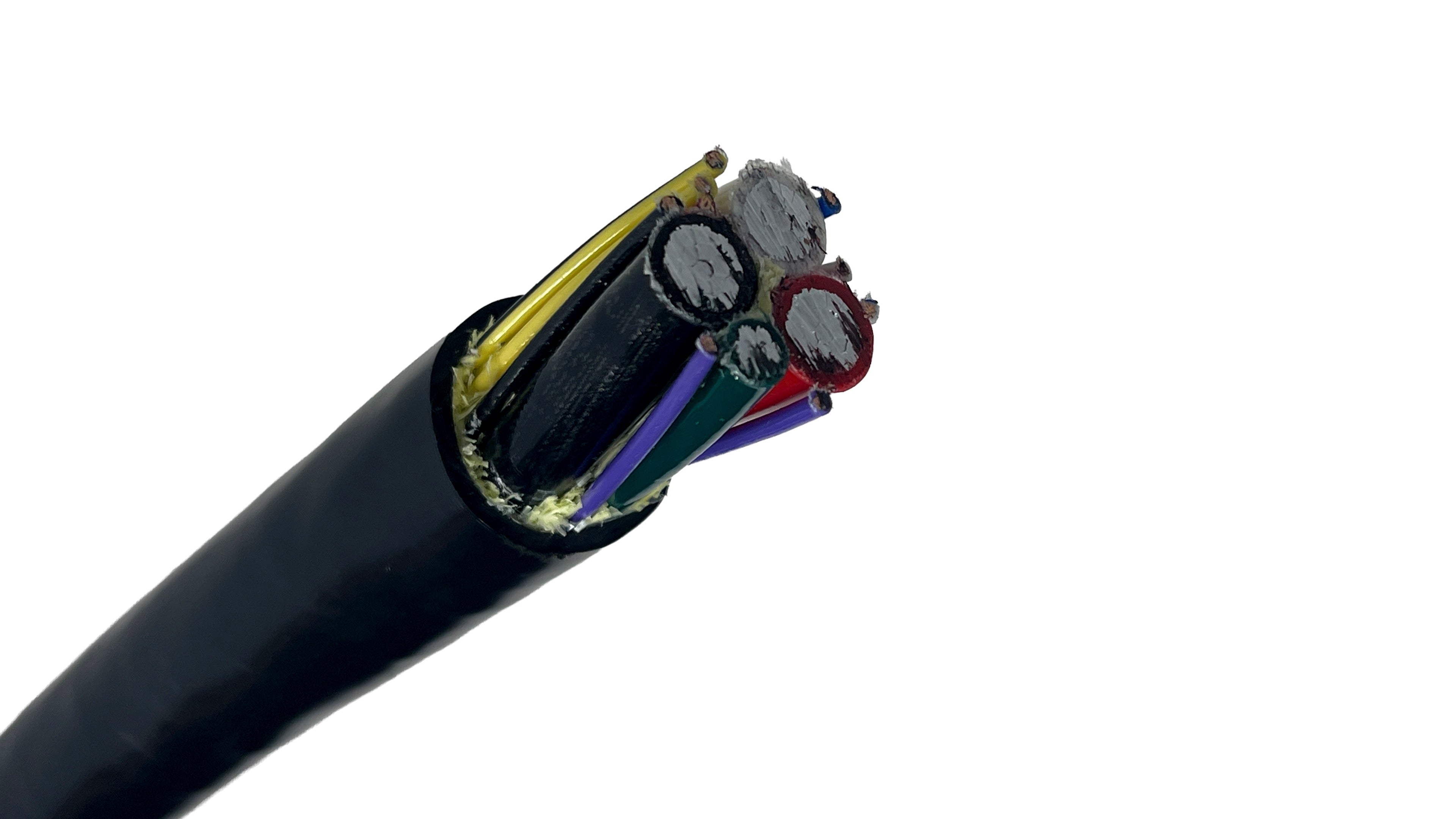

Above is an example of a 1/3 w/ ground plus 18/9C Aluminum TC-ER-JP Cable

Why Electricians Choose TC-ER-JP

Prior to the introduction of the Joist Pull rating, running heavy-gauge power feeds from an outdoor standby generator or an EV charger into a residential home required either bending rigid conduit piping or wrangling with stiff, incredibly difficult-to-strip Type UF cables.

Opting for a code-compliant TC-ER-JP cable delivers three massive installation advantages:

• Conduit-Free Residential Routing: Per NEC 336.10(9), TC-ER-JP can be pulled directly through structural wood framing members using standard residential rough-in techniques, behaving identically to Romex (NM-B) but carrying heavy-duty power and control conductors all in a single pull.

• The Ultimate Standby Generator Setup: Home standby generators require two things to function: large-gauge power conductors to carry the load, and small-gauge control wires to speak to the automatic transfer switch (ATS). All-in-one generator cables rated TC-ER-JP house both the power elements and the control circuits under one single outer jacket, turning a multi-hour pipe install into a fast single-pull job.

• Direct Underground Trenching: In addition to its indoor residential routing permissions, premium TC-ER-JP lines carry dual certifications for Direct Burial and Sunlight Resistance. This allows an installer to trench the cable outdoors underground, run it up an exterior wall, and pass it directly inside through a drilled sill plate into wood joists without changing materials or installing separate junction boxes.

How Wire America Can Help

Wire America specializes in supplying fully certified, Type TC-ER-JP Generator Cables in both copper and aluminum constructions. We can support your project with:

• Cut-to-Length: Only pay for the footage you need.

• Fast Shipping: We get your wire on the truck quickly so you can get the job done.

• Expert Support: Not sure which cable is right for you? Our team is here to help. Give us a call at 1 (833) 268-8644 or email sales@wireamerica.com.



BROWSE OUR TYPE TC-ER-JP COLLECTION HERE>>

Wire America believes in genuine conversation. You'll always talk with real people who understand that every project requires careful product selection. We're here to ensure you feel educated, confident, and great about your final purchase. Feel free to give us a call to discuss your project! You can reach us at: 833-268-8644

⚠️ Important Disclaimer: Safety and Compliance

Wire America provides this information as a guide only. Electrical installations must strictly adhere to the National Electrical Code (NEC) and all state, local, and jurisdictional requirements, which vary widely. Always consult a licensed electrician, electrical engineer, or the local inspecting authority before purchasing material or starting any electrical project. Wire America assumes no liability for the installation, use, or interpretation of these guides.
