Understanding UL 83 - Thermoplastic Insulated Wires

In commercial, residential, and industrial construction, routing electrical power requires highly reliable, single-conductor branch and feeder lines. Whether run through metal pipe, building studs, or heavy-duty enclosures, this wire forms the true backbone of an electrical grid.

UL 83 is the definitive safety standard established by Underwriters Laboratories that governs Thermoplastic-Insulated Wires and Cables rated up to 600 Volts. This vital baseline metric ensures that everyday building wires can safely handle high voltage, thermal stress, and environmental exposure without degrading or causing a catastrophic short circuit.

The Construction Essentials

To earn an official UL 83 certification, a building wire must adhere to precise material and engineering guidelines. A standard compliant wire—such as Type THHN/THWN-2—is built using a highly reliable, dual-layer design:

• The PVC Insulation Layer: Polyvinyl chloride (PVC) serves as the primary thermoplastic shield. It provides high-dielectric strength to isolate the electrical current and is engineered to handle continuous operating temperatures up to 90°C in dry environments.

• The Nylon Outer Jacket: A thin, exceptionally slick layer of extruded polyamide (nylon) covers the PVC. This rugged jacket delivers immense mechanical strength, making it highly resistant to abrasions during tough conduit pulls while protecting against chemical corrosion, oils, and grease.

• The Conductor: The internal core must consist of fully compliant, high-grade annealed copper or AA-8000 series aluminum alloy strands.

Above is an example of a 2/0 THHN/THWN-2 Copper Building Wire - UL 83 Rated

Why Installers Choose UL 83 Compliant Wire

Specifying a fully certified UL 83 building wire delivers distinct operational and economic advantages to a job site:

• Dual-Rating Versatility: Because modern manufacturing techniques are so advanced, premium building wire features a dual THHN/THWN-2 print legend. This means the exact same wire complies with both the dry and wet testing requirements of the UL 83 framework, allowing it to transition seamlessly from dry indoor raceways to wet outdoor locations.

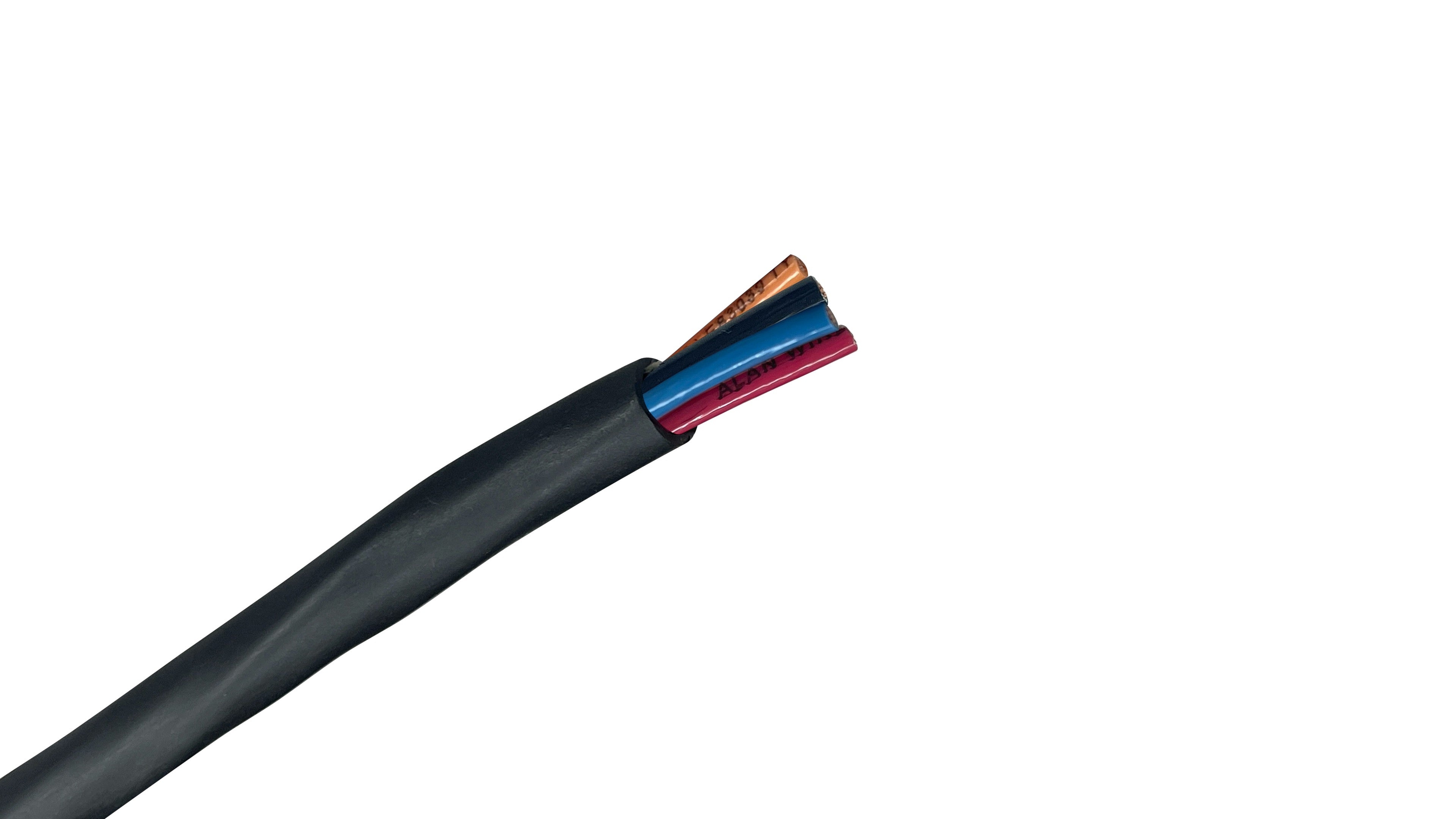

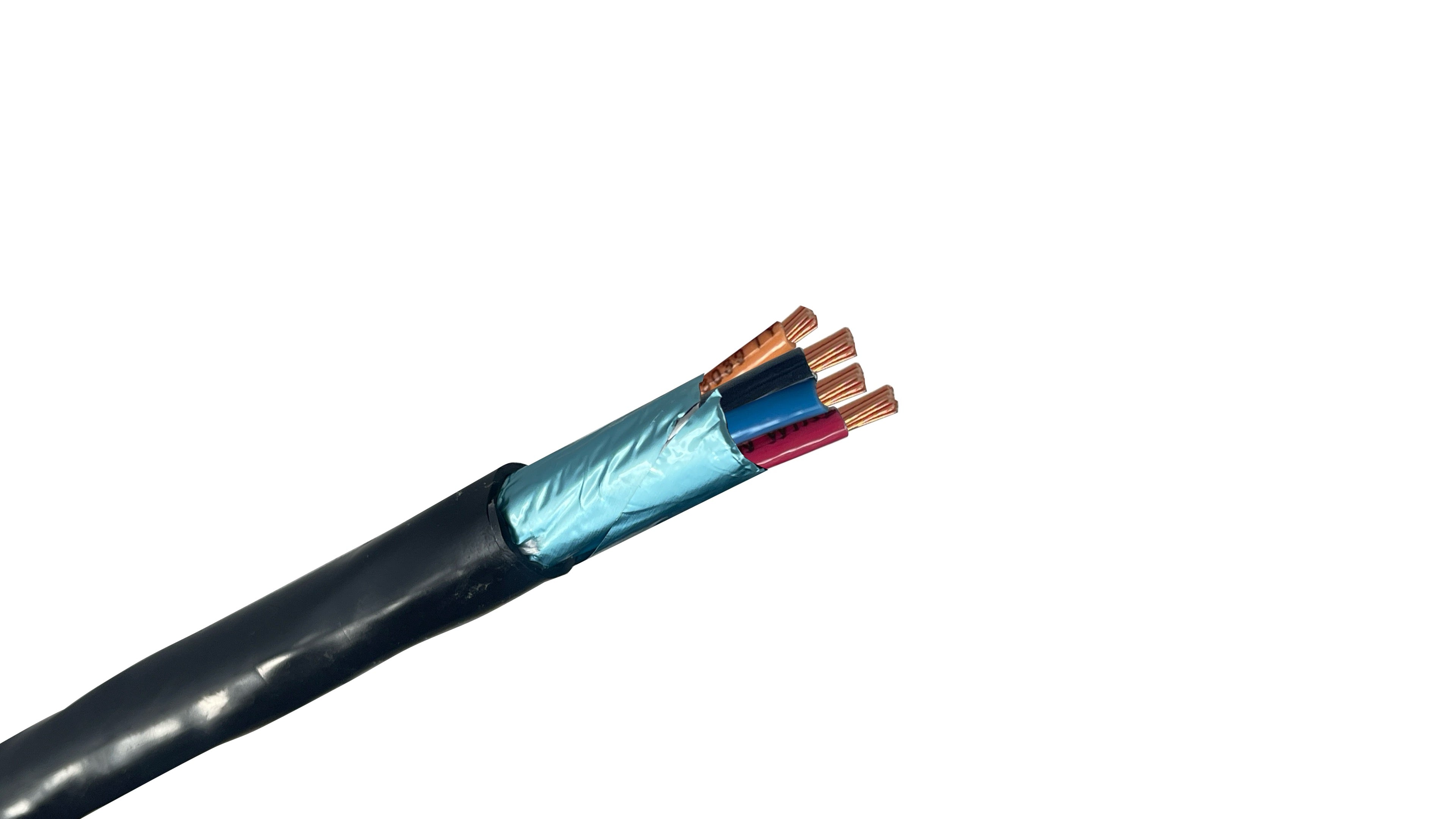

• The Core of Tray Cables: UL 83 standards don't just apply to loose single wires. When a factory manufactures a multi-conductor THHN/PVC Tray Cable (often called VNTC), they bundle multiple individual color-coded UL 83 conductors together inside an overall protective jacket. Buying a certified tray cable means you are relying on UL 83 engineering at the core.

• Proven Field Survival: Wires carrying the UL 83 listing have survived a battery of brutal laboratory quality-control tests, including long-term hot water submersion, freezing cold-bend impact checks, thermal deformation baking, and vertical flammability evaluations.

UL 83 vs. UL 44: Knowing Your Application

A common point of confusion for estimators is when to specify a UL 83 wire versus a UL 44 wire. The primary difference lies in the chemistry of the insulation:

• UL 83 (Thermoplastic): Uses PVC/Nylon (like THHN). It is lightweight, cost-effective, easy to pull through conduit networks, and is the absolute gold standard for standard commercial, residential, and indoor industrial building distribution.

• UL 44 (Thermoset): Uses cross-linked polyethylene or rubber insulation (like XHHW-2 or RHW-2). Thermoset materials do not melt under extreme heat, making them a common choice for direct burial, outdoor solar arrays, or harsh chemical processing zones where extreme conditions are expected.

How Wire America Can Help

At Wire America, we specialize in offering fully certified, premier building wires and industrial multi-conductor cables in all sizes.

• Branch & Feeder Lines: We supply a comprehensive inventory of single-conductor building lines, from small-gauge 10 AWG THHN copper for basic circuits to heavy-duty 500 MCM feeders to supply a main distribution switchboard.

• Industrial Multi-Conductors: We carry an extensive line of THHN/PVC tray cables designed to streamline complex automation and control loops. Because we cut our inventory to the exact foot, you get the precise length your blueprint demands without buying into unnecessary master reel waste or paying for excess warehouse scrap.

Sourcing branch, feeder, or tray wires for your next build? Explore our full collection of UL 83 THHN/THWN Building Wires and Industrial Tray Cables on our site, or submit your specification sheets directly to our sales team for a rapid, customized quote.

Get in Touch with Our Team

• Call us today: (833) 268-8644

• Email: sales@wireamerica.com


_____________________________________________________________________________

Official Standards & Technical Resources

To verify compliance for your next project, refer to this primary source:

• Official UL Standard: UL 83 Standard for Thermoplastic-Insulated Wires


• Official UL Standard: UL 44 Standard for Thermoset-Insulated Wires
