Generator Cable, 8/3C w/ Ground + 18/6C, 50 AMPS, 7kW-11kW, 600V

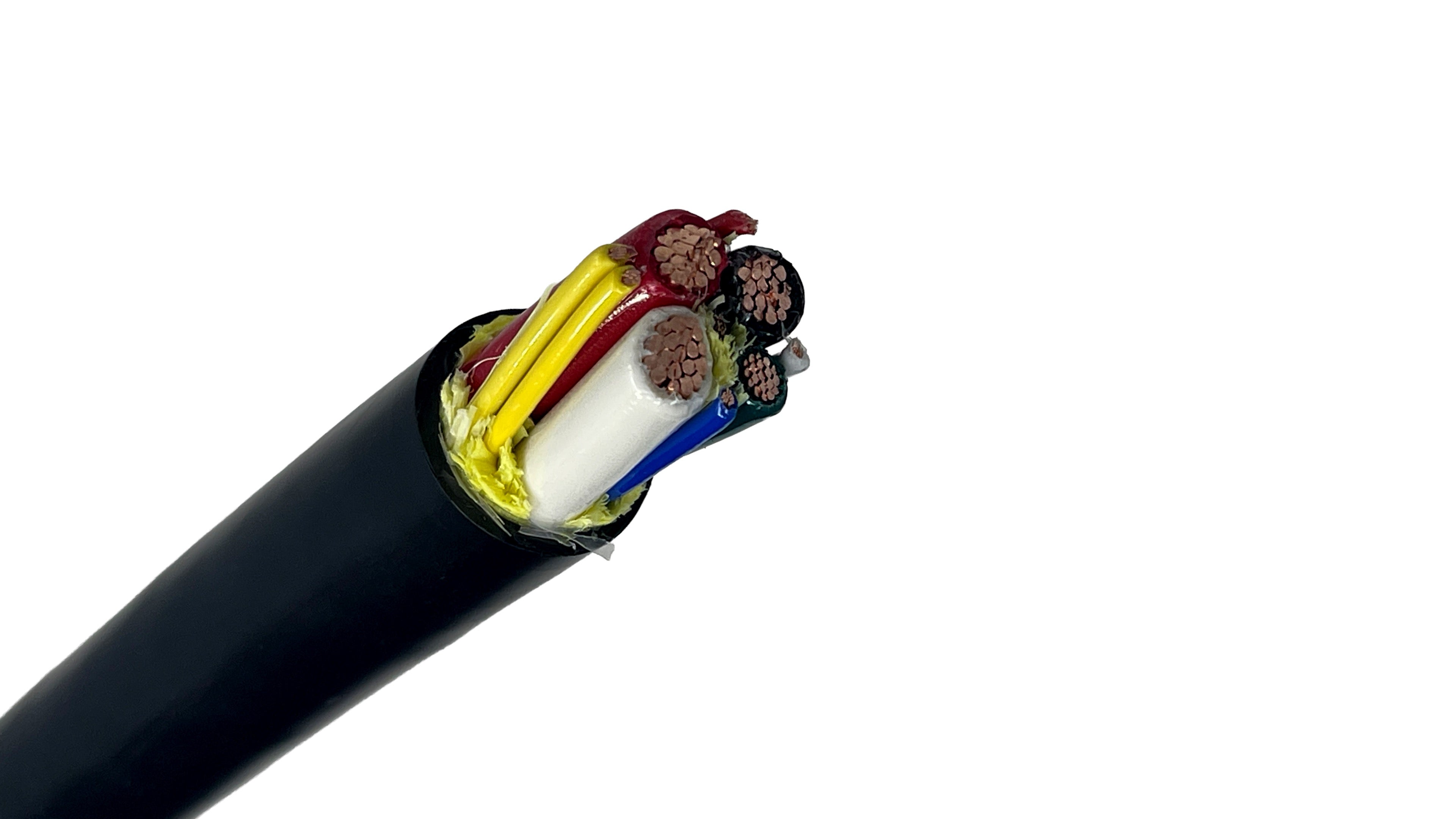

This specialized cable is a "hybrid" or "composite" assembly designed specifically for automatic home standby generators (such as Generac, Kohler, or Cummins). Unlike standard building wire, it combines high-gauge power conductors with low-voltage control wires under a single outer jacket. This design allows an installer to run both the heavy-duty power (to feed the house) and the sensitive control signals (to tell the generator when to start) in a single pull, saving significant time and reducing the risk of wiring errors.

The "8/3C w/ Ground" portion of the cable handles the high-amperage electrical current generated by the unit.

• Capacity: With 8 AWG copper conductors, this cable is rated for 50 Amps, making it the perfect match for generators in the 7kW to 11kW range.
• 120/240V Support: The three insulated conductors (Black, Red, White) provide the two 120V "hot" legs and the neutral required for a standard split-phase residential system.
• Safety Ground: The dedicated grounding conductor ensures the generator frame and transfer switch are safely bonded.

The six small 18 AWG wires bundled inside the jacket are the "brains" of the system. They connect the generator's onboard controller to the Automatic Transfer Switch (ATS). These wires handle critical low-voltage tasks, including:

• Utility Sensing: Monitoring when the grid power goes out.
• Battery Charging: Keeping the generator's starter battery charged while in standby mode.
• Signal Commands: Sending the "start" or "stop" signal to the generator engine.
• Transfer Control: Telling the ATS when to flip the house from utility power to generator power.

In standard electrical installations, you cannot run low-voltage control wires in the same conduit or cable assembly as high-voltage power lines unless all conductors have an insulation rating equal to the highest voltage present. Because the 18 AWG control wires in this cable feature 600V insulation (matching the 8 AWG power wires), it is fully code-compliant to run them together. This eliminates the need for two separate conduit runs, which is a major cost and labor saver.

This cable is typically rated for TC-ER (Tray Cable - Exposed Run) or is specifically listed for direct burial or conduit use depending on the specific jacket material.

• Labor Savings: By utilizing a single jacketed cable, installers avoid the "spaghetti" effect of pulling multiple individual THHN wires through a pipe.
• UV and Moisture Resistance: The outer jacket is engineered to withstand sunlight and damp environments common in outdoor generator pads.
• Flexibility: The stranded copper construction allows for easier "training" and bending into the tight wiring compartments of the generator and the transfer switch.

The -JP suffix stands for Joist Pull. Under National Electrical Code (NEC) allowances, standard tray cables cannot be pulled freely through building structural framing. However, because this cable features an enhanced, heavy-duty outer jacket certified for Type TC-ER-JP, you are legally permitted to pull this cable directly through your home's joists and structural studs just like standard residential Romex wire. No internal conduit pipe or raceway is required for indoor structural runs unless the cable is exposed to potential physical damage.

Yes, this cable features a specialized, waterproof, and sunlight-resistant PVC outer jacket that is explicitly UL Listed for Direct Burial. According to standard NEC rules for direct burial tray cables (Type TC), it must be buried at a minimum depth of 24 inches when placed straight into a dirt trench without a protective outer pipe. If you choose to slide the cable through protective Schedule 40 PVC conduit for the underground run instead, your required trench depth drops to 18 inches.

Please Note: While this cable is fully certified for direct burial, code requirements and trench depths can vary based on local soil conditions and regional amendments. We strongly recommend checking with a licensed local electrician or your local building inspector before digging to ensure full compliance with your area's specific electrical codes.

The power conductors in this cable are sized at 8 AWG copper, which is rated to handle a maximum continuous load of 50 Amps when calculated at the standard 75°C terminal temperature threshold. This makes it the perfect match for 50-Amp generator generator breakers and standard 240-Volt automatic transfer switches typically paired with 9kW to 11kW home standby units. (Note: The smaller 18 AWG wires do not carry the main electrical house load; they are strictly used to transmit low-amperage starting signals, battery charging currents, and diagnostic data between the generator and the switch).

Wire America supplies an extensive inventory of Generator Cable cut by the foot or on master reels. We ship directly from our regional hubs located across the United States, delivering most orders right to your shop or job site within 2 to 4 business days. We prioritize shipping generator cables from the warehouse nearest to your job site to keep transit times minimal. Expedited shipping options are available at checkout for time-sensitive contractor deadlines.
