Understanding UL 1650: Why Trailing Mining & Industrial Cables Require More Than Standard Building Wire Insulation

On an open-pit mining site, aggregate quarry, or heavy industrial construction zone, portable equipment demands constant, high-amperage power under relentless mechanical stress. When a heavy mobile crane, continuous mining rig, or submersible pump is powered by a trailing cable, that cable is routinely dragged across sharp jagged rock, driven over by heavy vehicles, submerged in slurry, and exposed to intense solar UV radiation and extreme heat.

If you attempt to feed these dynamic, high-flex loads using standard fixed building wire—or even standard flexible tray cable—the outer jacket will quickly rupture. This leads to dangerous phase-to-ground faults, expensive jobsite downtime, and severe OSHA/MSHA safety violations.

That is precisely why Underwriters Laboratories established UL 1650, the Standard for Safety for Portable Power Cables.

What is UL 1650?

UL 1650 governs the construction, electrical testing, and mechanical durability parameters for heavy-duty flexible portable power cables rated from 600V up to 2000V (2kV) and beyond. Unlike static wiring standards designed for conductors that sit motionless inside metal conduit or cable trays, UL 1650 focuses explicitly on dynamic mechanical fatigue, impact survival, and continuous environmental exposure.

To earn a UL 1650 certification, a cable construction must pass rigorous testing protocols evaluating:

• Conductor Flex Fatigue: Mandating extra-flexible,  bare or tinned soft-annealed copper conductors compliant with ASTM B-33. Utilizing high-strand, rope-lay bundle configurations (often 133 to 259+ individual strands), these conductors resist metal fatigue and work-hardening under constant dynamic bending, reeling, and twisting.

• Dielectric Integrity: Ensuring Ethylene Propylene Rubber (EPR) insulation holds up under continuous high-thermal loads, heavy voltage surges, and corona discharge in high-voltage industrial applications.

• Tear and Abrasion Resistance: Evaluating thermoset outer jacketing compounds—such as Chlorinated Polyethylene (CPE) or Heavy-Duty Neoprene—reinforced with internal textile braids designed to prevent outer sheath tearing when dragged under heavy tensile load.

• Flame and Extreme Cold Resistance: Requiring compliance with strict MSHA (Mine Safety and Health Administration) flame-resistance standards alongside low-temperature cold-bend testing down to -40°C.

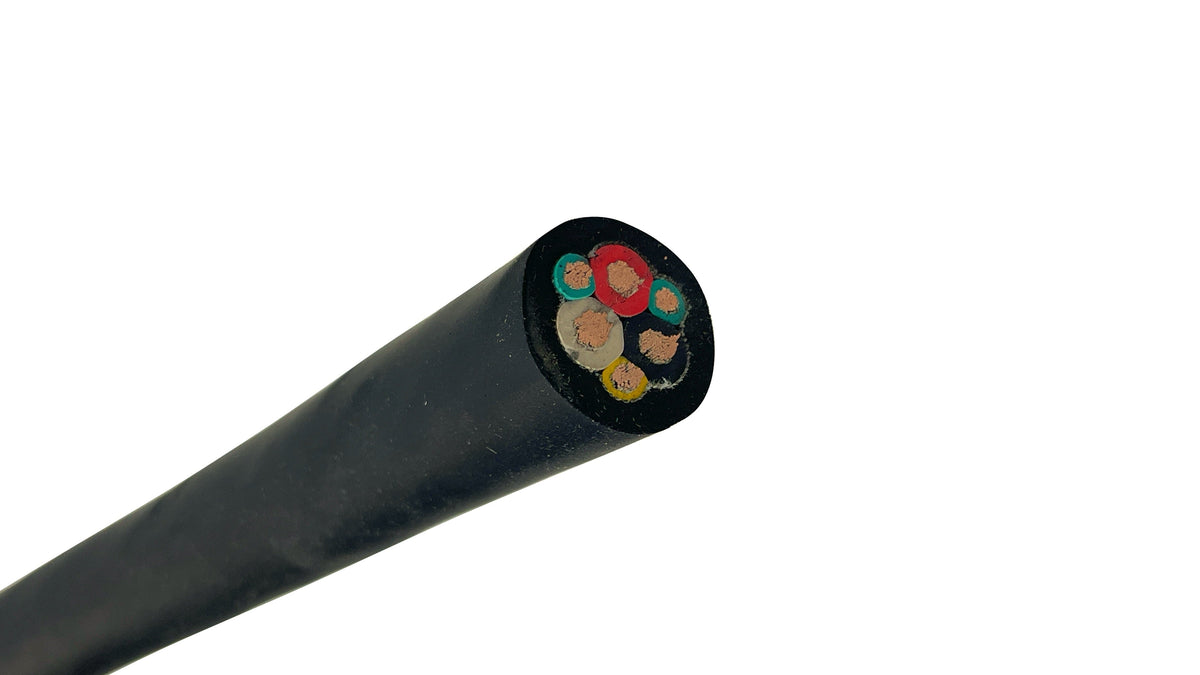

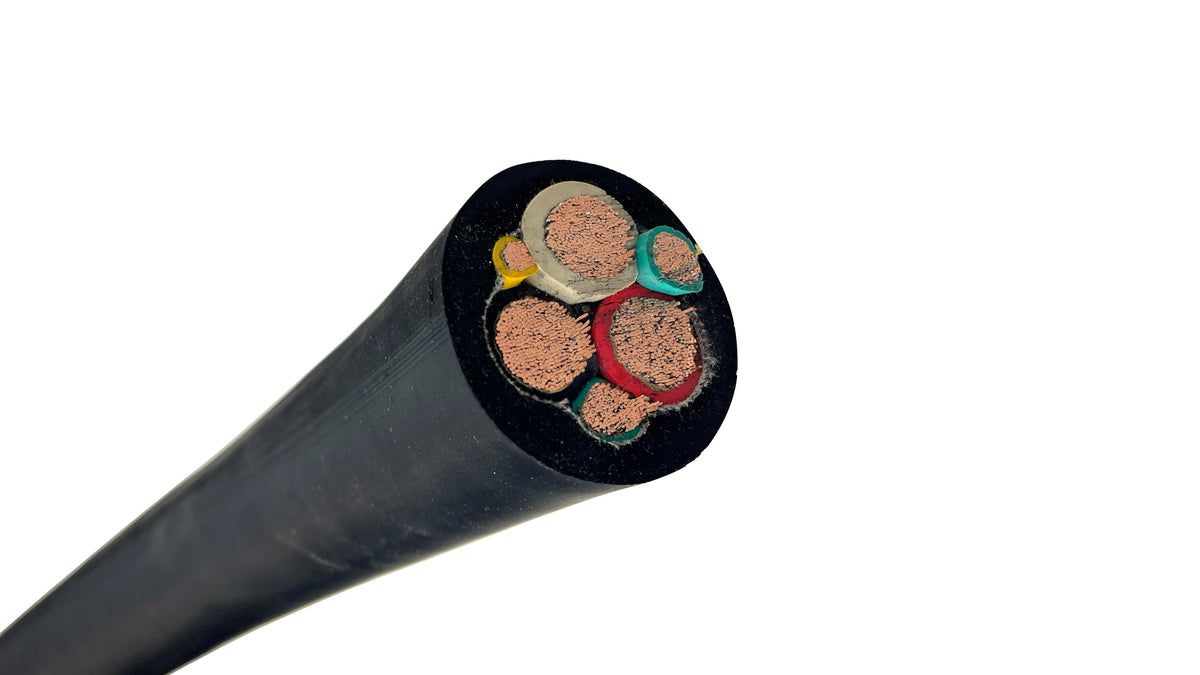

Pictured above is an example of a Type G-GC Mining Cable (UL 1650)

The Critical Role of Ground Monitoring in UL 1650 Cables

Safety in hazardous, high-voltage portable environments often depends on immediate circuit interruption if a ground fault occurs.

Under UL 1650, trailing power cable constructions like Type G-GC (Ground-Check) integrate a specialized insulated ground-check conductor alongside standard phase and grounding wires. This ground-check wire maintains a continuous low-voltage control loop back to the circuit breaker's ground-monitoring relay. If the trailing cable is run over, crushed, or severed by jobsite machinery, the ground-check circuit breaks first—instantly tripping the upstream breaker before an arc spark can ignite surrounding dust or shock a worker.

Note on Type W: Standard Type W cable does not contain an integrated ground-check conductor. If your jobsite equipment or mining submittal mandates continuous ground-relay monitoring, you must specify Type G-GC or MP-GC instead of Type W.

💡 Engineering Note: For heavy mobile equipment requiring continuous ground-monitoring protection, high-performance Type G-GC 2kV Mining Cable provides full UL 1650 compliance with rugged CPE jackets engineered for brutal jobsite dragging.

UL 1650 vs. UL 44: Key Engineering Differences

Electrical specifiers and estimators sometimes confuse portable trailing power cables with heavy-duty thermoset building wires because both frequently utilize rubber-like EPR or XLPE insulation. However, installing a UL 44 wire in a dynamic trailing application is a direct code violation and a severe jobsite hazard.

While fixed feeder runs inside commercial conduits rely on rigid thermoset insulation governed by UL 44 standards, dynamic trailing equipment requires the specialized tensile strength, flex-life, and impact shielding specified exclusively under UL 1650.

Selecting the Right UL 1650 Portable Power Cable

Selecting the proper UL 1650 cable depends on your voltage requirements, conductor count, and ground-monitoring equipment:

• Type W (2000V): Ideal for general temporary jobsite power distribution, motor leads, portable generators, and heavy-duty battery chargers where ground-check monitoring is not required.

• Type G (2000V): Features four phase conductors with balanced interstitial grounding conductors for three-phase equipment requiring superior mechanical balance during reeling.

• Type G-GC (2000V): The industry standard for heavy industrial pumps, mobile compressors, conveyors, and mining machinery where ground-check relay protection is mandatory.

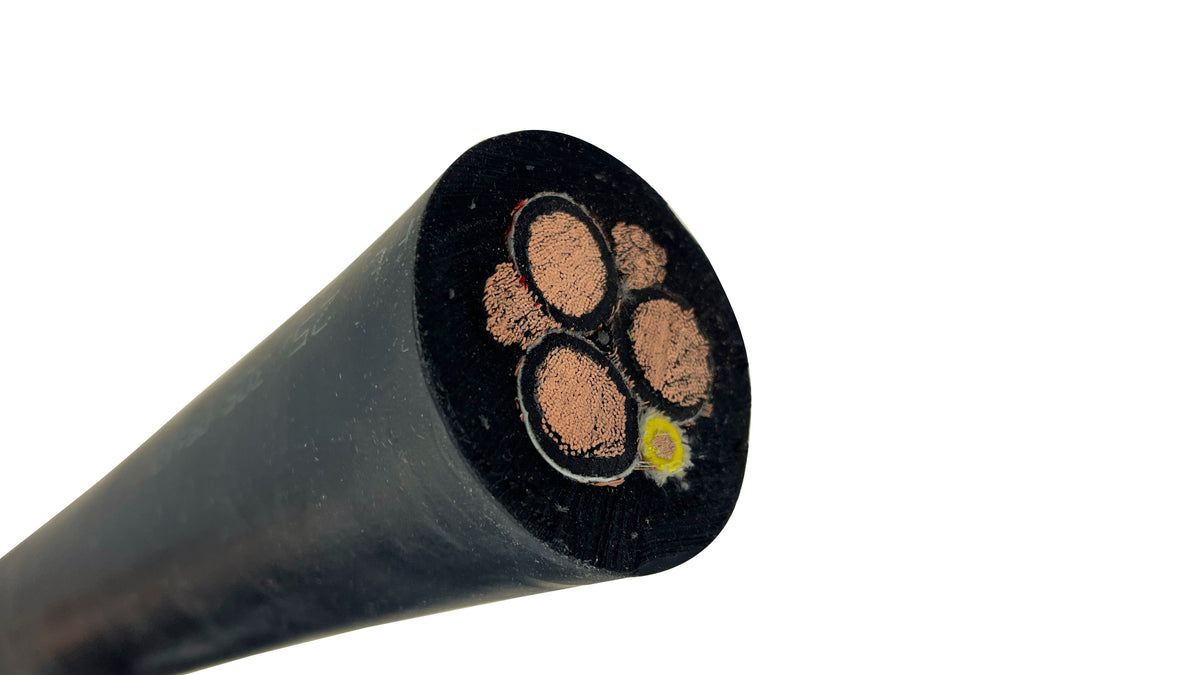

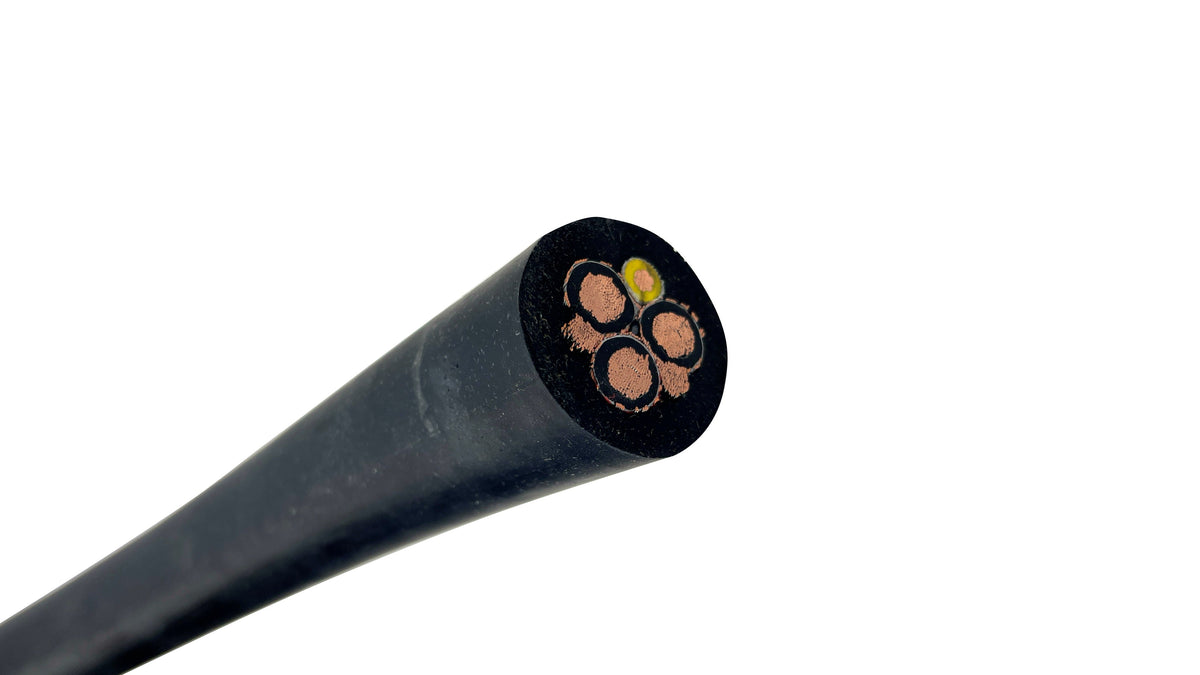

• MP-GC / SHD-GC (5kV – 15kV): Heavy-duty medium-voltage mine power feeder cables designed for subterranean utility runs, high-voltage shovels, and main substation power drops requiring shielded conductors and ground-monitoring.
