TYPE G-GC MINING CABLE

Type G-GC Portable Power Cable is built for the toughest jobs — mobile mining equipment, heavy industrial machinery, and three-phase power setups that demand a built-in ground-check safety circuit. Three flexible, tinned copper conductors are insulated with high-dielectric EPR, paired with two ground conductors and an integrated ground-check conductor for continuous safety monitoring. A rugged CPE or TPU jacket stands up to open-pit mines, underground sites, and demanding construction environments — flexible, impact-resistant, and built to last.

Filters

0 Products

FIlters

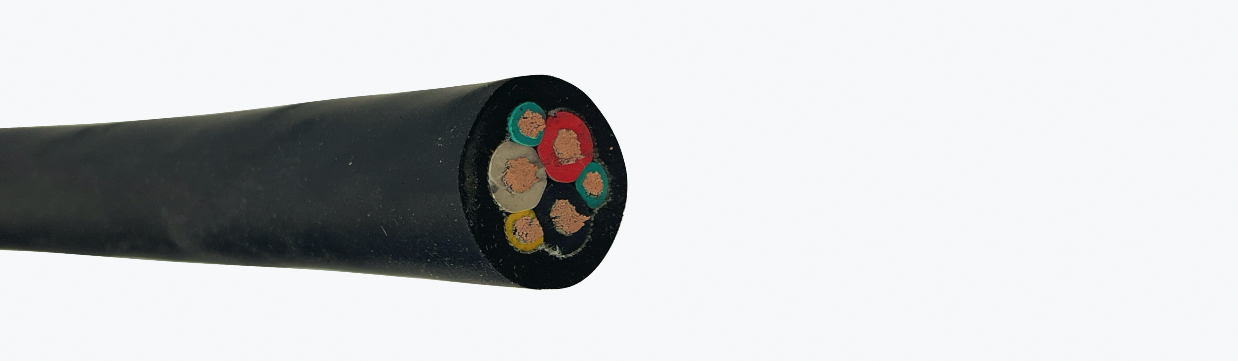

Type G-GC Portable Mining Cable 2kV

Type G-GC is a heavy-duty, 2kV portable power cable engineered specifically for mobile mining equipment, heavy industrial machinery, and three-phase power applications requiring an integrated safety grounding circuit. Designed for rugged, temporary, or permanent power distribution, Type G-GC features three flexible stranded tinned copper power conductors insulated with high-dielectric Ethylene Propylene Rubber (EPR). The assembly includes two uninsulated ground conductors and one insulated ground-check (GC) conductor laid in the cable splices for continuous monitoring of safety ground integrity. Encased in an extra-heavy-duty, flame-retardant Chlorinated Polyethylene (CPE) or Polyurethane (TPU) outer jacket, Type G-GC delivers outstanding flexibility, impact resistance, and long-term durability in open-pit mines, underground facilities, and heavy construction sites.

Installation Note: Always verify that your power distribution box or breaker circuit is equipped with a compatible ground-check monitoring relay before energizing Type G-GC cable; without a functional ground-check loop, safety breakers will not operate as intended. Maintain proper minimum bend radii (typically 6x to 8x the overall cable diameter) when reeling or looping the wire to prevent internal damage to the insulated ground-check conductor. When repairing jacket cuts or conductor splices, use only MSHA-approved cold-shrink or vulcanized Type G-GC splice kits—improper tape wraps will fail under moisture exposure, triggering false ground-check trips.

Key Features
  • Integrated Ground-Check Conductor: Contains a dedicated insulated ground-check wire that works with ground-monitoring relays to instantly trip circuit breakers if the equipment earth ground is severed.
  • Dual Uninsulated Earth Grounds: Two bare copper ground conductors distributed evenly in the cable valleys ensure a low-impedance ground path, protecting workers from dangerous frame voltages.
  • 2000V Heavy-Duty Rating: Fully rated for 2kV three-phase power applications, bridging the gap between low-voltage portable cords and high-voltage shielded trailing cables.
  • MSHA Approved & Flame Retardant: Complies with strict Mine Safety and Health Administration (MSHA) flame test standards for open-pit and underground mine environments.
  • High-Dielectric EPR Insulation: 90°C EPR insulation resists thermal overloads, ozone degradation, moisture wicking, and electrical tracking.
  • Extra-Heavy-Duty CPE Outer Jacket: Provides exceptional resistance to severe abrasion, continuous dragging across jagged rock, crushing impact, industrial oils, and acidic mine water.
Common Applications
  • Shuttle Cars & Continuous Miners: Supplying 2kV portable power to mobile underground extraction vehicles and coal loaders.
  • Submersible Dewatering Pumps: Powering high-capacity drainage pumps operating in acidic pit water, slurry sumps, and flooded mines.
  • Mobile Draglines & Conveyors: Serving as trailing power lines for portable crushing plants, material stackers, and heavy transfer conveyors.
  • Drill Rigs & Rock Crushers: Connecting portable power to rotary drills, blast-hole machines, and mobile quarry crushing units.
  • Heavy Construction Power: Supplying temporary three-phase power to large cranes, tunnel boring equipment, and high-capacity jobsite generators.
  • Shipyard & Marine Power: Delivering heavy flexible power to drydock machinery, gantry cranes, and temporary shore-power feeds.
