Aluminum Generator Cable, 3-3C w/ Ground + 18/9C, 75 Amps, 10kW-16kW, 600V

3 AWG 3-Conductor Aluminum Generator Cable with Ground and 18 AWG 9-Conductor Control Bundle is a specialized, all-in-one power and intelligence composite cable engineered for standby home generators and light commercial backup systems. Designed to streamline complex multi-conduit runs into a single pulling operation, this dual-rated line is optimized to support 10kW to 16kW generator units, supplying up to 75 Amps of continuous emergency load capacity under a maximum 600V operating threshold.

This heavy-duty hybrid asset combines raw electrical power distribution with low-voltage system logic inside a rugged, sunlight-resistant, direct-burial polyvinyl chloride (PVC) outer jacket. The power core features three robust 3 AWG compact-stranded aluminum conductors accompanied by an insulated aluminum ground. Nestled alongside this main power run is a built-in 18 AWG 9-conductor control cable wiring harness, providing the necessary paths for automated utility sensing, battery charging, and generator command intelligence without requiring a separate layout pipe.

ELECTRICAL AMPACITY & GENERATOR RUN RATINGS

Engineered to match the high-demand continuous loads of automated emergency standby equipment, this composite cable features distinct power limits based on insulation parameters and structural cooling boundaries:

• Maximum Current Capacity (75 degrees C Terminations): 75 AMPS This rating complies with National Electrical Code (NEC) Article 310 parameters for Type THHN/THWN-2 aluminum conductors terminated into standard 75 degrees C equipment lugs.

• Power Output Handling Range: 10 kW to 16 kW Optimized explicitly for single-phase 240V residential generator applications, providing safe mechanical and thermal headroom during cold starts and sudden utility transfer load spikes.

Key Features

• All-In-One Unified Design: Combines heavy aluminum power conductors and a multi-conductor copper control bundle within a single outer jacket, slashing trench labor, minimizing conduit jam scenarios, and eliminating multiple pipe runs.

• Compact-Stranded AA-8000 Aluminum Alloy: Power conductors are extruded using advanced AA-8000 series aluminum alloy, providing excellent flexibility, reduced cable weight, and highly reliable connections at standard equipment lugs.

• Integrated 18/9C Copper Control Core: Features a dedicated 9-conductor, 18 AWG copper signaling bundle that provides smooth transmission for automated automatic transfer switch (ATS) communication, smart digital monitoring, oil pressure sensors, and float chargers.

• Dual-Rated THHN / THWN-2 Elements: Internal power lines are insulated with tough polyvinyl chloride (PVC) and topped with a slick nylon armor skin, rated for dry environments up to 90 degrees C and wet subterranean environments up to 75 degrees C.

• Direct-Burial Outer Armor Jacket: Protected by an industrial-grade, sunlight-resistant, moisture-impervious PVC outer shield. This jacket allows the cable to be run inside standard PVC conduit, heavy metal raceways, or laid directly into open underground trenches where code permits.

Common Applications

• Automated Standby Generator Connections: Linking 10kW through 16kW residential and light industrial generators safely to their respective Automatic Transfer Switches (ATS).

• Whole-House Backup Infrastructure: Running high-amperage backup links for estate homes, rural agricultural facilities, and critical municipal pump sites.

• Multi-Zone ATS Communication Paths: Providing the unified power feed and remote-start signaling circuit between isolated generator docks and internal building sub-panels.

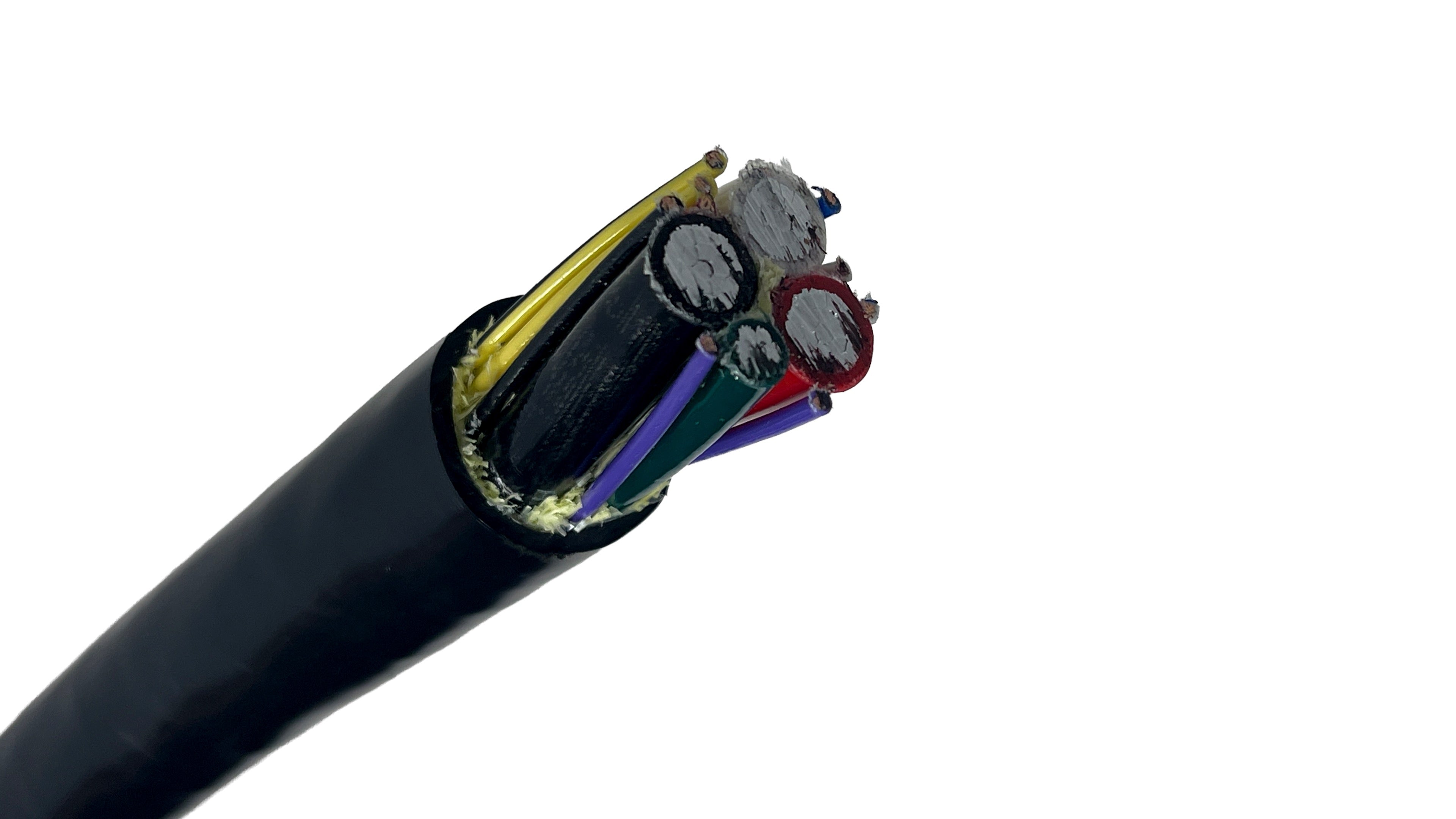

Cable Component Architecture (Cross-Section)

1. Main Power Elements: 3 independent 3 AWG compact-stranded aluminum conductors.

2. Equipment Ground: 1 insulated matching aluminum ground wire.

3. Control Bundle: 9 independent 18 AWG solid or stranded copper control lines enclosed in an inner protective binder wrap.

4. Outer Jacket: Rugged, moisture-proof, UV-resistant Black PVC outer skin.

Technical Specifications

• Power Conductor Size: 3 AWG

• Number of Power Conductors: 3 (Typically designated Black, Red, White for Single-Phase 120/240V systems)

• Power Conductor Material: AA-8000 Series Aluminum Alloy

• Ground Conductor Size: Fully sized aluminum ground

• Control Bundle Configuration: 18 AWG / 9-Conductor (Copper)

• Voltage Rating: 600 Volts Maximum

• Continuous Current Capacity: 75 Amps (Based on 75 degrees C termination limits)

• Insulation Type: PVC with Nylon Skin (THHN / THWN-2)

• Jacket Type: Polyvinyl Chloride (PVC) - Sunlight Resistant, Direct Burial Rated

• Compliance Standards: UL Listed, NEC Article 310, NEC Article 445 (Generators), RoHS Compliant

Technical Note: To prevent localized oxidation and terminal failures over time, all aluminum-to-copper transitions or connections at the generator terminal blocks must be coated with a certified anti-oxidant joint compound (such as Noalox or Penetrox). Tighten all mechanical terminal lugs strictly to the manufacturer's specified inch-pounds of torque using a calibrated torque wrench.

CABLE TYPE: 3 AWG-3C Aluminum Power with Ground + 18 AWG 9-Conductor Copper Control Composite Generator Cable (600V Rated)

DISCLAIMER: The technical information provided is for general reference only. Emergency standby generator systems and automatic utility transfer switches must strictly adhere to NFPA 70 (National Electrical Code), local utility company parameters, and the specific manufacturer’s wiring schematics. Always cross-reference the official engineering data sheet and local structural code books prior to pulling cable lengths or finalizing backup power hookups.

⚠️ The applications listed below are for informational and educational purposes only. Electrical code requirements vary significantly by region. Always consult a licensed electrician and your local building authority to verify compliance with the National Electrical Code (NEC®) for your specific project before purchasing or installing cable.

Common 3-3C w/ Ground + 18/9C Generator Cable Use Cases

• Mid-Sized Standby Generator Integration: Serves as the primary composite feeder cable connecting standard residential air-cooled standby generators (rated 10kW to 16kW) directly to automatic transfer switches (ATS).
• Smart Power & Control Consolidation: Combines 3 AWG aluminum power conductors and an integrated 18 AWG 9-conductor control wire bundle under one jacket, eliminating the need to install separate control lines for battery warmers, digital panel communications, and utility sensing.
• 75-Amp Emergency Load Management: Supplies a continuous 75 Amps of 600V power to keep critical household circuits running during a grid failure, including refrigerators, well pumps, lighting grids, internet networks, and select heating or cooling systems.
• Conduit Pulls & Trenching: Engineered with a tough, low-friction outer jacket optimized for pulling through underground Schedule 40 or Schedule 80 PVC conduits running between an outdoor generator concrete pad and an indoor garage or basement electrical panel.
• Auxiliary Property Backup Power: Deployed on rural homesteads, small hobby farms, and detached workshops to safely route automated emergency backup power to essential infrastructure.

Who Relies on 3-3C w/ Ground + 18/9C Generator Cable?

Target Industries

• Residential Standby Power Generation: Extensively utilized by generator contractors specializing in the installation of high-volume 12kW and 16kW home backup units.
• Electrical Residential Construction: Integrated into modern suburban developments and custom home builds where automated backup infrastructure is requested as an upgrade option.
• Rural Utilities & Remote Living: Chosen by property owners in storm-prone, coastal, or mountain regions requiring immediate, automated backup power systems.

Core Professionals & Buyers

• Certified Electricians & Generator Technicians: Field installers who specify this composite cable because it slashes labor times, replacing a dual-conduit or multi-wire pull with a single, code-compliant run.
• Electrical Project Estimators: Procurement specialists who utilize lightweight aluminum power conductors to achieve significant material and logistics savings over expensive copper lines.
• Home Builders & General Contractors: Decision-makers who need dependable, dual-purpose cabling that satisfies 600V technical specifications and passes building inspections easily.
• Electrical Inspectors: Regulatory code officers who verify proper ampacity ratings, ground continuity, and appropriate insulation boundaries between low-voltage signal circuits and high-amperage power lines.
