VFD CABLE

VFD (Variable Frequency Drive) Cable is a specialized electrical cable used to connect a Variable Frequency Drive controller to an electric motor. These cables are built to handle the demanding electrical conditions created by VFDs, including high-frequency voltage spikes and electromagnetic interference. Their design incorporates robust insulation, specialized shielding, and balanced grounding to protect motors, reduce electrical noise, and ensure efficient, reliable operation in industrial and automation settings. Read our VFD Cable Buyers Guide.

Need a quote?  Call us at: 833-268-8644 or email: sales@wireamerica.com

Filters

0 Products

FIlters

VARIABLE FREQUENCY DRIVE CABLE (VFD)

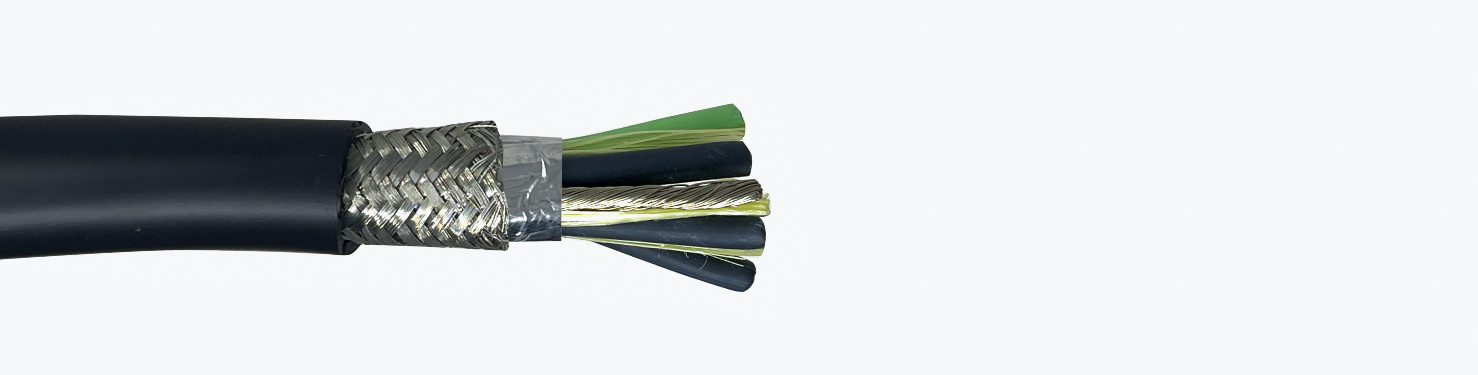

VFD cable is a specialized high-performance power cable designed specifically for the electrical connection between a variable frequency drive and an AC motor. Unlike standard tray cable, VFD cable is engineered to handle the complex electrical challenges created by pulse-width modulation (PWM) power, including high-voltage spikes (reflected waves), high-frequency noise, and capacitive discharge. Featuring a robust design with cross-linked polyethylene (XLPE) insulation, a dual-shielding system (foil and braid), and often a symmetrical grounding configuration, these cables contain electromagnetic interference (EMI) and protect motor bearings from premature failure. This ensures the longevity of your drive system and prevents signal interference with nearby sensors and control circuits.

Installation Note: To achieve the full benefit of VFD cable, it must be terminated using 360-degree grounding at both the drive and the motor. This is typically done with a specialized EMC (Electromagnetic Compatibility) cable gland that connects the cable's braid shield to the metal enclosure. Failure to properly ground the shield at both ends can allow stray currents to travel through the motor bearings, leading to "fluting" (pitting) and catastrophic motor failure. Always maintain separation between VFD cables and low-voltage signal cables to prevent crosstalk.

Key Features
  • Inverter-Grade XLPE Insulation: Provides superior dielectric strength to withstand high-voltage "corona" spikes and reflected waves that would melt standard PVC insulation.
  • Dual-Shielding System: Utilizes a combination of 100% coverage foil and a heavy tinned-copper braid to block high-frequency and low-frequency EMI/RFI.
  • Symmetrical Grounding: Many versions feature three split grounds nested between the power conductors to balance the magnetic field and reduce common-mode current.
  • Oil & Chemical Resistant: Encased in a rugged, industrial-grade PVC or TPE jacket that resists cutting, abrasion, and common industrial lubricants.
  • High-Flex Stranding: Features finely stranded tinned or bare copper conductors to allow for easier routing in tight industrial cabinets and cable trays.
  • Tray Cable (TC-ER) Rated: UL-listed for use in cable trays and as an "Exposed Run," allowing for conduit-free installation in many industrial environments.
  • Crush & Impact Resistance: Engineered to meet the rigorous physical requirements of a factory floor or heavy manufacturing facility.
Common Applications
  • Automated Manufacturing: The primary power link for VFD-controlled motors on assembly lines and conveyor systems.
  • HVAC Blowers & Pumps: Powering large-scale fans and water pumps where motor speed must be precisely modulated for energy efficiency.
  • Water & Wastewater Treatment: Ideal for powering massive submersible pumps and centrifuges in moist, electronically dense environments.
  • Food & Beverage Processing: Used in wash-down areas to power mixers, grinders, and packaging machinery.
  • Oil & Gas Extraction: Providing reliable power to VFD-driven compressors and drilling equipment in harsh conditions.
  • Mining & Heavy Industry: Durable enough for the high-vibration environment of crushers, mills, and heavy-duty fans.
  • Renewable Energy Systems: Used in solar and wind power conversion where high-frequency switching occurs.
