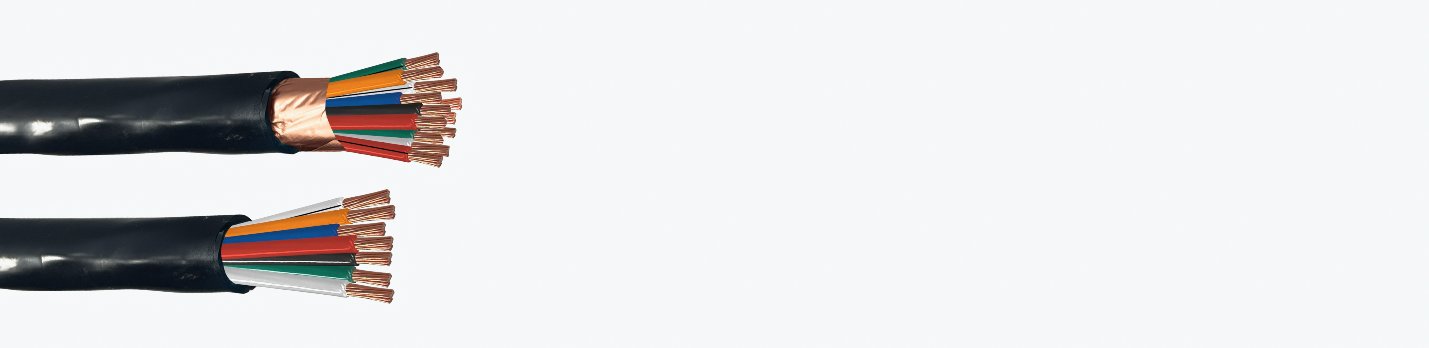

SUBSTATION CONTROL CABLE

Substation Control Cables are heavy-duty, multi-conductor signaling cables engineered specifically for the harsh electrical environments of utility substations and generation facilities. Operating at 600V, these cables connect critical control circuits, protective relays, automated switchgear, and monitoring instruments. Because they run parallel to high-voltage transmission lines, they are manufactured with robust shielding systems—typically heavy copper tape or aluminum foil with a tinned copper braid—to mitigate the severe effects of electromagnetic interference (EMI) and radio frequency interference (RFI). Encased in rugged, flame-retardant, and sunlight-resistant jackets like PVC or CPE, these cables are fully rated for installation in cable trays, direct burial, or underground ducts.

Need a quote?  Call us at: 833-268-8644 or email: sales@wireamerica.com

Have Questions?

Call Us. Icon

Call Us.

(833) 268-8644

Email Us

Substation Control Cables are heavy-duty, multi-conductor signaling cables engineered specifically for the electrically noisy environments of utility substations, switching stations, and generation facilities. They serve as the nervous system of the facility, transmitting critical monitoring data, control signals, and automated commands between protective relays, switchgear, and control panels to ensure uninterrupted, safe grid operation.

Because high-voltage equipment in substations generates massive electromagnetic (EMI) and radio frequency (RFI) interference, signal shielding is critical. Our shielded Substation Control Cables feature robust shielding systems designed to isolate and ground this noise.

While both are run throughout a substation, their internal designs serve completely different purposes:

  • Control Cables: Focus on signal integrity and low-voltage command transmission (600V rated). They feature multiple small-gauge copper conductors (often 10 AWG to 14 AWG) packed inside a single jacket, coupled with thick shielding to prevent signal corruption.
  • Power Cables: Engineered specifically to deliver high-capacity power. They feature much larger conductor sizes (often up to 1000 MCM), utilize thicker insulation, and are built to handle higher voltages and thermal loads.

Due to their exceptionally rugged construction, these cables are highly versatile and fully rated for a wide range of challenging installation pathways:

  • Indoor & Outdoor Cable Trays
  • Direct Burial in soil and utility trenches
  • Underground Ducts and concrete-encased conduits
  • Aerial Installations (when supported by a messenger wire)

Yes. Wire America is a leading supplier of utility-grade control cables. We understand that electrical contractors and substation builders need exact footage to prevent waste and speed up pull times. We offer custom cut-to-length services on our multi-conductor cables so you get the exact length your design layout requires.

We process and pack your orders rapidly, offering fast and reliable nationwide shipping with standard orders typically delivered to your job site within 2-4 business days. Expedited shipping options are available on the checkout page.

View Full FAQ
Call Us. Icon

Call Us.

(833) 268-8644

Email Us

Substation Control Cable (600V)

Engineered for the critical infrastructure sector, 600V Substation Control Cables serve as the vital communication links within high-voltage utility environments and power generation facilities. These heavy-duty, multi-conductor cables are specifically built to connect protective relays, automated switchgear, and essential monitoring instruments. To combat the intense electromagnetic interference (EMI) and radio frequency interference (RFI) generated by nearby transmission lines, they utilize robust shielding networks, including heavy copper tape or aluminum foil with a tinned copper braid. Encased in rugged, flame-retardant, and UV-resistant jackets like PVC or CPE, these cables deliver uncompromised signal integrity whether installed in open cable trays, underground ducts, or direct burial applications.

Key Features
  • Advanced EMI/RFI Shielding: Available with helical copper tape or overall foil/braid shields to isolate sensitive control signals from high-voltage grid noise.
  • Rugged Conductor Insulation: Utilizes high-dielectric XLPE (XHHW-2) or PVC/Nylon (THHN/THWN) to ensure long-term thermal stability and moisture resistance.
  • Subterranean & Outdoor Rated: Specifically engineered to resist sunlight (UV) degradation, moisture wicking, and soil chemicals for direct burial or duct runs.
  • Flame Retardant: Complies with UL 1277 and IEEE 1202 vertical tray flame tests, preventing the cable from propagating fire along a tray run.
  • Stationary Durability: Designed with a heavy-wall outer jacket (often industrial-grade PVC or Chlorinated Polyethylene) to withstand the physical stress of pulling through long trench networks.
Common Applications
  • Protective Relay Circuits: Linking high-voltage circuit breakers to protective relays in the control house to execute rapid trip commands.
  • SCADA & Telemetry Systems: Routing data from substation transducers, meters, and sensors back to automated remote monitoring hubs.
  • Switchgear Control: Providing the low-voltage control lines necessary to safely operate motorized disconnect switches and breakers.
  • Transformer Monitoring: Connecting dissolved gas analyzers, temperature gauges, and oil level sensors to central control panels.
  • DC Auxiliary Systems: Wiring substation battery banks to backup emergency systems and control panels.
  • Generation Plant Control: Used as main control links in traditional power plants, wind sub-stations, and utility-scale solar fields.
