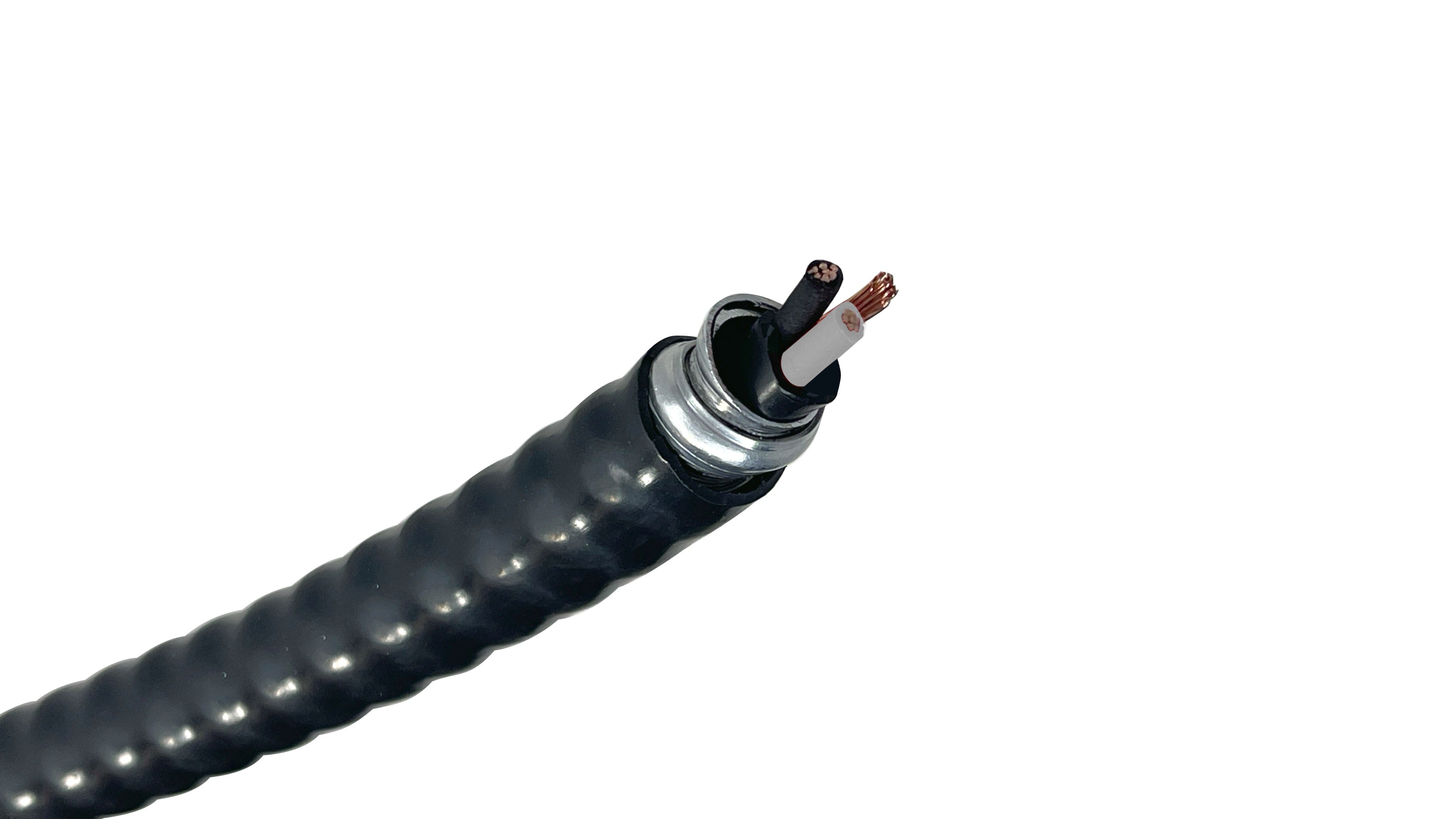

8/2 TECK90 Cable with Ground - 1000V Aluminum Interlocked Armor (AIA)

Engineered for harsh industrial and direct-burial applications, 8 AWG 2-Conductor TECK90 Cable delivers complete 1000V circuit protection without installing rigid conduit.

Featuring two stranded copper conductors, a #10 ground, dual PVC jackets, and flexible Aluminum Interlocked Armor (AIA), it is the ultimate direct-burial solution for 55A industrial power circuits, heavy machinery feeds, and cable trays.

Key Features & Benefits: 8/2 TECK90 1000V Cable

• Dual-Jacket Direct Burial Protection: The inner and outer lead-free PVC jackets isolate the interlocked aluminum armor from moisture, soil chemicals, and mechanical abrasion, allowing direct installation in open trenches or wet raceways.

• 1000V Heavy-Duty Rating: Built with RW90 XLPE thermoset insulation rated for applications up to 1000V and continuous operating temperatures from -40°C to +90°C in wet or dry locations.

• High-Conductivity Copper Layout: Features two stranded bare copper circuit conductors (8 AWG) and a 10 AWG bare copper ground wire for reliable grounding and ampacity.

• Flexible Interlocked Armor (AIA): The aluminum interlocked armor shields internal conductors from physical impacts, crushing, and soil shifts without sacrificing flexibility during tight pulls.

• Severe Weather & Hazardous Location Approved: Rated for -40°C cold impact and certified for hazardous locations (CSA C22.2 No. 174) and FT4 flame resistance.

Technical Specifications: 8 AWG 2C TECK90 Cable

• Conductor Size: 8 AWG

• Number of Power Conductors: 2

• Conductor Material: Stranded Bare Copper Class B (ASTM B8)

• Ground Wire Size: 10 AWG Bare Stranded Copper

• Insulation Type: Cross-Linked Polyethylene (XLPE) / Type RW90

• Inner Jacket: Flame-retardant, Lead-Free Black PVC

• Armor Type: AIA (Aluminum Interlocked Armor)

• Protective Outer Jacket: -40°C PVC - Black (Sunlight, Water & Chemical Resistant)

• Voltage Rating: 1000 Volts

• Temperature Rating: -40°C to +90°C

• Ampacity Rating (@ 90°C): 55 Amps (per CE Code Part 1, Table 2)

• Insulation Thickness: 0.045 inches

• Armor Diameter: 0.82 inches

• Approximate Outer Diameter: 0.90 inches

• Approximate Net Weight: 392 lbs per 1,000 ft

• Compliance Standards: CSA C22.2 No. 131, CSA C22.2 No. 174 (Hazardous Locations), CSA FT1 & FT4, IEEE 1202, UL 1581, IEEE 383, ICEA T-30-520, RoHS Compliant

Common 8/2 TECK90 Cable Applications

• Industrial & Chemical Processing: Routing power, control, and lighting circuits in chemical plants, paper mills, steel facilities, and food processing operations.

• Mining & Heavy Utilities: Powering pumps, motors, compressors, and generation facilities in harsh outdoor environments.

• Direct Burial & Cable Trays: Direct-buried underground branch circuits between buildings, or exposed in cable trays and open troughs.

Ordering & Fulfillment

• Cut to Length: Sold by the foot or in custom reel quantities to match your exact trench layout and eliminate scrap material.

• Fast Processing: Ships directly from regional distribution hubs to guarantee minimal transit time and lower freight costs.

• Submittal Assistance: Need cut sheets or manufacturer technical data sheets for engineering approval? Call our sales desk directly at 833-268-8644 or email sales@wireamerica.com.

All values are nominal and subject to correction
Ampacity is based on CE Code Part 1, Table 2 for 3 conductors in raceway (conduit). Ampacity of 4 conductor cable is based on 3 current-carrying conductors and 1 neutral. Ampacity at 5 or more conductors is modified by Table 5C.

Common 8 AWG 2C TECK90 Cable Use Cases

• Industrial Power & Branch Circuits: Feeds 1000V or 600V single-phase industrial equipment, small motors, space heaters, and automated processing loops in manufacturing environments.
• Direct Underground Burial: Designed to lay directly into open dirt trenches without protective PVC or rigid metal conduit, connecting main distribution panels to outlying structures or machinery pads.
• Petrochemical & Hazardous Area Routing: Deployed in refineries, chemical facilities, and processing plants where its dual-jacketed containment meets tight regulations for Class I, Division 1 and 2 explosive atmospheres when properly glanded.
• Wet & Corrosive Wash-Down Areas: Ideal for water treatment facilities, paper mills, and food processing plants due to dual lead-free PVC jackets that resist moisture, acids, and chemical vapors.
• Commercial Auxiliary Power: Supplies reliable power to high-intensity outdoor perimeter lighting, automated security gates, and remote HVAC systems across large commercial footprints.

Who Relies on 8 AWG 2C TECK90 Cable?

Commonly Served Industries

• Mining & Heavy Resource Extraction: Utilized in surface and underground facilities to power auxiliary equipment under harsh physical strain.
• Oil, Gas & Chemical Processing: A staple wire architecture for refineries requiring chemical- and flame-retardant armored power runs.
• Heavy Industrial & Commercial Construction: Installed across factory floors, utility plants, and infrastructure projects needing heavy crush protection.

Core Professionals & Buyers

• Industrial Electricians: Field technicians who choose TECK90 to eliminate the labor-intensive process of bending rigid pipe and pulling individual wires.
• Electrical Engineers: Designers who leverage thermoset RW90 XLPE insulation (rated to 1000V) for thermal stability and high reliability under heavy electrical load.
• Project Estimators & Buyers: Supply chain managers who leverage lightweight interlocked aluminum armor (AIA) to lower shipping costs and reduce load weight on cable trays.
• Electrical Safety Inspectors: Compliance officers who verify grounding continuity via the internal bare ground wire and confirm strict code adherence in hazardous locations.

⚠️ The applications listed above are for informational and educational purposes only. Electrical code requirements vary significantly by region. Always consult a licensed electrician and your local building authority to verify compliance with the Canadian Electrical Code (CEC) or National Electrical Code (NEC®) for your specific project before purchasing or installing cable.
