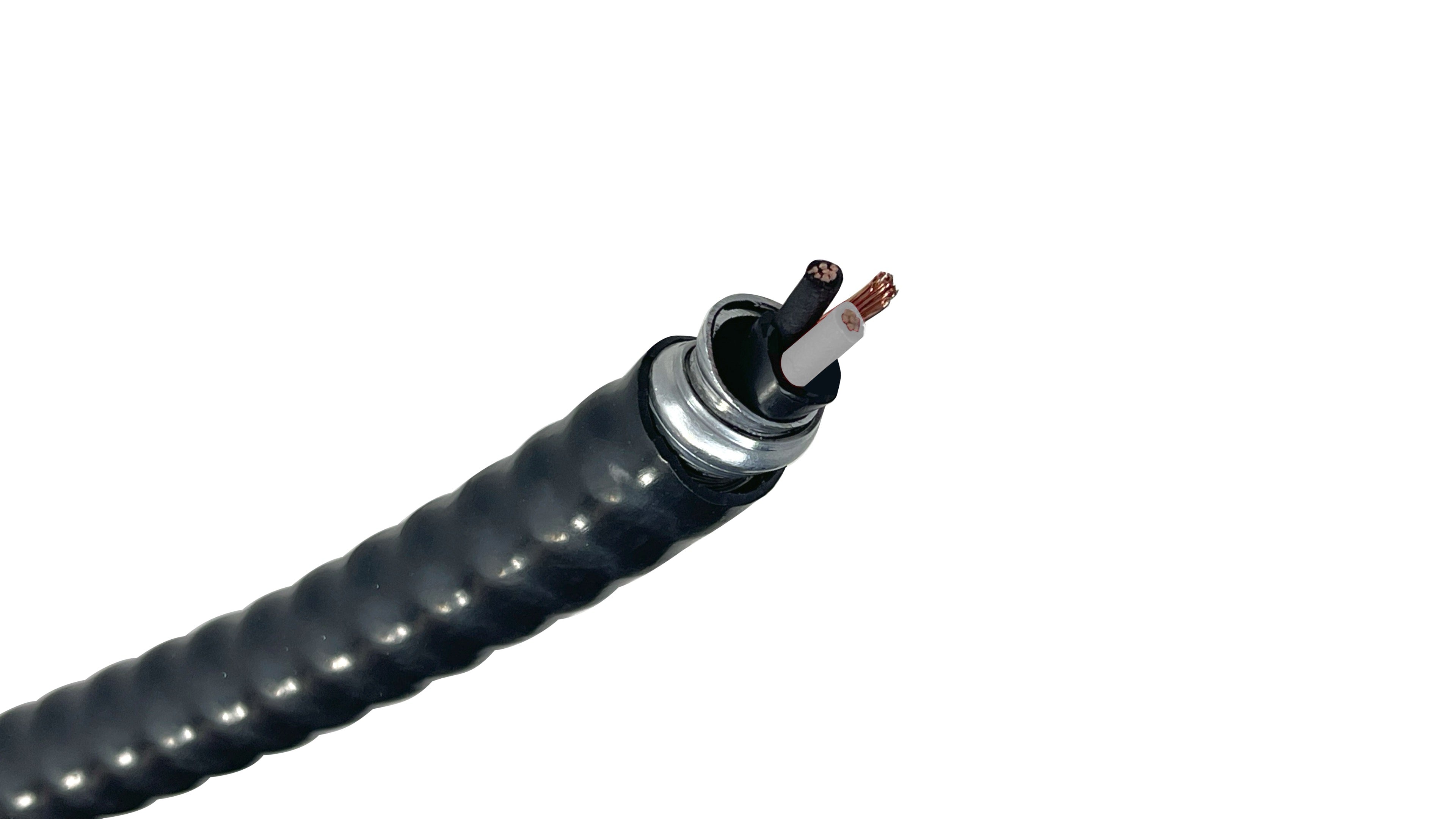

4/2 TECK90 Cable with Ground - 1000V Aluminum Interlocked Armor (AIA)

Engineered for harsh industrial and heavy-utility applications, 4 AWG 2-Conductor TECK90 Armored Cable delivers complete 1000V single-phase power and circuit protection without installing rigid conduit runs.

Featuring two stranded copper conductors, an 8 AWG bare copper ground wire, dual PVC jackets, and flexible Aluminum Interlocked Armor (AIA), it transitions seamlessly from indoor cable trays and concrete barriers directly into outdoor aerial runs or subterranean direct-burial trenches.

Key Features & Benefits: 4/2 TECK90 1000V Armored Cable

• Dual-Jacket Direct Burial Protection: The inner bedding PVC cushions the core, while the heavy-duty -40°C outer PVC jacket seals the aluminum armor against water, corrosive soil chemicals, and mechanical abrasion.

• 1000V Heavy-Duty Rating: Built with RW90 XLPE thermoset insulation rated up to 1000V and continuous operating temperatures from -40°C to +90°C in wet or dry locations.

• Single-Phase 95A Power Architecture: Features two 4 AWG stranded bare copper circuit conductors and an 8 AWG bare copper ground wire for high thermal efficiency and continuous load capacity.

• Flexible Interlocked Armor (AIA): The aluminum interlocked armor shields internal conductors from crushing loads and physical impacts while keeping the assembly flexible during pulls.

• Hazardous Location & Acid Gas Certified: Rated CSA HL, FT1/FT4 flame resistant, IEEE 1202, and AG14 compliant for harsh chemical and petrochemical plants.

Technical Specifications: 4 AWG 2C TECK90 Armored Cable

• Conductor Size: 4 AWG

• Number of Power Conductors: 2

• Conductor Material: Stranded Soft-Drawn Bare Copper Class B (ASTM B8)

• Ground Wire Size: 8 AWG Uninsulated Bare Stranded Soft Drawn Copper

• Insulation Type: Cross-Linked Polyethylene (XLPE) / Type RW90

• Insulation Thickness: 0.060 inches

• Inner Jacket: Lead-free, Flame-Retardant, Moisture- & Sunlight-Resistant Black PVC

• Armor Type: AIA (Aluminum Interlocked Armor)

• Protective Outer Jacket: -40°C Black PVC (Water, Chemical, Sunlight & Abrasion Resistant)

• Voltage Rating: 1000 Volts (1kV)

• Temperature Rating: -40°C Minimum / +90°C Continuous Operation

• Ampacity Rating: 95 Amps (per CE Code Part 1, Table 2)

• Armor Diameter: 1.07 inches

• Outer Jacket Diameter: 1.16 inches

• Approximate Net Weight: 744 lbs per 1,000 ft

• Compliance Standards: CSA C22.2 No. 131, CSA C22.2 No. 174 (Hazardous Locations), CSA FT1, CSA FT4, IEEE 383, UL 1581, IEEE 1202, ICEA T-30-520, RoHS Compliant

💡 Technical Installation Note: Approved wet-location/explosion-proof TECK glands (such as Star Teck or TMC series) must be utilized to ensure proper ground bonding continuity and maintain watertight seals at enclosures.

Common 4/2 TECK90 Cable Applications

• Subpanel Feeds & Heavy Equipment: Delivering high-ampacity feeder power to sub-panels in detached workshops, commercial facilities, food processing plants, and outbuildings.

• EV Charging & Utility Infrastructure: Dedicated 2-wire circuit feeds for high-output Level 2 / Level 3 commercial EV chargers, site lighting networks, and outdoor distribution loops.

• Direct-Burial Trenching: Laid directly into underground trenches without conduit for agricultural equipment, well pumps, and remote utility sheds.

• Industrial Motors & HVAC Equipment: Feeding heavy 2-conductor power circuits to commercial compressors, chillers, paper mills, mines, and industrial manufacturing plants.

Ordering & Fulfillment

• Cut to Length: Sold by the foot to match your exact trench layout and eliminate scrap material.

• Fast Processing: Ships directly from regional distribution hubs to guarantee minimal transit time.

• Submittal Assistance: Need cut sheets or technical data sheets for engineering approval? Contact our sales desk at 833-268-8644 or sales@wireamerica.com.

DISCLAIMER: The technical information provided is for general reference only. Multi-conductor industrial armored systems must strictly comply with the Canadian Electrical Code (CEC), the National Electrical Code (NEC), and all applicable provincial or municipal enforcement safety mandates. Always verify official product submittal sheets and exact component metrics with your cable manufacturer before establishing trench depths, panel punching maps, or physical cable tray layouts.

Common 4 AWG 2C TECK90 Cable Use Cases

• Pure 240V Feeds: The premier armored cable for routing heavy 240V-only single-phase circuits to dedicated machinery outbuildings, agricultural equipment, or 240V-only distribution panels requiring no neutral wire (2 hots + 1 bare ground).
• Dedicated Single-Phase Motors & Heavy Equipment: Powering 208V, 240V, or 480V heavy 2-wire industrial motors, hydraulic pumps, commercial compressors, and heavy processing machinery where a neutral wire is not required.
• High-Output Commercial Level 2 EV Chargers: Supplies dedicated branch circuits for continuous, high-output Level 2 EV charging stations requiring direct-burial, crush-resistant feeder cable without a neutral.
• Commercial HVAC Units & Heavy Chillers: Feeds single-phase rooftop air conditioning units (RTUs), commercial refrigeration compressors, industrial blowers, and heavy HVAC equipment.
• Direct-Burial Utility & Infrastructure Feeds: Designed for direct underground burial without conduit to supply outdoor parking lot lighting loops, security gate controllers, and remote utility sheds.
• Mining, Pulp & Chemical Processing: Built to run heavy power feeders or open cable tray circuits across chemical plants, subterranean mining shafts, sawmills, and paper mills exposed to extreme mechanical impacts, chemicals, and standing water.

Who Relies on 4 AWG 2C TECK90 Cable?

Commonly Served Industries

• Industrial Construction & Manufacturing: Installed across factory floors, paper mills, steel mills, and processing plants requiring heavy crush protection and 1000V reliability. PDF
• Oil, Gas & Chemical Processing: A standard specification for hazardous facilities requiring CSA HL certification, flame-retardant (FT1/FT4/IEEE 1202), and acid-gas (AG14) resistant armored power feeds. PDF
• Commercial Infrastructure & Agriculture: Used on farms, food processing facilities, commercial parking complexes, and utility sites for direct-buried underground feeds. PDF

Core Professionals & Buyers

• Electrical Contractors: Field technicians who choose TECK90 to eliminate the labor-intensive process of bending rigid conduit and pulling individual conductors in underground or exposed runs. PDF
• Industrial Engineers: Designers who leverage thermoset RW90 XLPE insulation (rated to 1000V) for thermal stability, cold-weather flexibility (-40°C), and hazardous location compliance. PDF
• Project Estimators & Buyers: Supply chain managers who leverage lightweight interlocked aluminum armor (AIA) to lower shipping costs, cut scrap by ordering custom lengths, and speed up field installation. PDF

⚠️ Disclaimer: The applications listed above are for informational and educational purposes only. Electrical code requirements vary significantly by region. Always consult a licensed electrician and your local building authority to verify compliance with the Canadian Electrical Code (CEC) or National Electrical Code (NEC®) for your specific project before purchasing or installing cable.
