Parent SKU : XUSEAL4/0
SKU : XUSEAL4/0-250

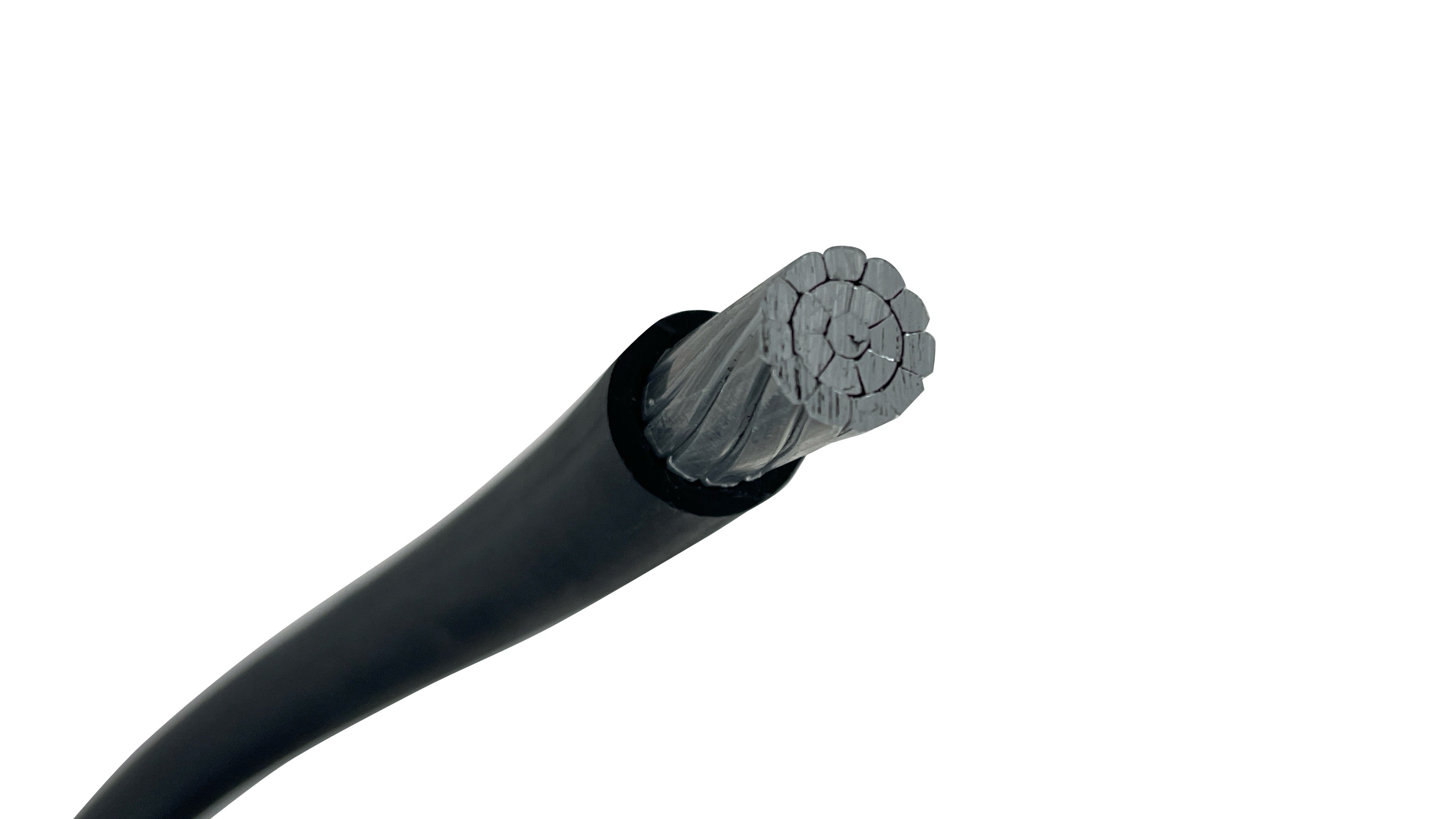

A heavy-duty 4/0 AWG single-conductor aluminum building wire engineered for underground service entrance feeds, direct burial power distribution, raceways, and branch circuits. Constructed with compact 8000 series aluminum alloy and wrapped in rugged cross-linked polyethylene (XLP) insulation, this 600V triple-rated cable (Direct Burial, Sunlight Resistant & Oil/Gas Resistant) provides extreme resistance to mechanical abrasion, moisture, and chemical exposure in harsh wet or dry environments.
When routing power below grade, into main service panels, or through exterior raceways, long-term environmental protection is essential. 4/0 AWG USE-2 aluminum wire balances cost-effective current-carrying capacity with lightweight, flexible handling. Featuring compact Class B stranding and heavy-duty XLP insulation, it pulls smoothly through conduits and survives direct earth trenching without requiring a protective outer jacket.
Triple-Rated Versatility (RHH/RHW-2/USE-2): Multi-listed for underground service entrance (USE-2), wet-location thermal endurance (RHW-2), and dry-location high-heat applications (RHH).
Direct Burial Certified: Heavy XLP insulation permits direct underground trenching for outdoor lighting, agricultural outbuildings, and subterranean subpanel feeds without conduit.
Compact 8000 Series Aluminum: Formulated with AA-8000 series aluminum alloy for maximum electrical conductivity, improved terminal connection reliability, and lightweight installation compared to copper.
Environmental Resistance: Fully rated as sunlight resistant, oil resistant (PRI/PRII), and gas/oil resistant (GRI/GRII) for industrial and petroleum-exposed environments.
Conductor Size: 4/0 AWG
Conductor Material: Class B Stranded Compact Bare 8000 Series Aluminum Alloy
Conductor Diameter: 0.476" (12.09 mm)
Insulation Material: Abrasion, heat, and moisture-resistant Cross-Linked Polyethylene (XLP)
Insulation Thickness: 0.080" (2.03 mm)
Nominal Overall Diameter: 0.638" (16.21 mm)
Net Weight: 269 lbs / kft
Ampacity: 205 Amps @ 90°C (NEC Table 310.16; 180 Amps @ 75°C termination rating)
Voltage Rating: 600 Volts
Temperature Rating: 90°C Wet or Dry
Industry Designation: #4/0 1C AL RHH/RHW-2/USE-2 600V XLP
UL Listings & Code Approvals: UL 44, UL 854, NEMA WC 70/ICEA S-95-658, ASTM B800, ASTM B801, ASTM B836, NEC Requirements, RUS Accepted, Sunlight Resistant, Oil Resistant PRI/PRII, Gas & Oil Resistant GRI/GRII
Underground Service Entrance (USE-2): Approved for underground service utility feeds running directly from transformers or pedestals to main service equipment.
Direct Burial & Trenching: Certified for direct earth burial without protective conduit for subpanel feeds, detached garages, shed power, and outdoor equipment.
Conduit & Raceway Wiring: Suitable for installation in underground and above-ground rigid conduit, PVC, and raceways per National Electrical Code guidelines.
Agricultural & Industrial Feeds: RUS Accepted and oil/gas resistant for agricultural facilities, livestock barns, fuel yards, and industrial plant infrastructure.
Disclaimer: All values are nominal and subject to standard manufacturing tolerances and manufacturer corrections. Always verify local AHJ, NEC, and engineering guidelines prior to installation.
| Wire Size (AWG/MCM) | 4/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 0.638 in. / 16.205 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| UL Listing Numbers | UL 44, UL 854 |
| Voltage Rating | 600V |
| Ampacity Rating | 205 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 44 UL 854 NEMA WC 70/ICEA S-95-658 Requirements of the NEC ASTM B800, B801, B836 RUS Accepted |
| Miscellaneous Information | All values are nominal and subject to correction. *Ampacities shown are for general use as specified by the National Electrical Code 2023 Edition section 310.16 |
| Primary Applications | Underground Service Entrance, General Purpose Building Wire, Raceways and Conduits, Wet or Dry Locations, Aerial Installations, Photovoltaic (Solar) Systems, Demanding Conditions. |
| Weight per Foot | 0.269 lb |
Disclaimer: Application examples are for planning purposes only. Always verify exact load calculations, local AHJ regulations, and NEC guidelines with a licensed electrician prior to installation.
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : XUSEAL4/0
SKU : XUSEAL4/0-250
Parent SKU : XUSEAL4/0
SKU : XUSEAL4/0-250
A heavy-duty 4/0 AWG single-conductor aluminum building wire engineered for underground service entrance feeds, direct burial power distribution, raceways, and branch circuits. Constructed with compact 8000 series aluminum alloy and wrapped in rugged cross-linked polyethylene (XLP) insulation, this 600V triple-rated cable (Direct Burial, Sunlight Resistant & Oil/Gas Resistant) provides extreme resistance to mechanical abrasion, moisture, and chemical exposure in harsh wet or dry environments.
When routing power below grade, into main service panels, or through exterior raceways, long-term environmental protection is essential. 4/0 AWG USE-2 aluminum wire balances cost-effective current-carrying capacity with lightweight, flexible handling. Featuring compact Class B stranding and heavy-duty XLP insulation, it pulls smoothly through conduits and survives direct earth trenching without requiring a protective outer jacket.
Triple-Rated Versatility (RHH/RHW-2/USE-2): Multi-listed for underground service entrance (USE-2), wet-location thermal endurance (RHW-2), and dry-location high-heat applications (RHH).
Direct Burial Certified: Heavy XLP insulation permits direct underground trenching for outdoor lighting, agricultural outbuildings, and subterranean subpanel feeds without conduit.
Compact 8000 Series Aluminum: Formulated with AA-8000 series aluminum alloy for maximum electrical conductivity, improved terminal connection reliability, and lightweight installation compared to copper.
Environmental Resistance: Fully rated as sunlight resistant, oil resistant (PRI/PRII), and gas/oil resistant (GRI/GRII) for industrial and petroleum-exposed environments.
Conductor Size: 4/0 AWG
Conductor Material: Class B Stranded Compact Bare 8000 Series Aluminum Alloy
Conductor Diameter: 0.476" (12.09 mm)
Insulation Material: Abrasion, heat, and moisture-resistant Cross-Linked Polyethylene (XLP)
Insulation Thickness: 0.080" (2.03 mm)
Nominal Overall Diameter: 0.638" (16.21 mm)
Net Weight: 269 lbs / kft
Ampacity: 205 Amps @ 90°C (NEC Table 310.16; 180 Amps @ 75°C termination rating)
Voltage Rating: 600 Volts
Temperature Rating: 90°C Wet or Dry
Industry Designation: #4/0 1C AL RHH/RHW-2/USE-2 600V XLP
UL Listings & Code Approvals: UL 44, UL 854, NEMA WC 70/ICEA S-95-658, ASTM B800, ASTM B801, ASTM B836, NEC Requirements, RUS Accepted, Sunlight Resistant, Oil Resistant PRI/PRII, Gas & Oil Resistant GRI/GRII
Underground Service Entrance (USE-2): Approved for underground service utility feeds running directly from transformers or pedestals to main service equipment.
Direct Burial & Trenching: Certified for direct earth burial without protective conduit for subpanel feeds, detached garages, shed power, and outdoor equipment.
Conduit & Raceway Wiring: Suitable for installation in underground and above-ground rigid conduit, PVC, and raceways per National Electrical Code guidelines.
Agricultural & Industrial Feeds: RUS Accepted and oil/gas resistant for agricultural facilities, livestock barns, fuel yards, and industrial plant infrastructure.
Disclaimer: All values are nominal and subject to standard manufacturing tolerances and manufacturer corrections. Always verify local AHJ, NEC, and engineering guidelines prior to installation.
| Wire Size (AWG/MCM) | 4/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 0.638 in. / 16.205 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| UL Listing Numbers | UL 44, UL 854 |
| Voltage Rating | 600V |
| Ampacity Rating | 205 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 44 UL 854 NEMA WC 70/ICEA S-95-658 Requirements of the NEC ASTM B800, B801, B836 RUS Accepted |
| Miscellaneous Information | All values are nominal and subject to correction. *Ampacities shown are for general use as specified by the National Electrical Code 2023 Edition section 310.16 |
| Primary Applications | Underground Service Entrance, General Purpose Building Wire, Raceways and Conduits, Wet or Dry Locations, Aerial Installations, Photovoltaic (Solar) Systems, Demanding Conditions. |
| Weight per Foot | 0.269 lb |
Disclaimer: Application examples are for planning purposes only. Always verify exact load calculations, local AHJ regulations, and NEC guidelines with a licensed electrician prior to installation.
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||
4/0 Aluminum USE-2 / RHW-2 building wire is designed for direct burial power distribution, underground service entrance feeds, and branch circuits running through conduit. It is the workhorse wire size for standard 200A residential utility services, heavy commercial subpanels, agricultural operations, and industrial infrastructure
This wire carries three distinct UL listings for maximum versatility:
Yes, absolutely. The rugged cross-linked polyethylene (XLP/XLPE) insulation is engineered to withstand soil moisture, earth pressure, abrasion, and direct chemical exposure without requiring a conduit sleeve.
Yes. The black XLP insulation compound is explicitly listed as Sunlight Resistant, preventing UV degradation, cracking, or breakdown when exposed to direct sunlight above ground.
No. Per the National Electrical Code and UL standards, single-conductor USE-2 wire is explicitly not rated for use in cable trays. If your installation requires a multi-conductor cable approved for tray installations, raceways, or direct burial overhead feeds, view our 4/0-3C Aluminum Tray Cable (XLP/PVC).
Yes. When terminating 8000 series aluminum wire, always clean the bare conductor strands, apply a listed antioxidant joint compound (de-ox) to prevent oxidation, and tighten lugs to the manufacturer's specified torque rating using AL7CU or AL9CU dual-rated connectors.
Yes. If your electrical panel terminals or equipment disconnects are rated for copper conductors only, or if you need higher current-carrying capacity (260A @ 90°C) in a 4/0 AWG size, view our 4/0 AWG Copper USE-2 / RHW-2 / RHH Building Wire. Copper conductors provide higher conductivity and smaller conduit fill footprints compared to aluminum.
Wire America supplies premium aluminum building wire directly to electrical contractors, utilities, agricultural operations, and industrial builders. When you source through us, you get:
