Parent SKU : ALTC4/0-3G
SKU : ALTC4/0-3G-250

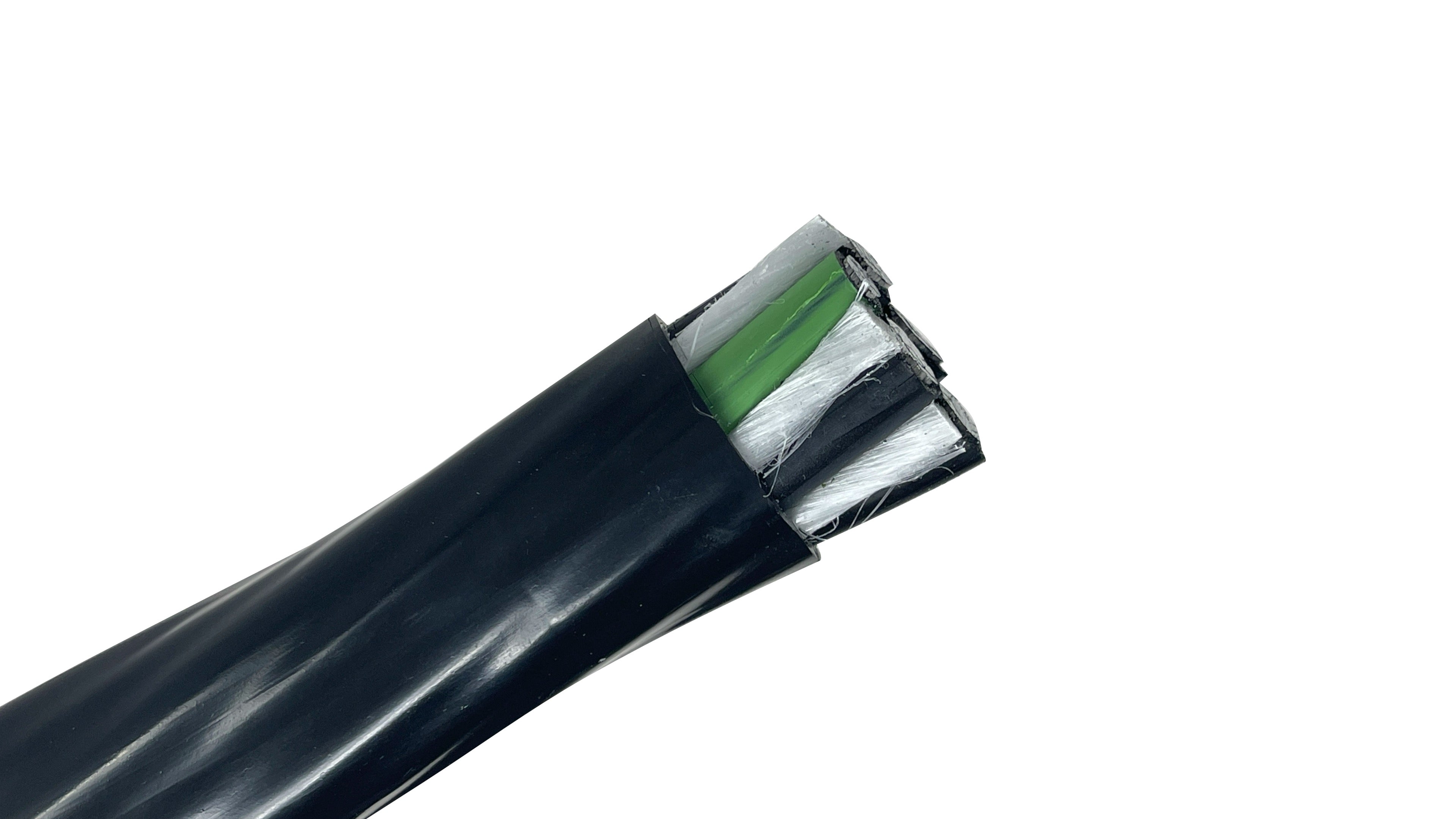

A heavy-duty 4/0 AWG 3-conductor aluminum tray cable (600V/1000V) engineered for power, control, signal, lighting, and branch circuit distribution in commercial, industrial, and utility environments. Constructed with Class B compact stranded 8000 series aluminum alloy conductors wrapped in flame-retardant XHHW-2 insulation, this cable is protected by a heavy-duty, sunlight- and moisture-resistant black Polyvinyl Chloride (PVC) outer jacket. Featuring an Exposed Run (TC-ER-JP) rating, it can transition directly from cable trays to equipment or conduit without requiring metal armor or continuous conduit enclosures per NEC Article 336.
When routing multi-conductor power lines across commercial facilities, industrial plants, or outdoor sites, installation flexibility and physical durability are critical. Type TC-ER 4/0 3-conductor aluminum cable eliminates the high cost and labor of pulling individual conductors through rigid conduit. It is approved for direct earth burial, aerial messenger wire support, outdoor tray runs, and wet/dry industrial environments exposed to oils, chemicals, and sunlight.
Exposed Run Certified (TC-ER-JP): Listed for exposed runs between cable trays and utilization equipment or raceways per NEC Article 336, drastically reducing installation labor and conduit hardware costs.
3-Conductor Assembly with Ground: Contains 3 black insulated circuit conductors with ICEA Method 4 printed numbers ("1-One", "2-Two", "3-Three") plus 1 dedicated green insulated 2 AWG aluminum ground wire.
XHHW-2 Core Insulation: Individual conductors feature heat- and moisture-resistant cross-linked polyethylene (XHHW-2) insulation rated for 90°C wet or dry locations.
Industrial PVC Jacket: Tough black PVC outer sheath resists sunlight (UV), moisture, flame, petroleum oils (PRI/PRII), and direct burial earth pressure.
Hazardous Locations Approved: Approved for Class 1 and Class 2, Division 2 industrial hazardous locations per the National Electrical Code.
Conductor Size: 4/0
Number of Conductors: 3 Conductors + 1 Ground
Ground Wire Size: 2 AWG Green Insulated
Conductor Material: Class B Compact Stranded Bare 8000 Series Aluminum Alloy (ASTM B800/B801)
Insulation Material: Flame-Retardant Cross-Linked Polyethylene (FR-XLPE / XHHW-2 per UL 44)
Insulation Thickness: 0.055" (1.4 mm)
Jacket Material: Heat, oil, moisture, and sunlight-resistant Black PVC per UL 1277
Jacket Thickness: 0.080" (2.0 mm)
Nominal Overall Diameter: 1.47" (37.34 mm)
Net Weight: 1,126 lbs / kft
Ampacity: 180 Amps @ 75°C / 205 Amps @ 90°C (NEC Table 310.16)
Voltage Rating: 600V / 1000V
Temperature Rating: 90°C Wet or Dry
Color Code: ICEA Method 4 (Black insulation with printed numbers "1-One", "2-Two", "3-Three" and Green insulated ground)
Industry Designation: 4/0-3C +2G AL TC-ER XLP/PVC M4 600V/1000V
UL Listings & Code Approvals: UL Type TC-ER-JP, UL Standard 1277, UL 44 (XHHW-2), NEC Article 336, IEEE 1202/FT4 Flame Test, UL 2556, Direct Burial, Sunlight Resistant, Oil Resistant PRI/PRII, Gas & Oil Resistant GRI/GRII, Class 1 and Class 2, Division 2 Hazardous Locations
Industrial Cable Trays & Raceways: Primary power, control, and branch circuit distribution across ladder trays, wireways, and open raceways in industrial plants.
Exposed Equipment Connections (TC-ER): Routed open-air without conduit between cable trays, industrial machines, motor control centers (MCCs), and disconnect panels.
Direct Burial & Outdoor Utility Runs: Approved for direct earth trenching without conduit sleeves for outdoor lighting, facility distribution, and subpanel runs.
Class 1, Division 2 Hazardous Environments: Compliant for installation in chemical facilities, petroleum yards, processing plants, and industrial manufacturing sites.
Disclaimer: All values are nominal and subject to standard manufacturing tolerances and manufacturer corrections. Always verify local AHJ, NEC, and engineering guidelines prior to installation.
| Wire Size (AWG/MCM) | 4/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 1.47 in. / 37.34 mm |
| Jacket Type | (PVC) Polyvinyl Chloride |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 1277, UL 44, UL 2556, UL 1685 |
| Voltage Rating | 600V |
| Ampacity Rating | 205 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL Listed as TC-ER (Exposed Run) per UL Standard 1277, and used in accordance with NEC Article 336 UL 44 Type XHHW-2 ndividual conductors pass UL 2556 Horizontal Flame Test UL 1685 FT4/IEEE 1202 Flame Test Compliance Approved for Class 1 or 2, Division 2 industrial hazardous locations per NEC Rated at 90°C wet or dry Oil Resistant PRI/PRII conductors. Gas and Oil Res GRI/GRII conductors |
| Miscellaneous Information | All values are nominal and subject to correction. *Ampacities for not more than three current carrying conductors in raceway or cable or earth (directly buried), based on ambient temperature of 30°C per Table Note: 310.16 of the 2023 National Electrical Code |
| RoHS Compliance | Yes |
| Primary Applications | Industrial Power and Control Systems, Building Automation and Energy Management, Utility and Substation Wiring, Instrumentation and Process Control, Cable Tray Installations, Outdoor and Direct Burial. |
| Common Uses |
|
| Weight per Foot | 1.126 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : ALTC4/0-3G
SKU : ALTC4/0-3G-250
Parent SKU : ALTC4/0-3G
SKU : ALTC4/0-3G-250
A heavy-duty 4/0 AWG 3-conductor aluminum tray cable (600V/1000V) engineered for power, control, signal, lighting, and branch circuit distribution in commercial, industrial, and utility environments. Constructed with Class B compact stranded 8000 series aluminum alloy conductors wrapped in flame-retardant XHHW-2 insulation, this cable is protected by a heavy-duty, sunlight- and moisture-resistant black Polyvinyl Chloride (PVC) outer jacket. Featuring an Exposed Run (TC-ER-JP) rating, it can transition directly from cable trays to equipment or conduit without requiring metal armor or continuous conduit enclosures per NEC Article 336.
When routing multi-conductor power lines across commercial facilities, industrial plants, or outdoor sites, installation flexibility and physical durability are critical. Type TC-ER 4/0 3-conductor aluminum cable eliminates the high cost and labor of pulling individual conductors through rigid conduit. It is approved for direct earth burial, aerial messenger wire support, outdoor tray runs, and wet/dry industrial environments exposed to oils, chemicals, and sunlight.
Exposed Run Certified (TC-ER-JP): Listed for exposed runs between cable trays and utilization equipment or raceways per NEC Article 336, drastically reducing installation labor and conduit hardware costs.
3-Conductor Assembly with Ground: Contains 3 black insulated circuit conductors with ICEA Method 4 printed numbers ("1-One", "2-Two", "3-Three") plus 1 dedicated green insulated 2 AWG aluminum ground wire.
XHHW-2 Core Insulation: Individual conductors feature heat- and moisture-resistant cross-linked polyethylene (XHHW-2) insulation rated for 90°C wet or dry locations.
Industrial PVC Jacket: Tough black PVC outer sheath resists sunlight (UV), moisture, flame, petroleum oils (PRI/PRII), and direct burial earth pressure.
Hazardous Locations Approved: Approved for Class 1 and Class 2, Division 2 industrial hazardous locations per the National Electrical Code.
Conductor Size: 4/0
Number of Conductors: 3 Conductors + 1 Ground
Ground Wire Size: 2 AWG Green Insulated
Conductor Material: Class B Compact Stranded Bare 8000 Series Aluminum Alloy (ASTM B800/B801)
Insulation Material: Flame-Retardant Cross-Linked Polyethylene (FR-XLPE / XHHW-2 per UL 44)
Insulation Thickness: 0.055" (1.4 mm)
Jacket Material: Heat, oil, moisture, and sunlight-resistant Black PVC per UL 1277
Jacket Thickness: 0.080" (2.0 mm)
Nominal Overall Diameter: 1.47" (37.34 mm)
Net Weight: 1,126 lbs / kft
Ampacity: 180 Amps @ 75°C / 205 Amps @ 90°C (NEC Table 310.16)
Voltage Rating: 600V / 1000V
Temperature Rating: 90°C Wet or Dry
Color Code: ICEA Method 4 (Black insulation with printed numbers "1-One", "2-Two", "3-Three" and Green insulated ground)
Industry Designation: 4/0-3C +2G AL TC-ER XLP/PVC M4 600V/1000V
UL Listings & Code Approvals: UL Type TC-ER-JP, UL Standard 1277, UL 44 (XHHW-2), NEC Article 336, IEEE 1202/FT4 Flame Test, UL 2556, Direct Burial, Sunlight Resistant, Oil Resistant PRI/PRII, Gas & Oil Resistant GRI/GRII, Class 1 and Class 2, Division 2 Hazardous Locations
Industrial Cable Trays & Raceways: Primary power, control, and branch circuit distribution across ladder trays, wireways, and open raceways in industrial plants.
Exposed Equipment Connections (TC-ER): Routed open-air without conduit between cable trays, industrial machines, motor control centers (MCCs), and disconnect panels.
Direct Burial & Outdoor Utility Runs: Approved for direct earth trenching without conduit sleeves for outdoor lighting, facility distribution, and subpanel runs.
Class 1, Division 2 Hazardous Environments: Compliant for installation in chemical facilities, petroleum yards, processing plants, and industrial manufacturing sites.
Disclaimer: All values are nominal and subject to standard manufacturing tolerances and manufacturer corrections. Always verify local AHJ, NEC, and engineering guidelines prior to installation.
| Wire Size (AWG/MCM) | 4/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 1.47 in. / 37.34 mm |
| Jacket Type | (PVC) Polyvinyl Chloride |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 1277, UL 44, UL 2556, UL 1685 |
| Voltage Rating | 600V |
| Ampacity Rating | 205 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL Listed as TC-ER (Exposed Run) per UL Standard 1277, and used in accordance with NEC Article 336 UL 44 Type XHHW-2 ndividual conductors pass UL 2556 Horizontal Flame Test UL 1685 FT4/IEEE 1202 Flame Test Compliance Approved for Class 1 or 2, Division 2 industrial hazardous locations per NEC Rated at 90°C wet or dry Oil Resistant PRI/PRII conductors. Gas and Oil Res GRI/GRII conductors |
| Miscellaneous Information | All values are nominal and subject to correction. *Ampacities for not more than three current carrying conductors in raceway or cable or earth (directly buried), based on ambient temperature of 30°C per Table Note: 310.16 of the 2023 National Electrical Code |
| RoHS Compliance | Yes |
| Primary Applications | Industrial Power and Control Systems, Building Automation and Energy Management, Utility and Substation Wiring, Instrumentation and Process Control, Cable Tray Installations, Outdoor and Direct Burial. |
| Common Uses |
|
| Weight per Foot | 1.126 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||
4/0 3-Conductor Aluminum Tray Cable (Type TC-ER) building wire is designed for power distribution, branch circuits, control networks, and heavy machinery feeds in commercial and industrial settings. It contains three 4/0 AWG circuit conductors and a 2 AWG ground wire, making it ideal for 3-phase 3-wire system installations or high-amperage single-phase loads without neutral.
TC-ER stands for Tray Cable - Exposed Run under UL 1277 standards. Under NEC Article 336, cables carrying this rating pass rigorous crush and impact testing, permitting them to be installed as exposed wiring outside of cable trays without requiring metal armor or conduit.
Yes, absolutely. This cable is UL-listed for Direct Burial. Its heavy PVC outer jacket and XHHW-2 insulated conductors protect the assembly against soil moisture, earth pressure, and direct chemical exposure without requiring a conduit sleeve.
Yes. It is UL approved for use in Class 1 and Class 2, Division 2 industrial hazardous locations per National Electrical Code standards. Its outer jacket passes the rigorous IEEE 1202/FT4 flame test and is resistant to gas and oils (PRI/PRII).
Yes. When terminating 8000 series aluminum conductors, always wire-brush the bare strands, apply a listed antioxidant joint compound (de-ox) to prevent oxidation, and tighten terminal lugs to the manufacturer's specified torque rating using AL7CU or AL9CU dual-rated connectors.
Yes. If your equipment disconnects require copper conductors, or if you require higher ampacity in a compact footprint, view our 4/0 3-Conductor Copper Tray Cable Type TC-ER (THHN/PVC).
