Parent SKU : TGGC4-3
SKU : TGGC4-3-250

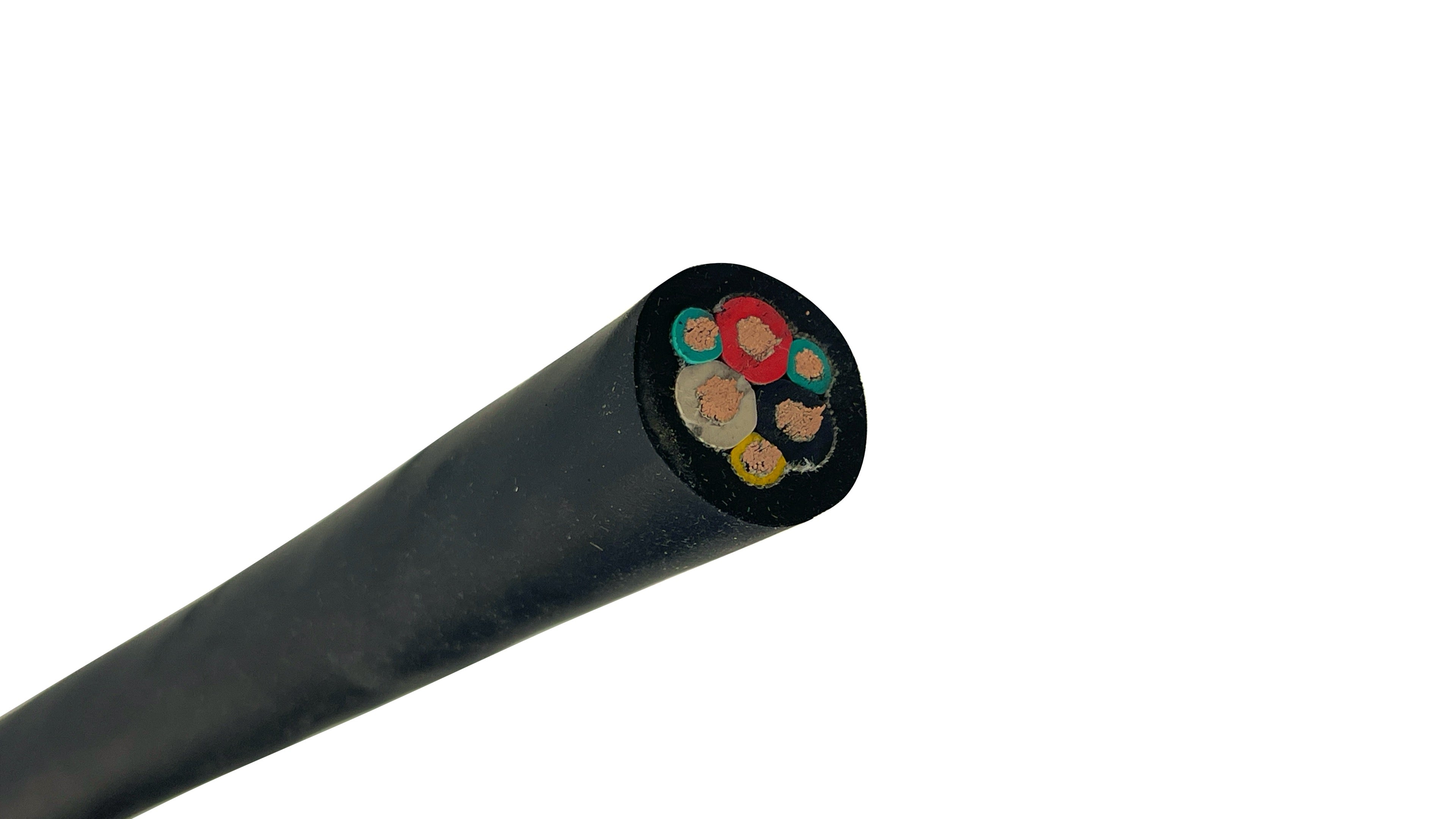

4 AWG 3 Conductor Type G-GC 2000V Mining Cable W/ Dual Grounds & Ground Check is engineered for rugged underground and open-pit mining environments. It delivers continuous trailing power to heavy mobile equipment without tearing, cracking, or failing under extreme drag forces. Constructed with three flexible 4 AWG tinned copper conductors (259 stranding), dual #8 AWG grounds, a dedicated #10 AWG ground-check wire, and a nylon-reinforced CPE jacket, it absorbs severe impact, oil, and rock abrasion across operating temperatures from -40°C to +90°C.
Fail-Safe Ground Check Conductor: Features a dedicated yellow PP-insulated #10 AWG ground check wire that integrates with monitoring relays to instantly trip circuit breakers if ground continuity breaks.
High-Flex Tinned Copper Stranding: Built with 259 strands of soft-drawn tinned copper for exceptional flexibility, extended flex life, and superior protection against wire fatigue under continuous dragging.
Extreme Mechanical Durability: Reinforced with an internal open nylon braid and extra heavy-duty CPE compound to deliver outstanding impact, crush, tear, and severe rock abrasion resistance.
All-Weather & Chemical Resistance: Highly resistant to oil, grease, water, ozone, chemicals, and direct sunlight/UV exposure, ensuring reliable performance in harsh outdoor and underground environments.
High-Dielectric EPR Insulation: Ethylene-Propylene Rubber (EPR) insulation maintains superior thermal stability, dielectric strength, and flame resistance under continuous 2000V operating loads.
Engineering Overview
Application: AC trailing power supply for off-track mining equipment, continuous miners, shuttle cars, drills, cutting machines, conveyors, and pumps.
Voltage Rating: 2000 Volts (2kV).
Ampacity: 114 Amps @ 90°C (Based on 30°C ambient temperature per NEC Table 400.5(A)(2)).
Power Conductor Material: Annealed flexible stranded tinned copper (4 AWG, 259 stranding).
Insulation: Ethylene-Propylene Rubber (EPR) (0.060" / 1.52 mm thickness).
Grounding Conductors: Two annealed flexible stranded tinned copper grounds (2 #8 AWG) with green polyester tape.
Ground Check Conductor: One yellow polypropylene (PP) insulated flexible stranded tinned copper conductor (1 #10 AWG).
Color Code: Black, White, Red phase identification.
Jacket & Reinforcement: Black extra heavy-duty CPE thermosetting compound over an open nylon reinforcement braid.
Cable Outer Diameter: 1.14 inches (28.96 mm).
Approximate Weight: 1,048 lbs / 1,000 ft
Minimum Bend Radius: 6 x cable outer diameter (7.0 inches).
Temperature Rating: -40°C to +90°C (Wet or Dry).
Approvals & Compliance: MSHA Approved (P-7K-268101), UL Listed (E207132) Type G-GC 2000V 90°C Sun Res Oil Res, C(UL) FT1/FT5 (-40°C), ICEA S-75-381, CSA C22.2 No.96-17, ASTM B-33, UL 44, UL 1650.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
| Wire Size (AWG/MCM) | 4 AWG |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 259 |
| Outer Diameter (OD) (in/mm) | 1.140 in. / 28.96 mm |
| Jacket Type | Black heavy duty, integral-filled CPE thermosetting compound |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | (EPR) Ethylene-propylene rubber |
| UL Listing Numbers | UL 44, UL 1650 |
| Voltage Rating | 2000V |
| Ampacity Rating | 114 |
| Submersible | Yes |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 44, 1650 C(UL) FT1 & FT5 CSA C22.2 96-13 ICEA S-75-381/NEMA WC 58 ICEA S-95-658/NEMA WC 70 ASTM B33, B172 Oil Resistant, Sunlight Resistant 90°C Wet or Dry Shallow Submersible to 10m Rated and flexible at –40ºC to +90°C |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities based on 90ºC Conductor and 30ºC Ambient temperature per table 400.5(A)(2) of the National Electrical Code |
| Other Certifications | MSHA, CSA, cUL |
| RoHS Compliance | Yes |
| Primary Applications | Mining Equipment, Conveyors & Drills, Pumps & Dewatering, Surface & Underground Operations |
| Common Uses |
|
| Weight per Foot | 1.048 lb |
Real-world application examples are provided for educational and general planning purposes only. Project requirements vary based on system design, environmental factors, and local codes. Buyers and specifiers are responsible for verifying that all materials meet exact job specifications and comply with MSHA, NEC, and local electrical regulations. Always consult with a licensed electrical engineer prior to installation.
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : TGGC4-3
SKU : TGGC4-3-250
Parent SKU : TGGC4-3
SKU : TGGC4-3-250
4 AWG 3 Conductor Type G-GC 2000V Mining Cable W/ Dual Grounds & Ground Check is engineered for rugged underground and open-pit mining environments. It delivers continuous trailing power to heavy mobile equipment without tearing, cracking, or failing under extreme drag forces. Constructed with three flexible 4 AWG tinned copper conductors (259 stranding), dual #8 AWG grounds, a dedicated #10 AWG ground-check wire, and a nylon-reinforced CPE jacket, it absorbs severe impact, oil, and rock abrasion across operating temperatures from -40°C to +90°C.
Fail-Safe Ground Check Conductor: Features a dedicated yellow PP-insulated #10 AWG ground check wire that integrates with monitoring relays to instantly trip circuit breakers if ground continuity breaks.
High-Flex Tinned Copper Stranding: Built with 259 strands of soft-drawn tinned copper for exceptional flexibility, extended flex life, and superior protection against wire fatigue under continuous dragging.
Extreme Mechanical Durability: Reinforced with an internal open nylon braid and extra heavy-duty CPE compound to deliver outstanding impact, crush, tear, and severe rock abrasion resistance.
All-Weather & Chemical Resistance: Highly resistant to oil, grease, water, ozone, chemicals, and direct sunlight/UV exposure, ensuring reliable performance in harsh outdoor and underground environments.
High-Dielectric EPR Insulation: Ethylene-Propylene Rubber (EPR) insulation maintains superior thermal stability, dielectric strength, and flame resistance under continuous 2000V operating loads.
Engineering Overview
Application: AC trailing power supply for off-track mining equipment, continuous miners, shuttle cars, drills, cutting machines, conveyors, and pumps.
Voltage Rating: 2000 Volts (2kV).
Ampacity: 114 Amps @ 90°C (Based on 30°C ambient temperature per NEC Table 400.5(A)(2)).
Power Conductor Material: Annealed flexible stranded tinned copper (4 AWG, 259 stranding).
Insulation: Ethylene-Propylene Rubber (EPR) (0.060" / 1.52 mm thickness).
Grounding Conductors: Two annealed flexible stranded tinned copper grounds (2 #8 AWG) with green polyester tape.
Ground Check Conductor: One yellow polypropylene (PP) insulated flexible stranded tinned copper conductor (1 #10 AWG).
Color Code: Black, White, Red phase identification.
Jacket & Reinforcement: Black extra heavy-duty CPE thermosetting compound over an open nylon reinforcement braid.
Cable Outer Diameter: 1.14 inches (28.96 mm).
Approximate Weight: 1,048 lbs / 1,000 ft
Minimum Bend Radius: 6 x cable outer diameter (7.0 inches).
Temperature Rating: -40°C to +90°C (Wet or Dry).
Approvals & Compliance: MSHA Approved (P-7K-268101), UL Listed (E207132) Type G-GC 2000V 90°C Sun Res Oil Res, C(UL) FT1/FT5 (-40°C), ICEA S-75-381, CSA C22.2 No.96-17, ASTM B-33, UL 44, UL 1650.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
| Wire Size (AWG/MCM) | 4 AWG |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 259 |
| Outer Diameter (OD) (in/mm) | 1.140 in. / 28.96 mm |
| Jacket Type | Black heavy duty, integral-filled CPE thermosetting compound |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | (EPR) Ethylene-propylene rubber |
| UL Listing Numbers | UL 44, UL 1650 |
| Voltage Rating | 2000V |
| Ampacity Rating | 114 |
| Submersible | Yes |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 44, 1650 C(UL) FT1 & FT5 CSA C22.2 96-13 ICEA S-75-381/NEMA WC 58 ICEA S-95-658/NEMA WC 70 ASTM B33, B172 Oil Resistant, Sunlight Resistant 90°C Wet or Dry Shallow Submersible to 10m Rated and flexible at –40ºC to +90°C |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities based on 90ºC Conductor and 30ºC Ambient temperature per table 400.5(A)(2) of the National Electrical Code |
| Other Certifications | MSHA, CSA, cUL |
| RoHS Compliance | Yes |
| Primary Applications | Mining Equipment, Conveyors & Drills, Pumps & Dewatering, Surface & Underground Operations |
| Common Uses |
|
| Weight per Foot | 1.048 lb |
Real-world application examples are provided for educational and general planning purposes only. Project requirements vary based on system design, environmental factors, and local codes. Buyers and specifiers are responsible for verifying that all materials meet exact job specifications and comply with MSHA, NEC, and local electrical regulations. Always consult with a licensed electrical engineer prior to installation.
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||
4/3 Type G-GC is a heavy-duty 2000V trailing power cable constructed with three 4 AWG tinned copper circuit conductors, two #8 AWG insulated grounds, and one #10 AWG ground check conductor. Unlike standard Type G cable, Type G-GC includes this dedicated ground check wire to continuously monitor ground circuit integrity. It is specified for mobile and stationary heavy equipment in open-pit and underground mines, high-output pumps, drills, and heavy industrial jobsites.
The ground check conductor connects to ground-monitoring equipment to continuously verify ground circuit integrity. If the grounding path breaks or fails, the ground check system instantly trips the upstream circuit breaker to prevent shock hazards and equipment damage.
Yes. Wire America’s Type G-GC cable carries MSHA Approval (P-7K-268101) and fully complies with ICEA S-75-381 / UL 1650 standards for use in underground mines and surface mining operations.
Extremely resistant. It is built with an extra heavy-duty Chlorinated Polyethylene (CPE) outer jacket reinforced with an internal open nylon braid. This combination absorbs violent physical impacts, dragging forces, and severe rock abrasion without tearing or shearing the inner conductors.
The minimum bend radius is 6 times the cable outer diameter, which is 6.84 inches (6 × 1.14 inches). Following this standard prevents internal conductor fatigue, avoids insulation pinching, and ensures maximum cable flex life when wrapping on equipment reels or navigating tight tray turns.
All three are heavy-duty, flexible 2000V industrial power cables, but they differ in grounding architecture:
Yes! Wire America supplies all Type G-GC, Type G, and Type SHD-GC Mining Cable by the foot allowing you to buy the exact footage your job site requires. We also supply full bulk master spools for major project orders. Order online or call our technical sales desk directly at (833) 268-8644 for cut lengths, submittal sheets, or bulk reel pricing.
