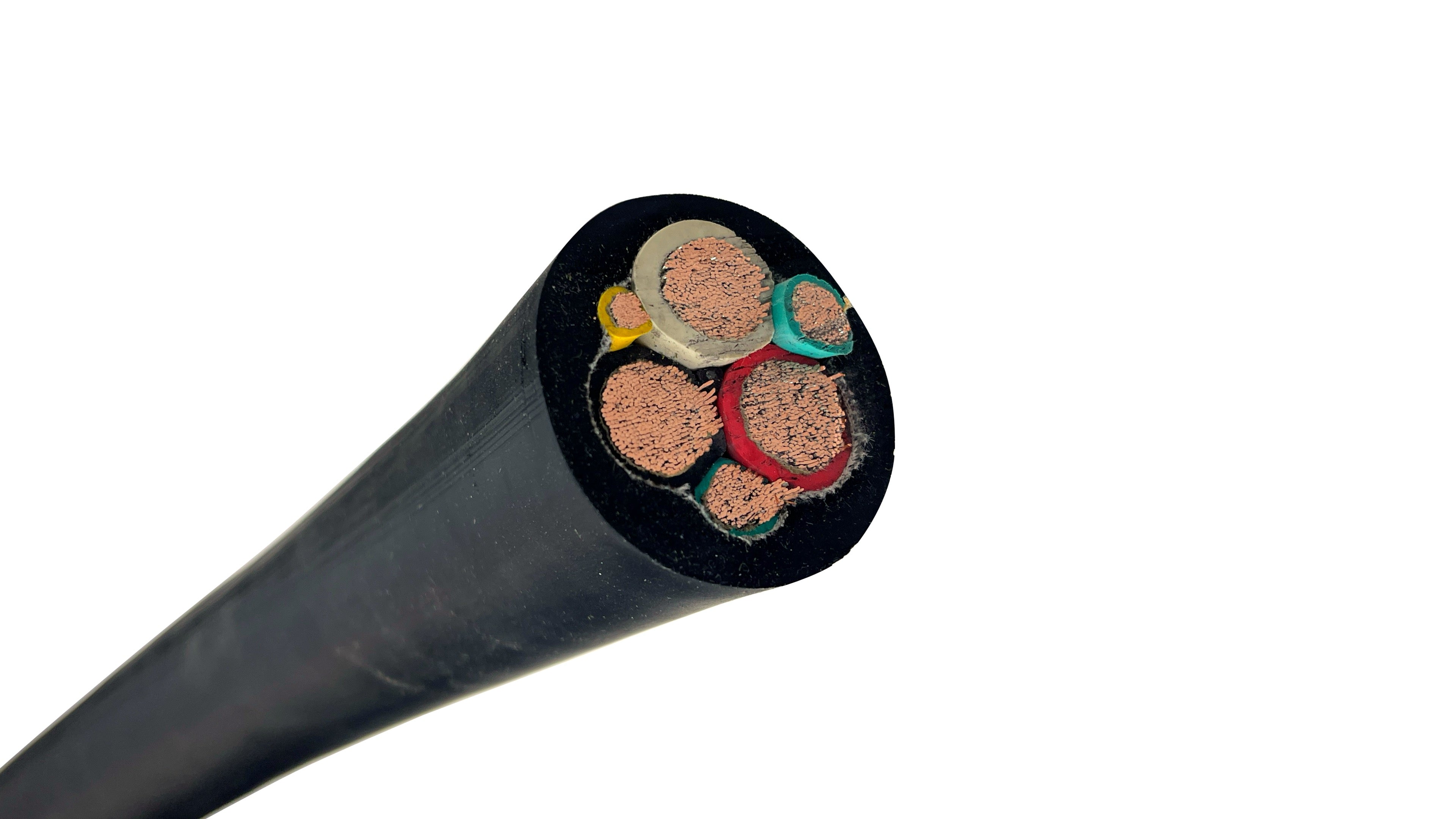

2/0 3C Type G-GC Mining Cable 2kV

Parent SKU :  TGGC2/0-3

SKU :  TGGC2/0-3-250

FLEXIBLE COPPER • REINFORCED CPE JACKET • 2kV POWER W/ GROUND CHECK
Download Spec Sheet
Wire Size 2/0
Conductor Material Copper
Outer Diameter 1.750 in. / 44.45 mm
Conductor Count 3
Voltage Rating 2000V
Ampacity Rating 237
Weight per Foot 2.736 lb
Download Spec Sheet

Get Product Details

Get Product Details
APPLICATION:
Type G-GC Cable is for use in heavy duty service as a power supply cable for mobile and portable mining equipment, loaders, conveyors, pumps, drills and cutters, where flex life is required, and for systems that require an internal ground check conductor for added safety. Type G-GC is for applications up to 2000 volts and temperatures from -40°C to +90°C.

CONDUCTOR:
Soft drawn flexible stranded bare copper, Class I per ASTM B-33

SEPARATOR:
Tape separator between conductor and insulation.

INSULATION:
Ethylene-Propylene Rubber (EPR) per ICEA S-75-381/NEMA WC 58

JACKET:
Black heavy duty, integral-filled CPE thermosetting compound

CONDUCTOR COLORS:
Black, White, Red with Green Grounds and Yellow Ground Check

GROUND CONDUCTORS:
2 #4 Soft drawn flexible stranded bare copper with green ethylene-propylene rubber (EPR) insulation

GROUND CHECK CONDUCTOR:
1 #8 Soft drawn flexible stranded bare copper. Yellow polypropylene-insulated (EPR) insulation over conductor

AMP RATING:
@ 90°C - 237 Amps



All values are nominal and subject to correction. Ampacities based on 90ºC Conductor and 30ºC Ambient temperature per table 400.5(A)(2) of the National Electrical Code

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 2/0
Conductor Material Copper
Conductor Type Stranded
Strand Count 342
Outer Diameter (OD) (in/mm) 1.750 in. / 44.45 mm
Jacket Type Black heavy duty, integral-filled CPE thermosetting compound
Conductor Count 3
Shield Unshielded
Insulation Type (EPR) Ethylene-propylene rubber
UL Listing Numbers UL 44, UL 1650

Technical Specifications

Voltage Rating 2000V
Ampacity Rating 237
Submersible Yes
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards UL 44, 1650
C(UL) FT1 & FT5
CSA C22.2 96-13
ICEA S-75-381/NEMA WC 58
ICEA S-95-658/NEMA WC 70
ASTM B33, B172
Oil Resistant, Sunlight Resistant 90°C Wet or Dry
Shallow Submersible to 10m
Rated and flexible at –40ºC to +90°C
Miscellaneous Information All values are nominal and subject to correction. Ampacities based on 90ºC Conductor and 30ºC Ambient temperature per table 400.5(A)(2) of the National Electrical Code
Other Certifications MSHA, CSA, cUL
RoHS Compliance Yes

Usage & Installation

Primary ApplicationsMining Equipment, Conveyors & Drills, Pumps & Dewatering, Surface & Underground Operations
Common Uses
  • Powering mobile and continuous mining
  • Supplying power to underground conveyors
  • belt drives
  • and portable mobile drills
  • Operating heavy-duty and submersible dewatering pumps in water-heavy
  • abrasive environments
  • Acting as flexible power feeders from load centers to equipment in both underground (e.g.
  • coal mines) and surface mining operations.

Packaging & Dimensions:

Weight per Foot 2.736 lb
