Parent SKU : TW6-4
SKU : TW6-4-250

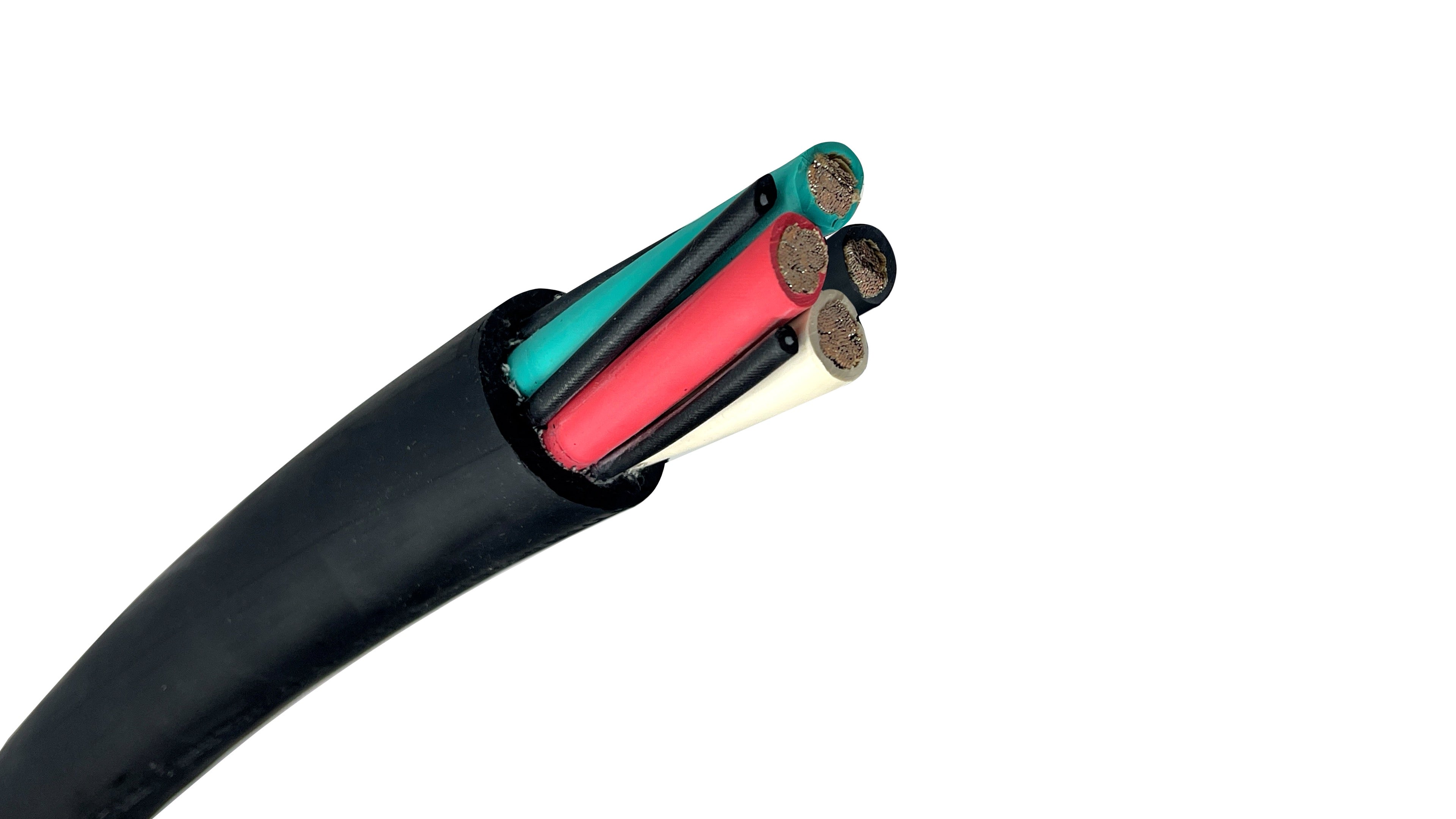

Engineered for extreme durability and continuous heavy-duty power distribution, this 6 AWG 4-Conductor Type W Portable Power Cable is built to withstand relentless jobsite punishment. Rated for continuous 2000V operation, this industrial-grade trailing cable features fully flexible tinned copper conductors insulated with high-dielectric Ethylene Propylene Rubber (EPR) and encased in a heavy-duty Chlorinated Polyethylene (CPE) thermoset outer jacket.
Whether powering high-capacity temporary generators, heavy industrial pumps, mobile mining machinery, or motor leads, this cable delivers unyielding mechanical impact resistance, extreme cold flexibility down to -40°C, and superior defense against oil, heat, flame, and sunlight.
Extra-Flexible High-Strand Tinned Copper: Built with 259 fine strands of soft-drawn tinned copper (ASTM B33) per conductor, giving you maximum flexibility around tight corners while preventing copper oxidation and corrosion at lugs and terminations.
Ultra-Rugged Thermoset CPE Jacket: Heavy-duty Chlorinated Polyethylene (CPE) outer sheath provides extreme protection against severe mechanical impact, sharp rock abrasion, crushing, fuels, solvents, and aggressive chemicals.
Extreme Weather & UV Protection (-40°C to +90°C): Highly resistant to ozone, UV sunlight, weather, open flames (FT1/FT5), and shallow water immersion. It stays completely pliable in sub-zero freezing cold down to -40°C while delivering full 90°C wet/dry thermal protection.
2000V Heavy-Duty Power Capacity: High-grade Ethylene-Propylene Rubber (EPR) insulation delivers high dielectric strength and reliable 2000V power density without thermal breakdown.
Conductor Color-Code: Features color-coded conductors (Black, White, Red, Green) for fast, error-free phase and ground identification during field terminations and panel assembly.
Anti-Slipping Core Construction: Built with rubber fillers and a heavy-duty internal binder tape that locks the inner conductors to the outer jacket. This prevents internal slippage, conductor twisting, and sleeve bunching when dragging the cable across job sites or pulling under high tension.
Engineering Overview
Voltage Rating: 2000 Volts (Type W).
Ampacity: 87 Amps (Based on 90°C conductor temperature and 30°C ambient temperature per NEC Table 400.5(A)(2)).
Conductor Count & Size: 4 Conductors, 6 AWG.
Conductor Stranding: 259 strands of extra-flexible tinned copper.
Conductor Color Code: Black, White, Red, Green (Green designated for grounding purpose only).
Insulation Material: Ethylene-Propylene Rubber (EPR), 0.060" (1.52 mm) nominal thickness.
Reinforcement: Single-faced rubber-filled binder tape applied over core assembly.
Jacket Material: Heavy-duty Black Chlorinated Polyethylene (CPE) thermosetting compound.
Outside Diameter: 1.10 inches (28.0 mm) nominal.
Approximate Net Weight: 825 lbs / 1,000 ft (1,228 kg/km).
Minimum Bending Radius: 6 x overall cable outer diameter (6.60 inches / 168.0 mm).
Environmental Rating: Suitable for shallow water immersion; rated -40°C to +90°C (Wet or Dry).
Approvals & Compliance: UL Listed (E207132 - Sunlight Resistant, Oil Resistant, 90°C Wet or Dry), CSA C22.2 No. 96-17, c(UL) FT1/FT5 (-40°C to +90°C), MSHA Approved (P-7K-268101), ASTM B33, UL 44, UL 1650, RoHS Compliant.
Temporary Power Distribution: Heavy commercial construction sites, temporary jobsite power, and emergency generator hookups.
Portable Power Feeds: Industrial pumps, mobile compressors, conveyors, four-wire motor leads, and main power feeds for outdoor concerts, film productions, and event staging.
Heavy Industrial & Mining: Open-pit mining rigs, aggregate quarries, and heavy trailing equipment subject to severe abrasion and dynamic reeling.
Harsh & Marine Environments: Suitable for shallow water immersion and harsh marine utility applications.
(Note: All values are nominal and subject to correction.)
| Wire Size (AWG/MCM) | 6 AWG |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 259 |
| Outer Diameter (OD) (in/mm) | 1.10 in. / 28.0 mm |
| Jacket Type | Black heavy duty CPE thermosetting compound |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | (EPR) Ethylene-propylene rubber |
| Voltage Rating | 2000V |
| Ampacity Rating | 87 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL: E207132 - Oil Resistant Oil Resistant Inners, Sunlight resistant 90°C Wet or Dry C(UL): E207132, FT1, FT5 -40°C to +90°C MSHA: P-7K-268101 |
| Miscellaneous Information | Ampacities based on 90ºC Conductor and 30ºC Ambient temperature per table 400.5(A)(2) of the National Electrical CodeGreen conductor for grounding conductor purpose only |
| Other Certifications | MSHA |
| RoHS Compliance | Yes |
| Primary Applications | Type W cable is a heavy-duty, flexible portable power cable engineered for demanding industrial, commercial, and temporary power applications, thanks to its robust construction and high 2000 voltage rating. |
| Common Uses |
|
| Weight per Foot | 0.825 lb |
Real-world application examples are provided for educational and general planning purposes only. Project requirements vary based on system design, environmental factors, and local codes. Buyers and specifiers are responsible for verifying that all materials meet exact job specifications and comply with NEC and local electrical regulations. Always consult with a licensed electrician prior to installation.
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : TW6-4
SKU : TW6-4-250
Parent SKU : TW6-4
SKU : TW6-4-250
Engineered for extreme durability and continuous heavy-duty power distribution, this 6 AWG 4-Conductor Type W Portable Power Cable is built to withstand relentless jobsite punishment. Rated for continuous 2000V operation, this industrial-grade trailing cable features fully flexible tinned copper conductors insulated with high-dielectric Ethylene Propylene Rubber (EPR) and encased in a heavy-duty Chlorinated Polyethylene (CPE) thermoset outer jacket.
Whether powering high-capacity temporary generators, heavy industrial pumps, mobile mining machinery, or motor leads, this cable delivers unyielding mechanical impact resistance, extreme cold flexibility down to -40°C, and superior defense against oil, heat, flame, and sunlight.
Extra-Flexible High-Strand Tinned Copper: Built with 259 fine strands of soft-drawn tinned copper (ASTM B33) per conductor, giving you maximum flexibility around tight corners while preventing copper oxidation and corrosion at lugs and terminations.
Ultra-Rugged Thermoset CPE Jacket: Heavy-duty Chlorinated Polyethylene (CPE) outer sheath provides extreme protection against severe mechanical impact, sharp rock abrasion, crushing, fuels, solvents, and aggressive chemicals.
Extreme Weather & UV Protection (-40°C to +90°C): Highly resistant to ozone, UV sunlight, weather, open flames (FT1/FT5), and shallow water immersion. It stays completely pliable in sub-zero freezing cold down to -40°C while delivering full 90°C wet/dry thermal protection.
2000V Heavy-Duty Power Capacity: High-grade Ethylene-Propylene Rubber (EPR) insulation delivers high dielectric strength and reliable 2000V power density without thermal breakdown.
Conductor Color-Code: Features color-coded conductors (Black, White, Red, Green) for fast, error-free phase and ground identification during field terminations and panel assembly.
Anti-Slipping Core Construction: Built with rubber fillers and a heavy-duty internal binder tape that locks the inner conductors to the outer jacket. This prevents internal slippage, conductor twisting, and sleeve bunching when dragging the cable across job sites or pulling under high tension.
Engineering Overview
Voltage Rating: 2000 Volts (Type W).
Ampacity: 87 Amps (Based on 90°C conductor temperature and 30°C ambient temperature per NEC Table 400.5(A)(2)).
Conductor Count & Size: 4 Conductors, 6 AWG.
Conductor Stranding: 259 strands of extra-flexible tinned copper.
Conductor Color Code: Black, White, Red, Green (Green designated for grounding purpose only).
Insulation Material: Ethylene-Propylene Rubber (EPR), 0.060" (1.52 mm) nominal thickness.
Reinforcement: Single-faced rubber-filled binder tape applied over core assembly.
Jacket Material: Heavy-duty Black Chlorinated Polyethylene (CPE) thermosetting compound.
Outside Diameter: 1.10 inches (28.0 mm) nominal.
Approximate Net Weight: 825 lbs / 1,000 ft (1,228 kg/km).
Minimum Bending Radius: 6 x overall cable outer diameter (6.60 inches / 168.0 mm).
Environmental Rating: Suitable for shallow water immersion; rated -40°C to +90°C (Wet or Dry).
Approvals & Compliance: UL Listed (E207132 - Sunlight Resistant, Oil Resistant, 90°C Wet or Dry), CSA C22.2 No. 96-17, c(UL) FT1/FT5 (-40°C to +90°C), MSHA Approved (P-7K-268101), ASTM B33, UL 44, UL 1650, RoHS Compliant.
Temporary Power Distribution: Heavy commercial construction sites, temporary jobsite power, and emergency generator hookups.
Portable Power Feeds: Industrial pumps, mobile compressors, conveyors, four-wire motor leads, and main power feeds for outdoor concerts, film productions, and event staging.
Heavy Industrial & Mining: Open-pit mining rigs, aggregate quarries, and heavy trailing equipment subject to severe abrasion and dynamic reeling.
Harsh & Marine Environments: Suitable for shallow water immersion and harsh marine utility applications.
(Note: All values are nominal and subject to correction.)
| Wire Size (AWG/MCM) | 6 AWG |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 259 |
| Outer Diameter (OD) (in/mm) | 1.10 in. / 28.0 mm |
| Jacket Type | Black heavy duty CPE thermosetting compound |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | (EPR) Ethylene-propylene rubber |
| Voltage Rating | 2000V |
| Ampacity Rating | 87 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL: E207132 - Oil Resistant Oil Resistant Inners, Sunlight resistant 90°C Wet or Dry C(UL): E207132, FT1, FT5 -40°C to +90°C MSHA: P-7K-268101 |
| Miscellaneous Information | Ampacities based on 90ºC Conductor and 30ºC Ambient temperature per table 400.5(A)(2) of the National Electrical Code Green conductor for grounding conductor purpose only |
| Other Certifications | MSHA |
| RoHS Compliance | Yes |
| Primary Applications | Type W cable is a heavy-duty, flexible portable power cable engineered for demanding industrial, commercial, and temporary power applications, thanks to its robust construction and high 2000 voltage rating. |
| Common Uses |
|
| Weight per Foot | 0.825 lb |
Real-world application examples are provided for educational and general planning purposes only. Project requirements vary based on system design, environmental factors, and local codes. Buyers and specifiers are responsible for verifying that all materials meet exact job specifications and comply with NEC and local electrical regulations. Always consult with a licensed electrician prior to installation.
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||
Multi-conductor 6/4C Type W cable is a heavy-duty 2000V portable power cable designed for four-wire temporary power distribution, dynamic portable equipment, dewatering pumps, and heavy machinery leads. Common uses include generator tails, 4-wire industrial motor feeds, shallow water pump operations, temporary distribution panels, shipyard equipment, and main power drops for outdoor concerts, festivals, and film staging.
Per NEC Table 400.5(A)(2) and manufacturer specs, a 6 AWG 4-conductor Type W cable rated at 90°C carries a maximum continuous ampacity of 87 Amps in free air (based on a 30°C ambient temperature). Always check derating factors and local electrical codes for your specific setup.
Yes. 6/4C Type W cable features an extra-heavy-duty CPE jacket and EPR insulation rated for shallow water immersion, as well as wet or dry environments from -40°C to +90°C. It handles continuous UV sunlight, ozone, oils, and aggressive jobsite chemicals without breaking down.
No. Under NEC Article 400, multi-conductor flexible portable power cords are restricted to temporary power distribution and equipment leads. Unlike single-conductor Type W (which carries a dual RHH/RHW-2 building wire rating), multi-conductor Type W cannot be pulled through permanent building conduit or raceways.
While both are multi-conductor flexible cords, they are built for different duty levels:
6 AWG 4-Conductor Type W uses 259 fine strands of tinned copper per conductor for extra pliability around tight corners. With a minimum bending radius rating of 6 times the overall outer diameter (1.10" OD), this cable needs a minimum bending radius of 6.60 inches (168.0 mm) for safe routing.
The four conductors inside a 6/4C Type W cable are color-coded Black, White, Red, and Green for clear circuit and phase identification. Per UL and CSA standards, the Green conductor is designated specifically for grounding purposes, while Black, White, and Red carry your power phases.
Yes! Wire America supplies 6/4C Type W cable cut-to-length by the foot with zero cut fees, so you only pay for the exact footage your jobsite demands. Full master reels are also available for major industrial projects with fast jobsite delivery.
