Parent SKU : CON-3URD
SKU : CON-3URD-100
"The industry-standard for residential, farm, and light commercial power distribution. Engineered for reliable 600V delivery, this cable is rated for both direct burial and duct installations, featuring sunlight-resistant XLP insulation for long-term underground performance."

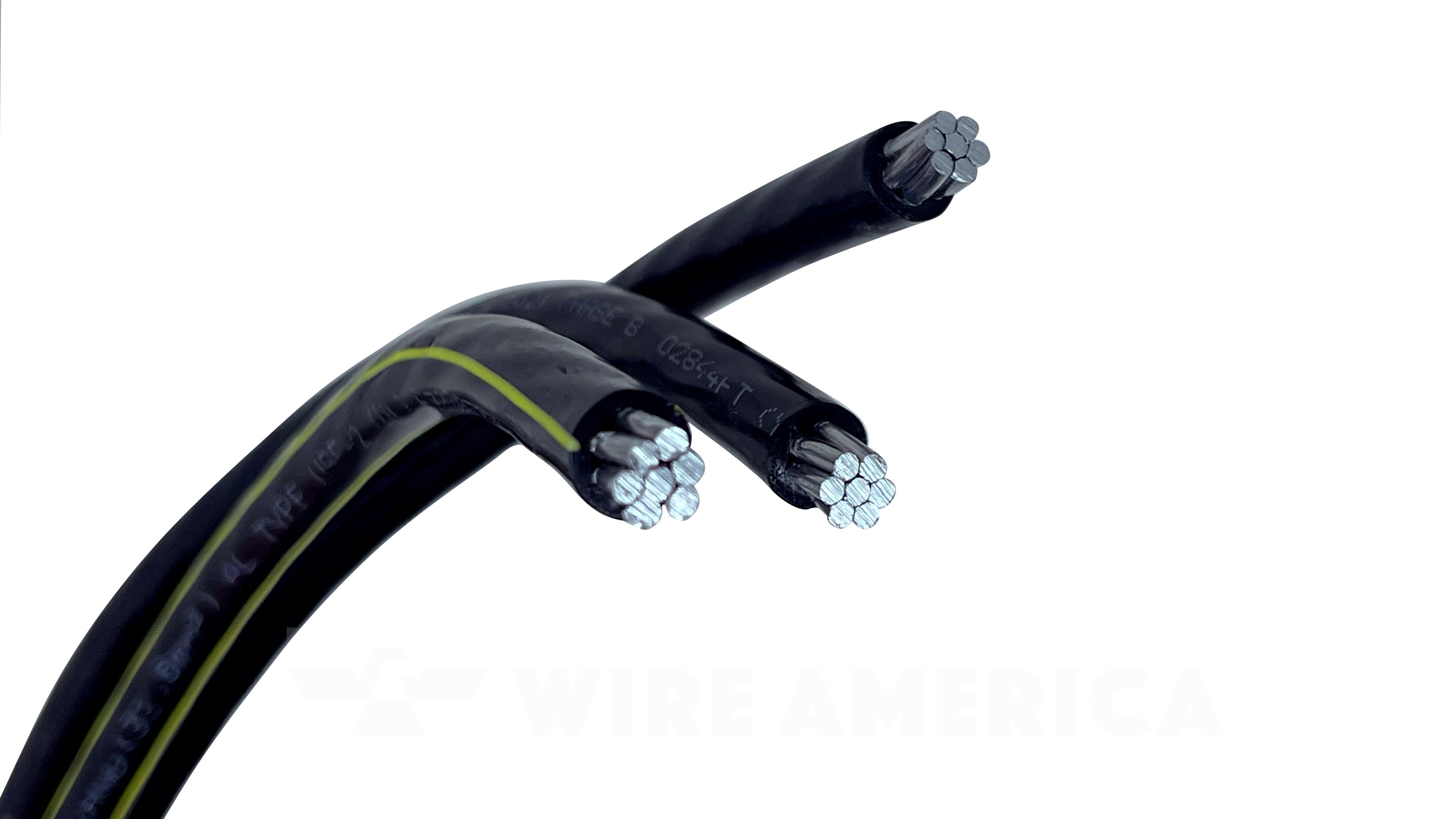

The 2/0-2/0-1 Converse URD cable is a heavy-duty solution for secondary underground residential power distribution. Engineered to meet the rugged demands of direct burial, it provides a stable, long-term solution for moving power from the transformer to the service entrance. By utilizing high-conductivity 1350-H19 aluminum and a sunlight-resistant XLP insulation, it offers superior resistance to environmental degradation and moisture ingress.
600V Reliability: Rated for continuous operation in wet or dry locations at temperatures up to 90°C.
Sunlight-Resistant XLP:Â Advanced cross-linked polyethylene insulation prevents premature aging caused by UV exposure, ensuring durability at the service entrance.
Easy-Identify Neutral:Â For faster installation and safer maintenance, the neutral conductor features three extruded yellow stripes and clear sequential footage markings.
Direct Burial Ready:Â Specifically built for the harsh conditions of underground utility distribution; can be installed directly in the earth or within conduit/duct systems.
ENGINEERING OVERVIEW: 2/0-2/0-1 AWG Triplex URD
Application:Â Secondary underground distribution circuits; transformer-to-service-entrance power feeds.
Voltage Rating:Â 600 Volts.
UL Listing:Â UL 854 (Service-Entrance Cable).
Conductor Material:Â Concentric stranded 1350-H19 series aluminum.
Phase Insulation:Â Black sunlight-resistant XLP (Cross-Linked Polyethylene).
Neutral Insulation:Â Black XLP with 3 extruded yellow stripes for easy identification.
Temperature Rating: 90°C (Wet or Dry).
Cable Outer Diameter: 1.20 in. (30.48 mm)
Ampacity (Direct Burial): 245Â Amps.
Ampacity (In Duct): 180Â Amps.
Compliance Standards:Â UL 854 (Service-Entrance Cable); Type USE-2; RUS Accepted; ASTM B-230, B-231, B-609, B-901; ICEA S-105-692; Federal Spec A-A-59544A.
Service Entrance Conductors: Primary power feed from the transformer to the main distribution panel of a residential building.
Service Upgrades: Ideal for replacing older, undersized service conductors to support increased modern electrical loads.
Branch Circuit Feeders: High-amperage power transmission to secondary distribution hubs, outbuildings, or detached garages.
Commercial Site Development: Reliable power delivery for small-to-medium business infrastructure and exterior utility equipment.
Direct Burial or Conduit: Versatile enough for direct-trench installation or pull-through duct/conduit runs.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations.
| Wire Size (AWG/MCM) | 2/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 19 |
| Outer Diameter (OD) (in/mm) | 1.20 in. / 30.48 mm |
| Jacket Type | XLPE |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| Voltage Rating | 600V |
| Ampacity Rating | 245 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Low |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables Federal Specification A-A-59544A UL 854 Service-Entrance Cables Sunlight Resistant RUS Accepted |
| Miscellaneous Information | All values are nominal and subject to correction. *Actual number of wires may differ for compressed round stranded aluminum conductors using single input wire (SIW) **Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations. |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 0.5 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : CON-3URD
SKU : CON-3URD-100
Parent SKU : CON-3URD
SKU : CON-3URD-100
"The industry-standard for residential, farm, and light commercial power distribution. Engineered for reliable 600V delivery, this cable is rated for both direct burial and duct installations, featuring sunlight-resistant XLP insulation for long-term underground performance."
The 2/0-2/0-1 Converse URD cable is a heavy-duty solution for secondary underground residential power distribution. Engineered to meet the rugged demands of direct burial, it provides a stable, long-term solution for moving power from the transformer to the service entrance. By utilizing high-conductivity 1350-H19 aluminum and a sunlight-resistant XLP insulation, it offers superior resistance to environmental degradation and moisture ingress.
600V Reliability: Rated for continuous operation in wet or dry locations at temperatures up to 90°C.
Sunlight-Resistant XLP:Â Advanced cross-linked polyethylene insulation prevents premature aging caused by UV exposure, ensuring durability at the service entrance.
Easy-Identify Neutral:Â For faster installation and safer maintenance, the neutral conductor features three extruded yellow stripes and clear sequential footage markings.
Direct Burial Ready:Â Specifically built for the harsh conditions of underground utility distribution; can be installed directly in the earth or within conduit/duct systems.
ENGINEERING OVERVIEW: 2/0-2/0-1 AWG Triplex URD
Application:Â Secondary underground distribution circuits; transformer-to-service-entrance power feeds.
Voltage Rating:Â 600 Volts.
UL Listing:Â UL 854 (Service-Entrance Cable).
Conductor Material:Â Concentric stranded 1350-H19 series aluminum.
Phase Insulation:Â Black sunlight-resistant XLP (Cross-Linked Polyethylene).
Neutral Insulation:Â Black XLP with 3 extruded yellow stripes for easy identification.
Temperature Rating: 90°C (Wet or Dry).
Cable Outer Diameter: 1.20 in. (30.48 mm)
Ampacity (Direct Burial): 245Â Amps.
Ampacity (In Duct): 180Â Amps.
Compliance Standards:Â UL 854 (Service-Entrance Cable); Type USE-2; RUS Accepted; ASTM B-230, B-231, B-609, B-901; ICEA S-105-692; Federal Spec A-A-59544A.
Service Entrance Conductors: Primary power feed from the transformer to the main distribution panel of a residential building.
Service Upgrades: Ideal for replacing older, undersized service conductors to support increased modern electrical loads.
Branch Circuit Feeders: High-amperage power transmission to secondary distribution hubs, outbuildings, or detached garages.
Commercial Site Development: Reliable power delivery for small-to-medium business infrastructure and exterior utility equipment.
Direct Burial or Conduit: Versatile enough for direct-trench installation or pull-through duct/conduit runs.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations.
| Wire Size (AWG/MCM) | 2/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 19 |
| Outer Diameter (OD) (in/mm) | 1.20 in. / 30.48 mm |
| Jacket Type | XLPE |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| Voltage Rating | 600V |
| Ampacity Rating | 245 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Low |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables Federal Specification A-A-59544A UL 854 Service-Entrance Cables Sunlight Resistant RUS Accepted |
| Miscellaneous Information | All values are nominal and subject to correction. *Actual number of wires may differ for compressed round stranded aluminum conductors using single input wire (SIW) **Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations. |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 0.5 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||
This configuration balances current-carrying capacity with cost-efficiency. By utilizing 2/0 phase conductors for the "hot" legs and a 1 AWG reduced neutral, you achieve the required amperage for a 200A service entrance while optimizing material usage.
At 2/0, voltage drop is significantly lower than with smaller conductors. However, for exceptionally long runs (typically exceeding 100–150 feet), we recommend calculating the specific load and distance to ensure you remain within the NEC 210.19(A) recommended 3% limit.
Yes. Converse URD is widely accepted by utility companies and electrical inspectors as it meets UL 854 standards and is fully rated for Type USE-2 underground service applications. As local codes may vary from state to state, we always recommend consulting with a local electrician to confirm this cable is right for your project.
In standard residential 120/240V systems, the neutral is only required to carry the unbalanced load. Sizing the neutral at 1 AWG is standard industry practice for a 2/0-2/0-1 configuration, providing significant savings without sacrificing system safety.
Unlike standard building wire like THHN/THWN-2, Converse URD is specifically formulated for direct exposure to soil, moisture, and chemical stressors. It is physically more robust and rated for direct burial—features that standard THHN wire lacks.
For 2/0-2/0-1 Triplex Converse, the ampacity depends on the installation method:
Direct Burial:Â 245 Amps
In Duct/Conduit:Â 180 Amps
Note: Always refer to NEC 310.15 or consult a licensed electrician to verify derating requirements based on your local environment.
Wire America offers every size of URD cable available from 8 AWG to 1000 MCM. You can browse our complete inventory and view detailed specifications for each size in our Full Aluminum URD Collection here.
