Parent SKU : SYR-4URD
SKU : SYR-4URD-100
"The industry-standard for secondary three-phase residential, farm, and commercial power distribution. Engineered for reliable 600V delivery, this cable is rated for both direct burial and duct installations, featuring sunlight-resistant XLP insulation for robust, long-term underground performance."

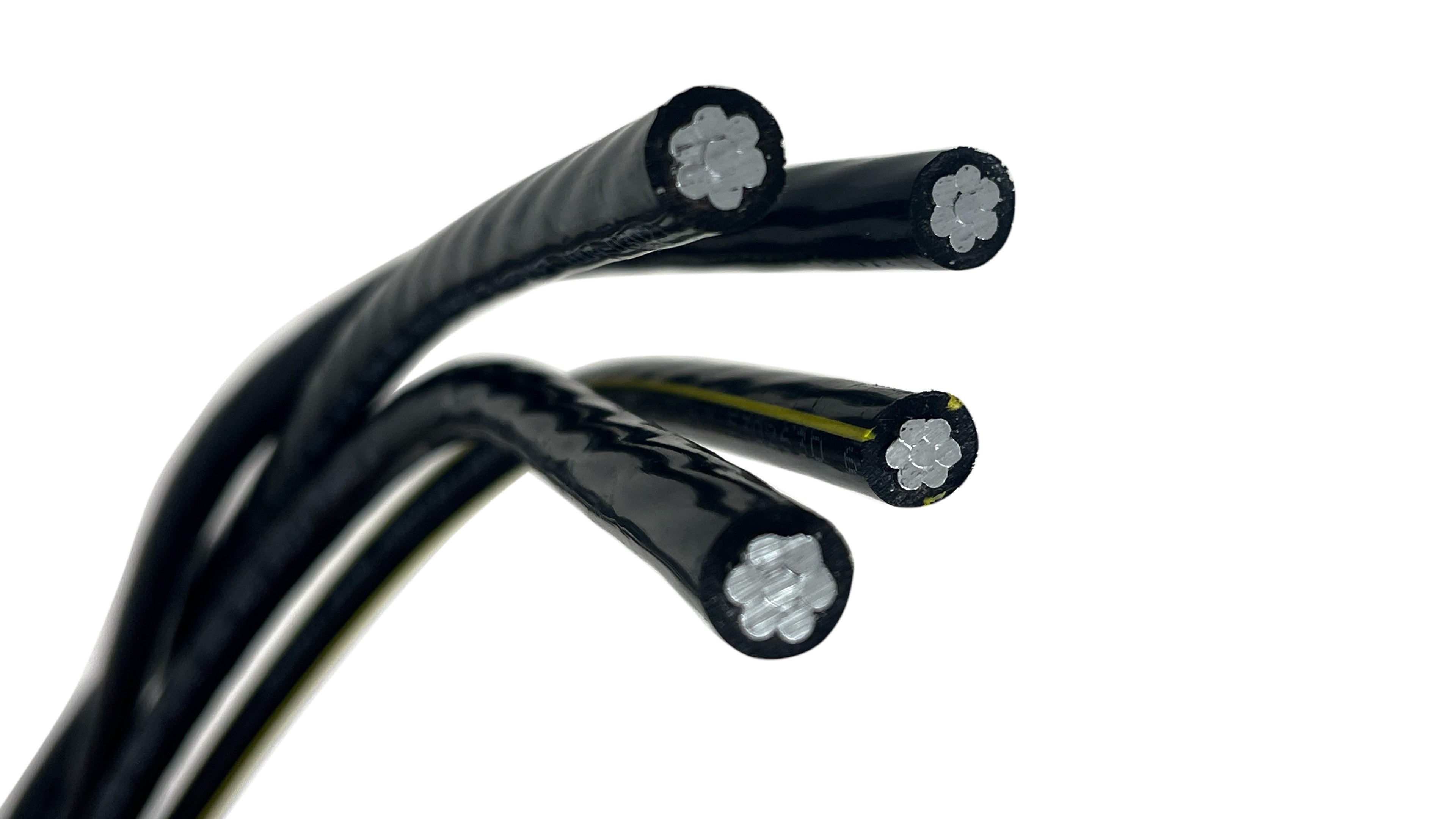

The Syracuse 2/0-2/0-2/0-1 URD cable is the preferred solution for secondary underground three-phase power distribution in high-capacity applications. Specifically designed for projects requiring three phase conductors and a reduced neutral, it provides a stable, high-performance solution for commercial storefronts, heavy-duty agricultural feeds, and large residential sub-panels. By utilizing high-conductivity 1350-H19 aluminum and heavy-duty, sunlight-resistant XLP insulation, it offers superior resistance to environmental degradation, moisture ingress, and thermal stress.
600V Reliability: Rated for continuous operation in wet or dry locations at temperatures up to 90°C, providing dependable power for high-capacity 3-phase equipment.
Sunlight-Resistant XLP: Advanced cross-linked polyethylene insulation prevents premature aging caused by UV exposure at termination points and service entrances.
Reduced Neutral Efficiency: Features a #1 AWG neutral for systems where the neutral carries only the unbalanced load, reducing overall cable weight and cost while maintaining high performance.
Direct Burial Ready: Specifically built for the harsh conditions of underground utility distribution; can be installed directly in the earth or within conduit/duct systems.
ENGINEERING OVERVIEW: 2/0-2/0-2/0-1 Quadruplex URD
Application: Quadruplex Aluminum 600V URD cable is designed for use in secondary distribution circuits, where installed in duct or direct burial applications.
Voltage Rating: 600 Volts.
UL Listing: UL 854 (Service-Entrance Cable).
Conductor Material: Concentric stranded or compressed 1350-H19 series aluminum.
Phase Insulation: Black sunlight-resistant XLP (Cross-Linked Polyethylene).

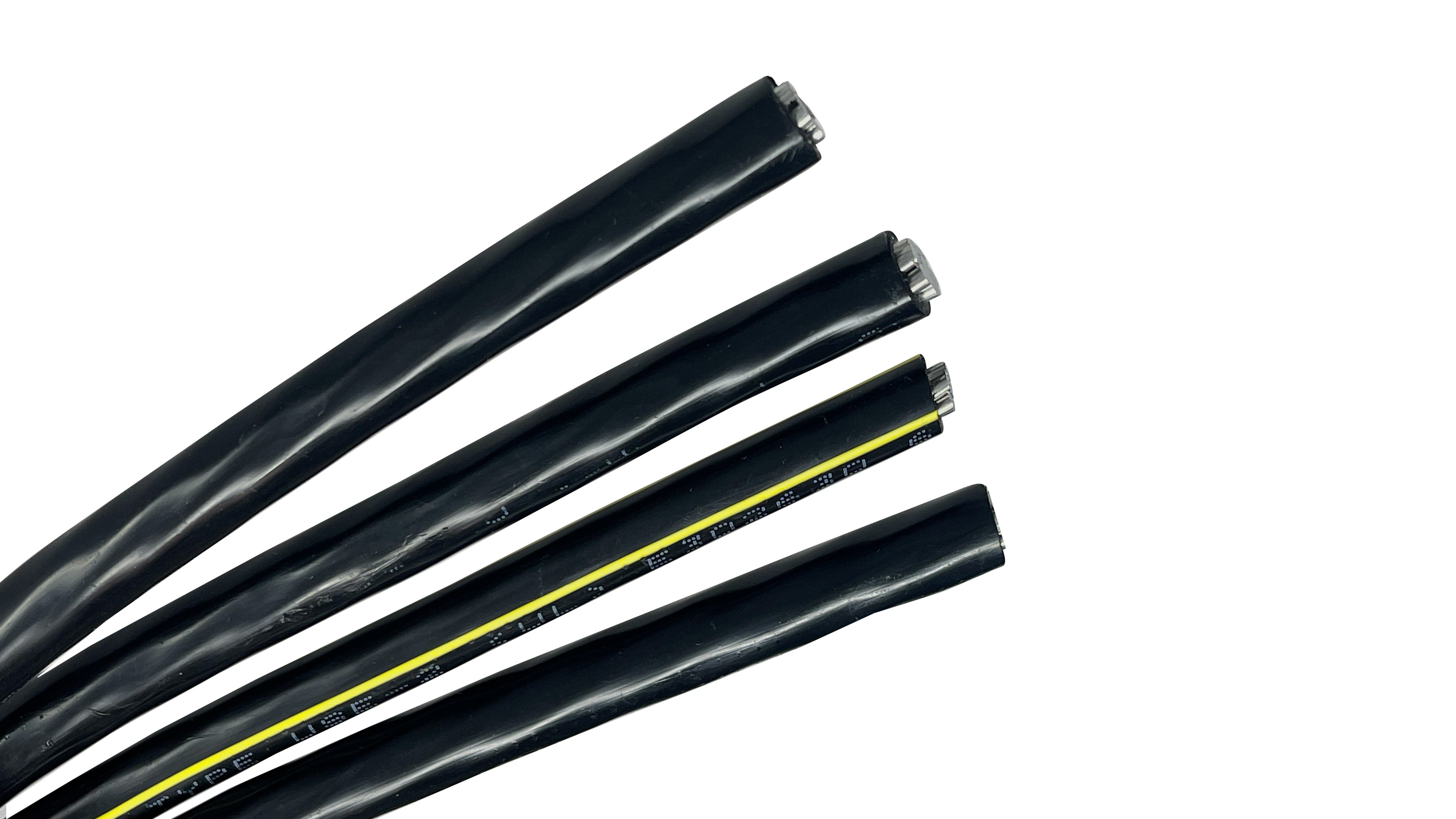

Neutral Insulation: Black XLP with 3 extruded yellow stripes for easy identification.
Temperature Rating: 90°C (Wet or Dry).
Phase Conductor Size: 2/0 AWG.
Neutral Conductor Size: #1 AWG (Reduced Neutral).
Outside Diamter (OD): 1.34 Inches (34.036 mm)
Ampacity (Direct Burial): 225 Amps.
Ampacity (In Duct): 170 Amps.
Compliance Standards: UL 854; Type USE-2; RUS Accepted; ASTM B-230, B-231, B-609, B-901; ICEA S-105-692.
High-Capacity Commercial Service: Ideal for retail units, offices, or workshops requiring a dedicated 150-Amp, 175-Amp, or 200-Amp 3-phase service entrance.
Heavy Agricultural Sub-Panels: Frequently used to power detached barns, large irrigation systems, and grain processing equipment where high-amp 3-phase power is required.
Multi-Family Meter Banks: The standard choice for running power from a main utility transformer to multi-unit residential distribution centers.
Industrial Infrastructure: A durable and cost-effective solution for providing power to remote site facilities, security stations, or pump houses.
Direct Burial or Conduit: Flexible enough for direct-trench installation in rural areas or pull-through duct runs in developed commercial sites.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations.
| Wire Size (AWG/MCM) | 2/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 19 |
| Outer Diameter (OD) (in/mm) | 1.34 In. / 34.036 mm |
| Jacket Type | XLPE |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| Voltage Rating | 600 |
| Ampacity Rating | 225 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Medium |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables Federal Specification A-A-59544A UL 854 Service-Entrance Cables Sunlight Resistant RUS Accepted |
| Miscellaneous Information | All values are nominal and subject to correction. *Not RUS accepted size **Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations. |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 0.687 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : SYR-4URD
SKU : SYR-4URD-100
Parent SKU : SYR-4URD
SKU : SYR-4URD-100
"The industry-standard for secondary three-phase residential, farm, and commercial power distribution. Engineered for reliable 600V delivery, this cable is rated for both direct burial and duct installations, featuring sunlight-resistant XLP insulation for robust, long-term underground performance."
The Syracuse 2/0-2/0-2/0-1 URD cable is the preferred solution for secondary underground three-phase power distribution in high-capacity applications. Specifically designed for projects requiring three phase conductors and a reduced neutral, it provides a stable, high-performance solution for commercial storefronts, heavy-duty agricultural feeds, and large residential sub-panels. By utilizing high-conductivity 1350-H19 aluminum and heavy-duty, sunlight-resistant XLP insulation, it offers superior resistance to environmental degradation, moisture ingress, and thermal stress.
600V Reliability: Rated for continuous operation in wet or dry locations at temperatures up to 90°C, providing dependable power for high-capacity 3-phase equipment.
Sunlight-Resistant XLP: Advanced cross-linked polyethylene insulation prevents premature aging caused by UV exposure at termination points and service entrances.
Reduced Neutral Efficiency: Features a #1 AWG neutral for systems where the neutral carries only the unbalanced load, reducing overall cable weight and cost while maintaining high performance.
Direct Burial Ready: Specifically built for the harsh conditions of underground utility distribution; can be installed directly in the earth or within conduit/duct systems.
ENGINEERING OVERVIEW: 2/0-2/0-2/0-1 Quadruplex URD
Application: Quadruplex Aluminum 600V URD cable is designed for use in secondary distribution circuits, where installed in duct or direct burial applications.
Voltage Rating: 600 Volts.
UL Listing: UL 854 (Service-Entrance Cable).
Conductor Material: Concentric stranded or compressed 1350-H19 series aluminum.
Phase Insulation: Black sunlight-resistant XLP (Cross-Linked Polyethylene).
Neutral Insulation: Black XLP with 3 extruded yellow stripes for easy identification.
Temperature Rating: 90°C (Wet or Dry).
Phase Conductor Size: 2/0 AWG.
Neutral Conductor Size: #1 AWG (Reduced Neutral).
Outside Diamter (OD): 1.34 Inches (34.036 mm)
Ampacity (Direct Burial): 225 Amps.
Ampacity (In Duct): 170 Amps.
Compliance Standards: UL 854; Type USE-2; RUS Accepted; ASTM B-230, B-231, B-609, B-901; ICEA S-105-692.
High-Capacity Commercial Service: Ideal for retail units, offices, or workshops requiring a dedicated 150-Amp, 175-Amp, or 200-Amp 3-phase service entrance.
Heavy Agricultural Sub-Panels: Frequently used to power detached barns, large irrigation systems, and grain processing equipment where high-amp 3-phase power is required.
Multi-Family Meter Banks: The standard choice for running power from a main utility transformer to multi-unit residential distribution centers.
Industrial Infrastructure: A durable and cost-effective solution for providing power to remote site facilities, security stations, or pump houses.
Direct Burial or Conduit: Flexible enough for direct-trench installation in rural areas or pull-through duct runs in developed commercial sites.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations.
| Wire Size (AWG/MCM) | 2/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 19 |
| Outer Diameter (OD) (in/mm) | 1.34 In. / 34.036 mm |
| Jacket Type | XLPE |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| Voltage Rating | 600 |
| Ampacity Rating | 225 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Medium |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables Federal Specification A-A-59544A UL 854 Service-Entrance Cables Sunlight Resistant RUS Accepted |
| Miscellaneous Information | All values are nominal and subject to correction. *Not RUS accepted size **Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations. |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 0.687 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||
URD stands for Underground Residential Distribution. It is a category of electrical cable specifically engineered for direct burial in the earth. Unlike standard indoor wire, URD is built with rugged XLPE (Cross-Linked Polyethylene) insulation that is chemically designed to resist moisture, soil acids, and mechanical pressure without needing a protective outer jacket or conduit.
Note: These ratings are based on 90°C conductor temperature. Always consult NEC Table 310.15 for specific installation derating.
In three-phase power systems (residential or commercial), the neutral wire usually only carries the "unbalanced" portion of the electrical load. Because this load is typically much smaller than the main phase load, the code allows for a smaller neutral conductor (#1 AWG for Syracuse and #2 AWG for Notre Dame). This reduces the cable’s weight and cost while remaining fully code-compliant.
Yes. These cables are designed for Direct Burial. The high-density XLP insulation acts as its own protection against the elements. While you can install it in a conduit for added mechanical protection (such as under a driveway), it is typically fully rated to be placed directly in a 24-inch deep trench.
Check Local Codes: Local municipal codes may require a deeper trench (e.g., 30 inches) or conduit in certain scenarios.
Yes. Even though it is an underground wire, the ends of the cable often sit above ground where they connect to a meter box or transformer. The insulation is UV-rated to ensure it won’t crack or become brittle when exposed to the sun at these termination points.
Only for the first few feet. Because URD is optimized for burial rather than fire resistance, the NEC generally limits its use to no more than 3-5 feet inside a structure. Typically, once you are 5 feet past the point of entry, you must transition to an indoor-rated cable like Aluminum SER.
IMPORTANT: Always consult with a certified local electrician who is up to date on all local code before selecting a size and type of cable.
