Parent SKU : HUN-3URD
SKU : HUN-3URD-100
"The industry-standard for residential, farm, and light commercial power distribution. Engineered for reliable 600V delivery, this cable is rated for both direct burial and duct installations, featuring sunlight-resistant XLP insulation for long-term underground performance."

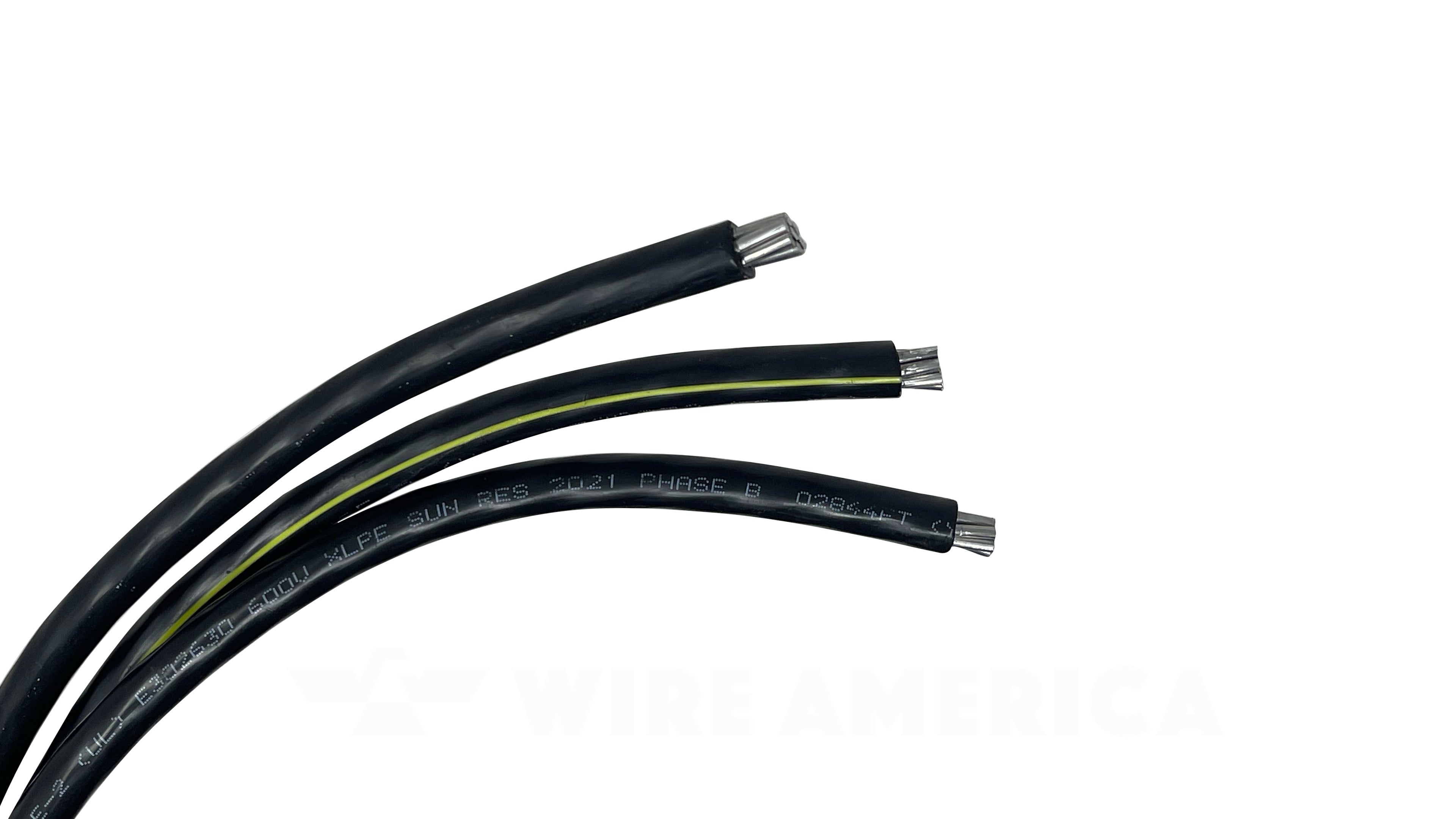

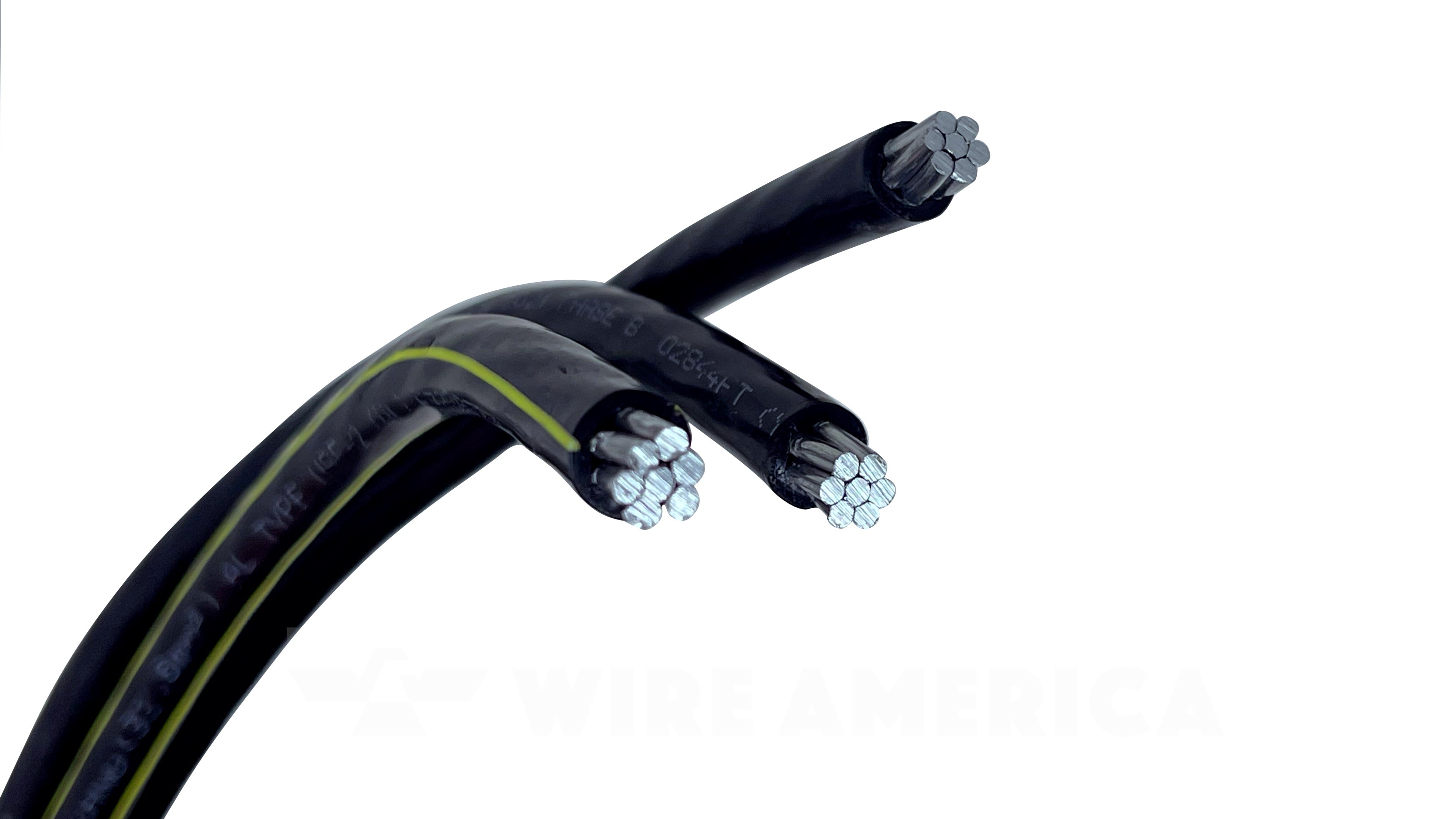

The 2/0-2/0-2/0 Hunter URD cable is a heavy-duty solution for secondary underground residential power distribution. Engineered to meet the rugged demands of direct burial, it provides a stable, long-term solution for moving power from the transformer to the service entrance. By utilizing high-conductivity 1350-H19 aluminum and a sunlight-resistant XLP insulation, it offers superior resistance to environmental degradation and moisture ingress.
600V Reliability: Rated for continuous operation in wet or dry locations at temperatures up to 90°C.
Sunlight-Resistant XLP:Â Advanced cross-linked polyethylene insulation prevents premature aging caused by UV exposure, ensuring durability at the service entrance.
Easy-Identify Neutral:Â For faster installation and safer maintenance, the neutral conductor features three extruded yellow stripes and clear sequential footage markings.
Direct Burial Ready:Â Specifically built for the harsh conditions of underground utility distribution; can be installed directly in the earth or within conduit/duct systems.
ENGINEERING OVERVIEW: 2/0-2/0-2/0 Triplex URD
Application:Â Secondary underground distribution circuits; transformer-to-service-entrance power feeds.
Voltage Rating:Â 600 Volts.
UL Listing:Â UL 854 (Service-Entrance Cable).
Conductor Material:Â Concentric stranded 1350-H19 series aluminum.
Phase Insulation:Â Black sunlight-resistant XLP (Cross-Linked Polyethylene).
Neutral Insulation:Â Black XLP with 3 extruded yellow stripes for easy identification.
Temperature Rating: 90°C (Wet or Dry).
Cable Outer Diameter:Â 1.20 inches (30.48 mm)
Ampacity (Direct Burial): 245Â Amps.
Ampacity (In Duct): 180Â Amps.
Compliance Standards:Â UL 854 (Service-Entrance Cable); Type USE-2; RUS Accepted; ASTM B-230, B-231, B-609, B-901; ICEA S-105-692; Federal Spec A-A-59544A.
Service Entrance Conductors: Primary power feed from the transformer to the main distribution panel of a residential building.
Service Upgrades: Ideal for replacing older, undersized service conductors to support increased modern electrical loads.
Branch Circuit Feeders: High-amperage power transmission to secondary distribution hubs, outbuildings, or detached garages.
Commercial Site Development: Reliable power delivery for small-to-medium business infrastructure and exterior utility equipment.
Direct Burial or Conduit: Versatile enough for direct-trench installation or pull-through duct/conduit runs.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations.
| Wire Size (AWG/MCM) | 2/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 19 |
| Outer Diameter (OD) (in/mm) | 1.20 in. / 30.48 mm |
| Jacket Type | XLPE |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| Voltage Rating | 600V |
| Ampacity Rating | 245 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Low |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables Federal Specification A-A-59544A UL 854 Service-Entrance Cables Sunlight Resistant RUS Accepted |
| Miscellaneous Information | All values are nominal and subject to correction. *Actual number of wires may differ for compressed round stranded aluminum conductors using single input wire (SIW) **Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations. |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 0.56 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : HUN-3URD
SKU : HUN-3URD-100
Parent SKU : HUN-3URD
SKU : HUN-3URD-100
"The industry-standard for residential, farm, and light commercial power distribution. Engineered for reliable 600V delivery, this cable is rated for both direct burial and duct installations, featuring sunlight-resistant XLP insulation for long-term underground performance."
The 2/0-2/0-2/0 Hunter URD cable is a heavy-duty solution for secondary underground residential power distribution. Engineered to meet the rugged demands of direct burial, it provides a stable, long-term solution for moving power from the transformer to the service entrance. By utilizing high-conductivity 1350-H19 aluminum and a sunlight-resistant XLP insulation, it offers superior resistance to environmental degradation and moisture ingress.
600V Reliability: Rated for continuous operation in wet or dry locations at temperatures up to 90°C.
Sunlight-Resistant XLP:Â Advanced cross-linked polyethylene insulation prevents premature aging caused by UV exposure, ensuring durability at the service entrance.
Easy-Identify Neutral:Â For faster installation and safer maintenance, the neutral conductor features three extruded yellow stripes and clear sequential footage markings.
Direct Burial Ready:Â Specifically built for the harsh conditions of underground utility distribution; can be installed directly in the earth or within conduit/duct systems.
ENGINEERING OVERVIEW: 2/0-2/0-2/0 Triplex URD
Application:Â Secondary underground distribution circuits; transformer-to-service-entrance power feeds.
Voltage Rating:Â 600 Volts.
UL Listing:Â UL 854 (Service-Entrance Cable).
Conductor Material:Â Concentric stranded 1350-H19 series aluminum.
Phase Insulation:Â Black sunlight-resistant XLP (Cross-Linked Polyethylene).
Neutral Insulation:Â Black XLP with 3 extruded yellow stripes for easy identification.
Temperature Rating: 90°C (Wet or Dry).
Cable Outer Diameter:Â 1.20 inches (30.48 mm)
Ampacity (Direct Burial): 245Â Amps.
Ampacity (In Duct): 180Â Amps.
Compliance Standards:Â UL 854 (Service-Entrance Cable); Type USE-2; RUS Accepted; ASTM B-230, B-231, B-609, B-901; ICEA S-105-692; Federal Spec A-A-59544A.
Service Entrance Conductors: Primary power feed from the transformer to the main distribution panel of a residential building.
Service Upgrades: Ideal for replacing older, undersized service conductors to support increased modern electrical loads.
Branch Circuit Feeders: High-amperage power transmission to secondary distribution hubs, outbuildings, or detached garages.
Commercial Site Development: Reliable power delivery for small-to-medium business infrastructure and exterior utility equipment.
Direct Burial or Conduit: Versatile enough for direct-trench installation or pull-through duct/conduit runs.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations.
| Wire Size (AWG/MCM) | 2/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 19 |
| Outer Diameter (OD) (in/mm) | 1.20 in. / 30.48 mm |
| Jacket Type | XLPE |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| Voltage Rating | 600V |
| Ampacity Rating | 245 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Low |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables Federal Specification A-A-59544A UL 854 Service-Entrance Cables Sunlight Resistant RUS Accepted |
| Miscellaneous Information | All values are nominal and subject to correction. *Actual number of wires may differ for compressed round stranded aluminum conductors using single input wire (SIW) **Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations. |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 0.56 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||
Yes. This cable is rated for direct burial applications. It features a rugged, sunlight-resistant XLPE (cross-linked polyethylene) insulation designed to withstand underground conditions. However, always check your local electrical codes to ensure compliance for your specific project and depth requirements.
The ampacity differs based on heat dissipation. When installed in duct or conduit, this cable is rated for 180 Amps. When direct-buried, it is rated for 245 Amps because the surrounding earth acts as a better heat sink, allowing for higher current capacity.
While Triplex URD is primarily designed for secondary underground distribution—such as feeding power from a transformer to a home, farm, or detached building—it is also commonly used for service entrance applications. Please verify with your local utility provider or a licensed electrician that Triplex URD meets the specific requirements for your service connection.
This cable is rated for use in wet and dry locations with a maximum operating temperature of 90°C. However, it is not rated for full submersion. It is intended for underground soil environments, not for use inside water features, ponds, or fully submerged applications.
Triplex URD cable consists of three conductors (two insulated hot wires and one neutral). It is designed to carry the electrical load, with the neutral carrying the unbalanced load. If your specific application requires a separate equipment grounding conductor, you may need to run an additional bare copper or aluminum ground wire alongside the Triplex cable, depending on your local NEC requirements.
