Parent SKU : PPLEX2-3-BOY
SKU : PPLEX2-3-BOY-250

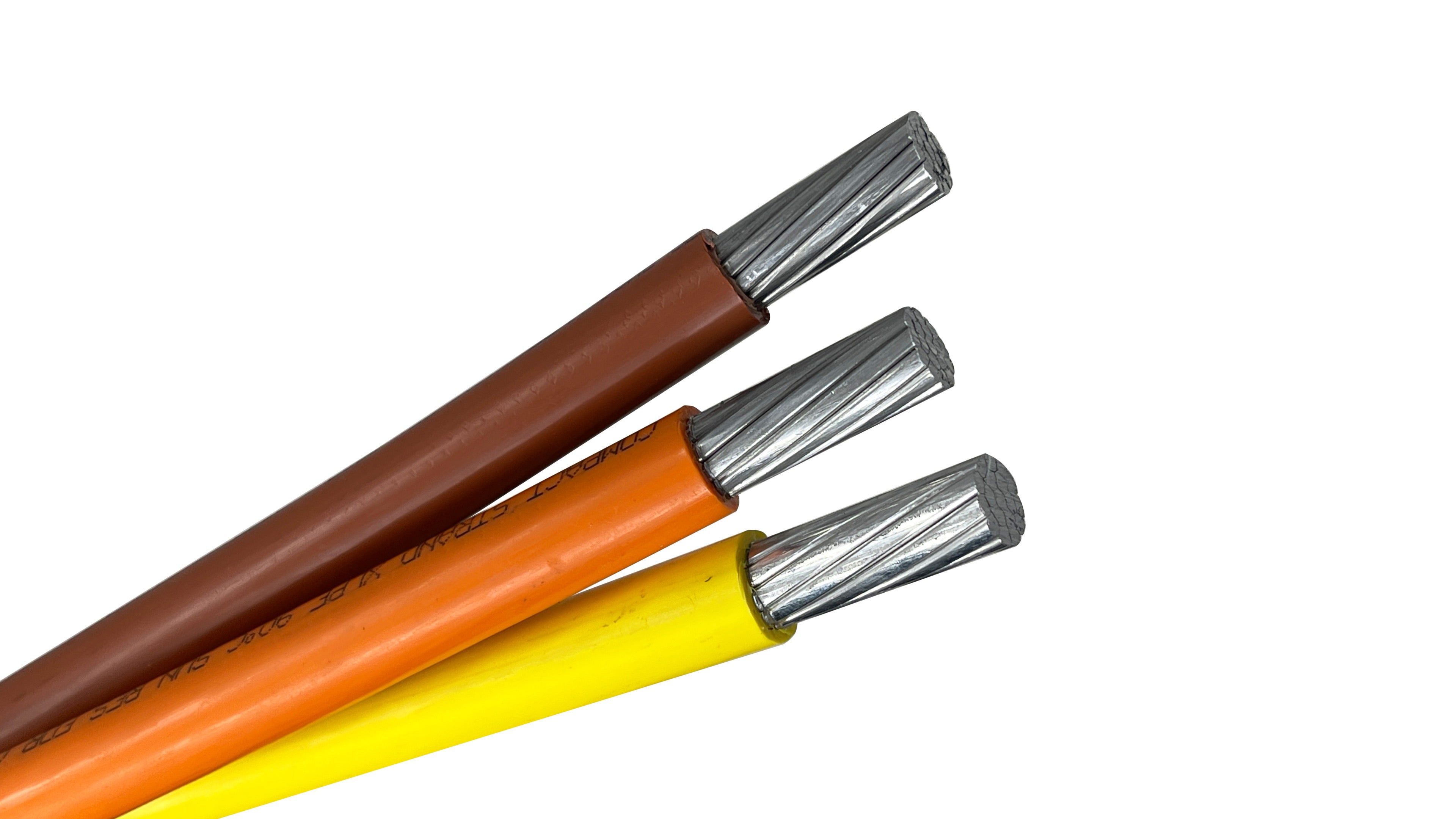

Specifically tailored for the high-voltage demands of commercial and industrial 480V systems, this 2 AWG Priority-Plex® twisted assembly is a powerhouse of efficiency for electrical crews. By pre-bundling three phase conductors into a factory-synchronized twist, this cable removes the complexity of manual wire paralleling and the logistical friction of handling multiple reels, allowing for a faster, safer, and much cleaner installation.
Navigating industrial feeders through complex raceways requires a cable that minimizes physical resistance. The Priority-Plex® architecture maintains a stable, precision-twisted geometry that prevents conductors from "bird-caging" or overlapping inside the conduit. This design significantly reduces pulling tension, protecting the insulation from sidewall pressure and ensuring a balanced load distribution across the entire pull.
High-Voltage System Integration: Features industry-standard Brown, Orange, and Yellow conductors for immediate identification in 480/277V systems, facilitating rapid and error-free terminations.
Logistical Site Advantage: Consolidation onto one reel significantly reduces setup time and equipment overhead, making it the ideal choice for crowded mechanical rooms and tight job sites.
Superior XHHW-2 Thermal Shielding: The cross-linked polyethylene (XLP) insulation is engineered for 90°C wet/dry performance, providing elite resistance to heat, moisture, and chemicals.
Lightweight AA-8000 Performance: Provides the necessary conductivity for 100-Amp industrial branch circuits while remaining much easier to handle and maneuver than equivalent copper feeders.
Conductor Size: 2 AWG
Number of Conductors: 3 (Twisted)
Color Code: Brown, Orange, Yellow
Ampacity: 100 Amps at 75°C / 100 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
Commercial 480V Sub-Panels: The primary choice for feeding secondary distribution boards in high-rise offices, hotels, and retail centers.
Industrial Motor Circuits: Ideal for supplying high-voltage power to industrial machinery, pump systems, and HVAC units.
Institutional Power Routing: A reliable solution for school campuses and hospital wings where high-load circuit stability is mandatory.
Efficient Conduit Pulls: The twisted geometry reduces surface-to-conduit friction, making it the superior option for long pulls through PVC, EMT, or rigid metal conduit.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 2-03PPLEX-BOY
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 2 AWG |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 0.78 in. / 19.9 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2557 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 100 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 0.258 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : PPLEX2-3-BOY
SKU : PPLEX2-3-BOY-250
Parent SKU : PPLEX2-3-BOY
SKU : PPLEX2-3-BOY-250
Specifically tailored for the high-voltage demands of commercial and industrial 480V systems, this 2 AWG Priority-Plex® twisted assembly is a powerhouse of efficiency for electrical crews. By pre-bundling three phase conductors into a factory-synchronized twist, this cable removes the complexity of manual wire paralleling and the logistical friction of handling multiple reels, allowing for a faster, safer, and much cleaner installation.
Navigating industrial feeders through complex raceways requires a cable that minimizes physical resistance. The Priority-Plex® architecture maintains a stable, precision-twisted geometry that prevents conductors from "bird-caging" or overlapping inside the conduit. This design significantly reduces pulling tension, protecting the insulation from sidewall pressure and ensuring a balanced load distribution across the entire pull.
High-Voltage System Integration: Features industry-standard Brown, Orange, and Yellow conductors for immediate identification in 480/277V systems, facilitating rapid and error-free terminations.
Logistical Site Advantage: Consolidation onto one reel significantly reduces setup time and equipment overhead, making it the ideal choice for crowded mechanical rooms and tight job sites.
Superior XHHW-2 Thermal Shielding: The cross-linked polyethylene (XLP) insulation is engineered for 90°C wet/dry performance, providing elite resistance to heat, moisture, and chemicals.
Lightweight AA-8000 Performance: Provides the necessary conductivity for 100-Amp industrial branch circuits while remaining much easier to handle and maneuver than equivalent copper feeders.
Conductor Size: 2 AWG
Number of Conductors: 3 (Twisted)
Color Code: Brown, Orange, Yellow
Ampacity: 100 Amps at 75°C / 100 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
Commercial 480V Sub-Panels: The primary choice for feeding secondary distribution boards in high-rise offices, hotels, and retail centers.
Industrial Motor Circuits: Ideal for supplying high-voltage power to industrial machinery, pump systems, and HVAC units.
Institutional Power Routing: A reliable solution for school campuses and hospital wings where high-load circuit stability is mandatory.
Efficient Conduit Pulls: The twisted geometry reduces surface-to-conduit friction, making it the superior option for long pulls through PVC, EMT, or rigid metal conduit.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 2-03PPLEX-BOY
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 2 AWG |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 0.78 in. / 19.9 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2557 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 100 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 0.258 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||
This #2 AWG, 3-conductor cable is specifically color-coded for 480V 3-phase industrial power distribution. The Brown, Orange, and Yellow phase identification is the industry standard for 277/480V commercial and industrial power systems. It is most frequently used to feed small-to-mid-sized industrial motors, commercial rooftop units, and sub-panels where high-voltage power is required without an integrated neutral.
While #2 AWG is more flexible than larger MCM cables, pulling three separate conductors can still lead to tangling or uneven tension. Priority-Plex® factory-twists the three phases into a tight, helical bundle. This ensures that the phases stay organized from the reel to the termination point, simplifying identification in busy junction boxes. Furthermore, the twist reduces the overall surface area in contact with the conduit wall, significantly lowering pulling friction and making hand-pulls much easier for the installation crew.
In 480V systems, thermal stability and chemical resistance are critical for long-term safety. XHHW-2 insulation is made of Cross-Linked Polyethylene (XLPE), a "thermoset" material that provides significantly better thermal protection than standard PVC-based THHN. It will not melt or deform under high heat or emergency overload conditions. Additionally, XLPE is highly resistant to industrial oils, chemicals, and moisture, making it the ideal choice for the harsh conditions found in manufacturing plants, refineries, and mechanical rooms.
The allowable ampacity for #2 Aluminum is determined by the temperature rating of the equipment terminations per NEC Table 310.16. For 75°C Terminations, it is rated for 90 Amps. For 90°C Terminations, it is rated for 100 Amps. Because all three conductors in this Priority-Plex® bundle are current-carrying phases, standard NEC adjustment factors must be applied if the cable is installed in a raceway with multiple other circuits to avoid overheating.
Proper infrastructure is necessary to accommodate the diameter of #2 AWG wire while ensuring a smooth pull. To satisfy the NEC 40% fill requirement, a 1.25-inch conduit is generally the minimum recommended for a 3-conductor #2 AWG twisted pull. Always use UL-listed AL9CU mechanical or compression lugs. It is a best practice to wire-brush the 8000-series aluminum alloy and apply an antioxidant joint compound before torquing the connection to the manufacturer’s specified tension to ensure a lifetime of low-resistance performance.
