Parent SKU : PPLEX2-3-BRW
SKU : PPLEX2-3-BRW-250
Redefining installation speed for residential and commercial sub-panel circuits, this Priority-Plex® twisted feeder cable is a game-changer for electrical contractors. By pre-twisting two phase conductors and a dedicated neutral into a single, manageable assembly, it removes the need for manual on-site spinning or complex multi-reel setups, significantly slashing labor costs and reducing the risk of conductor tangling.

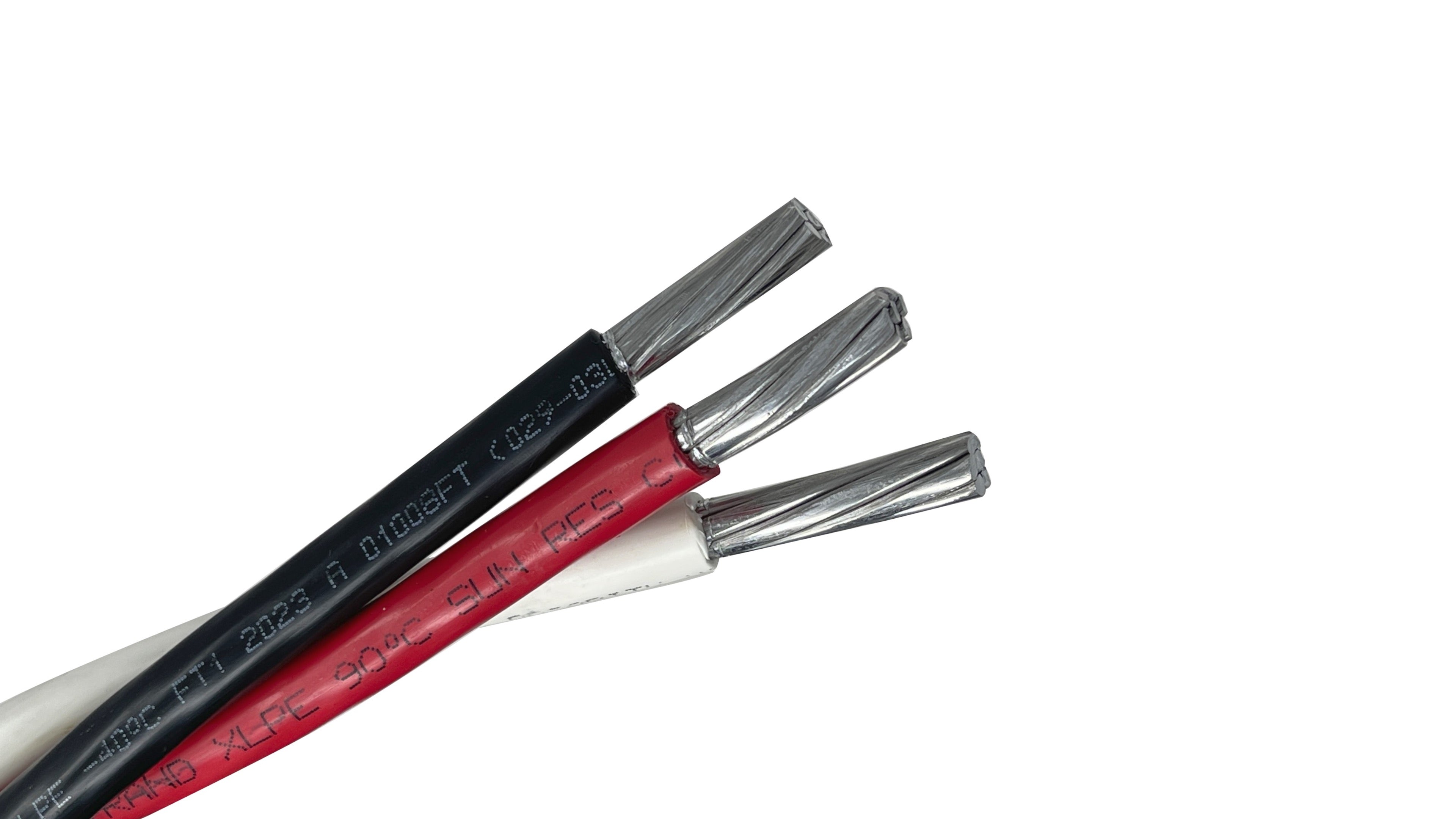

This 3-conductor twisted configuration (Black, Red, and White) is the professional choice for streamlined secondary service entries. The Priority-Plex® technology ensures the conductors stay tightly bundled throughout the pull, providing a balanced distribution of tension and a smaller footprint within the conduit compared to loose wires.
Priority-Plex® Efficiency: Prevents "bird-caging" and eliminates the logistical headache of managing three separate reels for a single circuit.
Color-Coded Circuit Identification: Features a Black and Red phase conductor with a dedicated White neutral for rapid, error-free termination at the panelboard.
Advanced XHHW-2 Insulation: The cross-linked polyethylene (XLP) coating offers superior resistance to heat, moisture, and environmental abrasion.
8000 Series Aluminum Performance: Provides a lightweight, cost-effective alternative to copper without compromising electrical integrity or long-term reliability.
Conductor Size: 2 AWG
Number of Conductors: 3 (Twisted)
Color Code: Black, Red, White
Ampacity: 100 Amps at 75°C / 100 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
Residential Sub-Panels: The go-to solution for feeding 100-Amp sub-panels in modern home additions, garages, and basements.
Commercial Branch Circuits: Ideal for routing power from main distribution centers to secondary panels in retail or office environments.
Tight Conduit Pulls: The twisted geometry reduces surface friction, making it significantly easier to pull through long runs of EMT or PVC conduit.
Efficiency-Focused Job Sites: Specifically designed for crews looking to minimize equipment overhead and speed up installation timelines.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 2-03PPLEX-BRW
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 2 AWG |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 0.78 in. / 19.9 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2556 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 100 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 0.258 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : PPLEX2-3-BRW
SKU : PPLEX2-3-BRW-250
Parent SKU : PPLEX2-3-BRW
SKU : PPLEX2-3-BRW-250
Redefining installation speed for residential and commercial sub-panel circuits, this Priority-Plex® twisted feeder cable is a game-changer for electrical contractors. By pre-twisting two phase conductors and a dedicated neutral into a single, manageable assembly, it removes the need for manual on-site spinning or complex multi-reel setups, significantly slashing labor costs and reducing the risk of conductor tangling.
This 3-conductor twisted configuration (Black, Red, and White) is the professional choice for streamlined secondary service entries. The Priority-Plex® technology ensures the conductors stay tightly bundled throughout the pull, providing a balanced distribution of tension and a smaller footprint within the conduit compared to loose wires.
Priority-Plex® Efficiency: Prevents "bird-caging" and eliminates the logistical headache of managing three separate reels for a single circuit.
Color-Coded Circuit Identification: Features a Black and Red phase conductor with a dedicated White neutral for rapid, error-free termination at the panelboard.
Advanced XHHW-2 Insulation: The cross-linked polyethylene (XLP) coating offers superior resistance to heat, moisture, and environmental abrasion.
8000 Series Aluminum Performance: Provides a lightweight, cost-effective alternative to copper without compromising electrical integrity or long-term reliability.
Conductor Size: 2 AWG
Number of Conductors: 3 (Twisted)
Color Code: Black, Red, White
Ampacity: 100 Amps at 75°C / 100 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
Residential Sub-Panels: The go-to solution for feeding 100-Amp sub-panels in modern home additions, garages, and basements.
Commercial Branch Circuits: Ideal for routing power from main distribution centers to secondary panels in retail or office environments.
Tight Conduit Pulls: The twisted geometry reduces surface friction, making it significantly easier to pull through long runs of EMT or PVC conduit.
Efficiency-Focused Job Sites: Specifically designed for crews looking to minimize equipment overhead and speed up installation timelines.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 2-03PPLEX-BRW
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 2 AWG |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 0.78 in. / 19.9 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2556 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 100 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 0.258 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||
This 2 AWG, 3-conductor assembly is a heavy-duty feeder cable typically used to provide power to sub-panels, large appliances (like heat pumps), or light commercial distribution boards. Because it uses XHHW-2 conductors, it is suitable for both wet and dry locations and is commonly pulled through conduit in underground or exposed environments.
Priority-Plex® refers to Belden's specialized manufacturing process where the three conductors are pre-twisted (cabled) together at the factory.
According to NEC Table 310.16, the ampacity for 2 AWG Aluminum depends on your terminal temperature ratings:
⚠️ PRO TIP: Most residential and commercial lugs are rated for 75°C. Therefore, even though the wire is 90°C rated, you will typically be limited to 90 Amps for your circuit protection.
Yes we offer XHHW-2 Aluminum Wire in a single conductor from 14 AWG to 1000 MCM in multiple colors by the foot. Shop our single conductor XHHW-2 Collection here.
