Parent SKU : PPLEX2/0-3-BOY
SKU : PPLEX2/0-3-BOY-250

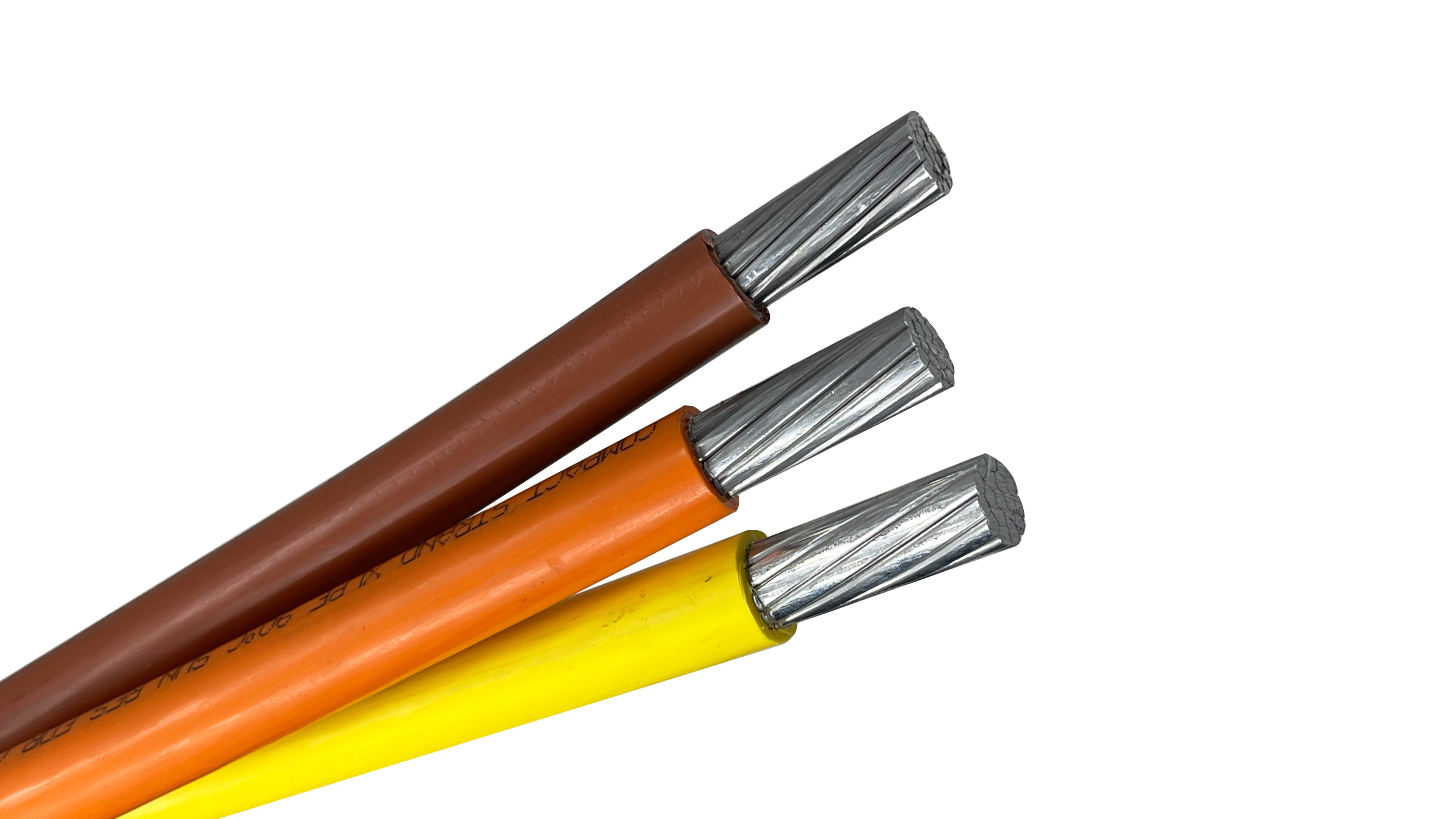

Engineered for heavy-duty 480V power distribution, this 2/0 AWG Priority-Plex® twisted assembly is a high-efficiency solution for commercial and industrial electrical systems. By pre-twisting three high-performance conductors into a single unit, this assembly eliminates the labor-intensive process of spinning reels on-site, allowing for a faster, safer, and more organized installation from a single source.
Navigating mid-sized industrial feeders through long conduit runs requires a cable that resists binding and "bird-caging." The Priority-Plex® system maintains a tight, consistent twist that reduces the overall diameter and surface friction within the raceway. This design ensures that pulling tension is distributed equally across all conductors, preventing individual wire strain during high-stress pulls.
High-Voltage Phase Identification: Features industry-standard Brown, Orange, and Yellow conductors, specifically designed for rapid circuit identification in 480/277V systems.
Streamlined Pulling Logistics: Consolidation onto one reel significantly reduces setup time and equipment overhead, making it the ideal choice for crowded mechanical rooms.
Resilient XHHW-2 Shielding: The cross-linked polyethylene (XLP) insulation is engineered to withstand high thermal loads and resist moisture in underground ducts or wet locations.
Lightweight 8000 Series Alloy: Provides the necessary conductivity for industrial branch circuits while remaining much easier to handle than equivalent copper conductors.
Conductor Size: 2/0 AWG
Number of Conductors: 3 (Twisted)
Color Code: Brown, Orange, Yellow
Ampacity: 135 Amps at 75°C / 150 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
Industrial Motor Feeders: The go-to solution for supplying high-voltage power to industrial machinery and large HVAC units.
Commercial High-Rise Distribution: Ideal for routing 480V power from main distribution boards to floor-level sub-panels in office towers and hospitals.
Institutional Facilities: A reliable choice for university campuses and government complexes where high-load stability is essential.
Conduit-Based Services: The twisted geometry reduces surface-to-conduit friction, making it the superior option for long pulls through PVC or rigid metal conduit.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 2/0-03PPLEX-BOY
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 2/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 1.06 in. / 27.0 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2557 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 150 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 0.491 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : PPLEX2/0-3-BOY
SKU : PPLEX2/0-3-BOY-250
Parent SKU : PPLEX2/0-3-BOY
SKU : PPLEX2/0-3-BOY-250
Engineered for heavy-duty 480V power distribution, this 2/0 AWG Priority-Plex® twisted assembly is a high-efficiency solution for commercial and industrial electrical systems. By pre-twisting three high-performance conductors into a single unit, this assembly eliminates the labor-intensive process of spinning reels on-site, allowing for a faster, safer, and more organized installation from a single source.
Navigating mid-sized industrial feeders through long conduit runs requires a cable that resists binding and "bird-caging." The Priority-Plex® system maintains a tight, consistent twist that reduces the overall diameter and surface friction within the raceway. This design ensures that pulling tension is distributed equally across all conductors, preventing individual wire strain during high-stress pulls.
High-Voltage Phase Identification: Features industry-standard Brown, Orange, and Yellow conductors, specifically designed for rapid circuit identification in 480/277V systems.
Streamlined Pulling Logistics: Consolidation onto one reel significantly reduces setup time and equipment overhead, making it the ideal choice for crowded mechanical rooms.
Resilient XHHW-2 Shielding: The cross-linked polyethylene (XLP) insulation is engineered to withstand high thermal loads and resist moisture in underground ducts or wet locations.
Lightweight 8000 Series Alloy: Provides the necessary conductivity for industrial branch circuits while remaining much easier to handle than equivalent copper conductors.
Conductor Size: 2/0 AWG
Number of Conductors: 3 (Twisted)
Color Code: Brown, Orange, Yellow
Ampacity: 135 Amps at 75°C / 150 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
Industrial Motor Feeders: The go-to solution for supplying high-voltage power to industrial machinery and large HVAC units.
Commercial High-Rise Distribution: Ideal for routing 480V power from main distribution boards to floor-level sub-panels in office towers and hospitals.
Institutional Facilities: A reliable choice for university campuses and government complexes where high-load stability is essential.
Conduit-Based Services: The twisted geometry reduces surface-to-conduit friction, making it the superior option for long pulls through PVC or rigid metal conduit.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 2/0-03PPLEX-BOY
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 2/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 1.06 in. / 27.0 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2557 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 150 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 0.491 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||
This 2/0 AWG, 3-conductor assembly is specifically color-coded for 480V 3-phase industrial power distribution. The Brown, Orange, and Yellow phase identification is the industry standard for high-voltage commercial and industrial systems (277/480V). It is most frequently used as a feeder for mid-sized industrial motor loads, commercial rooftop HVAC units, and sub-panels in facilities where a neutral is not required within the conductor bundle.
Managing heavy-gauge 2/0 conductors in a 480V industrial environment often involves long conduit runs with multiple 90-degree bends. Priority-Plex® factory-twists the three phases into a single, synchronized helical bundle. This structural arrangement ensures that the conductors move as a single unit, preventing "birdcaging" or "wedging" inside the pipe. By reducing the surface area contact with the conduit wall, the twist significantly lowers pulling friction, allowing for a faster, safer installation with less mechanical stress on the wire.
In high-voltage systems, insulation failure can lead to catastrophic phase-to-phase shorts. XHHW-2 insulation is composed of Cross-Linked Polyethylene (XLPE), a thermoset material that offers superior performance over standard PVC. It will not melt or deform under emergency overload conditions or if exposed to high ambient heat. Furthermore, XLPE provides excellent resistance to industrial oils, chemicals, and moisture, making it the ideal choice for the harsh conditions found in refineries, processing plants, and manufacturing floors.
The allowable ampacity for 2/0 Aluminum is determined by the temperature rating of your equipment terminations per NEC Table 310.16. For 75°C Terminations, it is rated for 135 Amps, and for 90°C Terminations, it is rated for 150 Amps. Because all three conductors in this Priority-Plex® bundle are current-carrying phases, standard NEC adjustment factors must be applied if the circuit is installed in a raceway with multiple other conductors to prevent excessive heat buildup.
Proper infrastructure is necessary to accommodate the diameter and weight of 2/0 AWG wire. To satisfy the NEC 40% fill requirement, a 1.5-inch or 2-inch conduit is generally required. Professional installers typically recommend a 2-inch pipe for long runs to ensure the twisted bundle passes through bends without binding. Always use UL-listed AL9CU lugs and ensure that you wire-brush the 8000-series aluminum alloy and apply an antioxidant joint compound before torquing the connection to the manufacturer’s specified tension.
