Parent SKU : PPLEX2/0-3-BRW
SKU : PPLEX2/0-3-BRW-250
Designed for high-demand electrical systems, this Priority-Plex® twisted feeder cable provides a reliable and efficient solution for large-scale power distribution. By utilizing a factory-twisted configuration of two phase conductors and a dedicated neutral, this 2/0 AWG assembly eliminates the complexity of on-site paralleling and reel management, allowing for faster throughput and reduced physical strain during the pull.

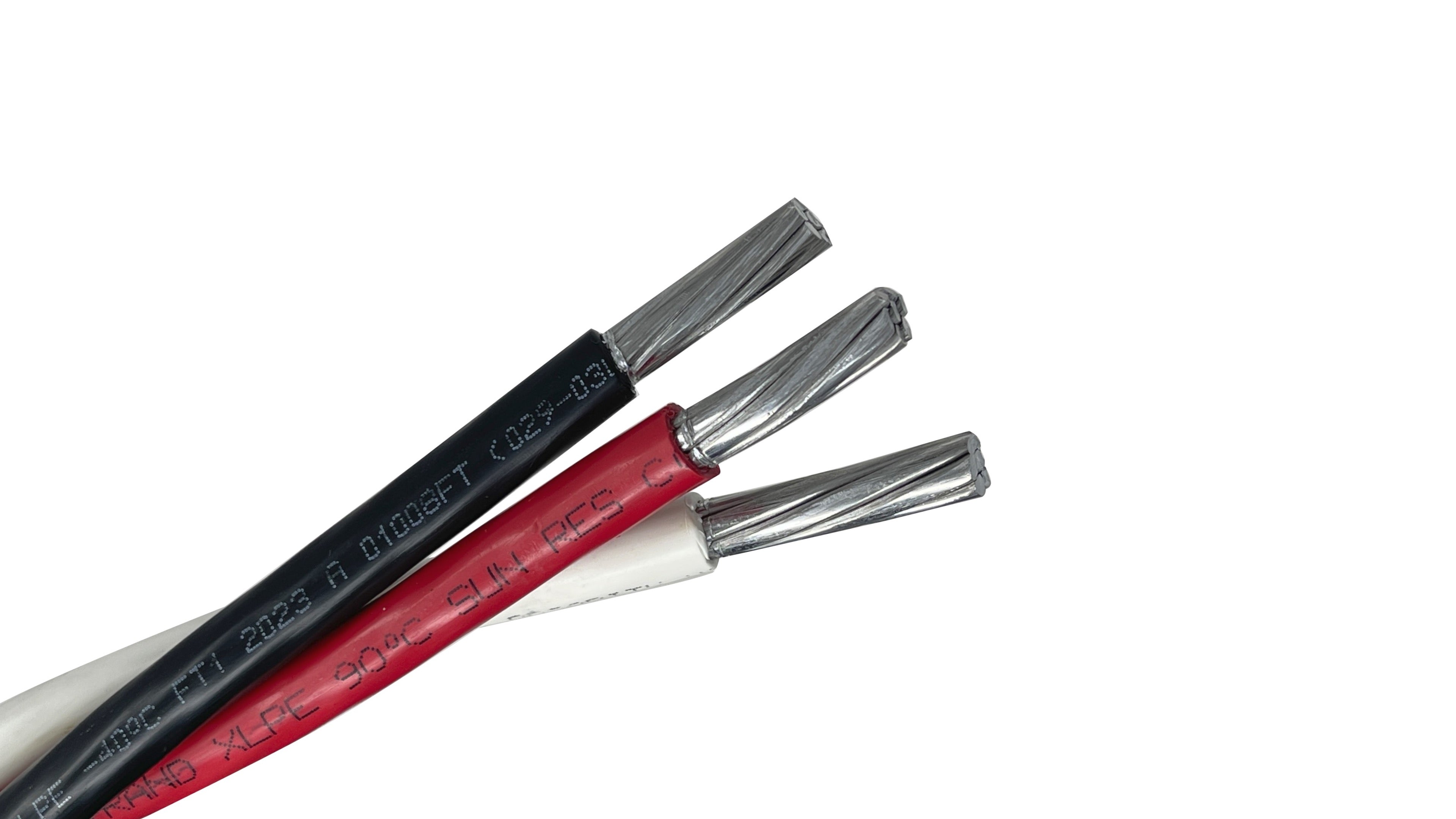

This 3-conductor assembly (Black, Red, and White) is optimized for heavy residential and commercial service applications. The Priority-Plex® design ensures that the conductors stay tightly grouped, which significantly reduces the friction coefficient during conduit pulls and minimizes the overall installation footprint.
Priority-Plex® Design: The pre-twisted architecture prevents individual conductor separation, ensuring a uniform pull that protects the insulation integrity.
Phase-Specific Identification: Features distinct Black and Red phase conductors with a White neutral for immediate, code-compliant circuit identification.
Rugged XHHW-2 Insulation: High-grade cross-linked polyethylene (XLP) offers superior resistance to abrasion, moisture, and thermal overload.
Performance Aluminum Construction: Utilizes AA-8000 series aluminum alloy to deliver high ampacity with a significant weight reduction compared to traditional copper feeders.
Conductor Size: 2/0 AWG
Number of Conductors: 3 (Twisted)
Color Code: Black, Red, White
Ampacity: 135 Amps at 75°C / 150 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
Major Sub-Panel Feeds: The standard choice for 150-Amp sub-panels in modern residential builds and commercial retail spaces.
Feeder Circuits: Ideal for connecting main service entrance equipment to remote distribution centers in industrial environments.
Conduit-Based Service Entrance: Specifically designed for smooth routing through PVC, EMT, or rigid metal conduits over long distances.
Multi-Family Housing: Perfect for running power to individual units from a centralized meter bank where speed and space efficiency are critical.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 2/0-03PPLEX-BRW
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 2/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 1.06 in. / 27.0 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2557 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 150 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 0.491 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : PPLEX2/0-3-BRW
SKU : PPLEX2/0-3-BRW-250
Parent SKU : PPLEX2/0-3-BRW
SKU : PPLEX2/0-3-BRW-250
Designed for high-demand electrical systems, this Priority-Plex® twisted feeder cable provides a reliable and efficient solution for large-scale power distribution. By utilizing a factory-twisted configuration of two phase conductors and a dedicated neutral, this 2/0 AWG assembly eliminates the complexity of on-site paralleling and reel management, allowing for faster throughput and reduced physical strain during the pull.
This 3-conductor assembly (Black, Red, and White) is optimized for heavy residential and commercial service applications. The Priority-Plex® design ensures that the conductors stay tightly grouped, which significantly reduces the friction coefficient during conduit pulls and minimizes the overall installation footprint.
Priority-Plex® Design: The pre-twisted architecture prevents individual conductor separation, ensuring a uniform pull that protects the insulation integrity.
Phase-Specific Identification: Features distinct Black and Red phase conductors with a White neutral for immediate, code-compliant circuit identification.
Rugged XHHW-2 Insulation: High-grade cross-linked polyethylene (XLP) offers superior resistance to abrasion, moisture, and thermal overload.
Performance Aluminum Construction: Utilizes AA-8000 series aluminum alloy to deliver high ampacity with a significant weight reduction compared to traditional copper feeders.
Conductor Size: 2/0 AWG
Number of Conductors: 3 (Twisted)
Color Code: Black, Red, White
Ampacity: 135 Amps at 75°C / 150 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
Major Sub-Panel Feeds: The standard choice for 150-Amp sub-panels in modern residential builds and commercial retail spaces.
Feeder Circuits: Ideal for connecting main service entrance equipment to remote distribution centers in industrial environments.
Conduit-Based Service Entrance: Specifically designed for smooth routing through PVC, EMT, or rigid metal conduits over long distances.
Multi-Family Housing: Perfect for running power to individual units from a centralized meter bank where speed and space efficiency are critical.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 2/0-03PPLEX-BRW
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 2/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 1.06 in. / 27.0 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2557 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 150 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 0.491 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||
This 2/0 AWG (pronounced "two-aught"), 3-conductor assembly is a heavy-duty feeder cable designed for high-amperage residential and commercial power distribution. It is most frequently used for 150A to 175A residential service entrances and main sub-panel feeds. The XHHW-2 rating ensures it can be installed in conduit in both wet and dry locations, making it ideal for underground service laterals or feeders in damp industrial environments.
Priority-Plex® is a specialized manufacturing process where the conductors are pre-twisted (cabled) together at the factory.
At the 2/0 gauge, aluminum offers an optimal balance of high ampacity and low cost compared to copper, which would be significantly heavier and more expensive for this capacity.
According to NEC Table 310.16, the ampacity for 2/0 Aluminum depends on the temperature rating of the equipment terminations:
⚠️ PRO TIP: Most modern main breakers and distribution panels are rated for 75°C. Therefore, in most commercial/industrial applications, this cable is treated as a 135 Amp feeder. However, for residential service entrance applications, NEC 310.12 may allow higher ratings (often up to 175A for a 200A service using the 83% rule) depending on the total load of the dwelling.
This assembly follows the standard 120/240V or 120/208V color code for easy identification:
The colors are typically embedded in the XLPE insulation or clearly striped, ensuring permanent identification that won't rub off during a difficult pull through a long conduit run.
Yes we offer XHHW-2 Aluminum Wire in a single conductor from 14 AWG to 1000 MCM in multiple colors by the foot. Shop our single conductor XHHW-2 Collection here.
