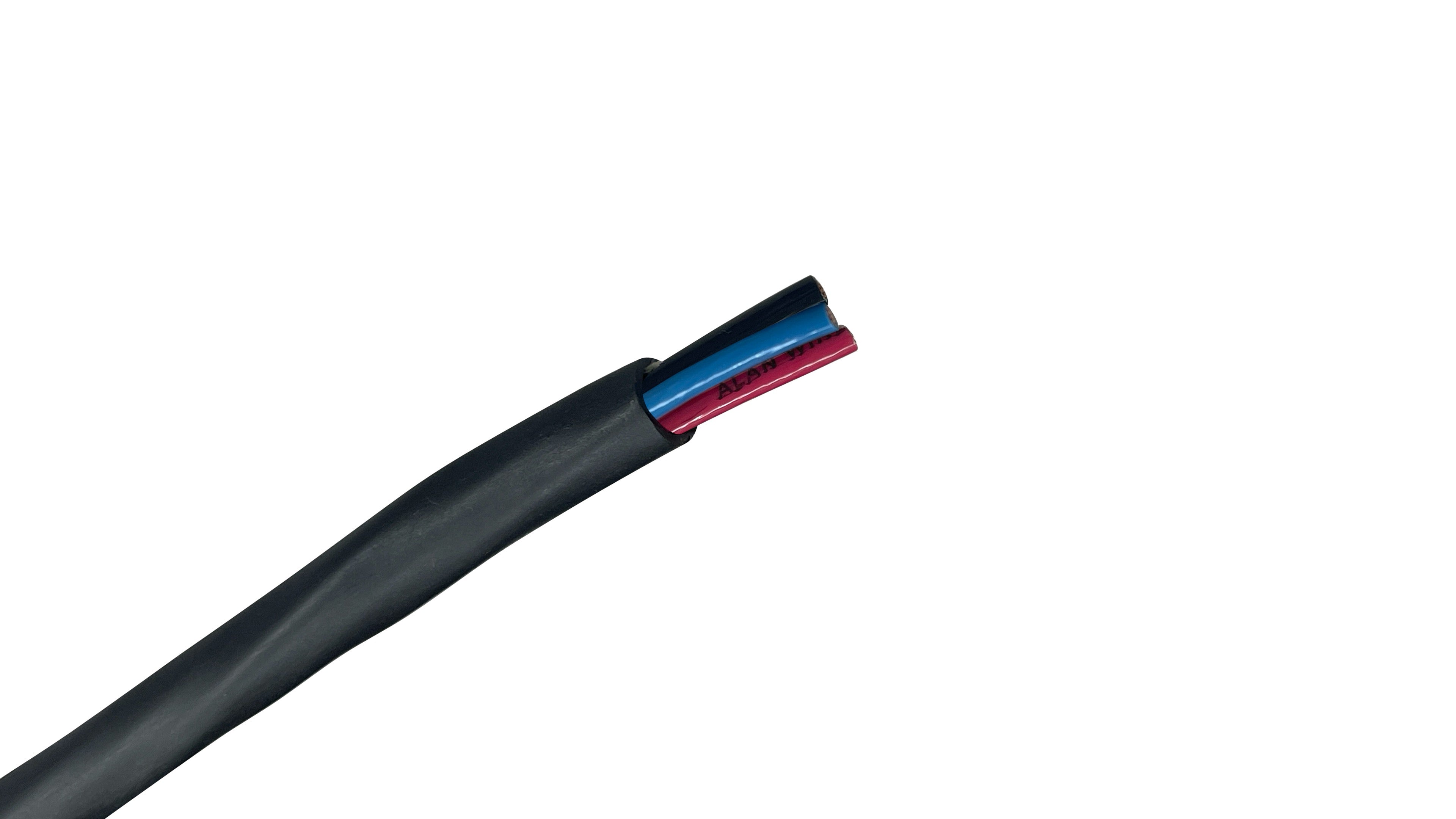

10/3 VNTC Tray Cable Type TC-ER (THHN PVC 600V)

10 AWG 3-Conductor VNTC (Vinyl Nylon Tray Cable) without Ground is a heavy-duty, multi-conductor industrial power, branch circuit, and machinery control cable engineered for installation in open cable trays, structural conduits, and commercial wireways. Comprising three standalone 10 AWG stranded bare copper conductors twisted into a balanced round core, this Type TC (Tray Cable) assembly utilizes high-performance THHN/THWN-2 insulation cores wrapped in a rugged, flame-retardant, and sunlight-resistant Polyvinyl Chloride (PVC) outer jacket.

This heavy-capacity control and power cable is designed for a wide range of standard commercial branch circuits and industrial control loops. It provides a robust, moisture-resistant wiring system optimized for routing single-phase circuits with a neutral, dedicated 3-phase machinery circuits (where an external grounding path is utilized), and high-draw relay logic fields through demanding overhead or underground raceways.

AMPACITY RATINGS (NEC 310.16)

• 60°C Terminal Rating: 30 AMPS This is the baseline engineering safety rating. Use this value for final circuit sizing under normal operating conditions when connecting to legacy equipment terminals or standard breaker lugs restricted to 60°C constraints.

• 75°C Terminal Rating: 35 AMPS This is the standard engineering design rating. Use this value for most standard modern terminal blocks, motor starters, and electrical distribution equipment, as most modern industrial termination lugs are rated for 75°C constraints.

• 90°C Terminal Rating: 40 AMPS This is the maximum capacity rating. Use this value strictly as the baseline calculation factor when adjusting or derating for high ambient operating temperatures, or when bundling multiple tray cables together in tightly packed industrial raceways.

Key Features

• Industrial Round Profile Construction: Wires are twisted inside the jacket into a nested round layout, maximizing physical symmetry. This structural design ensures uniform pulling tension, high physical strength, and smooth feeding through multi-bend conduit runs.

• Dual THHN / THWN-2 Conductor Insulation: Inner copper conductors are wrapped in high-dielectric PVC and topped with a rugged clear nylon skin. This dual-layer architecture ensures superior resistance to oil, gasoline, moisture, and insulation scraping during difficult installations.

• Direct Burial & Sunlight Resistant: Protected by an extruded, flame-retardant outer PVC jacket that forms an impermeable barrier against harsh ambient conditions, making it safe for open air tray runs, direct burial trenching, or wet environments.

• Highly Conductive Bare Copper: Manufactured with high-purity, soft-annealed stranded bare copper conductors to deliver optimal electrical conductivity, minimal line resistance, and sufficient physical flexibility for long pulled runs.

• Rigorous Industrial Flame Ratings: Engineered to prevent the migration of fire across open structural paths, fully certified to pass the demanding IEEE 1202 / UL 1685 vertical tray flame tests.

Common Applications

• Commercial & Industrial Power Networks: Sizing automated facility overhead power runs, heavy industrial LED banks, outdoor security lighting loops, and high-draw branch circuits.

• Industrial Control & Power Signaling: Routing continuous 120V power control signals, multi-point PLC outputs, safety interlock loops, automated conveyor controls, and equipment alarm relays.

• Utility Feeder & Branch Distribution: Pulling branch infrastructure connections through structural conduits, commercial utility tunnels, underground duct banks, or open-air wire mesh trays.

• Hazardous Environment Deployment: Approved under strict National Electrical Code provisions for installation within Class I, Division 2 hazardous industrial locations.

Circuit Identification: Standard 3-Conductor Color Code

• Conductor 1: Black Insulation (Phase A / Line 1)

• Conductor 2: Red Insulation (Phase B / Line 2)

• Conductor 3: Blue Insulation (Phase C / Line 3)

• Note: Depending on the specific factory specification or application (such as a 3-phase ungrounded circuit), this 3-conductor configuration may alternatively be provided with a Black, Red, and Blue core arrangement. Always confirm field color schemes prior to installation.

Technical Specifications

• Conductor Size: 10 AWG

• Number of Wires: 3

• Cable Geometry: Round (Twisted Core)

• Conductor Type: Stranded Bare Copper

• Insulation Material: PVC with Nylon Skin (THHN/THWN-2)

• Jacket Material: PVC (Polyvinyl Chloride) - Black

• Voltage Rating: 600 Volts RMS

• Maximum Temperature Rating: 90°C Dry / 90°C Wet Continuous Operating

• Flame Test Ratings: IEEE 1202, UL 1685 Vertical Tray Flame Test, FT4

• Compliance Standards: UL 1277 (Type TC), NEC Article 336, Type THHN/THWN-2 Conductors, RoHS Compliant

Technical Note: When engineering layouts with 10 AWG multi-conductor tray cable, the installer must account for the NEC "Small Conductor" rule (NEC 240.4(D)). Even though the physical 90°C thermal threshold of a 10 AWG copper conductor allows it to carry 40 Amps safely, the electrical code mandates that the standard maximum overcurrent protection device (the circuit breaker) cannot exceed 30 Amps under standard branch circuit conditions. However, the higher 40-Amp rating remains highly useful as a mathematical starting point when calculating derating penalties per NEC Article 310.15(C)(1) if multiple cables are bundled tightly together or routed through high ambient thermal paths inside industrial processing facilities.

CABLE TYPE: 10 AWG / 3-Conductor Stranded Round THHN/PVC Type TC Tray Cable (No Ground)

DISCLAIMER: The technical information provided is for general reference only. Large-scale industrial power distribution paths, lighting grids, and tray layouts must strictly adhere to the National Electrical Code (NEC), local building structures, and relevant industrial safety parameters. Always cross-reference the official product submittal data sheet from the chosen manufacturer prior to finalizing physical system designs or cutting structural cable lengths.
