Parent SKU : PPLEX1-3-BRW
SKU : PPLEX1-3-BRW-250
Engineered for heavy-duty power distribution, this Priority-Plex® twisted feeder cable is designed to streamline complex wire pulls in residential and commercial environments. By pre-assembling two phase conductors and a dedicated neutral into a single twisted unit, it eliminates the labor-intensive process of managing multiple reels and manual spinning, ensuring a cleaner, faster installation.

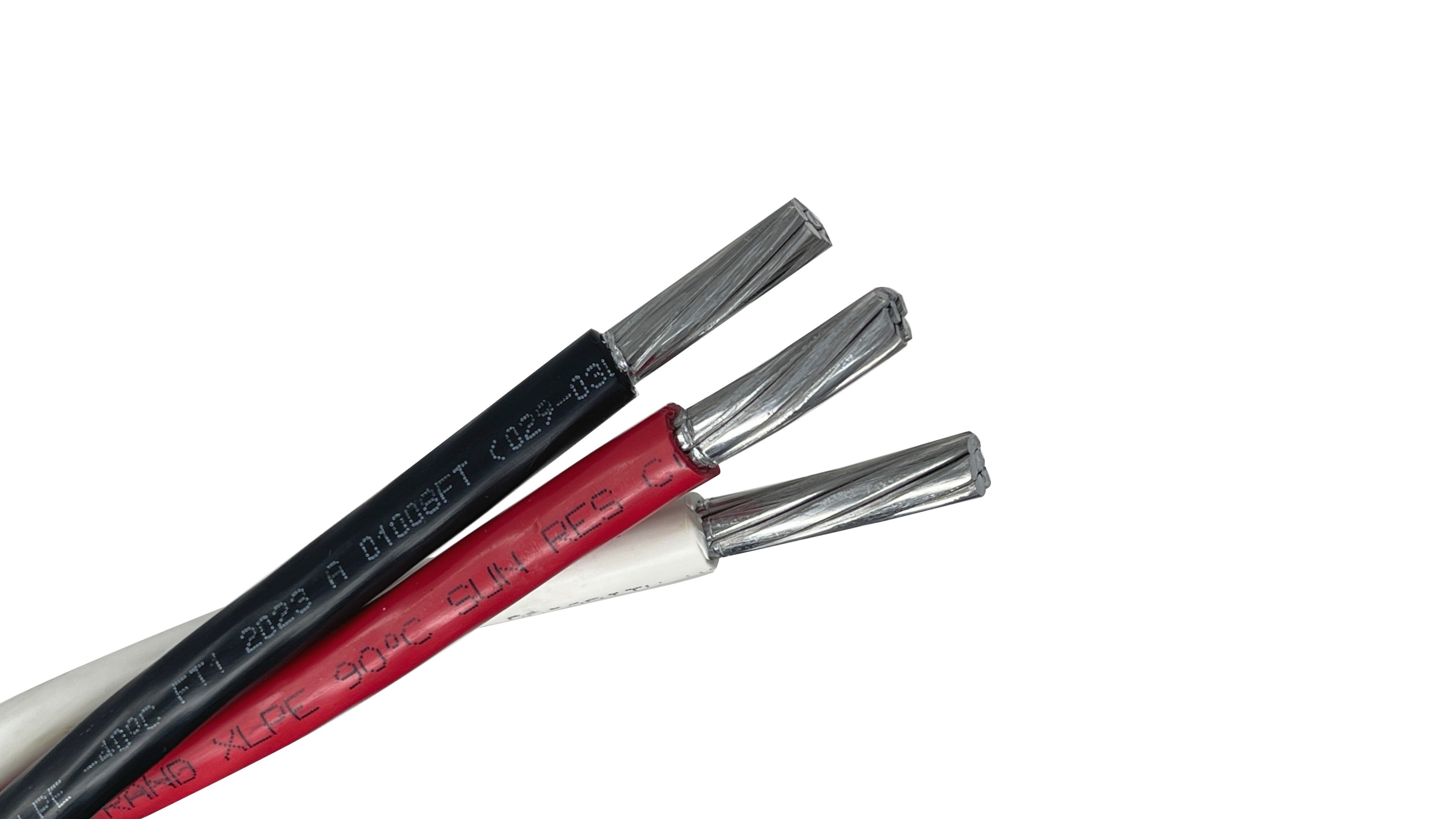

This 3-conductor assembly (Black, Red, and White) provides a high-capacity solution for secondary service entries. The Priority-Plex® configuration keeps the conductors securely bundled without the added diameter or weight of a traditional jacketed cable, allowing for easier movement through tight spaces.
Priority-Plex® Design: The twisted configuration prevents conductor crossovers and tangling, facilitating a smooth, single-source pull.
Integrated Color Coding: Features a Black and Red phase conductor with a dedicated White neutral for rapid, error-free termination.
Superior XHHW-2 Insulation: Cross-linked polyethylene (XLP) provides excellent resistance to heat, moisture, and environmental stress.
Optimized Aluminum Alloy: Built with AA-8000 series aluminum to offer a lightweight, cost-effective alternative to copper with long-term reliability.
Conductor Size: 1 AWG
Number of Conductors: 3 (Twisted)
Color Code: Black, Red, White
Ampacity: 100 Amps at 75°C / 115 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
Commercial Sub-Panels: Ideal for feeding secondary distribution boards in retail, office, and multi-family residential buildings.
Large-Scale Service Entrance: Frequently used for main service runs where a 100-Amp or 110-Amp capacity is required by the electrical load.
Conduit & Raceway Pulls: The twisted profile reduces surface friction, making it ideal for pulls through long runs of PVC or EMT conduit.
Labor-Sensitive Projects: A top choice for contractors looking to maximize efficiency and reduce the number of technicians required for a pull.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 1-03PPLEX-BRW
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 1 AWG |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 0.89 in. / 22.7 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2556 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 115 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 0.335 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : PPLEX1-3-BRW
SKU : PPLEX1-3-BRW-250
Parent SKU : PPLEX1-3-BRW
SKU : PPLEX1-3-BRW-250
Engineered for heavy-duty power distribution, this Priority-Plex® twisted feeder cable is designed to streamline complex wire pulls in residential and commercial environments. By pre-assembling two phase conductors and a dedicated neutral into a single twisted unit, it eliminates the labor-intensive process of managing multiple reels and manual spinning, ensuring a cleaner, faster installation.
This 3-conductor assembly (Black, Red, and White) provides a high-capacity solution for secondary service entries. The Priority-Plex® configuration keeps the conductors securely bundled without the added diameter or weight of a traditional jacketed cable, allowing for easier movement through tight spaces.
Priority-Plex® Design: The twisted configuration prevents conductor crossovers and tangling, facilitating a smooth, single-source pull.
Integrated Color Coding: Features a Black and Red phase conductor with a dedicated White neutral for rapid, error-free termination.
Superior XHHW-2 Insulation: Cross-linked polyethylene (XLP) provides excellent resistance to heat, moisture, and environmental stress.
Optimized Aluminum Alloy: Built with AA-8000 series aluminum to offer a lightweight, cost-effective alternative to copper with long-term reliability.
Conductor Size: 1 AWG
Number of Conductors: 3 (Twisted)
Color Code: Black, Red, White
Ampacity: 100 Amps at 75°C / 115 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
Commercial Sub-Panels: Ideal for feeding secondary distribution boards in retail, office, and multi-family residential buildings.
Large-Scale Service Entrance: Frequently used for main service runs where a 100-Amp or 110-Amp capacity is required by the electrical load.
Conduit & Raceway Pulls: The twisted profile reduces surface friction, making it ideal for pulls through long runs of PVC or EMT conduit.
Labor-Sensitive Projects: A top choice for contractors looking to maximize efficiency and reduce the number of technicians required for a pull.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 1-03PPLEX-BRW
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 1 AWG |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 0.89 in. / 22.7 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2556 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 115 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 0.335 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||
This 1 AWG, 3-conductor assembly is designed for high-capacity feeder applications. It is most commonly used for residential service entrances and commercial sub-panel feeds. Because it uses XHHW-2 conductors, it is exceptionally durable and rated for installation in conduit, both above ground and buried in wet locations.
Priority-Plex® is a value-added manufacturing feature where the three conductors are pre-twisted (cabled) together at the factory.
At the 1 AWG size, aluminum provides a significant cost saving over copper without sacrificing performance for feeder circuits.
According to NEC Table 310.16, the ampacity for 1 AWG Aluminum depends on the temperature rating of your lugs and equipment:
⚠️ PRO TIP: Most modern electrical panels use 75°C rated lugs. Therefore, for most code-compliant designs, you should treat this cable as a 100 Amp feeder.
This assembly follows the standard 120/240V or 120/208V color code:
Because these are XHHW-2 conductors, the colors are typically "impregnated" into the insulation or printed with highly visible longitudinal stripes to ensure easy identification at both ends of the run.
Yes we offer XHHW-2 Aluminum Wire in a single conductor from 14 AWG to 1000 MCM in multiple colors by the foot. Shop our single conductor XHHW-2 Collection here.
