Parent SKU : DYK-4URD
SKU : DYK-4URD-100

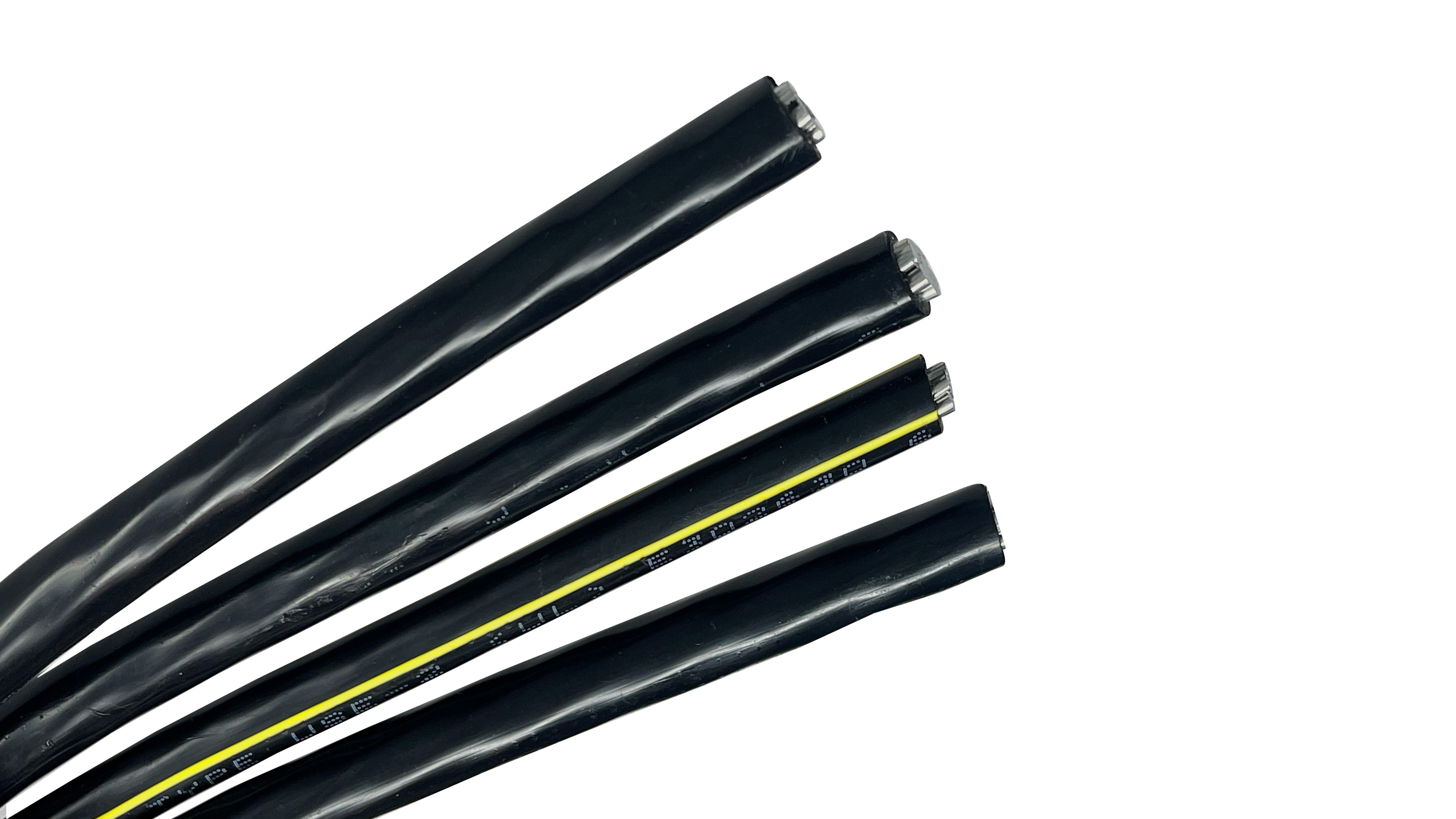

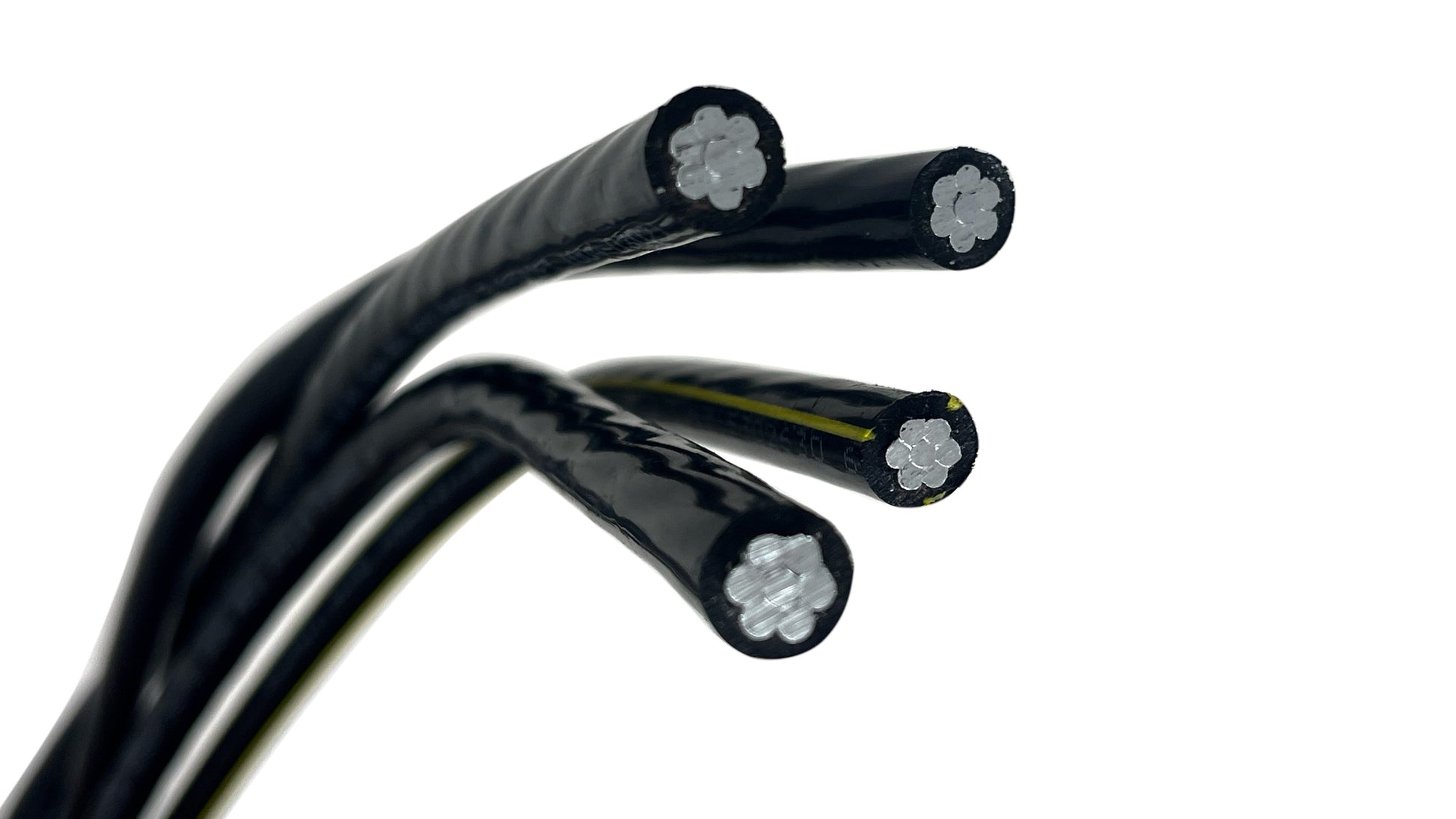

"The industry-standard for secondary three-phase residential, farm, and commercial power distribution. Engineered for reliable 600V delivery, this cable is rated for both direct burial and duct installations, featuring sunlight-resistant XLP insulation for robust, long-term underground performance."
The Dyke 2-2-2-4 URD cable is the preferred solution for secondary underground three-phase power distribution in 100-Amp applications. Specifically designed for projects requiring three phase conductors and a neutral, it provides a stable, high-performance solution for individual apartment unit feeds, light commercial services, and agricultural sub-panels. By utilizing high-conductivity 1350-H19 aluminum and a heavy-duty, sunlight-resistant XLP insulation, it offers superior resistance to environmental degradation, moisture ingress, and thermal stress.
600V Reliability: Rated for continuous operation in wet or dry locations at temperatures up to 90°C, providing dependable power for 100-Amp 3-phase equipment.
Sunlight-Resistant XLP: Advanced cross-linked polyethylene insulation prevents premature aging caused by UV exposure at termination points and service entrances.
Easy-Identify Neutral: For faster installation and safer maintenance, the neutral conductor features three extruded yellow stripes.
Direct Burial Ready: Specifically built for the harsh conditions of underground utility distribution; can be installed directly in the earth or within conduit/duct systems.
ENGINEERING OVERVIEW: 2-2-2-4 Quadruplex URD
Application: Quadruplex Aluminum 600V URD cable is designed for use in secondary distribution circuits, where installed in duct or direct burial applications.
Voltage Rating: 600 Volts.
UL Listing: UL 854 (Service-Entrance Cable).
Conductor Material: Concentric stranded 1350-H19 series aluminum.
Phase Insulation: Black sunlight-resistant XLP (Cross-Linked Polyethylene).
Neutral Insulation: Black XLP with 3 extruded yellow stripes for easy identification.
Temperature Rating: 90°C (Wet or Dry).
Cable Outer Diameter: 0.97 inches (24.64 mm).
Ampacity (Direct Burial): 155 Amps.
Ampacity (In Duct): 115 Amps.
Compliance Standards: UL 854; Type USE-2; RUS Accepted; ASTM B-230, B-231, B-609, B-901; ICEA S-105-692.
Apartment Unit Feeds: The standard choice for running 3-phase 100-Amp power from a central distribution center to individual apartment sub-panels.
Light Commercial Service: Ideal for small retail units, offices, or workshops requiring a dedicated 3-phase service entrance.
Agricultural Sub-Panels: Frequently used to power detached barns, irrigation controls, and processing equipment where 3-phase power is available.
Site Infrastructure: A durable and cost-effective solution for providing power to shared community amenities, such as pool houses or clubhouse facilities.
Direct Burial or Conduit: Flexible enough for direct-trench installation or pull-through duct runs in multi-family site developments.
Â
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations.
Â
| Wire Size (AWG/MCM) | 2 AWG |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.97 in. / 24.638 mm |
| Jacket Type | XLPE |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| Voltage Rating | 600 |
| Ampacity Rating | 155 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Medium |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables Federal Specification A-A-59544A UL 854 Service-Entrance Cables Sunlight Resistant RUS Accepted |
| Miscellaneous Information | All values are nominal and subject to correction. *Not RUS accepted size **Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations. |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 0.359 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : DYK-4URD
SKU : DYK-4URD-100
Parent SKU : DYK-4URD
SKU : DYK-4URD-100
"The industry-standard for secondary three-phase residential, farm, and commercial power distribution. Engineered for reliable 600V delivery, this cable is rated for both direct burial and duct installations, featuring sunlight-resistant XLP insulation for robust, long-term underground performance."
The Dyke 2-2-2-4 URD cable is the preferred solution for secondary underground three-phase power distribution in 100-Amp applications. Specifically designed for projects requiring three phase conductors and a neutral, it provides a stable, high-performance solution for individual apartment unit feeds, light commercial services, and agricultural sub-panels. By utilizing high-conductivity 1350-H19 aluminum and a heavy-duty, sunlight-resistant XLP insulation, it offers superior resistance to environmental degradation, moisture ingress, and thermal stress.
600V Reliability: Rated for continuous operation in wet or dry locations at temperatures up to 90°C, providing dependable power for 100-Amp 3-phase equipment.
Sunlight-Resistant XLP: Advanced cross-linked polyethylene insulation prevents premature aging caused by UV exposure at termination points and service entrances.
Easy-Identify Neutral: For faster installation and safer maintenance, the neutral conductor features three extruded yellow stripes.
Direct Burial Ready: Specifically built for the harsh conditions of underground utility distribution; can be installed directly in the earth or within conduit/duct systems.
ENGINEERING OVERVIEW: 2-2-2-4 Quadruplex URD
Application: Quadruplex Aluminum 600V URD cable is designed for use in secondary distribution circuits, where installed in duct or direct burial applications.
Voltage Rating: 600 Volts.
UL Listing: UL 854 (Service-Entrance Cable).
Conductor Material: Concentric stranded 1350-H19 series aluminum.
Phase Insulation: Black sunlight-resistant XLP (Cross-Linked Polyethylene).
Neutral Insulation: Black XLP with 3 extruded yellow stripes for easy identification.
Temperature Rating: 90°C (Wet or Dry).
Cable Outer Diameter: 0.97 inches (24.64 mm).
Ampacity (Direct Burial): 155 Amps.
Ampacity (In Duct): 115 Amps.
Compliance Standards: UL 854; Type USE-2; RUS Accepted; ASTM B-230, B-231, B-609, B-901; ICEA S-105-692.
Apartment Unit Feeds: The standard choice for running 3-phase 100-Amp power from a central distribution center to individual apartment sub-panels.
Light Commercial Service: Ideal for small retail units, offices, or workshops requiring a dedicated 3-phase service entrance.
Agricultural Sub-Panels: Frequently used to power detached barns, irrigation controls, and processing equipment where 3-phase power is available.
Site Infrastructure: A durable and cost-effective solution for providing power to shared community amenities, such as pool houses or clubhouse facilities.
Direct Burial or Conduit: Flexible enough for direct-trench installation or pull-through duct runs in multi-family site developments.
Â
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations.
Â
| Wire Size (AWG/MCM) | 2 AWG |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.97 in. / 24.638 mm |
| Jacket Type | XLPE |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| Voltage Rating | 600 |
| Ampacity Rating | 155 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Medium |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables Federal Specification A-A-59544A UL 854 Service-Entrance Cables Sunlight Resistant RUS Accepted |
| Miscellaneous Information | All values are nominal and subject to correction. *Not RUS accepted size **Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations. |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 0.359 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||
URD stands for Underground Residential Distribution. This is a specific classification of electrical cable designed to carry power from utility transformers to secondary service entrances (like your home or a commercial sub-panel). Because the Dyke #2 is a URD cable, it is engineered with rugged XLP insulation that allows it to be buried directly in the earth without the need for a protective conduit. While it has "Residential" in the name, it is the industry standard for underground power in commercial, agricultural, and industrial applications as well.
Yes. Despite having "Residential" in the name, URD is the industry standard for secondary power distribution in commercial, agricultural, and industrial settings as well. Whether you are powering a detached barn, a commercial workshop, or an apartment complex, URD is the preferred choice for any 600V underground run.
Yes. Dyke is a Type USE-2 cable, meaning it is specifically engineered for direct burial. Its Cross-Linked Polyethylene (XLPE) insulation is rugged enough to withstand moisture and soil chemicals without the need for conduit, though we recommend considering conduit for any portion of the run that is exposed above ground.
The ampacity of the 2-2-2-4 Dyke is perfectly suited for standard residential and light commercial loads:
The difference is the fourth conductor. Triplex is designed for single-phase power (common in houses), while Dyke Quadruplex includes three phase conductors and one neutral. This allows it to deliver three-phase power, which is required for commercial buildings, apartment complexes, and shops with 3-phase machinery.
The outside diameter (OD) of our #2-2-2-4 Dyke Quadruplex is approximately 0.97 inches (24.64 mm).
Important: Always verify your specific plan with a licensed electrical installer and refer to an official NEC conduit fill chart. The number of bends and the total length of the run are the primary factors in choosing the right pipe size.
Unlike standard interior wiring (like NM-B or THHN) or above-ground service cables (like SEU or SER), URD is built specifically for life in a trench. Its key features include:
We stock a comprehensive range of URD cable configurations to meet residential, farm, and commercial power needs. This includes , Erskine (6-6-6), Vassar (4-4-4), Stephens (2-2-4), Brenau (1/0-1/0-2), Converse (2/0-2/0-1/0), and Sweetbriar (4/0-4/0-2/0). You can browse our complete inventory and view detailed specifications for each gauge in our Full Aluminum URD Collection here.
Aluminum URD is the industry standard for underground utility feeds because it is significantly more cost-effective and lighter than copper.
