Parent SKU : PPLEX700-4G-BOYG
SKU : PPLEX700-4G-BOYG-250

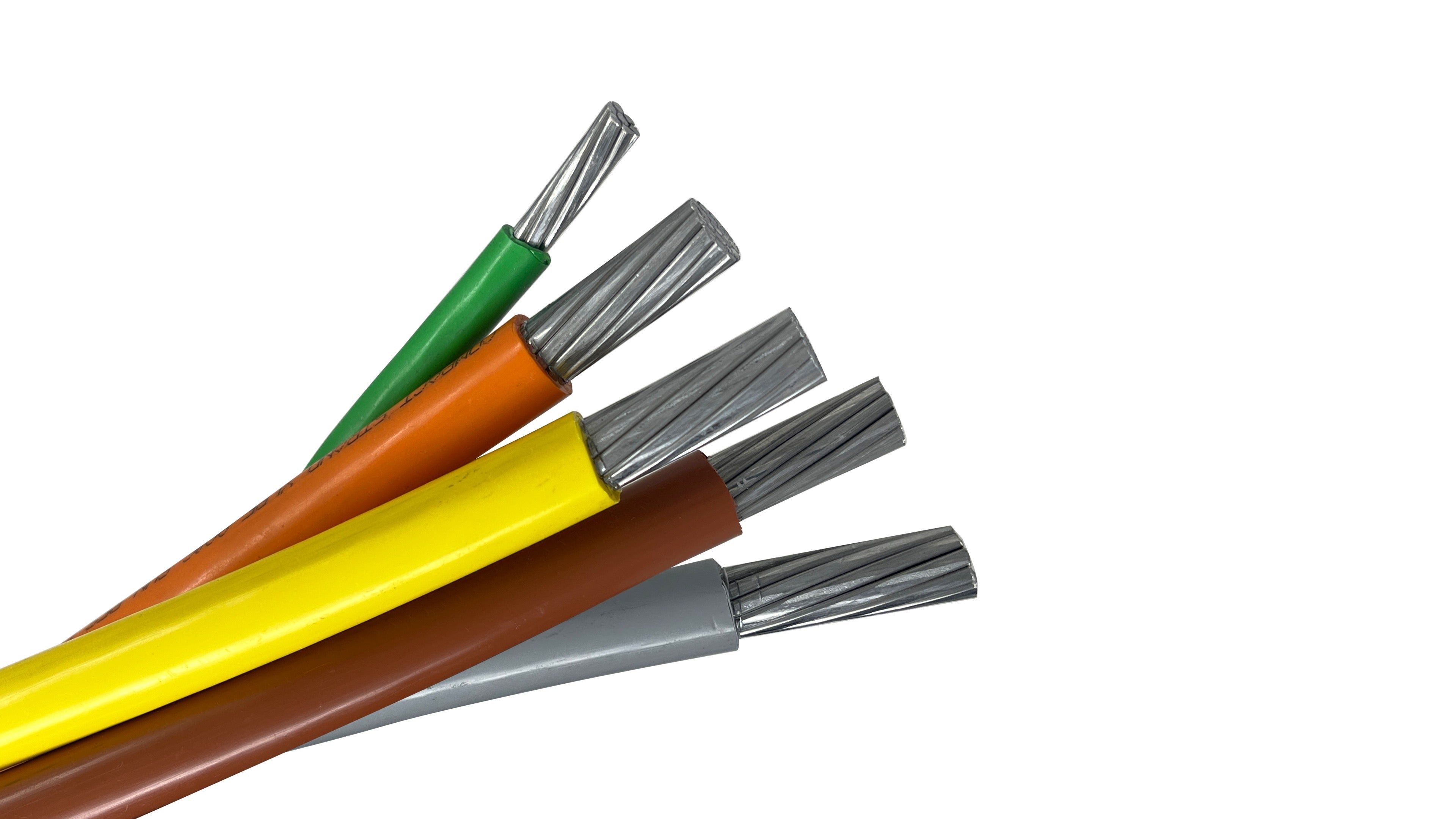

This 700 MCM 4-conductor Priority-Plex® assembly with an integrated 2/0 Ground is a heavy-duty, high-voltage feeder solution for 277/480V 3-phase, 4-wire systems. By factory-twisting the phase conductors (Brown, Orange, Yellow), the neutral (Gray), and a 2/0 AWG Green ground, this cable provides a complete, code-compliant circuit in a single bundle, significantly reducing installation labor for large industrial applications.
Managing five individual large-gauge conductors is one of the most physically demanding tasks on an industrial job site. Priority-Plex® technology pre-twists the entire circuit into a uniform geometry. This ensures the 2/0 ground remains tucked within the bundle, preventing it from getting caught or "migrating" during a long conduit pull.
Optimized Grounding: The 2/0 AWG Green ground is sized to meet NEC requirements for standard overcurrent protection associated with 700 MCM aluminum, providing a safe, low-impedance ground path.
Streamlined Logistics: One reel contains the full circuit. This reduces the footprint in the electrical room and eliminates the need for multiple jack stands and specialized reel-spinning equipment.
480V Phase Identification: Factory-colored insulation (Brown, Orange, Yellow, Gray) provides permanent phase identification. This removes the labor of field-taping and helps prevent high-voltage wiring errors.
Rugged XHHW-2 Insulation: The cross-linked polyethylene (XLPE) jacket is tougher than standard PVC, offering superior resistance to the physical stresses of heavy pulls and a 90°C rating in wet or dry locations.
Phase/Neutral Size: 700 MCM (kcmil)
Ground Size: 2/0 AWG
Number of Conductors: 5 (Brown, Orange, Yellow, Gray, Green Ground)
Conductor Material: AA-8000 Series Aluminum Alloy
Insulation Type: XHHW-2 (Cross-linked Polyethylene)
Voltage Rating: 600V
Temperature Rating: 90°C (Wet/Dry)
Ampacity: 425 Amps (@ 90°C) | 375 Amps (@ 75°C)
Configuration: Parallel-Twisted (Priority-Plex®)
Industrial Main Feeders: Supplying power from switchgear to large motor control centers (MCCs) and heavy machinery.
High-Rise Utility Risers: Ideal for vertical distribution of 480V power to mechanical floors or secondary transformers.
Data Centers: Reliable 480V distribution for large UPS systems and industrial-grade cooling plants.
Institutional Facilities: Primary service feeders for hospitals, universities, and government complexes.
Technical Note: Installing a 5-conductor 700 MCM bundle requires high-capacity pulling equipment. Ensure that the conduit is sized correctly for the diameter of the 700 MCM phases plus the 2/0 ground per NEC Chapter 9. Use only AL9CU-rated mechanical or compression connectors and apply an approved antioxidant compound on all terminations.
CABLE CONFIGURATION: 4C + 1G (BRN-ORG-YEL-GRY-GRN) Twisted Bundle
PRIORITY PART#: 700-04PPLEX-BOYG-2/0G
| Wire Size (AWG/MCM) | 700 MCM |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 2.50 in. / 63.6 mm |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2557 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 425 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 3.28 lb |
