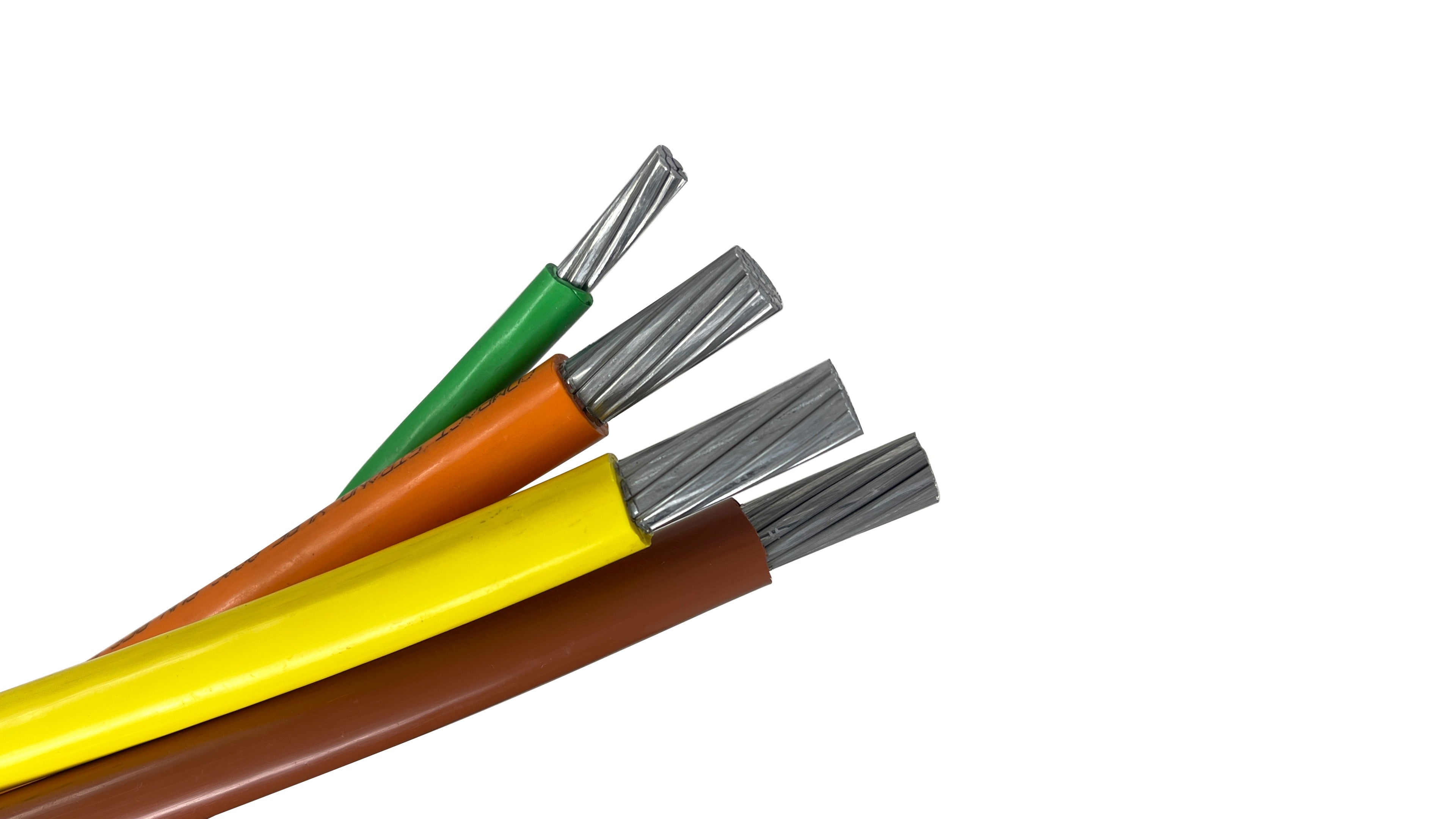

6/3 w/ Ground Twisted XHHW-2 Aluminum Feeder Cable, Priority-Plex®, (Brown, Orange, Yellow, Green)

This 6 AWG 3-conductor Priority-Plex® assembly is a highly efficient power distribution solution designed for commercial and industrial applications. Featuring aluminum XHHW-2 insulated conductors and a dedicated grounding conductor, this factory-twisted configuration is engineered to streamline installations in conduit by eliminating the need to pull individual wires on-site.

Why Choose Priority-Plex® 6 AWG Aluminum Feeder?

Priority-Plex® technology eliminates the traditional labor-intensive process of setting up multiple reels and straightening individual conductors. By twisting the Phase conductors (Brown, Orange, Yellow) and the Ground (Green) together at the factory, the bundle pulls more smoothly through conduit, significantly reducing the risk of "bird-caging" or jamming.

• Labor Efficiency: Single-reel pull capability reduces setup time and requires fewer personnel on the job site.

• XHHW-2 Insulation: Each conductor is insulated with Cross-linked Polyethylene (XLPE), providing excellent heat resistance, moisture protection, and high dielectric strength.

• AA-8000 Aluminum Alloy: Constructed with lightweight, reliable 8000 series aluminum, offering a cost-effective alternative to copper without compromising safety or performance when properly terminated.

• Instant Identification: Pre-colored conductors for 480V systems (Brown, Orange, Yellow) ensure easy phase identification, with a dedicated Green conductor for equipment grounding.

• Thermal Resilience: Rated for continuous operation at 90°C in both wet and dry locations.

• Lower Pulling Tension: The twisted geometry reduces the surface area contact against the conduit wall, allowing for easier pulls over long distances.

Technical Specifications: 6 AWG 3C w/ Ground

• Phase Conductor Size: 6 AWG

• Number of Phase Conductors: 3 (Brown, Orange, Yellow)

• Grounding Conductor: 1 (6 AWG Green)

• Conductor Material: AA-8000 Series Aluminum Alloy

• Insulation Type: XHHW-2 (Cross-linked Polyethylene)

• Voltage Rating: 600V

• Temperature Rating: 90°C (Wet/Dry)

• Configuration: Parallel-Twisted (Priority-Plex®)

Common Applications

• Industrial Branch Circuits: Ideal for powering industrial machinery, HVAC units, and heavy-duty shop equipment.

• Commercial Feeders: Used for sub-panel distribution in office buildings, warehouses, and retail centers.

• Outdoor Installations: Rated for use in conduit in wet locations, making it suitable for wastewater facilities and parking lot lighting feeds.

• Data Centers: Reliable power routing for localized cooling systems and server room infrastructure.

Technical Note: When working with aluminum conductors, installers must use listed compression or mechanical connectors rated specifically for aluminum (AL7CU or AL9CU) and apply an approved antioxidant joint compound to ensure long-term connection integrity.

Priority Part# 6-03PPLEX-BOY-6G
