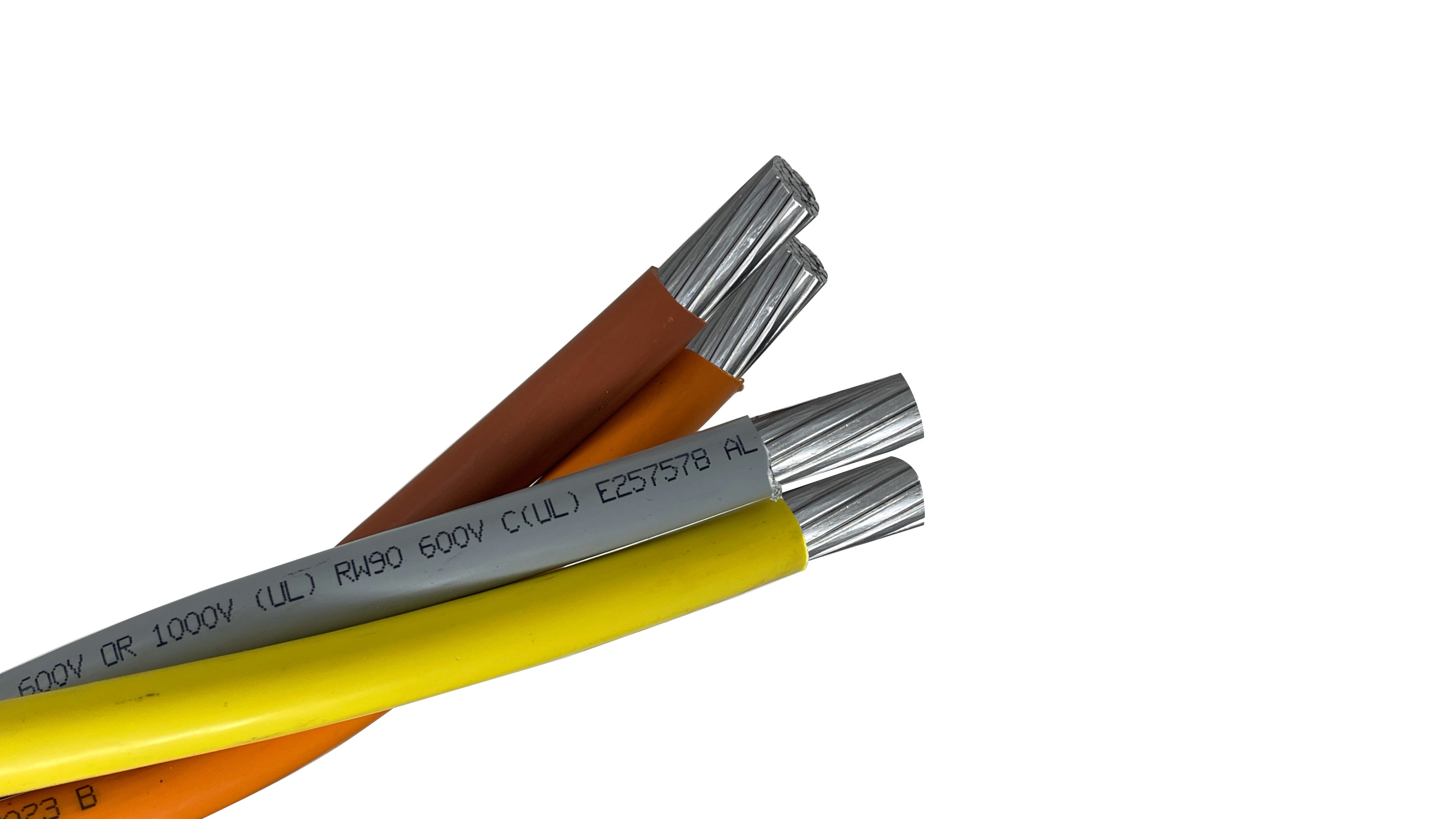

350 MCM 4C Twisted XHHW-2 Aluminum Feeder Cable, Priority-Plex®, (Brown, Orange, Yellow, Gray)

This 350 MCM 4-conductor Priority-Plex® assembly is a high-capacity feeder solution specifically color-coded for 277/480V 3-phase, 4-wire systems. By factory-twisting the Brown, Orange, Yellow, and Gray conductors, this system streamlines the installation of high-voltage industrial circuits and eliminates the logistical challenges of managing multiple heavy reels.

Why Choose Priority-Plex® 350 MCM Aluminum Feeder?

At the 350 MCM size, conductors are stiff and heavy, making traditional pulls prone to "wedging" or "jamming" in conduit bends. The Priority-Plex® factory-twist ensures that the bundle stays uniform, reducing the total pulling tension and protecting the integrity of the insulation.

• High-Voltage Identification: The factory-colored conductors (Brown, Orange, Yellow, Gray) provide permanent phase identification for 480V systems, removing the need for on-site taping and ensuring compliance with color-coding standards.

• Single-Reel Efficiency: Replaces the need for four separate reels and jack stands. This reduces the footprint of the pull and allows for much faster setup in industrial electrical rooms or substations.

• XHHW-2 Durability: Features cross-linked polyethylene (XLPE) insulation, which is tougher and more heat-resistant than standard THHN, making it ideal for the high-demand environments of industrial feeders.

• Weight & Cost Savings: AA-8000 series aluminum provides a significant cost advantage over copper and reduces the physical strain on pulling equipment and installation crews.

Technical Specifications: 350 MCM 4C

• Conductor Size: 350 MCM (kcmil)

• Number of Conductors: 4 (Brown, Orange, Yellow, Gray)

• Conductor Material: AA-8000 Series Aluminum Alloy

• Insulation Type: XHHW-2 (Cross-linked Polyethylene)

• Voltage Rating: 600V

• Temperature Rating: 90°C (Wet/Dry)

• Ampacity: 280 Amps (@ 90°C) | 250 Amps (@ 75°C)

• Configuration: Parallel-Twisted (Priority-Plex®)

Common Applications

• Industrial Main Feeders: Supplying power to 480V distribution panels and large motor control centers (MCCs).

• Commercial High-Voltage Services: Primary power for hospitals, large retail centers, and high-rise office buildings.

• Water Treatment & Pumping: Ideal for powering large 3-phase pumps and industrial mechanical equipment.

• Data Centers: Efficient high-voltage power distribution for server room infrastructure and industrial cooling.

• Electric Vehicle (EV) Fast Charging Hubs: Using aluminum 350 MCM allows for a cost-effective installation of large-scale charging "banks" in parking structures or transit hubs where multiple chargers are running simultaneously.

Technical Note: Ensure all terminations are made using AL9CU-rated mechanical or compression connectors. For high-voltage 350 MCM runs, verify that the conduit size is adequate for the twisted bundle diameter per NEC Chapter 9 requirements. Always use an approved antioxidant compound on all aluminum-to-copper or aluminum-to-aluminum connections.

CABLE CONFIGURATION: 4C (BRN-ORG-YEL-GRY) Twisted Bundle

PRIORITY PART#: 350-04PPLEX-BOYG
