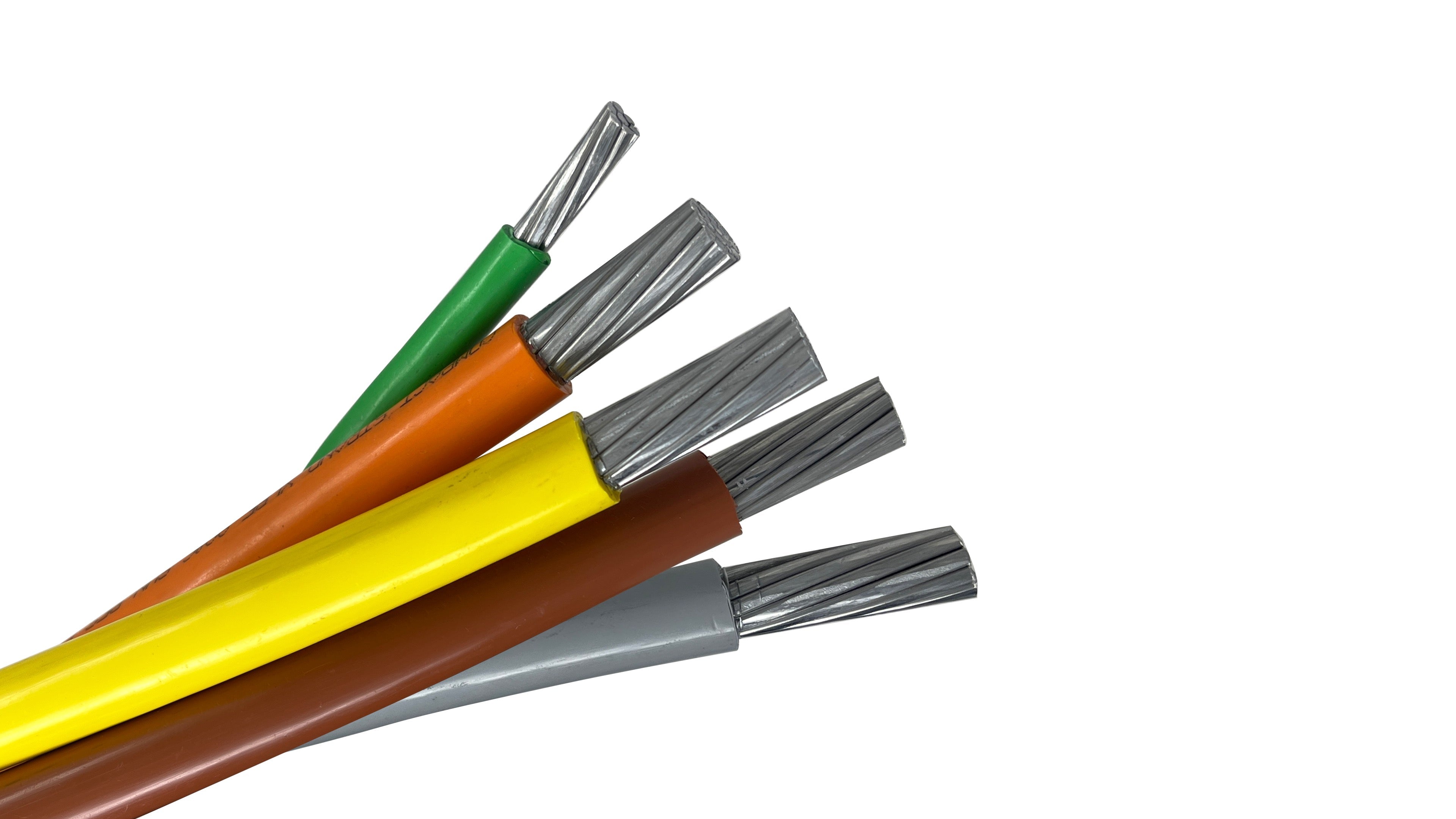

300 MCM 4C w/ Ground Twisted XHHW-2 Aluminum Feeder Cable, Priority-Plex®, (Brown, Orange, Yellow, Gray, Green)

This 300 MCM 4-conductor Priority-Plex® assembly with an integrated #1 AWG Ground is a precision-engineered feeder solution for 277/480V 3-phase, 4-wire systems. By factory-twisting the phase conductors (Brown, Orange, Yellow), the neutral (Gray), and a #1 AWG Green ground, this system provides a complete circuit in a single bundle, maximizing efficiency and code compliance for industrial and commercial installations.

Why Choose Priority-Plex® 300 MCM with #1 Ground?

The #1 AWG ground is specifically sized to meet NEC Table 250.122 requirements for the overcurrent protection typically associated with 300 MCM aluminum. Priority-Plex® technology ensures that all five conductors pull as a single, synchronized unit, which is critical for maintaining consistent tension and preventing the ground wire from "spiraling" or getting caught during complex conduit runs.

• Optimized Grounding: The #1 AWG Green ground is factory-integrated, providing a robust, low-impedance path for ground-fault currents while maintaining a compact bundle geometry.

• Streamlined Site Logistics: One reel replaces five. This significantly reduces the job site footprint and setup time, especially in tight electrical rooms or on elevated cable trays.

• 480V Phase Identification: Factory-colored insulation (Brown, Orange, Yellow, Gray) provides permanent phase identification. This removes the labor-intensive task of field-taping and prevents costly phase-rotation errors.

• Rugged XHHW-2 Insulation: The XLPE (Cross-linked Polyethylene) jacket is tougher than standard PVC, offering high resistance to the physical stresses of industrial pulls and a 90°C rating in both wet and dry locations.

Technical Specifications: 300 MCM 4C + #1G

• Phase/Neutral Size: 300 MCM (kcmil)

• Ground Size: #1 AWG

• Number of Conductors: 5 (Brown, Orange, Yellow, Gray, Green Ground)

• Conductor Material: AA-8000 Series Aluminum Alloy

• Insulation Type: XHHW-2 (Cross-linked Polyethylene)

• Voltage Rating: 600V

• Temperature Rating: 90°C (Wet/Dry)

• Ampacity: 255 Amps (@ 90°C) | 230 Amps (@ 75°C)

• Configuration: Parallel-Twisted (Priority-Plex®)

Common Applications

• Industrial Sub-Feeders: Supplying power from main switchgear to secondary 480V distribution panels and high-torque motor loads.

• Commercial 480V Services: Ideal for high-rise utility risers and primary service entrances for hospitals and large retail complexes.

• Mechanical Systems: Providing the primary feed for large-scale commercial HVAC chillers and industrial air handling units.

• Educational & Healthcare Facilities: Reliable power distribution for laboratory wings, university infrastructure, and critical medical imaging suites.

Technical Note: When terminating 300 MCM aluminum, ensure you use AL9CU-rated mechanical or compression connectors. It is vital to wire-brush the conductor and apply an approved antioxidant joint compound to ensure long-term connection integrity. Always verify that your conduit sizing accommodates the 5-conductor twisted bundle diameter per NEC Chapter 9 requirements.

CABLE CONFIGURATION: 4C + 1G (BRN-ORG-YEL-GRY-GRN) Twisted Bundle

PRIORITY PART#: 300-04PPLEX-BOYG-1G
