Parent SKU : XHW3/0AL
SKU : XHW3/0AL-250-BK
"Engineered for budget-friendly power distribution and smooth conduit pulls, 3/0 AWG Aluminum XHHW-2 / RW90 Building Wire features compact-stranded AA-8000 aluminum alloy wrapped in a slick, low-friction XLPE jacket. Dual-rated for 600V/1000V systems and approved for wet or dry locations up to 90°C, it delivers superior cost and weight savings over copper for feeder runs, branch circuits, subpanels, and raceway applications."
Slick, Low-Friction XLPE Insulation: Features an advanced "slippery" outer compound that glides through conduit bends effortlessly without pulling lubricant or insulation damage.
AA-8000 Series Compact Aluminum: Built with Class B compact-stranded AA-8000 series aluminum alloy, reducing wire diameter to maximize conduit fill capacity.
Dual Voltage Rated (600V / 1000V): Rated for standard 600V systems as well as higher-voltage 1000V commercial and solar installations.
Cost-Effective Efficiency: Provides reliable conductivity with significant weight savings and lower material costs compared to equivalent copper conductors.

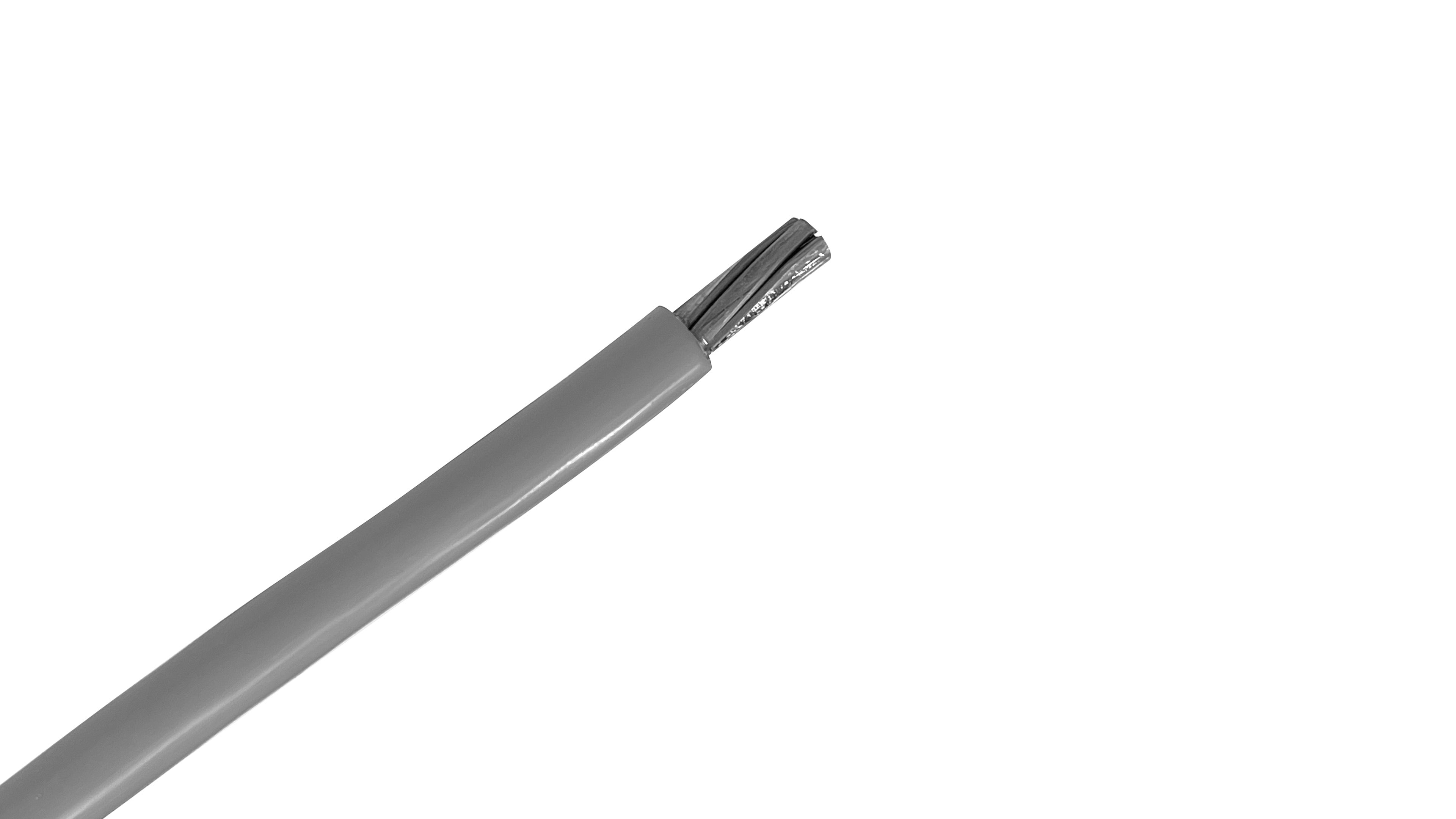

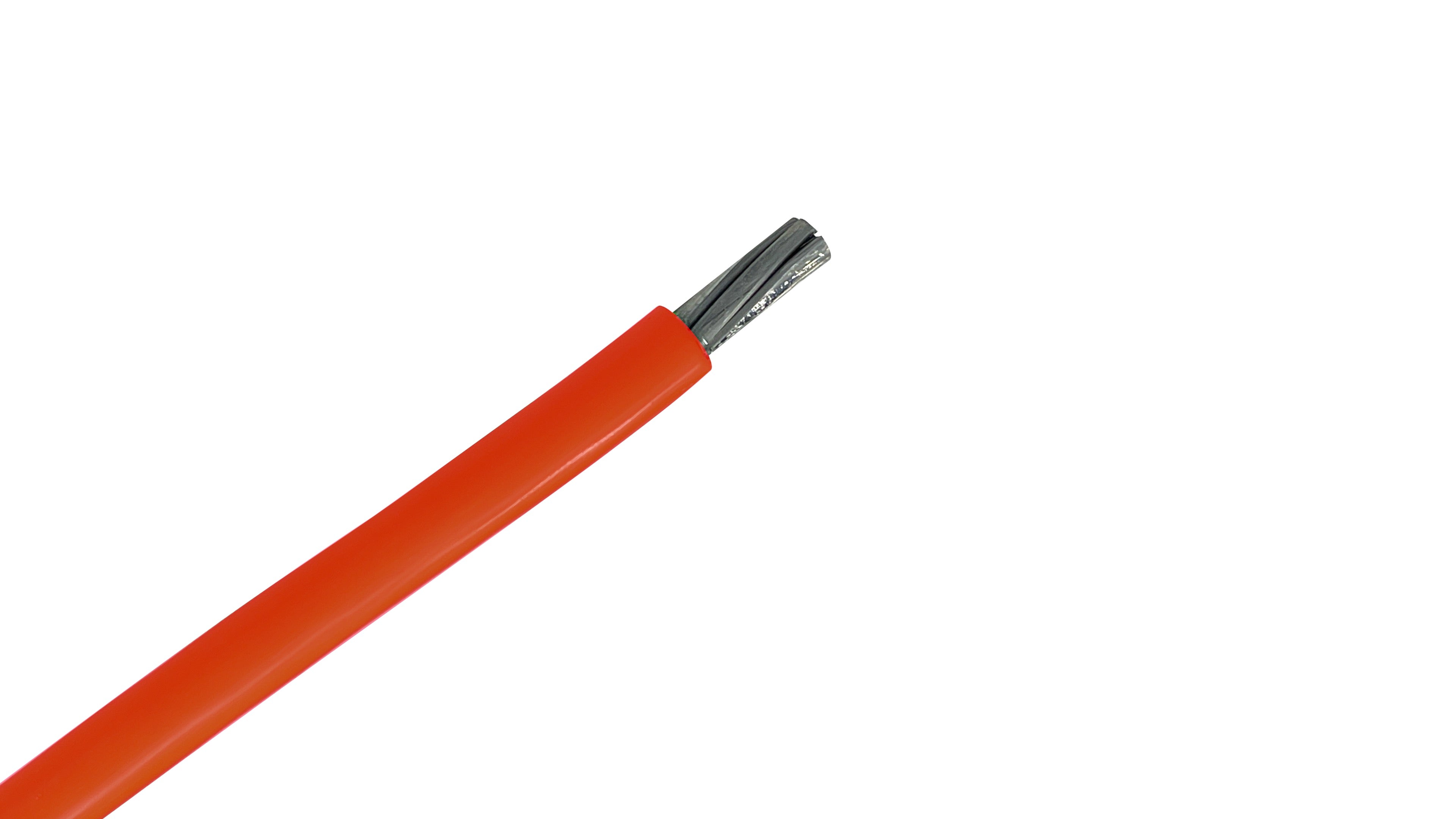

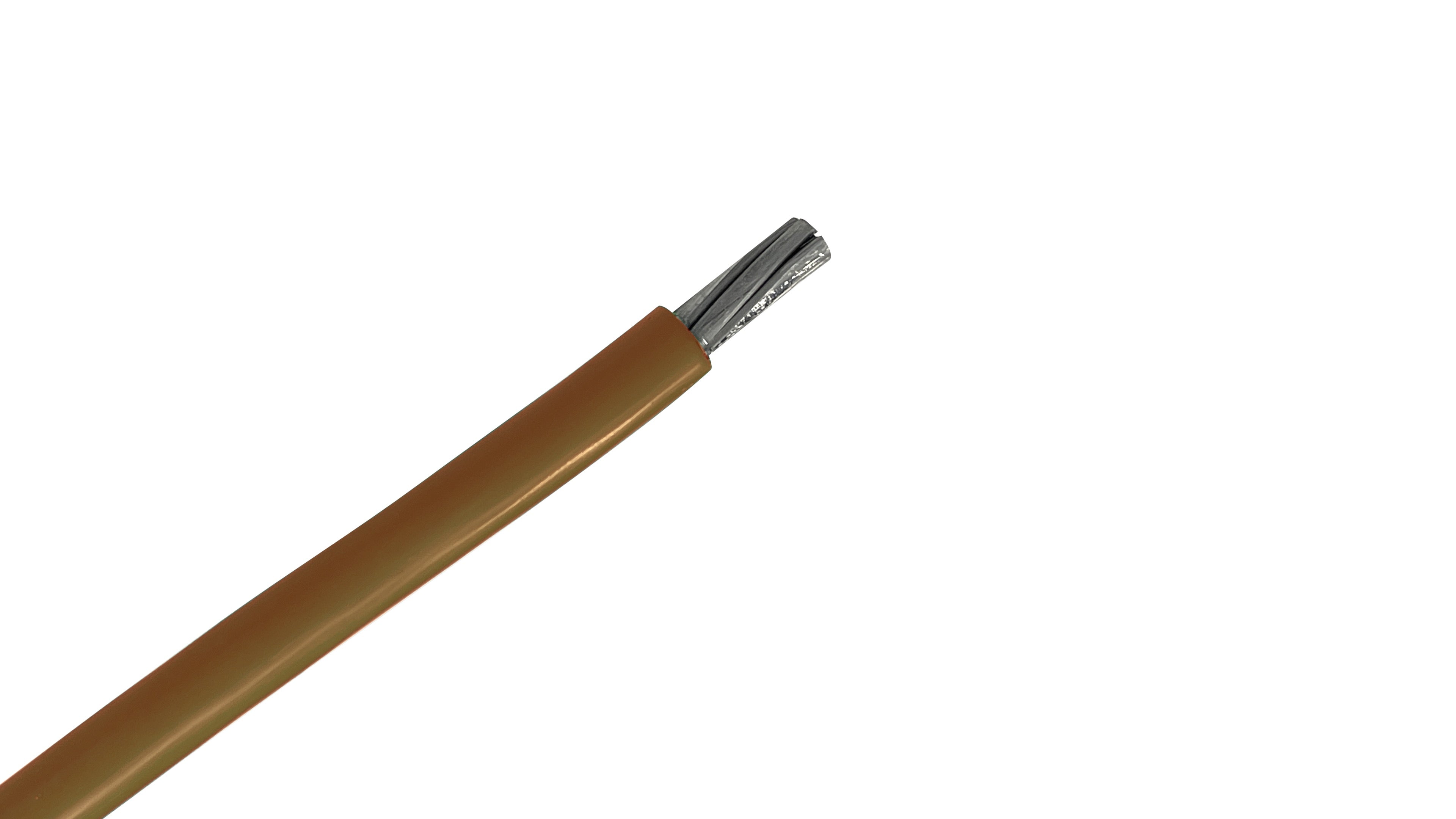

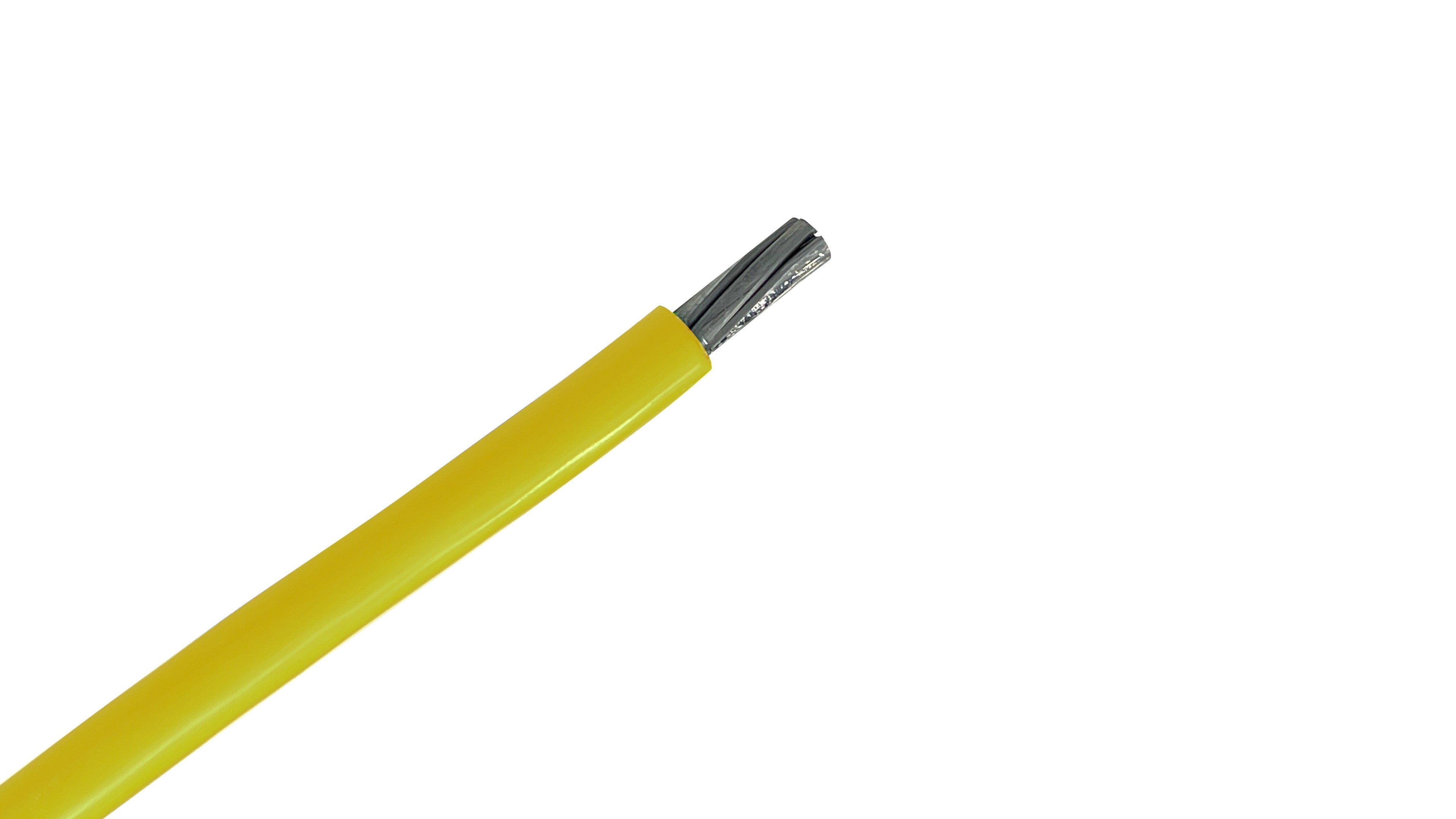

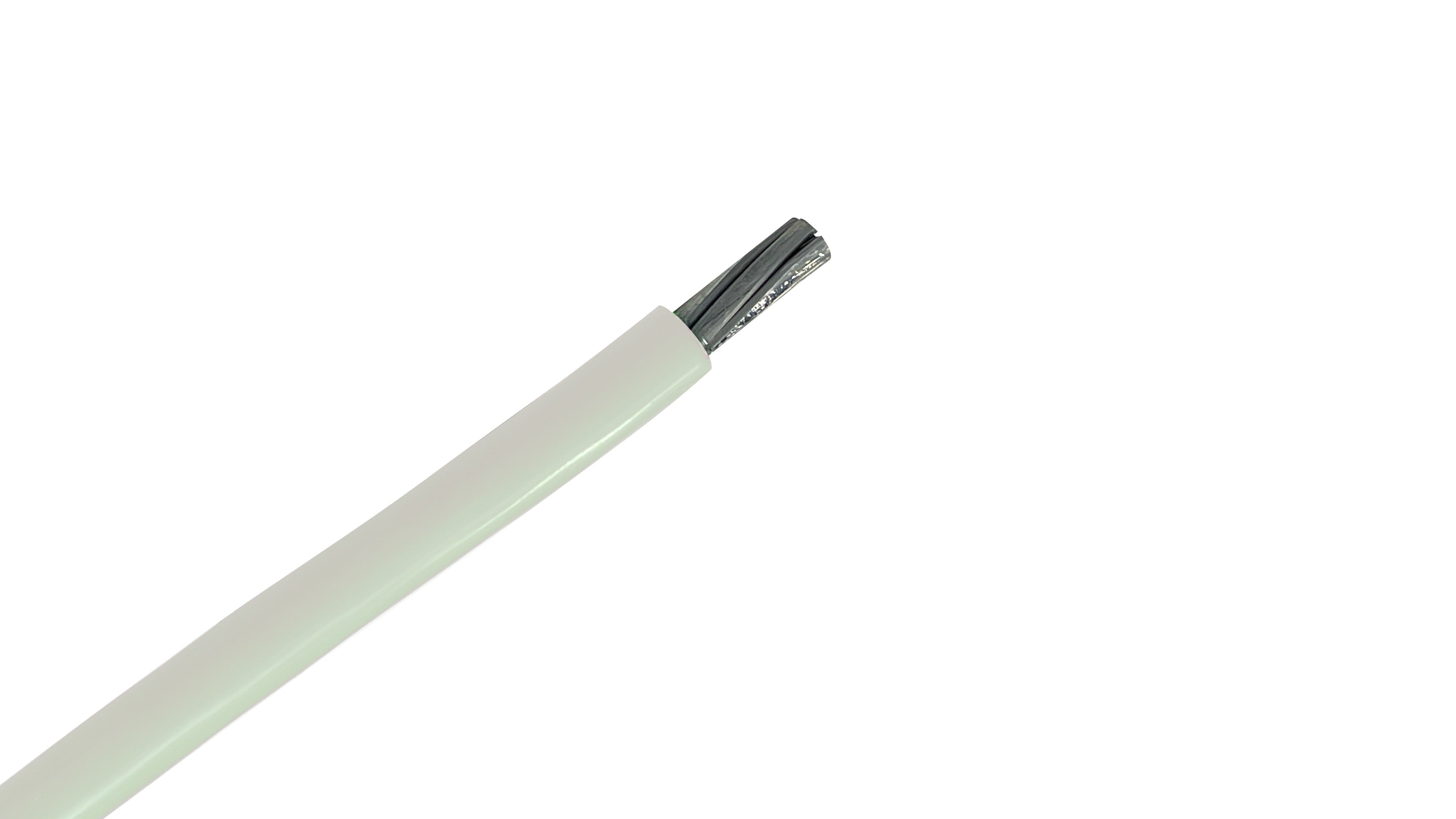

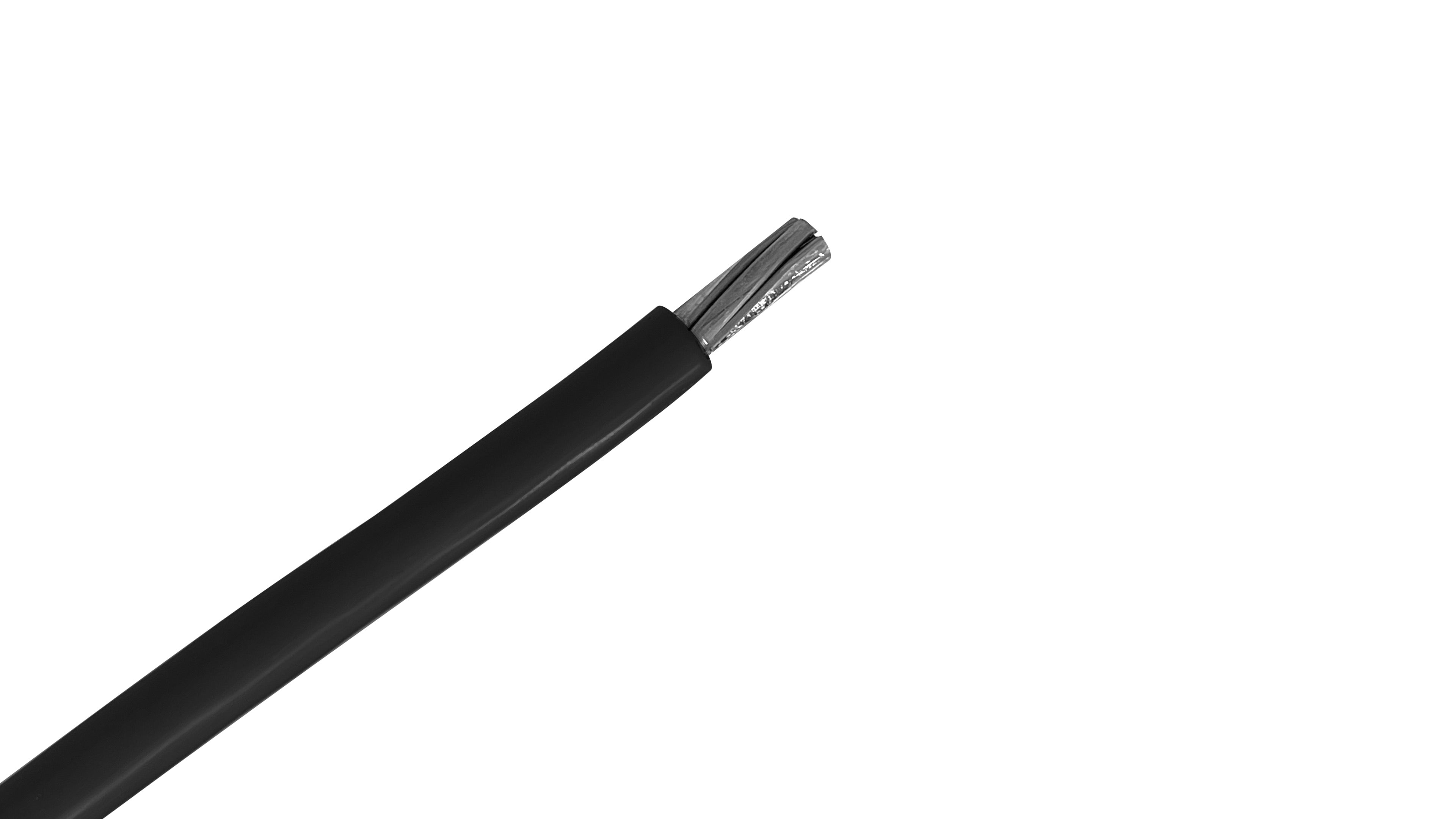

Phase Color Selection: Offered in Black, Red, White, Green, Blue, Orange, Brown, Yellow, Gray, and Purple for instant phase identification (check the dropdown for stock).
Cut-to-Length or Bulk Spools: Order custom lengths cut by the foot to minimize job-site scrap, or purchase bulk spools for high-volume commercial runs.
Conductor Size: 3/0 AWG
Conductor Material: AA-8000 Series Compact Stranded Aluminum Alloy (Class B)
Conductor Diameter: 0.423 inches (10.74 mm)
Insulation Material: Cross-Linked Polyethylene (XLPE / XLP)
Insulation Thickness: 0.055 inches (1.40 mm)
Overall Diameter: 0.536 inches (13.61 mm)
Approximate Net Weight: 200 lbs per 1,000 ft
Ampacity (@ 75°C Terminal Rating): 155 Amps
Ampacity (@ 90°C Terminal Rating): 175 Amps
Voltage Rating: 600V / 1000V (XHHW-2) | 600V (RW90)
Temperature Rating: -40°C to 90°C (Wet or Dry)
Compliance Standards: UL 44 / CSA C22.2 No. 38, UL 1685, ANSI/NEMA WC-70 / ICEA S-95-658, ASTM B800 & B801, Federal Spec A-A-59544A, NFPA 70 (NEC), CSA C22.1
Common 3/0 Aluminum XHHW-2 Applications
155A–175A Commercial & Industrial Feeders: Supplying high-amp feeder power to commercial distribution panels, industrial subpanels, and heavy electrical loads.
EV Charging Infrastructure & Commercial HVAC: Routing power to commercial Level 2 and Level 3 EV charger banks, heavy rooftop air handlers, and chiller plants.
Solar Array Feeders & Underground Conduit: Running sub-feeder circuits through PVC or metallic conduit systems exposed to high moisture or underground condensation.
DISCLAIMER: All values are nominal and subject to correction. Ampacities for not more than three conductors in raceway or cable or earth (directly buried), based on ambient temperature of 30°C per Table 310.16 of the National Electrical Code.
| Wire Size (AWG/MCM) | 3/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 0.536 in. / 13.614 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| UL Listing Numbers | UL 44, UL 1685, CSA |
| Voltage Rating | 600V |
| Ampacity Rating | 175 |
| Submersible | No |
| Flexibility Rating | Low |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 44 / CSA C22.2 No. 38 Thermoset-Insulated Wires and Cables UL 1685 Vertical-Tray Fire-Propagation and Smoke-Release Test for Electrical and Optical-Fiber Cables ANSI / NEMA WC-70 / ICEA S-95-658 ASTM B800, B801 Federal Specification A-A-59544A NFPA 70 National Electrical Code CSA C22.1 Canadian Electrical Code Sunlight resistant. |
| Miscellaneous Information | All values are nominal and subject to correction. **Ampacities for not more than three conductors in raceway or cable or earth (directly buried), based on ambient temperature of 30°C per Table 310.16 of the 2020 National Electrical Code. |
| RoHS Compliance | Yes |
| Primary Applications | Service Entrance Conductors, Feeders, Branch Circuit Wiring (larger sizes), Conduit and Raceways, Wet or Dry Locations, Cable Tray Installations, General Purpose Wiring |
| Common Uses |
|
| Weight per Foot | 0.2 lb |
