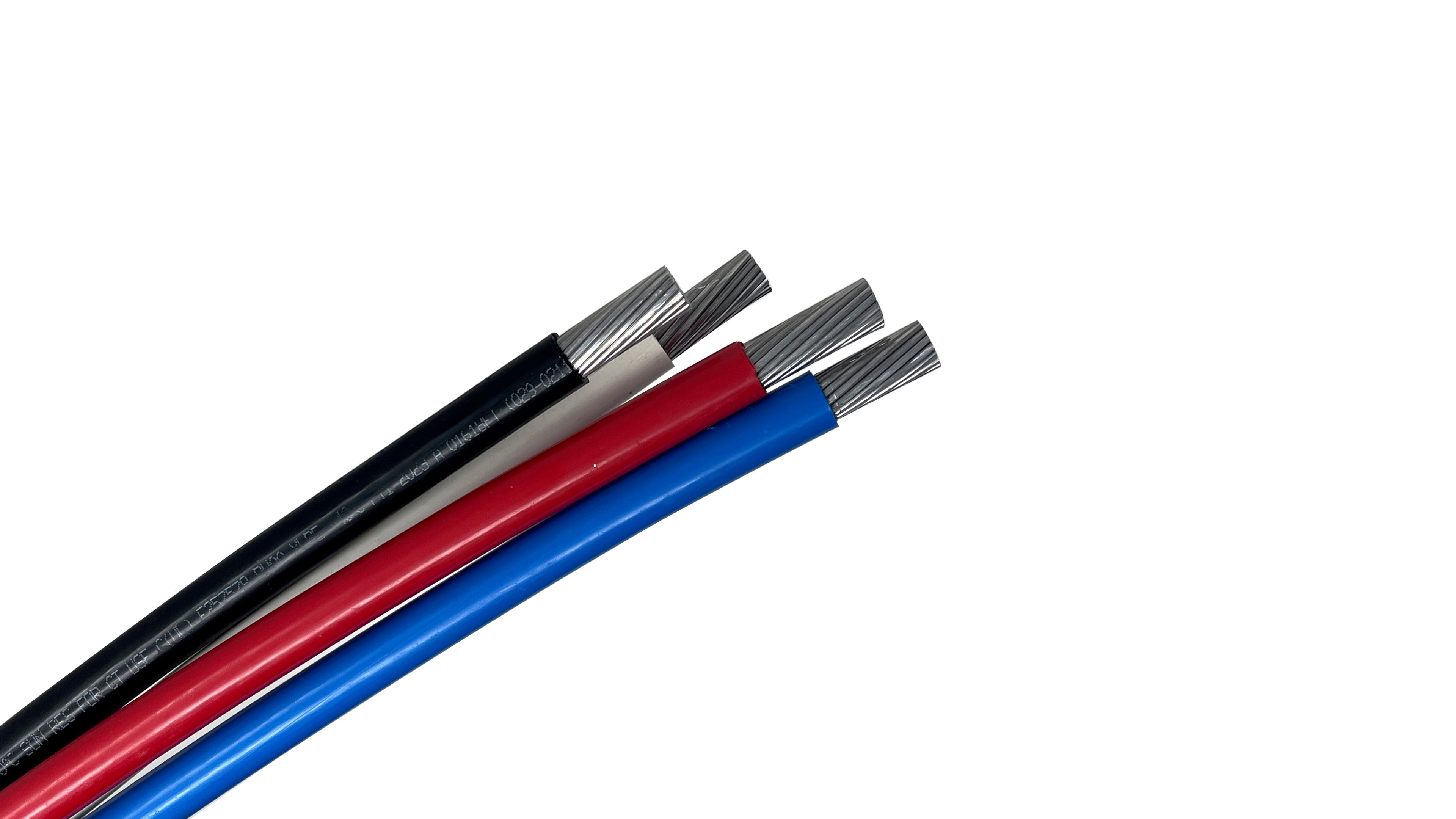

3/0-4C Twisted XHHW-2 Aluminum Feeder Cable, Priority-Plex®, (Black, Red, White, Blue)

This 3/0 AWG 4-conductor Priority-Plex® assembly is a professional-grade feeder solution optimized for 3-phase, 4-wire power systems. By factory-twisting the Black, Red, White, and Blue conductors into a single synchronized bundle, this cable eliminates the need for on-site triplexing or quadruplexing, allowing a full circuit to be pulled from a single reel with minimal setup.

Why Choose Priority-Plex® 3/0 AWG Aluminum Feeder?

Pulling 3/0 AWG conductors individually often results in "wedging" or "crossing" inside the conduit, which increases friction and the risk of insulation damage. The Priority-Plex® twisted configuration ensures all four conductors maintain a uniform geometry, making it significantly easier to navigate through multiple 90° bends.

• Streamlined Installation: Replaces a four-reel setup with one, cutting down on site congestion and reducing labor costs by up to 70%.

• Permanent Phase Identification: Pre-colored conductors (Black, Red, White, Blue) provide immediate identification for 120/208V systems, removing the need for phase-taping and reducing wiring errors.

• Superior XHHW-2 Insulation: The cross-linked polyethylene (XLPE) jacket is rugged and moisture-resistant, offering a higher melting point and lower coefficient of friction than standard THHN.

• Lightweight AA-8000 Alloy: Provides a cost-effective, high-performance alternative to copper that is much easier to manage in long vertical or horizontal runs.

Technical Specifications: 3/0 AWG 4C

• Conductor Size: 3/0 AWG

• Number of Conductors: 4 (Black, Red, White, Blue)

• Conductor Material: AA-8000 Series Aluminum Alloy

• Insulation Type: XHHW-2 (Cross-linked Polyethylene)

• Voltage Rating: 600V

• Temperature Rating: 90°C (Wet/Dry)

• Ampacity: 175 Amps (@ 90°C) | 155 Amps (@ 75°C)

• Configuration: Parallel-Twisted (Priority-Plex®)

Common Applications

• Commercial Services: Ideal for main feeders in retail storefronts, office suites, and restaurants.

• Industrial Branch Feeders: Supplying power to mechanical equipment, large pumps, and HVAC units.

• Multi-Family Housing: Used for individual tenant service feeds and common area distribution panels.

• Data Centers: Efficient 3-phase power distribution for server room infrastructure.

Technical Note: When terminating 3/0 aluminum, always use AL9CU-rated mechanical or compression connectors. It is critical to wire-brush the conductor and apply an approved antioxidant joint compound to ensure long-term connection integrity and prevent surface oxidation.

CABLE CONFIGURATION: 4C (BK-RD-WHT-BLU) Twisted Bundle

PRIORITY PART#: 3/0-04PPLEX-BRWB
