From $0.20/ft
128 Products
-
Solid THHN/THWN-2 WireFrom $0.20/ft -
Solid THHN/THWN-2 WireFrom $0.20/ft - Solid THHN/THWN-2 WireFrom $0.20/ft
- Solid THHN/THWN-2 WireFrom $0.20/ft
Parent SKU : 2/0-4MHF
SKU : 2/0-4MHF-100

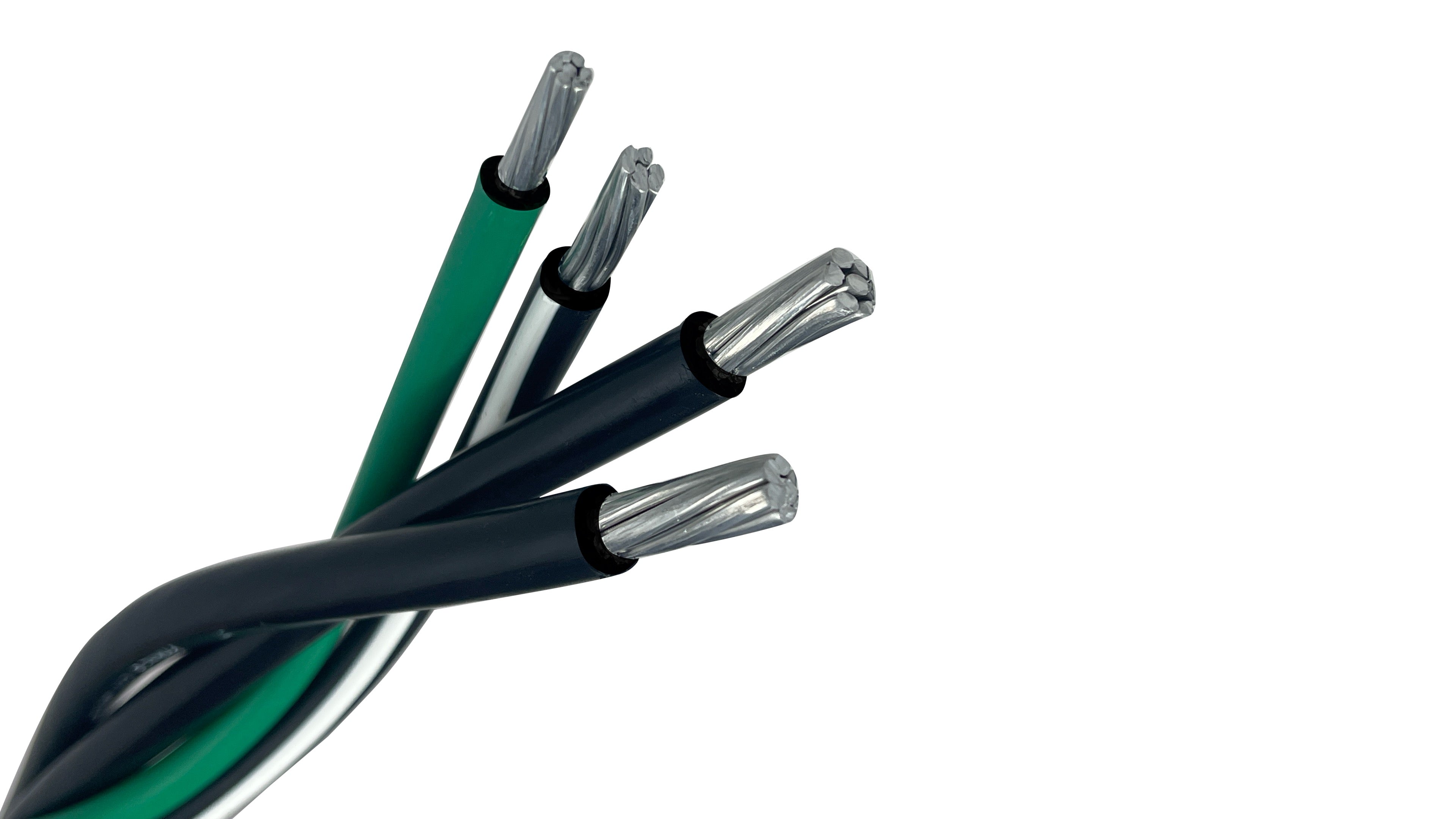

"Engineered for safe, cost-effective, and long-term underground power delivery, this 2/0-2/0-1-4 Aluminum Mobile Home Feeder (MHF) cable is the industry standard for installing high-capacity secondary electrical services. Built for heavy residential and light commercial demands, it features robust cross-linked polyethylene (XLPE) insulation that allows for direct burial without the expense of a continuous conduit run."
When running underground power to a mobile or manufactured home, managing material and labor costs is everything. This 2/0-2/0-1-4 Aluminum MHF Cable delivers a code-compliant, 150-Amp capacity at a fraction of the cost of copper. Built with rugged AA-8000 aluminum alloy, it features four pre-bundled wires: two 2/0 AWG hots, a reduced #1 AWG neutral, and one #4 AWG ground. Because each wire is wrapped in sunlight-resistant XLPE insulation, you can drop this cable directly into a trench without running expensive conduit, saving you serious time and money on the job site.
150-Amp Direct Burial Rating: Engineered explicitly for substantial subsurface trenching, eliminating the expense and time of running continuous protective piping.
Cost-Efficient Material Design: Utilizes high-conductivity 8000-series aluminum alloy to slash total project costs compared to rigid copper variants without sacrificing grid safety.
Triple-Rated Protection: Insulated and listed under USE-2 / RHH / RHW-2, allowing the cable to transition seamlessly from a deep trench directly up into an outdoor breaker enclosure or pedestal.
Sunlight & Weather Resistant: The heavy-duty black XLPE jacket completely blocks out damage from intense UV rays and aggressive, highly alkaline subsurface soil chemicals.
ENGINEERING OVERVIEW
Conductor Setup: 4-Conductor (Two 2/0 Lines, One #1 AWG Neutral, One #4 AWG Ground)
Conductor Material: AA-8000 Series Compact Stranded Aluminum Alloy per ASTM B-800 & B-801
Insulation Type: Cross-Linked Polyethylene (XLPE - USE-2 / RHH / RHW-2 Rated)
Voltage Rating: 600 Volts
Ampacity Rating: 150 Amps (Direct Burial / 90°C Wet or Dry Locations)
Overall Diameter: 1.301 inches (33.045 mm)
Approx. Weight: 0.540 lbs per foot (540 lbs per 1,000 ft)
UL Listing Numbers: UL 44, UL 854
Compliance Standards: ICEA S-95-658 / NEMA WC-70
Mobile & Manufactured Homes: Serving as a high-capacity, sub-surface 150A service lateral running from the outdoor pedestal directly to the home's primary panelboard.
Large Detached Garages & Outbuildings: Popular among residential contractors running robust sub-panels to heavily utilized workshops, multi-car detached garages, or barns.
Commercial RV Parks & Campgrounds: Ideal for distributing reliable, long-term underground power loops to heavy-duty 50A/100A campsite service stations.
Â
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. Always cross-reference local codes and NEC Article 310.15 for dwelling ampacity requirements to ensure your final feeder length matches your local electrical authority guidelines.
Â
| Wire Size (AWG/MCM) | 2/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 18 |
| Outer Diameter (OD) (in/mm) | 1.301 in. / 33.045 mm |
| Jacket Type | XLPE |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | USE-2/RHH/RHW-2 XLPE |
| UL Listing Numbers | UL 44, UL 854 |
| Voltage Rating | 600V |
| Ampacity Rating | 150 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Medium |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 44 for Type RHH or RHW-2 UL 854 for Type USE-2 Insulated Wire National Electric Code NFPA 70 (NEC) ICEA S-95-658/NEMA WC-72 |
| Miscellaneous Information | All values are nominal and subject to correction For dwelling ampacity, see NEC article 310.15(B)(7) |
| RoHS Compliance | Yes |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 0.548 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : 2/0-4MHF
SKU : 2/0-4MHF-100
Parent SKU : 2/0-4MHF
SKU : 2/0-4MHF-100
"Engineered for safe, cost-effective, and long-term underground power delivery, this 2/0-2/0-1-4 Aluminum Mobile Home Feeder (MHF) cable is the industry standard for installing high-capacity secondary electrical services. Built for heavy residential and light commercial demands, it features robust cross-linked polyethylene (XLPE) insulation that allows for direct burial without the expense of a continuous conduit run."
When running underground power to a mobile or manufactured home, managing material and labor costs is everything. This 2/0-2/0-1-4 Aluminum MHF Cable delivers a code-compliant, 150-Amp capacity at a fraction of the cost of copper. Built with rugged AA-8000 aluminum alloy, it features four pre-bundled wires: two 2/0 AWG hots, a reduced #1 AWG neutral, and one #4 AWG ground. Because each wire is wrapped in sunlight-resistant XLPE insulation, you can drop this cable directly into a trench without running expensive conduit, saving you serious time and money on the job site.
150-Amp Direct Burial Rating: Engineered explicitly for substantial subsurface trenching, eliminating the expense and time of running continuous protective piping.
Cost-Efficient Material Design: Utilizes high-conductivity 8000-series aluminum alloy to slash total project costs compared to rigid copper variants without sacrificing grid safety.
Triple-Rated Protection: Insulated and listed under USE-2 / RHH / RHW-2, allowing the cable to transition seamlessly from a deep trench directly up into an outdoor breaker enclosure or pedestal.
Sunlight & Weather Resistant: The heavy-duty black XLPE jacket completely blocks out damage from intense UV rays and aggressive, highly alkaline subsurface soil chemicals.
ENGINEERING OVERVIEW
Conductor Setup: 4-Conductor (Two 2/0 Lines, One #1 AWG Neutral, One #4 AWG Ground)
Conductor Material: AA-8000 Series Compact Stranded Aluminum Alloy per ASTM B-800 & B-801
Insulation Type: Cross-Linked Polyethylene (XLPE - USE-2 / RHH / RHW-2 Rated)
Voltage Rating: 600 Volts
Ampacity Rating: 150 Amps (Direct Burial / 90°C Wet or Dry Locations)
Overall Diameter: 1.301 inches (33.045 mm)
Approx. Weight: 0.540 lbs per foot (540 lbs per 1,000 ft)
UL Listing Numbers: UL 44, UL 854
Compliance Standards: ICEA S-95-658 / NEMA WC-70
Mobile & Manufactured Homes: Serving as a high-capacity, sub-surface 150A service lateral running from the outdoor pedestal directly to the home's primary panelboard.
Large Detached Garages & Outbuildings: Popular among residential contractors running robust sub-panels to heavily utilized workshops, multi-car detached garages, or barns.
Commercial RV Parks & Campgrounds: Ideal for distributing reliable, long-term underground power loops to heavy-duty 50A/100A campsite service stations.
Â
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. Always cross-reference local codes and NEC Article 310.15 for dwelling ampacity requirements to ensure your final feeder length matches your local electrical authority guidelines.
Â
| Wire Size (AWG/MCM) | 2/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 18 |
| Outer Diameter (OD) (in/mm) | 1.301 in. / 33.045 mm |
| Jacket Type | XLPE |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | USE-2/RHH/RHW-2 XLPE |
| UL Listing Numbers | UL 44, UL 854 |
| Voltage Rating | 600V |
| Ampacity Rating | 150 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Medium |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 44 for Type RHH or RHW-2 UL 854 for Type USE-2 Insulated Wire National Electric Code NFPA 70 (NEC) ICEA S-95-658/NEMA WC-72 |
| Miscellaneous Information | All values are nominal and subject to correction For dwelling ampacity, see NEC article 310.15(B)(7) |
| RoHS Compliance | Yes |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 0.548 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||||
Mobile Home Feeder (MHF) cable is a heavy-duty underground service entrance cable specifically designed to supply electrical power from an outdoor service pedestal or meter main to the distribution panelboard inside a mobile home or manufactured home. It features a quadruplex design consisting of two phase conductors (black), a neutral conductor (marked with a yellow identity stripe), and a dedicated grounding wire, making it fully code-compliant for safe, direct-burial power delivery. While engineered for manufactured homes, its cost-effectiveness makes it highly popular for running 150-Amp sub-panels to detached garages, workshops, and barns.
Wire America ships all of our Mobile Home Feeder cable directly from our centralized fulfillment centers throughout the United States. We cut to length, process, and ship your order within 1–2 business days—allowing you to buy the exact length you need with zero wasted material. Most standard orders arrive straight to your job site, mobile home park, or residential property within 2 to 4 business days, with expedited shipping options available at checkout.
No. Because this MHF cable carries a native Direct Burial rating, it can be dropped straight into a properly prepared dirt trench at the depth required by your local code (typically 24 inches for direct burial cables). However, you must protect the cable with an approved conduit (like Schedule 80 PVC) where it emerges from the ground to connect to an outdoor pedestal or pass through a building structure to guard it against physical impacts.
The difference lies entirely in the sizing of the neutral and ground wires. A 2/0-2/0-1-4 setup uses a reduced #1 AWG neutral wire and a #4 AWG ground wire to maximize material cost savings and ease of installation. A 2/0-2/0-2/0-1 setup steps up to a full-sized 2/0 neutral line and a #1 ground wire. Both handle a 150-Amp capacity, but you should always verify with your local utility provider or electrical inspector to confirm if your specific jurisdiction requires a full-sized neutral line.
The amp rating for 2/0-2/0-1-4 Aluminum MHF is 150 Amps (Direct Burial / 90°C Wet or Dry Locations)
