Parent SKU : SJOOW16-4
SKU : SJOOW16-4-250

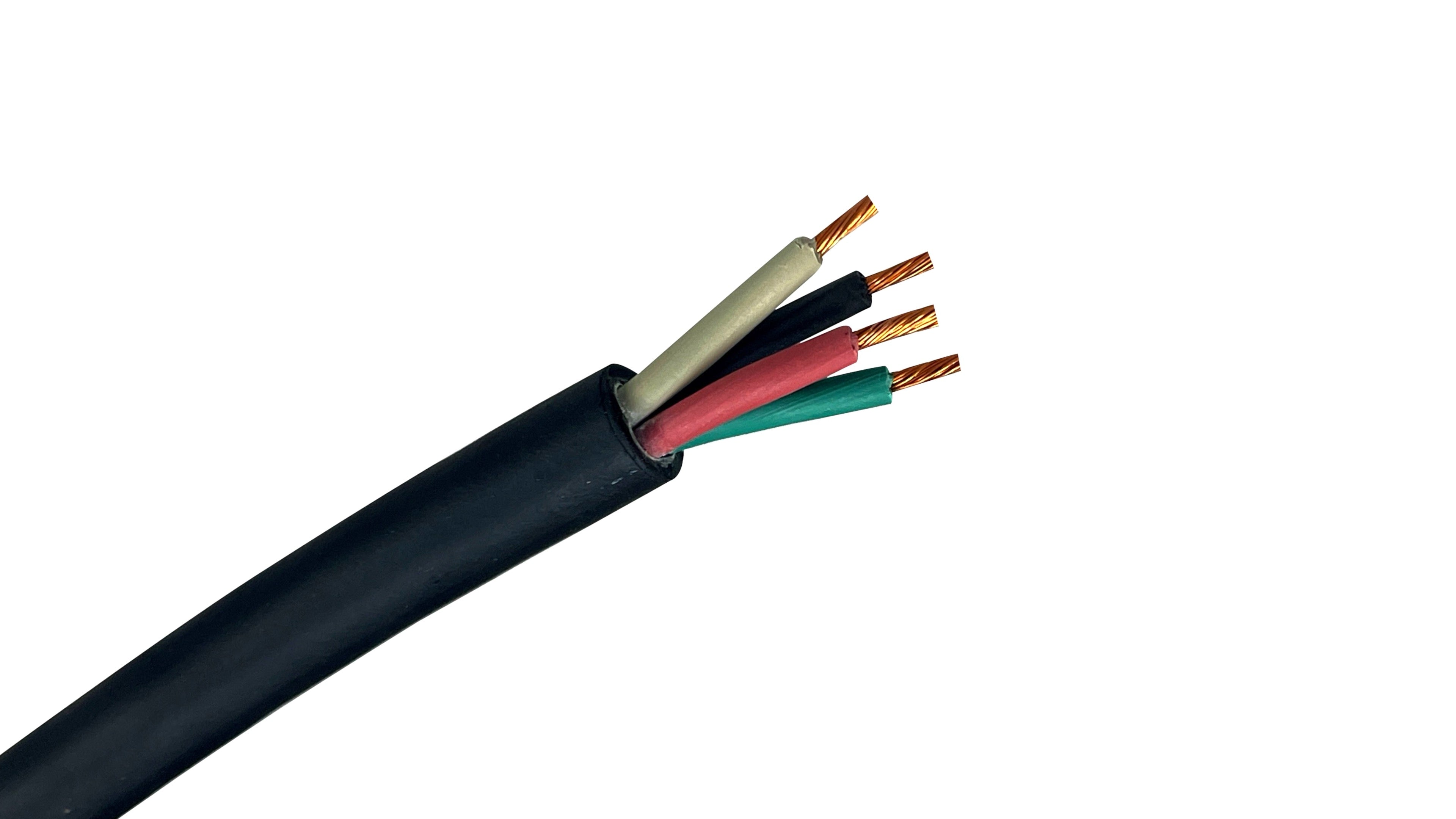

Providing a compact solution for 3-phase power or multi-circuit control, this 16 AWG 4-conductor SJOOW cord is engineered for high-performance in demanding industrial environments. This 300V-rated cord features four precision-stranded conductors in a rugged, thermoset jacket, offering superior current-carrying capacity for automated machinery and portable multi-circuit equipment.
The 16 AWG gauge is highly valued for its ability to handle more current than standard 18 AWG cords while maintaining a manageable diameter. The SJOOW rating guarantees that the cord is "Junior" service (300V) and possesses ultimate resistance to Oil, Water, and Weather (UV). Its thermoset CPE jacket is chemically cross-linked, ensuring it will not melt when exposed to high-heat equipment or "cold flow" under the weight of heavy machinery.
Multi-Circuit Versatility: The 4-conductor configuration is ideal for small 3-phase motors (using the fourth wire as a ground) or for complex control signals where multiple paths are required in a single cable.
Premium Oil & Chemical Resistance: The Chlorinated Polyethylene (CPE) jacket is designed to withstand continuous exposure to cutting oils, lubricants, and aggressive cleaning solvents.
Extreme Cold-Weather Flexibility: Rated for a temperature range of -40°C to +90°C, this cord remains supple and resistant to cracking even in arctic conditions.
Durable Class K Stranding: Utilizes high-strand count bare copper, providing the mechanical strength and flexibility needed for equipment that undergoes constant vibration or repetitive movement.
Conductor Size: 16 AWG
Number of Conductors: 4
Color Code: Black, White, Red, Green
Ampacity: 10 Amps (Based on NEC Table 400.5(A)(1) - adjusted for 4 conductors)
Voltage Rating: 300V
Jacket Material: Premium Grade Thermoset CPE (Black)
Insulation: Oil-Resistant EPDM
Conductor Material: Fully Annealed Stranded Bare Copper (Class K)
Standards: UL 62, CSA C22.2 No. 49, MSHA Approved, RoHS Compliant
Small 3-Phase Motors: Perfect for portable industrial fans, pumps, and conveyors requiring 3-phase power and a dedicated ground.
Industrial Automation: The preferred choice for wiring multi-function sensor arrays, limit switches, and solenoid valves on production lines.
Push-Button Pendant Stations: Ideal for overhead hoist and crane controls where multiple signal conductors must be consolidated into one flexible drop.
Professional Stage & Lighting: Used for portable power distribution and multi-circuit lighting rigs where a durable, non-reflective black jacket is required.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Â
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for flexible cords and cables, adjusted for the number of current-carrying conductors in the cord.
| Wire Size (AWG/MCM) | 16 AWG |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 26/30 |
| Outer Diameter (OD) (in/mm) | 0.36 in. / 9.144 mm |
| Jacket Type | EPDM Rubber |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | Ethylene Propylene Diene Monomoer (EPDM) or Ethylene Propylene Rubber (EPR) |
| UL Listing Numbers | UL/CSA |
| Voltage Rating | 300V |
| Ampacity Rating | 10 |
| Submersible | No |
| Flexibility Rating | High |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL Flexible Cord - UL 62 CSA C22.2 No. 49 Flame test meets FT2 ASTM B-174 MSHA Approved OSHA Accepted RoHS Compliant |
| Miscellaneous Information | All values are nominal and subject to correction. **Ampacity values shown are for current carrying conductors. A grounding conductor, or one which carries only the unbalanced current from other conductors, is NOT counted in determining current carrying capacity. |
| RoHS Compliance | Yes |
| Primary Applications | Portable tools and equipment, portable appliances, small motors, machinery. |
| Common Uses |
|
| Weight per Foot | 0.083 lb |
