Parent SKU : SJOOW14-4
SKU : SJOOW14-4-250

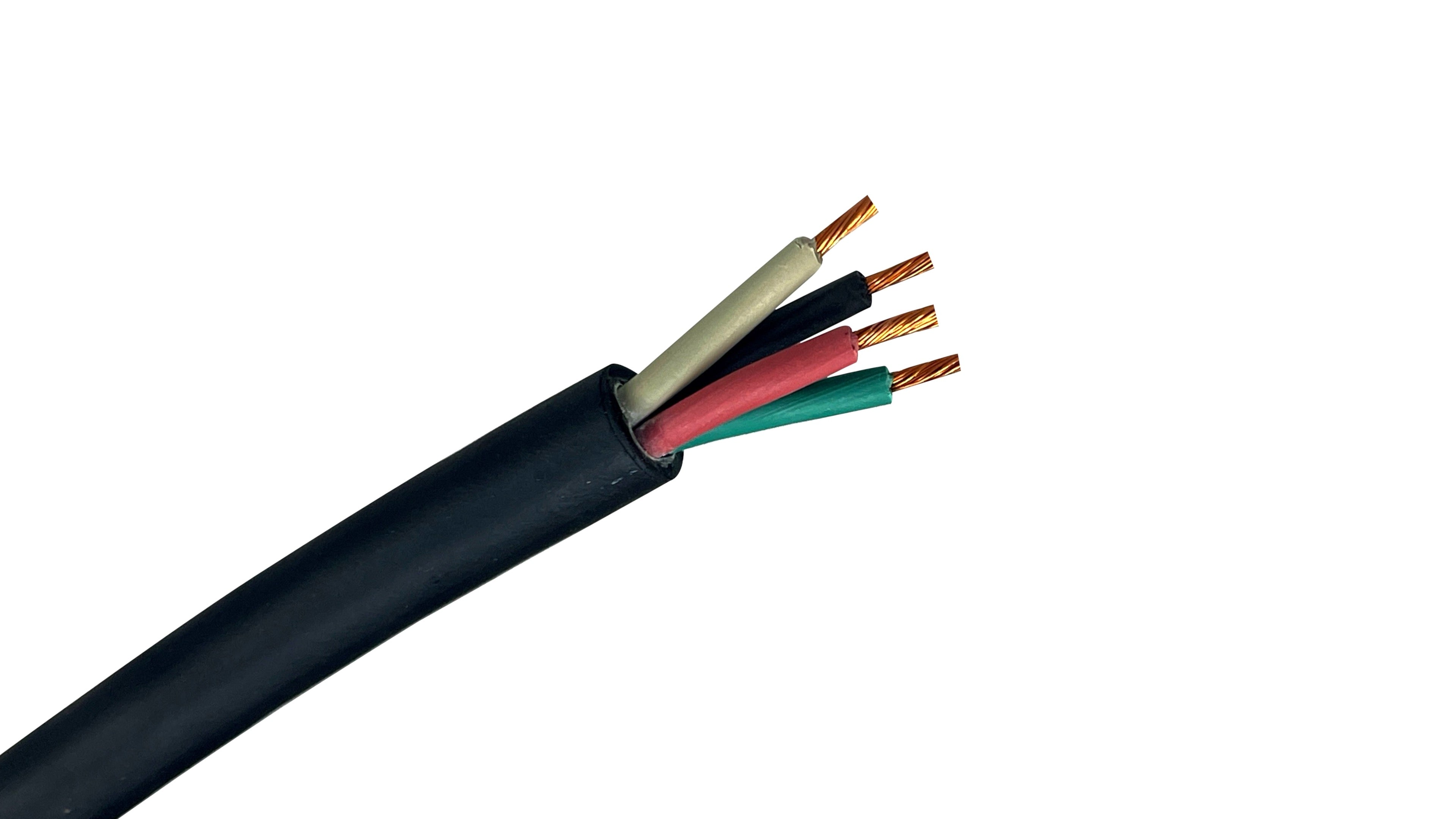

Providing a high-capacity solution for 3-phase power or complex control applications, this 14 AWG 4-conductor SJOOW cord is engineered for maximum performance in heavy-duty industrial environments. This 300V-rated cord features four precision-stranded conductors within a rugged, thermoset jacket, offering the electrical muscle required for automated machinery and portable multi-circuit equipment.
The 14 AWG gauge is the professional standard for high-draw equipment, providing the ampacity needed for larger motors and 20-amp circuits. The SJOOW rating ensures the cord is "Junior" service (300V) and possesses ultimate resistance to Oil, Water, and Weather (UV). Its thermoset CPE jacket is chemically cross-linked, meaning it will not melt, "cold flow," or deform even under intense mechanical pressure or high-heat conditions.
3-Phase and Control Versatility: The 4-conductor configuration is ideal for 3-phase portable motors (using the fourth wire as a ground) or for complex control signals where multiple power and return paths are required.
Industrial-Grade Oil & Chemical Shielding: The Chlorinated Polyethylene (CPE) jacket is designed to withstand continuous exposure to cutting oils, lubricants, and aggressive cleaning solvents without swelling or degrading.
Arctic Flexibility: Rated for a temperature range of -40°C to +90°C, this cord remains supple and resistant to cracking in freezing temperatures while handling high-ambient heat.
Superior Mechanical Strength: Features high-count Class K bare copper stranding, providing the flexibility and durability needed for equipment that undergoes constant vibration or repetitive movement.
Conductor Size: 14 AWG
Number of Conductors: 4
Color Code: Black, White, Red, Green
Ampacity: 15 Amps (Based on NEC Table 400.5(A)(1) - adjusted for 4 conductors)
Voltage Rating: 300V
Jacket Material: Premium Grade Thermoset CPE (Black)
Insulation: Oil-Resistant EPDM
Conductor Material: Fully Annealed Stranded Bare Copper (Class K)
Standards: UL 62, CSA C22.2 No. 49, MSHA Approved, RoHS Compliant
Portable 3-Phase Motors: The definitive choice for industrial fans, pumps, and conveyors requiring 3-phase power in a mobile format.
Heavy-Duty Pendant Stations: Ideal for overhead hoist and crane controls where multiple signal conductors and a ground must be consolidated into one flexible drop.
Industrial Automation: Frequently used for wiring multi-function sensor arrays and solenoid valves on heavy production lines.
Entertainment & Stage Power: Used for multi-circuit lighting rigs and portable power distribution blocks where a durable, low-visibility black jacket is required.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Â
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for flexible cords and cables, adjusted for the number of current-carrying conductors in the cord.
| Wire Size (AWG/MCM) | 14 AWG |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 41/30 |
| Outer Diameter (OD) (in/mm) | 0.40 in. / 10.16 mm |
| Jacket Type | EPDM Rubber |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | Ethylene Propylene Diene Monomoer (EPDM) or Ethylene Propylene Rubber (EPR) |
| UL Listing Numbers | UL/CSA |
| Voltage Rating | 300V |
| Ampacity Rating | 15 |
| Submersible | No |
| Flexibility Rating | High |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL Flexible Cord - UL 62 CSA C22.2 No. 49 Flame test meets FT2 ASTM B-174 MSHA Approved OSHA Accepted RoHS Compliant |
| Miscellaneous Information | All values are nominal and subject to correction. **Ampacity values shown are for current carrying conductors. A grounding conductor, or one which carries only the unbalanced current from other conductors, is NOT counted in determining current carrying capacity. |
| RoHS Compliance | Yes |
| Primary Applications | Portable tools and equipment, portable appliances, small motors, machinery. |
| Common Uses |
|
| Weight per Foot | 0.11 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
