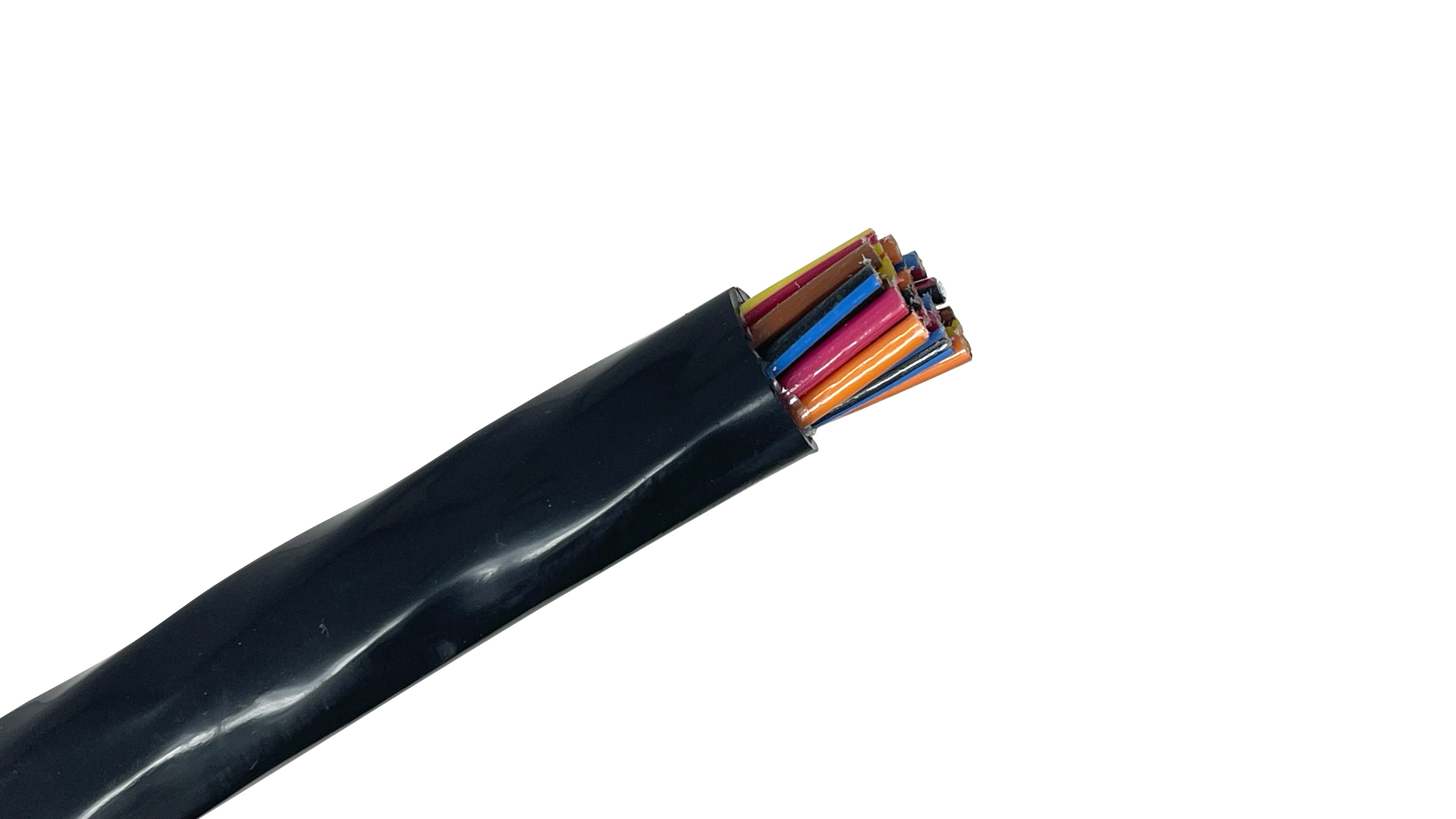

16/37 VNTC Control Tray Cable Type TC-ER (TFFN PVC 600V)

APPLICATION:
Tray Cable UL Type TC / TC-ER with TFFN Insulation is primarily used for power, control, signal, communication, and lighting circuits in commercial and industrial environments. Suitable for installations in cable trays, supported by messenger wire in open air, raceways, channels, conduits and ducts, direct burial applications not exceeding 600 volts and outdoors in cable trays where sunlight resistant is required.

CONDUCTORS:
Fully annealed bare copper Class B compressed strand per ASTM B3 and B8

CONDUCTOR SIZE:
16 AWG

CONDUCTOR COUNT:
37

CONDUCTOR COLORS:
Black, Red, Blue, Orange, Yellow, Brown, Red/Black, Blue/Black, Orange/Black, Yellow/Black, Brown/Black, Black/Red, Blue/Red, Orange/Red, Yellow/Red, Brown/Red, Black/Blue, Red/Blue, Orange/Blue, Yellow/Blue, Brown/Blue, Black/Orange, Red/Orange, Blue/Orange, Yellow/Orange, Brown/Orange, Black/Yellow, Red/Yellow, Blue/Yellow, Orange/Yellow, Brown/Yellow, Black/Brown, Red/Brown, Blue/Brown, Orange/Brown, and Yellow/Brown

INSULATION:
TFN Heat and moisture resistant Polyvinylchloride (PVC) with a Nylon jacket

ASSEMBLY:
Conductors are cabled together with or without fillers as required to form a round, compact cable core with a binder tape.

AMP RATING:
@ 90°C - 6 Amps



All values are nominal and subject to correction. Flat Construction is NOT TC-ER rated. Pair cables are Black, Red and numbered. Triad cables are Black, Red, Blue and numbered. Colors repeats after 36 conductors. There are no Green or White conductors or stripes
