Parent SKU : TCTHN12-3
SKU : TCTHN12-3-250

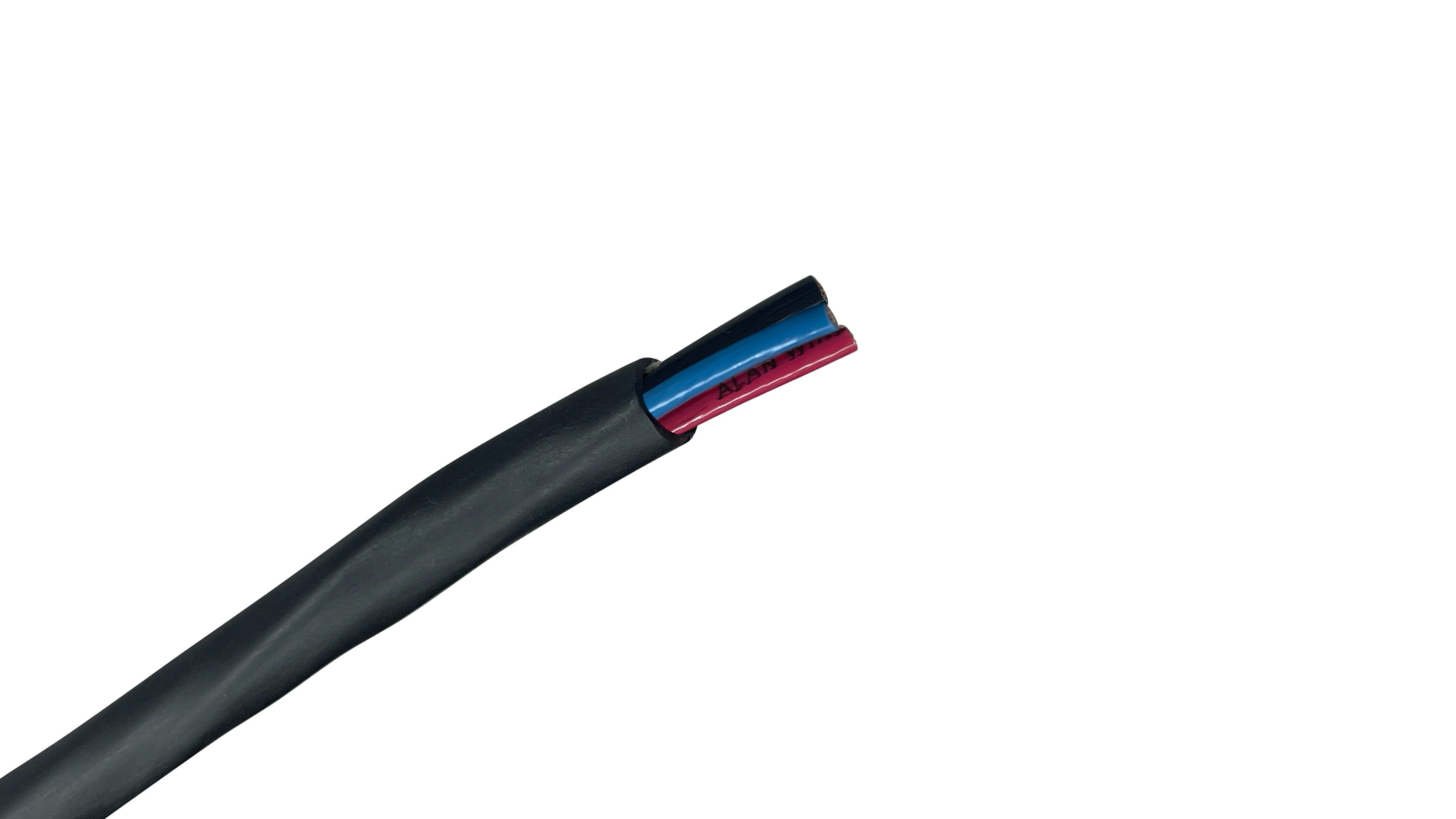

"A high-performance control cable engineered for industrial automation panels, signal monitoring loops, and commercial communication infrastructure. Featuring 3 insulated 12 AWG copper conductors under a heavy-duty PVC outer jacket, this 600V Type TC-ER cable (Direct Burial & Sunlight Resistant) easily routes through crowded containment trays, factory raceways, channels, conduits, and exposed runs where maximum durability is required."
When wiring intricate enclosures, machine stations, or packed trays, physical reliability equals field efficiency. The 12/3 VNTC balances a compact physical footprint with heavy industrial durability. Constructed with stranded copper conductors and heat- and moisture-resistant PVC/Nylon THHN/THWN-2 insulation inside a flame-retardant, UV-resistant PVC outer jacket, its compact round core maximizes containment space, handles tight turns effortlessly, and slashes installation labor.
Exposed Run (TC-ER) Certified: Fully code-listed to transit safely outside of protective cable trays or conduits in open-air spans directly to equipment enclosures or joist pull applications when properly supported.
Versatile Routing Approvals: Code-compliant for deployment in open-air trays, aerial applications supported by a messenger wire, pulled through raceways, structural conduits, or laid in deep under-floor ducts.
Direct Burial & Outdoor Rated: Built with a sunlight-resistant PVC outer jacket that permits direct underground trenching and exposed outdoor installation.
Flexible Stranded Conductors: Stranded bare copper conductors provide tight bend radii for effortless panel wiring while defending power and signal circuits against fatigue caused by nearby machinery vibration.
Conductor Configuration: 3 Conductors
Conductor Size: 12 AWG (7 Strands)
Conductor Material: Fully annealed bare copper (Class B compressed strand per ASTM B3 & B8)
Conductor Insulation: Heat and moisture resistant PVC with a Nylon jacket (Type THHN/THWN-2)
Color Code: ICEA Method 1, Table E-2 (1-Black, 2-Red, 3-Blue)
Insulation / Nylon Thickness: 0.015" PVC / 0.004" Nylon
Outer Jacket Material: Sunlight-Resistant Black Polyvinyl Chloride (PVC)
Jacket Thickness: 0.045"
Nominal Overall Diameter: 0.385"
Net Weight: 110 lbs / kft
Voltage Rating: 600 Volts
Temp Rating: 90°C
Amp Rating: 20 Amps (@ 90°C Continuous Load)
UL Listings & Code Approvals: UL 66, UL 83, UL 1277, UL 1685 Vertical-Tray Fire-Propagation & Smoke-Release Test Approved as Type TC or TC-ER-JP, Sunlight Resistant, Direct Burial, ASTM B3, ASTM B8, NEC Article 336, Article 501, Article 725 for Class 1 circuits.
Industrial Automation & Power Loops: Primarily used for power, control, signal, communication, and lighting circuits in commercial and industrial environments.
Solar & Renewable Energy Systems: Ideal for routing auxiliary power, tracking system controls, and monitoring circuits in commercial solar arrays, battery storage enclosures (BESS), and wind turbine nacelles/bases.
Conduit & Tray Wiring: Suitable for installation in cable trays, aerial applications supported by a messenger wire in open air, raceways, channels, conduits, and ducts.
Commercial Building Automation: Deployed in direct burial or joist pull applications not exceeding 600 volts and outdoors in cable trays where sunlight resistance is required.
Hazardous Environment Infrastructure: Approved for safe deployment in Class I, Division 2 locations per NEC Article 501.
Disclaimer: All values are nominal and subject to standard manufacturing tolerances and manufacturer corrections. Always verify local AHJ, NEC, and engineering guidelines prior to installation.
| Wire Size (AWG/MCM) | 12 AWG |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.385 in. |
| Jacket Type | PVC with a Nylon Jacket |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | (PVC) Polyvinyl Chloride |
| UL Listing Numbers | Type TC, TC-ER-JP, UL 66, UL 83, UL 1277, UL 1685 |
| Voltage Rating | 600V |
| Ampacity Rating | 20 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 66, UL 83, UL1277 UL 1685 Vertical-Tray Fire-Propagation and Smoke-Release Test Approved as Type TC or TC-ER-JP, Sunlight Resistant, Direct Burial ASTM B3, ASTM B8 NEC Article 336, Article 501, Article 725 for class 1 circuits. |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Other Certifications | UL 66, UL 83, UL1277, UL 1685 |
| Primary Applications | Industrial Power and Control Systems, Building Automation and Energy Management, Utility and Substation Wiring, Instrumentation and Process Control, Cable Tray Installations, Outdoor and Direct Burial. |
| Common Uses |
|
| Weight per Foot | 0.11 lb |
