Parent SKU : SJOOW10-2
SKU : SJOOW10-2-250

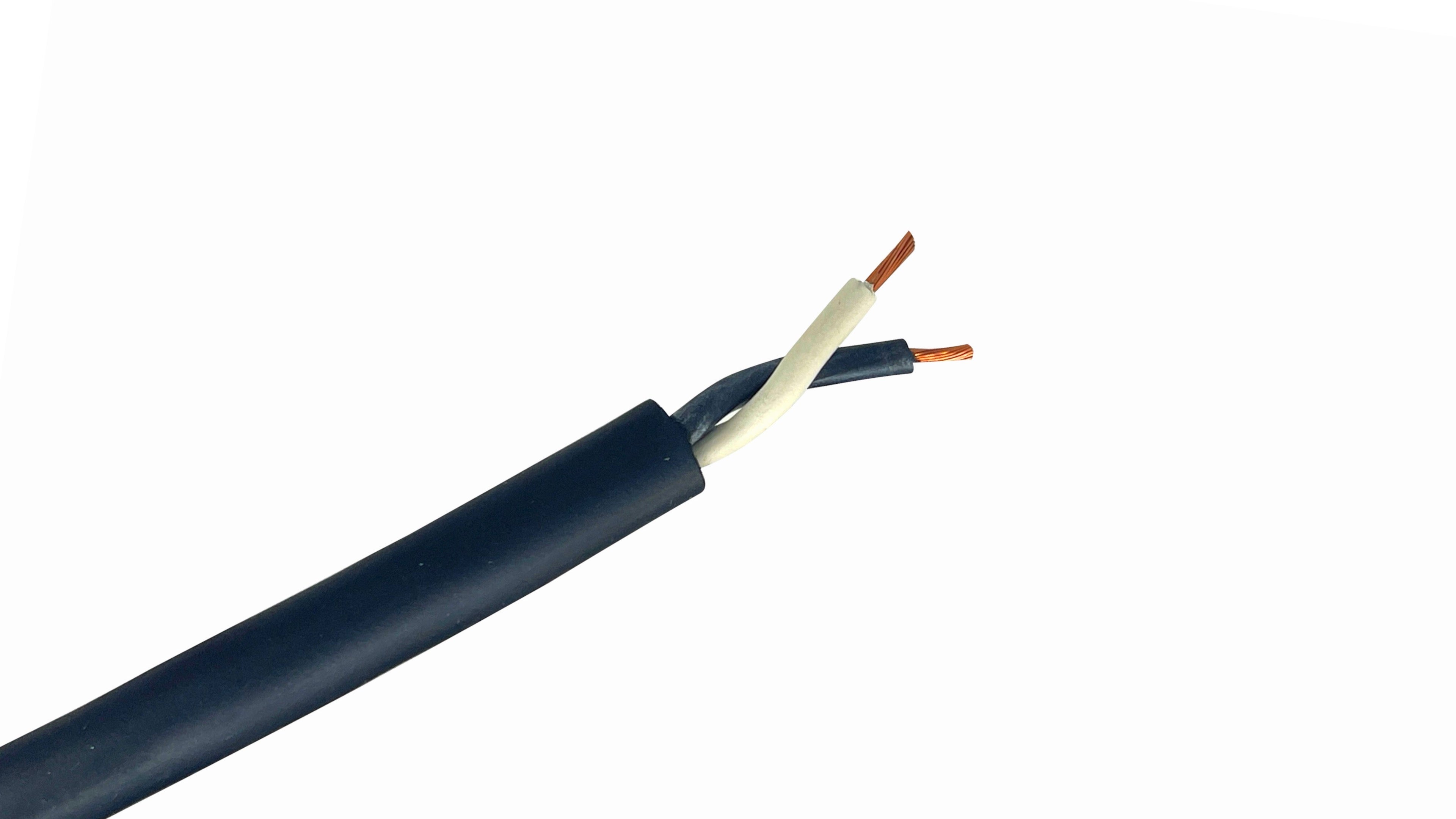

The heavy-weight champion of the SJOOW family, this 10 AWG 2-conductor flexible cord is engineered for peak power delivery in the most grueling industrial environments. Featuring a high-capacity 10-gauge copper core and a premium thermoset jacket, this 300V-rated cord provides the electrical muscle and physical durability required for high-wattage equipment and heavy-duty portable power applications.
The 10 AWG gauge is the largest size available in the "Junior" (300V) SJOOW category, offering a massive 30-amp capacity. This makes it the definitive choice for high-draw equipment where voltage drop is a concern or where 12 AWG would be insufficient. The SJOOW designation ensures the cord is fully resistant to Oil, Water, and Weather (UV). Its thermoset CPE jacket is chemically cross-linked, meaning it will not melt, "cold flow," or deform even under intense mechanical pressure or when in contact with high-heat machinery.
Maximum Power Throughput: 10-gauge conductors provide the heavy-duty current-carrying capacity needed for large motor start-ups and high-wattage industrial heaters.
Elite Environmental Shielding: The Chlorinated Polyethylene (CPE) jacket offers the highest tier of protection against tearing, abrasion, and chemical degradation from oils and solvents.
Sub-Zero Resilience: Rated for extreme temperatures from -40°C to +90°C, ensuring the cord remains supple and manageable in arctic conditions and won't fail in high-ambient heat.
Industrial-Grade Stranding: Features high-count Class K bare copper stranding, providing the superior "bend-life" and flexibility required for equipment subject to constant movement and vibration.
Conductor Size: 10 AWG
Number of Conductors: 2
Color Code: Black, White
Ampacity: 30 Amps (Based on NEC Table 400.5(A)(1))
Voltage Rating: 300V
Jacket Material: Premium Grade Thermoset CPE (Black)
Insulation: Oil-Resistant EPDM
Conductor Material: Fully Annealed Stranded Bare Copper (Class K)
Standards: UL 62, CSA C22.2 No. 49, MSHA Approved, RoHS Compliant
High-Capacity Portable Machinery: The primary choice for industrial air compressors, heavy-duty welders, and large-scale portable saws.
Commercial Heating Units: Ideal for high-wattage portable space heaters and industrial curing equipment requiring 30A service.
Industrial Battery Chargers: Frequently used for heavy-duty charging stations for forklifts and other warehouse mobile equipment.
Heavy-Duty Maintenance Gear: Perfectly suited for high-pressure industrial washers, commercial floor grinders, and high-capacity vacuums.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Â
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for flexible cords and cables, assuming no more than three current-carrying conductors in the cord.
| Wire Size (AWG/MCM) | 10 AWG |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 103/30 |
| Outer Diameter (OD) (in/mm) | 0.54 in. / 13.716 mm |
| Jacket Type | EPDM Rubber |
| Conductor Count | 2 |
| Shield | Unshielded |
| Insulation Type | Ethylene Propylene Diene Monomoer (EPDM) or Ethylene Propylene Rubber (EPR) |
| UL Listing Numbers | UL/CSA |
| Voltage Rating | 300V |
| Ampacity Rating | 30 |
| Submersible | No |
| Flexibility Rating | High |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL Flexible Cord - UL 62 CSA C22.2 No. 49 Flame test meets FT2 ASTM B-174 MSHA Approved OSHA Accepted RoHS Compliant |
| Miscellaneous Information | All values are nominal and subject to correction. **Ampacity values shown are for current carrying conductors. A grounding conductor, or one which carries only the unbalanced current from other conductors, is NOT counted in determining current carrying capacity. |
| RoHS Compliance | Yes |
| Primary Applications | Portable tools and equipment, portable appliances, small motors, machinery. |
| Common Uses |
|
| Weight per Foot | 0.177 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : SJOOW10-2
SKU : SJOOW10-2-250
Parent SKU : SJOOW10-2
SKU : SJOOW10-2-250
The heavy-weight champion of the SJOOW family, this 10 AWG 2-conductor flexible cord is engineered for peak power delivery in the most grueling industrial environments. Featuring a high-capacity 10-gauge copper core and a premium thermoset jacket, this 300V-rated cord provides the electrical muscle and physical durability required for high-wattage equipment and heavy-duty portable power applications.
The 10 AWG gauge is the largest size available in the "Junior" (300V) SJOOW category, offering a massive 30-amp capacity. This makes it the definitive choice for high-draw equipment where voltage drop is a concern or where 12 AWG would be insufficient. The SJOOW designation ensures the cord is fully resistant to Oil, Water, and Weather (UV). Its thermoset CPE jacket is chemically cross-linked, meaning it will not melt, "cold flow," or deform even under intense mechanical pressure or when in contact with high-heat machinery.
Maximum Power Throughput: 10-gauge conductors provide the heavy-duty current-carrying capacity needed for large motor start-ups and high-wattage industrial heaters.
Elite Environmental Shielding: The Chlorinated Polyethylene (CPE) jacket offers the highest tier of protection against tearing, abrasion, and chemical degradation from oils and solvents.
Sub-Zero Resilience: Rated for extreme temperatures from -40°C to +90°C, ensuring the cord remains supple and manageable in arctic conditions and won't fail in high-ambient heat.
Industrial-Grade Stranding: Features high-count Class K bare copper stranding, providing the superior "bend-life" and flexibility required for equipment subject to constant movement and vibration.
Conductor Size: 10 AWG
Number of Conductors: 2
Color Code: Black, White
Ampacity: 30 Amps (Based on NEC Table 400.5(A)(1))
Voltage Rating: 300V
Jacket Material: Premium Grade Thermoset CPE (Black)
Insulation: Oil-Resistant EPDM
Conductor Material: Fully Annealed Stranded Bare Copper (Class K)
Standards: UL 62, CSA C22.2 No. 49, MSHA Approved, RoHS Compliant
High-Capacity Portable Machinery: The primary choice for industrial air compressors, heavy-duty welders, and large-scale portable saws.
Commercial Heating Units: Ideal for high-wattage portable space heaters and industrial curing equipment requiring 30A service.
Industrial Battery Chargers: Frequently used for heavy-duty charging stations for forklifts and other warehouse mobile equipment.
Heavy-Duty Maintenance Gear: Perfectly suited for high-pressure industrial washers, commercial floor grinders, and high-capacity vacuums.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Â
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for flexible cords and cables, assuming no more than three current-carrying conductors in the cord.
| Wire Size (AWG/MCM) | 10 AWG |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 103/30 |
| Outer Diameter (OD) (in/mm) | 0.54 in. / 13.716 mm |
| Jacket Type | EPDM Rubber |
| Conductor Count | 2 |
| Shield | Unshielded |
| Insulation Type | Ethylene Propylene Diene Monomoer (EPDM) or Ethylene Propylene Rubber (EPR) |
| UL Listing Numbers | UL/CSA |
| Voltage Rating | 300V |
| Ampacity Rating | 30 |
| Submersible | No |
| Flexibility Rating | High |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL Flexible Cord - UL 62 CSA C22.2 No. 49 Flame test meets FT2 ASTM B-174 MSHA Approved OSHA Accepted RoHS Compliant |
| Miscellaneous Information | All values are nominal and subject to correction. **Ampacity values shown are for current carrying conductors. A grounding conductor, or one which carries only the unbalanced current from other conductors, is NOT counted in determining current carrying capacity. |
| RoHS Compliance | Yes |
| Primary Applications | Portable tools and equipment, portable appliances, small motors, machinery. |
| Common Uses |
|
| Weight per Foot | 0.177 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||
This 10 AWG, 2-conductor portable cord is a heavy-duty service cable designed for equipment that requires maximum amperage but does not utilize a dedicated grounding conductor. It provides a significant 30-amp capacity, making it the specific choice for high-wattage industrial heaters, large single-phase motors, and specialized stage lighting. By utilizing 10-gauge copper—the thickest gauge available in the "Junior" service class—it ensures minimal voltage drop over long distances, protecting your equipment from the "brownout" conditions that occur with undersized wiring.
The SJOOW rating identifies this cable as a "Hard Service" cord engineered to survive mechanical and chemical stress that would destroy standard extension cords.
Because 10-gauge copper is thick and heavy, it would be virtually impossible to bend if it were solid. 10/2 SJOOW solves this by using Class K high-strand-count bare copper.
This cord contains two color-coded, insulated conductors:
This cord is built to perform in the harshest "real-world" industrial climates:
