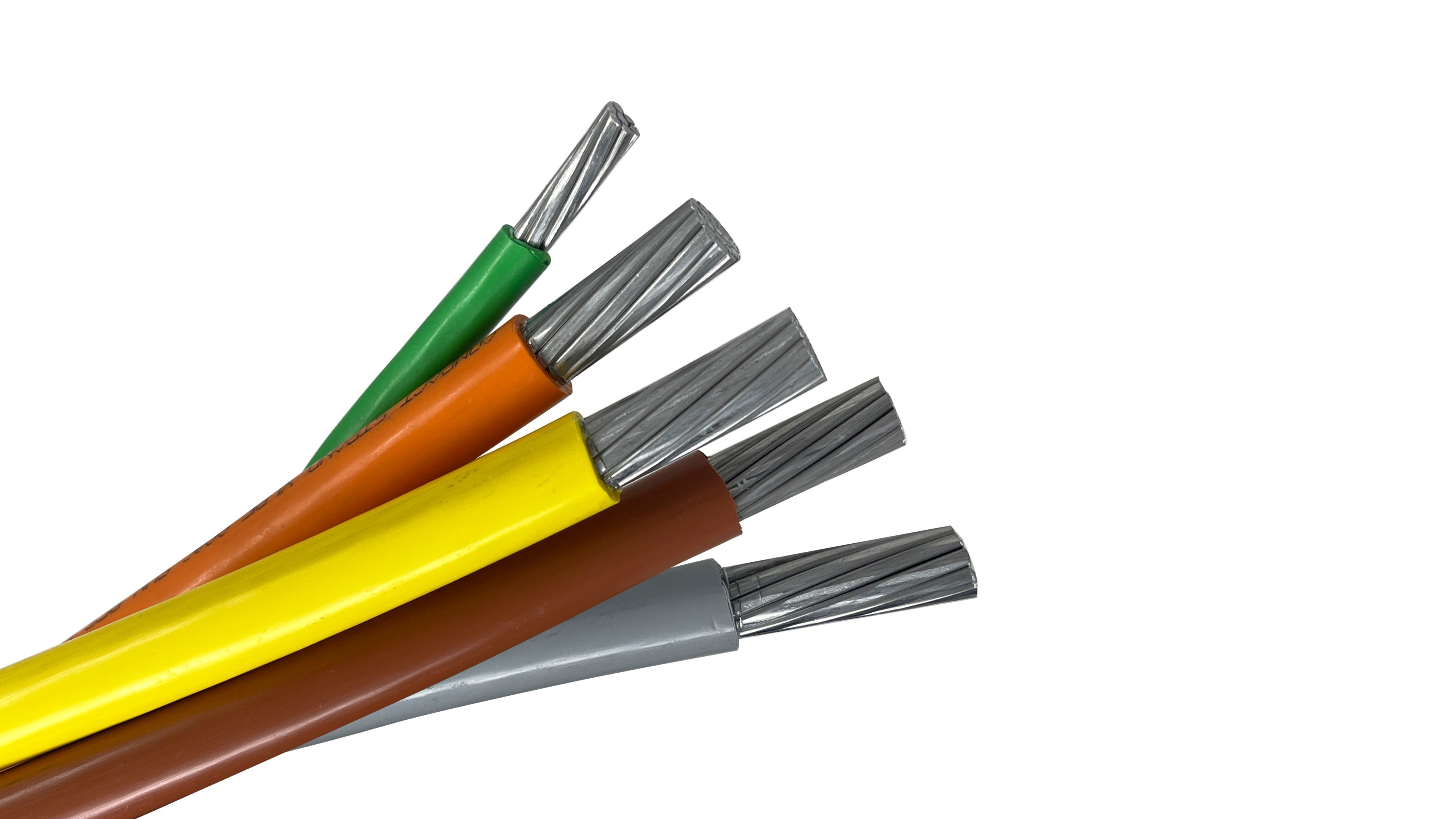

This #1 AWG 4-conductor Priority-Plex® assembly with an integrated #4 AWG Ground is a compact and efficient feeder solution for 277/480V 3-phase, 4-wire systems. By factory-twisting the phases (Brown, Orange, Yellow), the neutral (Gray), and a #4 AWG Green ground, this system provides a complete circuit in a single bundle, maximizing efficiency for commercial and light industrial installations.
Even at the #1 AWG size, pulling five separate conductors from five different reels is labor-intensive and prone to tangling. Priority-Plex® technology eliminates "bird-caging" and uneven tension. The twisted geometry ensures that the entire bundle moves as a single unit, which significantly lowers the coefficient of friction and helps prevent insulation damage during tight turns in the conduit run.
Optimized Grounding: The #4 AWG Green ground is factory-integrated and sized to meet NEC requirements for standard #1 aluminum circuits, providing a safe and reliable low-impedance ground path.
Rapid Installation: One reel replaces five. This reduces setup time, requires fewer jack stands, and allows a smaller crew to manage pulls with ease.
480V Phase Identification: Permanent, factory-colored insulation (Brown, Orange, Yellow, Gray, Green) provides instant identification. This removes the labor of field-taping and minimizes the risk of phase-rotation or grounding errors.
Rugged XHHW-2 Performance: The XLPE (Cross-linked Polyethylene) jacket is tougher than standard PVC, offering high resistance to moisture and heat (rated 90°C), which is essential for long-term reliability.
Phase/Neutral Size: #1 AWG
Ground Size: #4 AWG
Number of Conductors: 5 (Brown, Orange, Yellow, Gray, Green Ground)
Conductor Material: AA-8000 Series Aluminum Alloy
Insulation Type: XHHW-2 (Cross-linked Polyethylene)
Voltage Rating: 600V
Temperature Rating: 90°C (Wet/Dry)
Ampacity: 115 Amps (@ 90°C) | 100 Amps (@ 75°C)
Configuration: Parallel-Twisted (Priority-Plex®)
Commercial 480V Sub-Feeders: Supplying power from main switchboards to secondary distribution panels in retail and office environments.
Light Industrial Equipment: Powering 3-phase machinery and small motor loads in manufacturing plants.
HVAC Infrastructure: Providing the main feed for roof-top units (RTUs) and commercial air handlers.
EV Charging: Serving as the supply for Level 2 charging banks in commercial parking structures.
Technical Note: When terminating #1 AWG aluminum, always use AL9CU-rated mechanical or compression connectors. It is critical to wire-brush the conductor and apply an approved antioxidant joint compound to ensure long-term connection integrity. Always verify that your conduit sizing accommodates the 5-conductor twisted bundle per NEC Chapter 9 requirements.
CABLE CONFIGURATION: 4C + 1G (BRN-ORG-YEL-GRY-GRN) Twisted Bundle
PRIORITY PART#: 1-04PPLEX-BOYG-4G
| Wire Size (AWG/MCM) | 1 AWG |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 1.06 in. / 27.0 mm |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2557 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 115 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 0.505 lb |
