Understanding #6 Aluminum Wire Costs & Selection Guide: EV, RV Pedestal & 50-Amp Feeds

If you are installing a 50-amp RV hookup, a detached shop sub-panel, or a Level 2 EV Charger, #6 Aluminum wire is typically the most cost-effective way to get the job done. While many people automatically reach for expensive copper, modern high-quality aluminum cable can handle 50-amp branch loads safely for roughly one-third of the material cost.

Here is the breakdown of the most common #6 Aluminum options and how to choose the right one for your project.

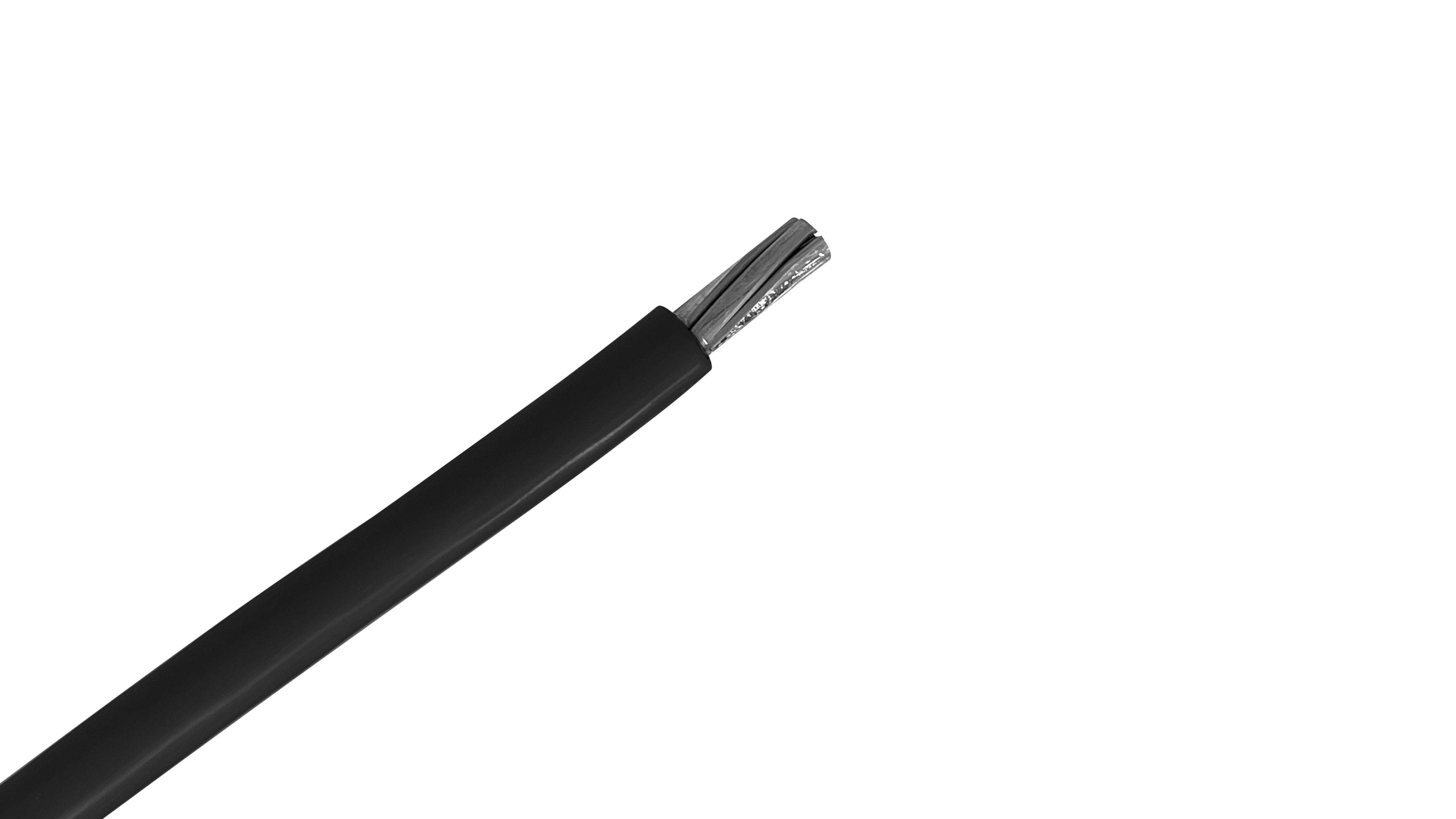

#6 XHHW-2 Aluminum Wire (Single Conductor)

• Estimated Price: $ (Lowest)

• Best For: Pulling through conduit for 50-amp sub-panels, workshop feeders, generator transfer switches, and Level 2 EV chargers (up to 40A continuous load).

• Overview: This is a single strand of high-performance insulated wire. For a standard 50-amp circuit, you typically need three or four strands (two hots, one neutral, and one ground) pulled together through PVC or EMT conduit.

• Installer’s Insight: XHHW-2 is the favorite of commercial and residential contractors because its cross-linked polyethylene (XLPE) insulation is slicker, tougher, and much easier to pull through multiple 90-degree conduit bends than standard PVC THHN. It handles heat exceptionally well, making it ideal for long continuous runs or high-ambient garage environments.

👉 View #6 XHHW-2 Aluminum Pricing

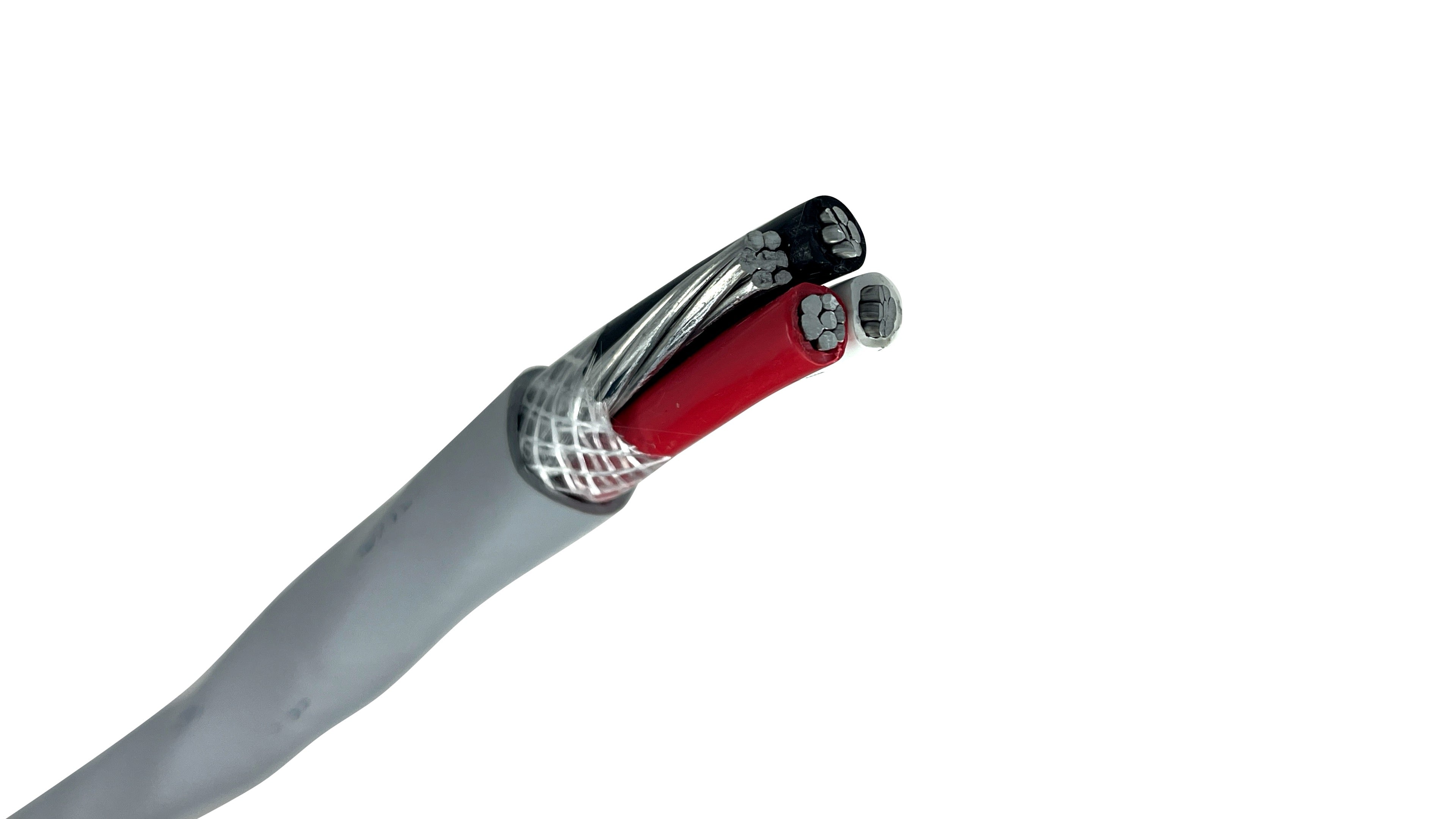

#6-6-6-6 SER Aluminum Wire (The EV Specialist)

• Estimated Price: $$$ (Higher)

• Best For: Residential EV charger installs and indoor 50-amp sub-panels.

• Overview: SER cable bundles three #6 conductors and a #6 ground wire into one flexible, gray jacket. It is designed for indoor use and can be run through walls or across ceilings without the need for conduit.

• Installer’s Insight: Many EV chargers only accept copper wire directly at their internal terminal blocks. An easy "pro move" is to run #6 Aluminum SER from your main panel to a small disconnect box near the charger, then switch to a short run of copper for the final connection. This gives you the savings of aluminum with the terminal compatibility of copper.

👉 View #6-6-6-6 SER Aluminum Pricing

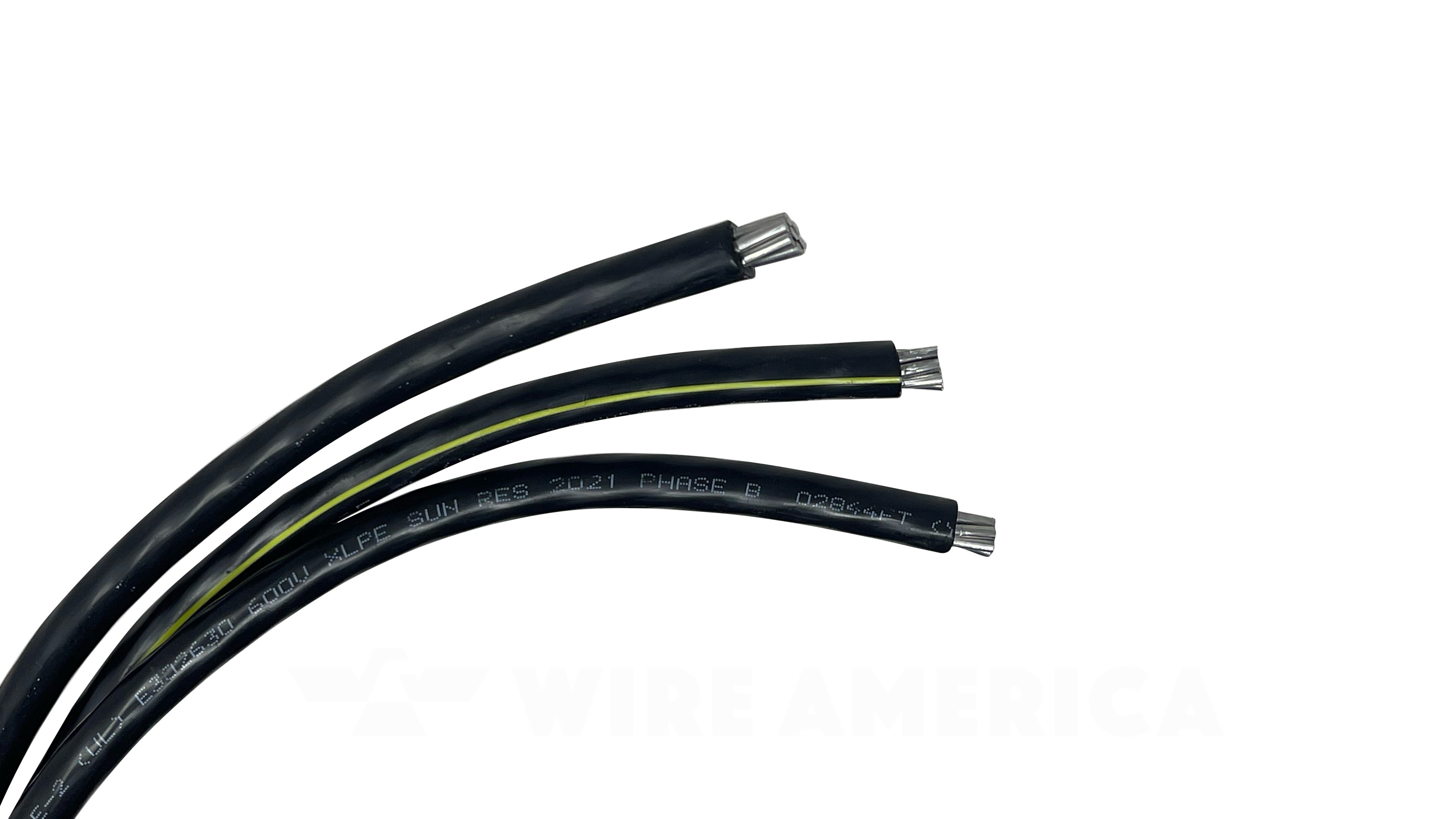

#6 Aluminum URD (The Underground Workhorse)

• Estimated Price: $$ (Moderate)

• Best For: Running 50-amp power underground to a shed, detached garage, or RV post.

• Overview: #6 URD is commonly "triplex" wire (three wires) or "quadruplex" wire (four wires) and is rated for direct burial. This means you can drop it directly into a trench without the expense and labor of installing PVC conduit.

• Installer’s Insight: Per NEC Article 225, outdoor feeder runs to detached buildings or pedestals require proper overcurrent protection and a local disconnect. #6 URD is the gold standard for that direct-burial run out to your shop or RV post.

👉 View #6-6-6 Aluminum Triplex URD Pricing

#6 XLP-USE-2/RHH-RHW-2 (Triple Rated)

• Estimated Price: $$ (Moderate)

• Best For: Solar power arrays and seamless outside-to-inside 50-amp runs.

• Overview: This wire is sunlight-resistant for outdoor use and fire-rated for indoor use. It is the "universal" #6 wire that can handle almost any environment.

• Installer’s Insight: Commonly used for solar arrays where the wire is exposed on the roof and then transitions directly into the attic. Since it is fire-rated, you don't need a junction box at the wall—you can run it straight to your 50-amp solar breaker.

👉 View #6 XLP-USE-2 / RHW-2 Pricing

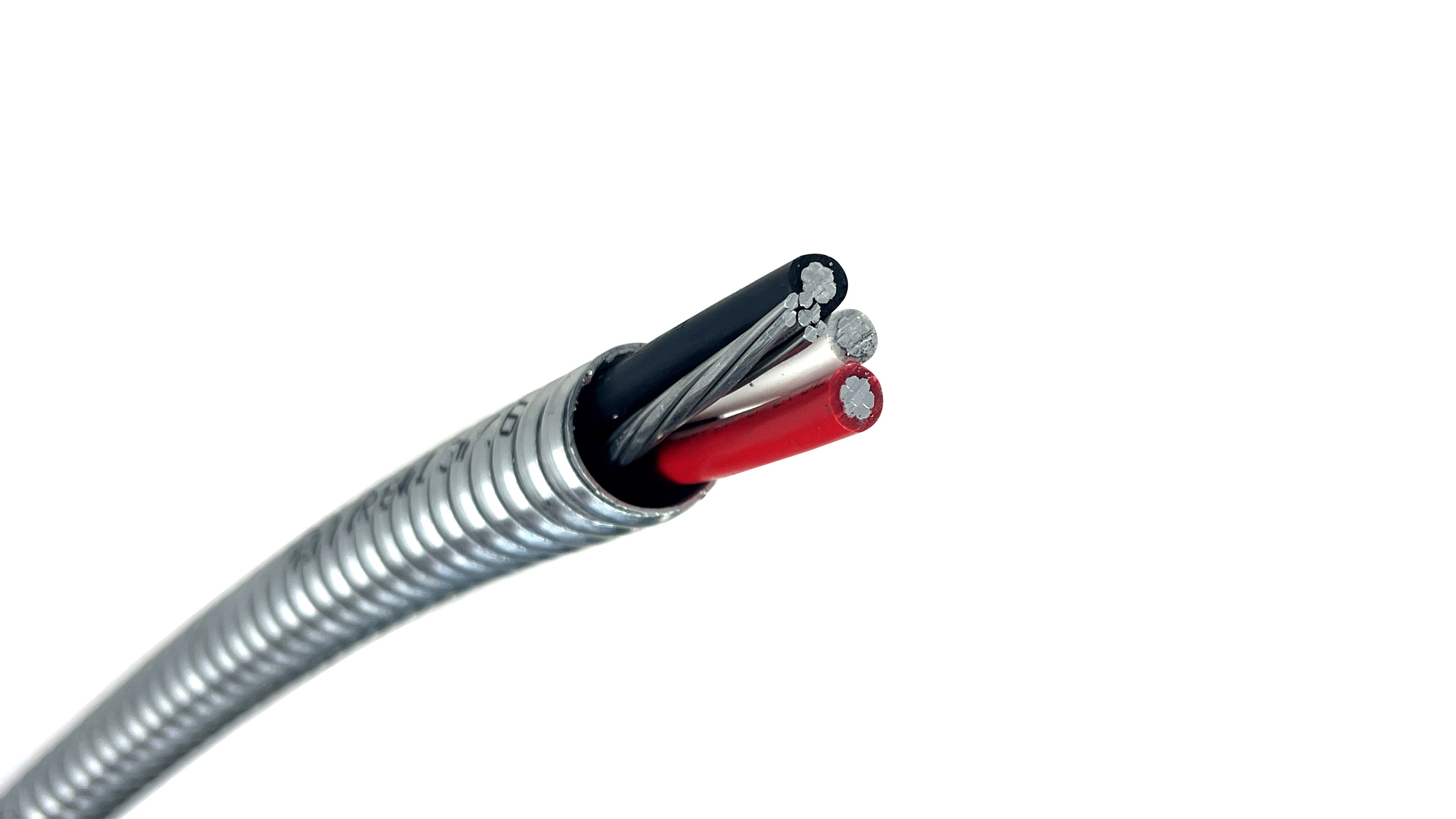

#6/3 Aluminum MC Cable (The Armor Choice)

• Estimated Price: $$$ (Higher)

• Best For: Commercial interiors, exposed garage walls, and protected 50-amp feeds.

• Overview: Metal Clad (MC) cable features three #6 aluminum conductors and a ground wire wrapped in a flexible, interlocked aluminum armor. This provides superior physical protection compared to standard SER.

• Installer’s Insight: If you are wiring a 50-amp circuit in a garage where the cable might be exposed to physical damage, 6/3 MC Cable is a great choice. The armor acts as a built-in conduit, meaning you don't have to spend time bending pipe, but the wire remains protected from nicks and cuts.

👉 View 6/3 Aluminum MC Cable Pricing

Which Aluminum Wire is Right for You?

1. #6 XHHW-2 (Single Conductor)

• Cost: Lowest

• Best Use: Pulling through conduit for sub-panels, workshops, and EV chargers.

• Key Detail: Rated for 50 Amps at standard 75°C terminals (ideal for 40A continuous EV charger loads).

2. #6-6-6-6 SER (Service Entrance Round)

• Cost: Highest

• Best Use: Indoor residential EV installs and sub-panels.

• Key Detail: No conduit required; saves massive labor indoors.

3. #6 Aluminum URD (Underground Distribution)

• Cost: Moderate

• Best Use: Direct burial to RV posts, sheds, and detached garages.

• Key Detail: Strictly for outdoors; must transition if running inside a building.

4. #6 XLP-USE-2 / RHH-RHW-2 (Triple Rated)

• Cost: Moderate

• Best Use: Solar power and outside-to-inside runs

• Key Detail: Sunlight resistant AND fire-rated for indoor use

5. #6-3 Aluminum MC Cable (Metal Clad)

• Cost: Higher

• Best Use: Exposed garage runs and commercial 50-amp feeds

• Key Detail: Flexible armor replaces the need for EMT or PVC pipe

How Wire America Can Help

• Cut-to-Length: We cut to the exact foot so you never pay for waste.

• Expert Support: We handle everything from single-home upgrades to massive commercial developments.

• Fast Logistics: We get your heavy leads on a truck and headed to your job site fast.

Need a Custom Quote? Ordering in bulk? Contact our sales department for bulk rates and specialized reel configurations.

Request a Custom Quote or call  1 (833) 268-8644

At Wire America, we believe in genuine conversation. You'll always talk with real people who understand that every project requires careful product selection. We're here to ensure you feel educated, confident, and great about your final purchase. Feel free to give us a call to discuss your project! You can reach us at: 833-268-8644

⚠️ Important Disclaimer: Safety and Compliance

Wire America provides this information as a guide only. Electrical installations must strictly adhere to the National Electrical Code (NEC) and all state, local, and jurisdictional requirements, which vary widely. Always consult a licensed electrician, electrical engineer, or the local inspecting authority before purchasing material or starting any electrical project. Wire America assumes no liability for the installation, use, or interpretation of these guides.
