Belden 9543 24 AWG 25-Conductor Shielded Computer Cable | 300V

Name: Belden 9543 24 AWG 25-Conductor Shielded Computer Cable | 300V
Brand: Wire America
SKU: BDN9543-250
Price: 2463.0 USD
Availability: InStock

Parent SKU : BDN9543

SKU : BDN9543-250

25C, #24 STR TC, SR-PVC, O/A FOIL, PVC JKT, CMG

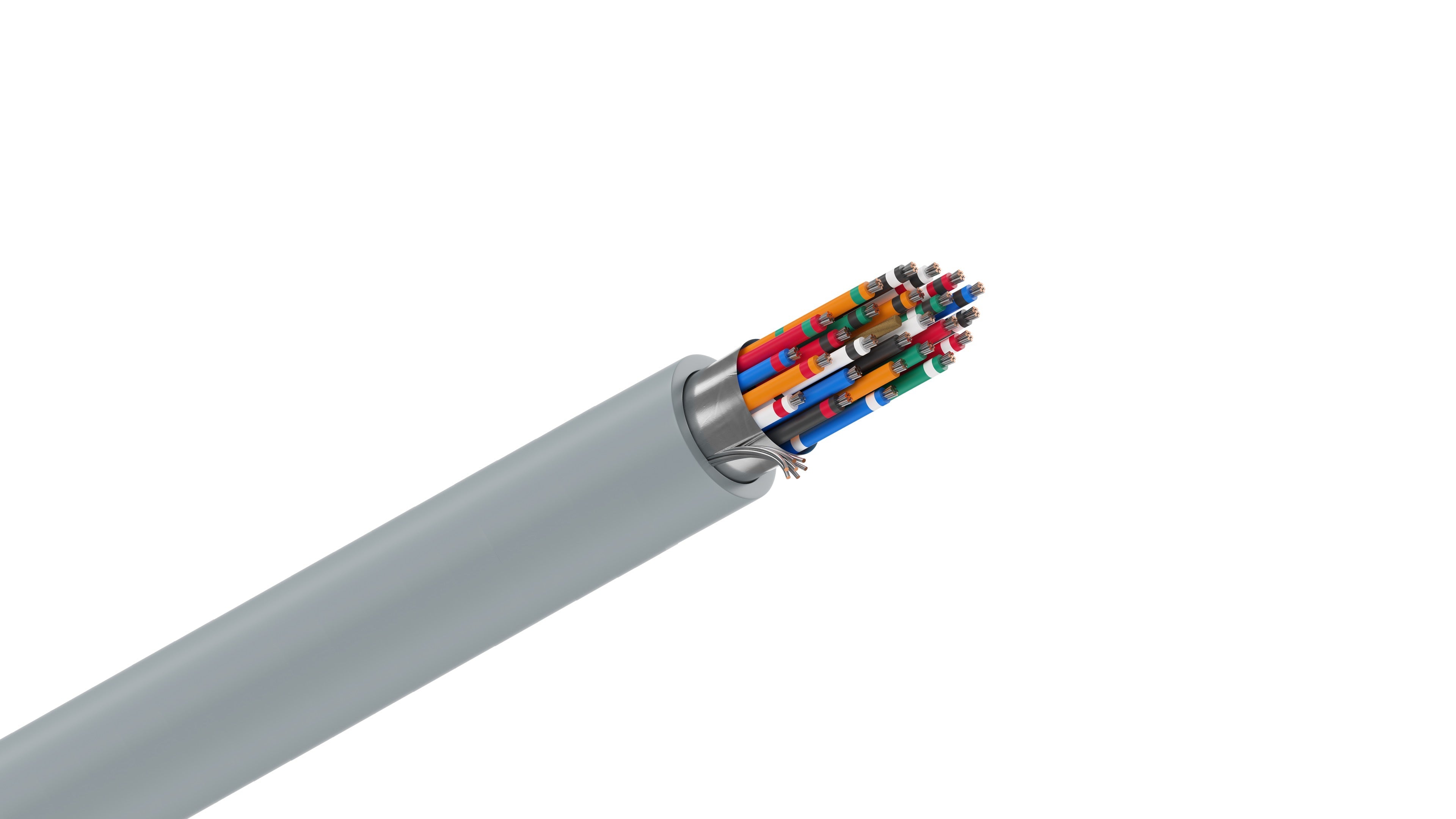

Belden 9543 Cable, 24 AWG 25-Conductor Shielded, 100% Beldfoil Coverage, Chrome PVC Jacket, RS-232 DB-25 Trunk Cable.

Wire Size 24 AWG

Conductor Material Tinned Copper

Outer Diameter 0.339 in.

Conductor Count 25

Voltage Rating 300V

Ampacity Rating 1.3

Weight per Foot 0.086 lb

Get Product Details

BELDEN 9543
25 Conductors, 24 AWG (7x32), tinned copper, semi-rigid PVC insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket, CMG

SIZE:
24 AWG

CONDUCTOR COUNT:
25 Conductors

COLOR CODE:
Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe,
Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe,
Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe,
White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe, Red/Green Stripe,
Orange/Green Stripe, Black/White/Red Stripes, White/Black/Red Stripes,
Red/Black/White Stripes, Green/Black/White Stripes

CONDUCTOR MATERIAL:
Tinned Copper

STRANDING:
7x32

INSULATION:
SR-PVC - Polyvinyl Chloride (Semi-Rigid)

SHIELD TYPE:
Tape

SHIELD MATERIAL:
Bi-Laminate (Alum+Poly)

DRAIN WIRE:
24 AWG Tinned Copper

JACKET MATERIAL:
PVC - Polyvinyl Chloride

JACKET COLOR:
Chrome

See Full Specifications

Physical Specifications

Wire Size (AWG/MCM)	24 AWG
Conductor Material	Tinned Copper
Conductor Type	Stranded
Strand Count	7
Outer Diameter (OD) (in/mm)	0.339 in.
Jacket Type	PVC
Conductor Count	25
Shield Coverage %	1
Shield Type	Bi-Laminate (Alum+Poly)
Shield	Shielded
Insulation Type	SR-PVC
UL Listing Numbers	UL1685

Technical Specifications

Voltage Rating	300V
Ampacity Rating	1.3
Submersible	No
Flexibility Rating	Good
Temperature Rating	-30°C to +80°C
Standards	Indoor UL 1685 FT4 Loading, FT4, IEC 60332-1-2 CPR Euroclass: Eca; CPR UKCA Class: Eca Article 800, CMG AWM 2464, AWM I/II A CMG, LL7874 EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) UKCA Mark China RoHS II (GB/T 26572-2011)
Miscellaneous Information	Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability.
RoHS Compliance	Yes

Usage & Installation

Primary Applications

RS-232 Applications; Computer Communications; Low Voltage Analog Signals; Low Voltage Digital Control; Line Level Audio; Panel Wiring

Packaging & Dimensions:

Weight per Foot

0.086 lb

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.

Orders on any items with a material value of $50 or less are non-returnable.

Belden 9543 24 AWG 25-Conductor Shielded Computer Cable | 300V

Parent SKU : BDN9543

SKU : BDN9543-250

25C, #24 STR TC, SR-PVC, O/A FOIL, PVC JKT, CMG

In Stock

Ships in 1-2 days

Parent SKU : BDN9543

SKU : BDN9543-250

Choose Your Purchase Option:

250 ft. Spool $2,463/ea.

500 ft. Spool $4,900/ea.

1000 ft. Spool $9,750/ea.

Product variants

How much do you need?

Min: 250 ft., Max: 10,000 ft.

Spool (250 ft.)

$2,463.00

Fast Shipping
Competitive Pricing
Phone Support

Get Product Details

See Full Specifications

Physical Specifications

Wire Size (AWG/MCM)	24 AWG
Conductor Material	Tinned Copper
Conductor Type	Stranded
Strand Count	7
Outer Diameter (OD) (in/mm)	0.339 in.
Jacket Type	PVC
Conductor Count	25
Shield Coverage %	1
Shield Type	Bi-Laminate (Alum+Poly)
Shield	Shielded
Insulation Type	SR-PVC
UL Listing Numbers	UL1685

Technical Specifications

Voltage Rating	300V
Ampacity Rating	1.3
Submersible	No
Flexibility Rating	Good
Temperature Rating	-30°C to +80°C
Standards	Indoor UL 1685 FT4 Loading, FT4, IEC 60332-1-2 CPR Euroclass: Eca; CPR UKCA Class: Eca Article 800, CMG AWM 2464, AWM I/II A CMG, LL7874 EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) UKCA Mark China RoHS II (GB/T 26572-2011)
Miscellaneous Information	Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability.
RoHS Compliance	Yes

Usage & Installation

Primary Applications

RS-232 Applications; Computer Communications; Low Voltage Analog Signals; Low Voltage Digital Control; Line Level Audio; Panel Wiring

Packaging & Dimensions:

Weight per Foot

0.086 lb

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Orders on any items with a material value of $50 or less are non-returnable.

Physical Specifications

Wire Size (AWG/MCM)	24 AWG
Conductor Material	Tinned Copper
Conductor Type	Stranded
Strand Count	7
Outer Diameter (OD) (in/mm)	0.339 in.
Jacket Type	PVC
Conductor Count	25
Shield Coverage %	1
Shield Type	Bi-Laminate (Alum+Poly)
Shield	Shielded
Insulation Type	SR-PVC
UL Listing Numbers	UL1685

Technical Specifications

Voltage Rating	300V
Ampacity Rating	1.3
Submersible	No
Flexibility Rating	Good
Temperature Rating	-30°C to +80°C
Standards	Indoor UL 1685 FT4 Loading, FT4, IEC 60332-1-2 CPR Euroclass: Eca; CPR UKCA Class: Eca Article 800, CMG AWM 2464, AWM I/II A CMG, LL7874 EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) UKCA Mark China RoHS II (GB/T 26572-2011)
Miscellaneous Information	Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability.
RoHS Compliance	Yes

Usage & Installation:

Primary Applications

RS-232 Applications; Computer Communications; Low Voltage Analog Signals; Low Voltage Digital Control; Line Level Audio; Panel Wiring

Packaging & Dimensions:

Weight per Foot

0.086 lb
