Parent SKU : BDN9538
SKU : BDN9538-250

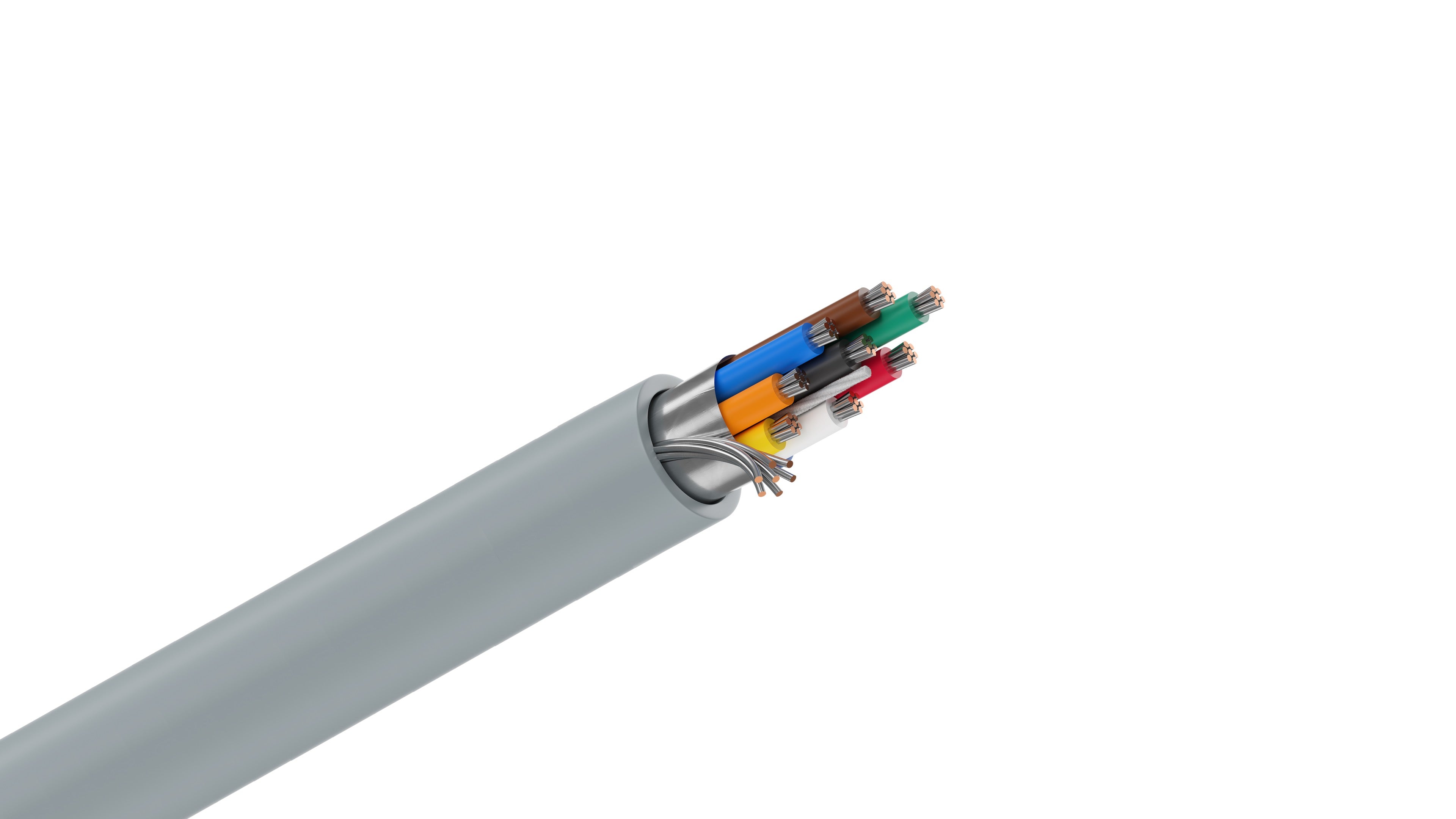

Belden 9538 is a premium, high-performance 24 AWG, 8-conductor shielded multi-conductor cable engineered specifically for computer interconnections, data transmission, EIA RS-232 serial configurations, and low-voltage control circuits. Utilizing Belden’s proprietary Beldfoil® aluminum-polyester shield, this cable delivers 100% shielding coverage to safeguard critical data pathways from electromagnetic interference (EMI) and radio frequency interference (RFI) in electronically noisy industrial or office environments.
100% Beldfoil® Shielding: Features a patented aluminum foil-polyester tape shield applied with the foil side facing out. This provides complete structural isolation against high-frequency electrostatic noise, ensuring data integrity over extended runs.
Integrated Drain Wire: Equipped with a 24 AWG stranded tinned copper drain wire. This configuration allows installers to easily terminate and ground the shield at terminal blocks without needing to manually untwist or comb out a braided layer.
Premium Conductor Construction: Consists of 8 conductors made from high-conductivity, stranded (7 x 32) tinned copper. The tinned coating provides excellent corrosion resistance and enhances solderability at connection points.
Semi-Rigid PVC Insulation: The conductors are wrapped in a robust, semi-rigid PVC (SR-PVC) layer, balancing precise electrical insulation properties with high physical resistance to crushing and mechanical wear.
Flexible Chrome PVC Jacket: Enclosed in a sleek, industrial-grade chrome PVC outer jacket that is highly flame-retardant and offers smooth pulling characteristics through conduit, drop ceilings, or dense equipment racks.
EIA RS-232 Serial Data: The industry standard wire profile for establishing reliable multi-line serial communication links between computers, PLCs, and peripheral devices.
Computer Interconnects: Interfaced routing for instrumentation networks, legacy mainframe terminals, and control room data consoles.
Instrumentation & Control: Transmitting low-voltage analog signals or digital discrete I/O pulses from sensors, control panels, and automation arrays.
Low-Voltage Security Systems: Multi-zone alarm links, keypad interconnections, and access control panel wiring.
1: Black
2: White
3: Red
4: Green
5: Brown
6: Blue
7: Orange
8: Yellow
Part Number: Belden 9538
Conductor Size: 24 AWG
Number of Conductors: 8
Conductor Stranding:Â 7 x 32Â Stranded Tinned Copper
Insulation Material: SR-PVC (Semi-Rigid Polyvinyl Chloride)
Shield Type: Beldfoil® Aluminum Foil-Polyester Tape (100% Coverage)
Drain Wire: 24 AWG Stranded Tinned Copper
Outer Jacket Material: PVC (Polyvinyl Chloride) - Chrome Gray
Voltage Rating: 300V RMS
Temperature Rating: -20°C to +80°C
Flame Test Ratings: UL1685 FT4 Loading, Vertical Tray Flame Test
Compliance Standards: UL AWM Style 2464, NEC Article 800 Type CM, CEC Type CMG, RoHS Compliant
Technical Note: When routing Belden 9538 for RS-232 serial communications, please note that this is a non-twisted pair cable (conductors are layered in a concentric cabled formation). For standard low-speed serial data or shorter runs, this configuration works perfectly. However, for high-speed differential communication protocols requiring balanced lines—such as RS-422 or RS-485—a twisted-pair cable structure (like Belden 9504) should be selected instead to mitigate cross-talk between adjacent signal legs.
Â
CABLE TYPE: 24 AWG / 8-Conductor Shielded Computer Cable
Â
DISCLAIMER: The technical information provided is for general reference only. Systems installation must comply with local building codes, NEC regulations, and specific equipment manufacturer parameters. Always cross-reference the official Belden manufacturer data sheet prior to implementing physical system deployments.
| Wire Size (AWG/MCM) | 24 AWG |
| Conductor Material | Tinned Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.224 in. |
| Jacket Type | PVC |
| Conductor Count | 8 |
| Shield Coverage % | 1 |
| Shield Type | Bi-Laminate (Alum+Poly) |
| Shield | Shielded |
| Insulation Type | SR-PVC |
| UL Listing Numbers | UL1685 |
| Voltage Rating | 300V |
| Ampacity Rating | 1.5 |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | -30°C to +80°C |
| Standards | Indoor UL 1685 FT4 Loading, FT4, IEC 60332-1-2 CPR Euroclass: Eca; CPR UKCA Class: Eca Article 800, CMG AWM 2464, AWM I/II A CMG, LL7874 EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) UKCA Mark China RoHS II (GB/T 26572-2011) |
| Miscellaneous Information | Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. |
| RoHS Compliance | Yes |
| Primary Applications | RS-232 Applications; Computer Communications; Low Voltage Analog Signals; Low Voltage Digital Control; Line Level Audio; Panel Wiring |
| Weight per Foot | 0.033 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||
The Belden 9538 24 AWG 8-Conductor Shielded Computer Cable is a premium, multi-conductor data cable engineered for low-voltage electronic systems and serial data transmission. It features eight 24 AWG stranded tinned copper conductors wrapped in Belden's proprietary Beldfoil® aluminum-polyester shield. Rated for 300V, this un-armored cable is an industrial baseline for clean, noise-free communication between computers, peripherals, and automated controls.
This 8-conductor shielded cable is highly versatile and serves as the infrastructure for many automation and communication systems:
The most searched question regarding the Belden 9538 collection focuses on the importance of its Beldfoil® shield and drain wire. In modern industrial and office settings, data lines run next to power cables, fluorescent lights, and electric motors, all of which generate Electromagnetic Interference (EMI). Without shielding, this interference causes data corruption, static, and signal drops. Belden's Beldfoil® shield provides 100% coverage around the eight conductors, catching this electrical noise and safely dumping it to the ground via the integrated tinned copper drain wire, ensuring perfect data integrity.
If you are trying to source this specific data cable nearby, ordering directly through our online store is the fastest solution. Instead of calling around to local electrical distributors who may not stock specialized Belden part numbers by the foot, you can buy directly from us. We fulfill orders immediately with an estimated standard shipping time of 2-4 days, and we offer expedited shipping options at checkout to keep your data network or control panel installation right on schedule.
While it looks similar to a network cable, Belden 9538 is primarily designed for serial communication (like RS-232) and control signals, not high-speed internet. Standard internet cables (like Cat5e or Cat6) have their wires twisted in specific pairs to handle high frequency data. This cable is optimized for clean, low-speed communication over longer distances in industrial panels.
