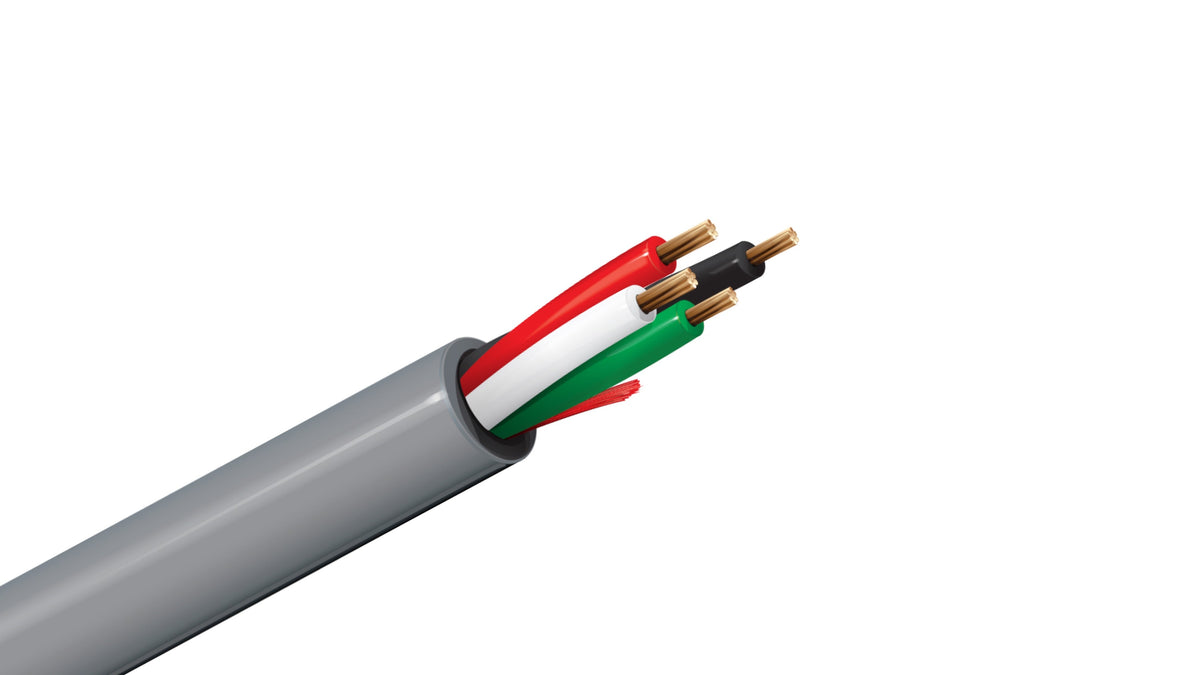

Belden 5502UE 22 AWG 4 Conductor Unshielded Sound & Security Cable | CMR Riser Rated

Belden 5502UE is a commercial-grade, multi-conductor unshielded security and audio cable engineered for multi-circuit, low-voltage installations in commercial and residential settings. Featuring 4 independent 22 AWG conductors, this cable is UL-rated as CMR (Communications Riser), making it safe and compliant for vertical installations between floors, inside riser shafts, or within walls. It offers a balance of compact diameter, stranded flexibility, and safety for low-current wiring arrays.

Key Features of Belden 5502UE

• Streamlined Multi-Conductor Build: Packages 4 discrete 22 AWG circuits into a single, cohesive cable profile, minimizing installation labor and streamlining wire management behind panels and racks.

• CMR Riser Safety Rating: Certified with a UL 1666 Riser rating. The flame-retardant PVC jacket is engineered to prevent the spread of fire vertically from floor to floor, satisfying strict commercial building code requirements.

• Highly Conductive Stranded Copper: Manufactured with premium stranded bare copper conductors (7 x 30 stranding layout). Unlike its solid-core counterpart (5582UE), this stranded configuration delivers exceptional physical flexibility, making it easy to route around tight corners and through complex structural cavities.

• Premium Polypropylene Insulation: Conductors are wrapped in a high-dielectric polypropylene (PP) insulation. This formulation ensures stable electrical performance and prevents physical conductor-to-conductor shorts within the tight bundle.

• Rip Cord Integration: Includes a built-in nylon rip cord beneath the jacket, allowing installers to easily score and strip back long sections of the outer sheath without risking damage to the inner conductor insulation.

Common Applications

• Commercial Security Systems: Interconnecting multi-zone alarm control panels, keypad arrays, motion detectors, glass-break sensors, and smoke detector loops.

• Intercom & PA Systems: Routing multi-station audio, paging grids, and master control voice lines in schools, hospitals, and office complexes.

• Sound & Audio Distribution: Connecting multi-channel background music systems, low-voltage speaker zones, and localized audio controls.

• Background Control & Signaling: Distributing discrete low-voltage digital signals, relay controls, HVAC sensor networks, thermostat zones, and building automation commands.

Conductor Identification: Belden Standard Multi-Conductor Color Code

• 1: Black

• 2: Red

• 3: White

• 4: Green

Technical Specifications

• Part Number: Belden 5502UE

• Conductor Size: 22 AWG

• Number of Conductors: 4

• Conductor Type: Stranded Bare Copper (7 x 30 layout)

• Insulation Material: PP (Polypropylene)

• Shielding: None (Unshielded)

• Jacket Material: PVC (Polyvinyl Chloride) with Rip Cord - Gray

• Voltage Rating: 300V RMS

• Temperature Rating: -20 degrees C to +75 degrees C

• Flame Test Ratings: UL1666 Riser, FT4, IEC 60332-1-2

• Compliance Standards: NEC Article 800 Type CMR, CEC Type CMG, California State Fire Marshal Approved, RoHS Compliant

Technical Note: Because Belden 5502UE is an unshielded cable, it is highly flexible but lacks protection against severe high-frequency electromagnetic interference (EMI). To avoid signal degradation, noise coupling, or data corruption, do not route this low-voltage cable parallel to high-voltage AC power lines (120V/240V or higher) within the same wall cavity or conduit unless separated by an approved physical barrier or a minimum distance of 50 mm (2 inches). If your layout requires installation through drop ceilings utilized for environmental air exchange, the plenum-rated equivalent (Belden 6502UE) must be used instead.

CABLE TYPE: 22 AWG / 4-Conductor Stranded Unshielded Riser Cable

DISCLAIMER: The technical information provided is for general reference only. Low-voltage electrical and security installations must strictly adhere to the National Electrical Code (NEC), local building structures, and relevant NFPA fire safety standards. Always cross-reference the official Belden manufacturer data sheet prior to finalizing physical system designs.
