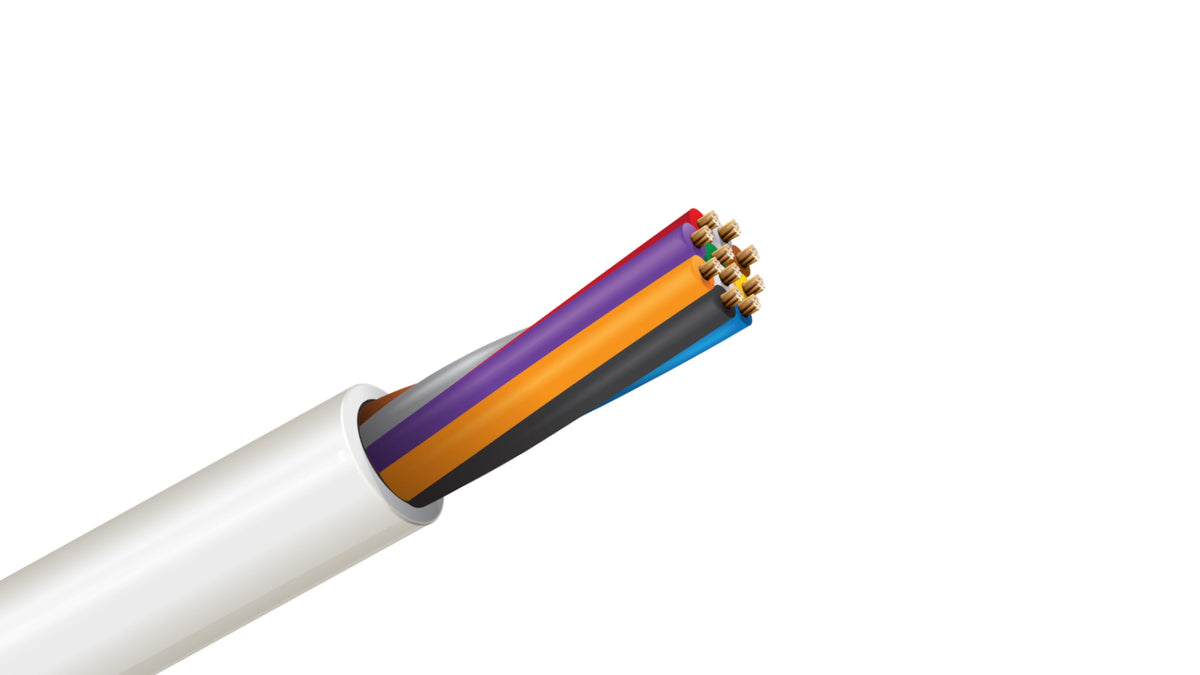

Belden 5408UE 20 AWG 10 Conductor Unshielded Sound & Security Cable | CMR Riser Rated

Belden 5408UE is a commercial-grade, multi-conductor unshielded security and audio cable engineered for high-density, low-voltage installations in commercial and residential environments. Featuring 10 independent 20 AWG conductors, this cable bridges the gap between ultra-compact 22 AWG wiring and heavier 18 AWG options. It is UL-rated as CMR (Communications Riser), making it code-compliant for vertical installations inside riser shafts, between floors, or within walls, offering a balance of data/power transmission capacity and space-saving routing flexibility.

Key Features of Belden 5408UE

• Mid-Gauge 20 AWG Profile: Features a 20 AWG conductor size that minimizes voltage drop over mid-to-long installation distances compared to standard 22 AWG cables, without adding the outer bulk of an 18 AWG setup.

• CMR Riser Safety Rating: Certified with a UL 1666 Riser rating. The flame-retardant PVC jacket is engineered to prevent the spread of fire vertically from floor to floor, satisfying strict commercial building code requirements.

• Highly Conductive Stranded Copper: Manufactured with premium stranded bare copper conductors (7 x 28 stranding layout). This stranded configuration delivers excellent physical flexibility, allowing it to navigate tight terminal housing configurations and architectural bends cleanly.

• Premium Polypropylene Insulation: Conductors are wrapped in a high-dielectric polypropylene (PP) insulation. This thin-wall formulation delivers superior electrical performance and defense against conductor shorting while keeping the overall diameter slim.

• Rip Cord Integration: Includes a built-in nylon rip cord beneath the jacket, allowing installers to easily score and strip back long sections of the outer sheath without risking damage to the inner conductor insulation.

Common Applications

• Commercial Security Systems: Interconnecting multi-zone alarm control panels, keypad arrays, access control door strikes, magnetic locks, card readers, and multi-sensor arrays.

• Intercom & PA Systems: Routing multi-station voice paths, balanced paging networks, and master control lines in schools, commercial offices, and healthcare complexes.

• Sound & Audio Distribution: Connecting multi-channel background music networks, low-voltage paging zones, and localized audio controls where line loss needs to be managed.

• Background Control & Signaling: Distributing discrete low-voltage digital signals, power-limited relay controls, HVAC sensor loops, thermostat zones, and building automation commands.

Conductor Identification: Belden Standard Multi-Conductor Color Code

• 1: Black

• 2: Red

• 3: White

• 4: Green

• 5: Brown

• 6: Blue

• 7: Orange

• 8: Yellow

• 9: Purple

• 10: Gray

Technical Specifications

• Part Number: Belden 5408UE

• Conductor Size: 20 AWG

• Number of Conductors: 10

• Conductor Type: Stranded Bare Copper (7 x 28 layout)

• Insulation Material: PP (Polypropylene)

• Shielding: None (Unshielded)

• Jacket Material: PVC (Polyvinyl Chloride) with Rip Cord - Gray

• Voltage Rating: 300V RMS

• Temperature Rating: -20 degrees C to +75 degrees C

• Flame Test Ratings: UL1666 Riser, C(UL) FT4

• Compliance Standards: NEC Article 800 Type CMR, CEC Type CMG, California State Fire Marshal Approved, RoHS Compliant

Technical Note: Because Belden 5408UE is an unshielded cable, it is highly flexible but lacks defense against high-frequency electromagnetic interference (EMI). To avoid signal degradation, noise coupling, or data corruption, do not route this low-voltage cable parallel to high-voltage AC power lines (120V/240V or higher) within the same wall cavity or conduit unless separated by an approved physical barrier or a minimum distance of 50 mm (2 inches). If your layout requires installation through drop ceilings utilized for environmental air exchange, the plenum-rated equivalent (Belden 6408UE) must be used instead.

CABLE TYPE: 20 AWG / 10-Conductor Stranded Unshielded Riser Cable

DISCLAIMER: The technical information provided is for general reference only. Low-voltage electrical and security installations must strictly adhere to the National Electrical Code (NEC), local building structures, and relevant NFPA fire safety standards. Always cross-reference the official Belden manufacturer data sheet prior to finalizing physical system designs.
