Belden 530BUE 18 AWG 20 Conductor Unshielded Sound & Security Cable | CMR Riser Rated

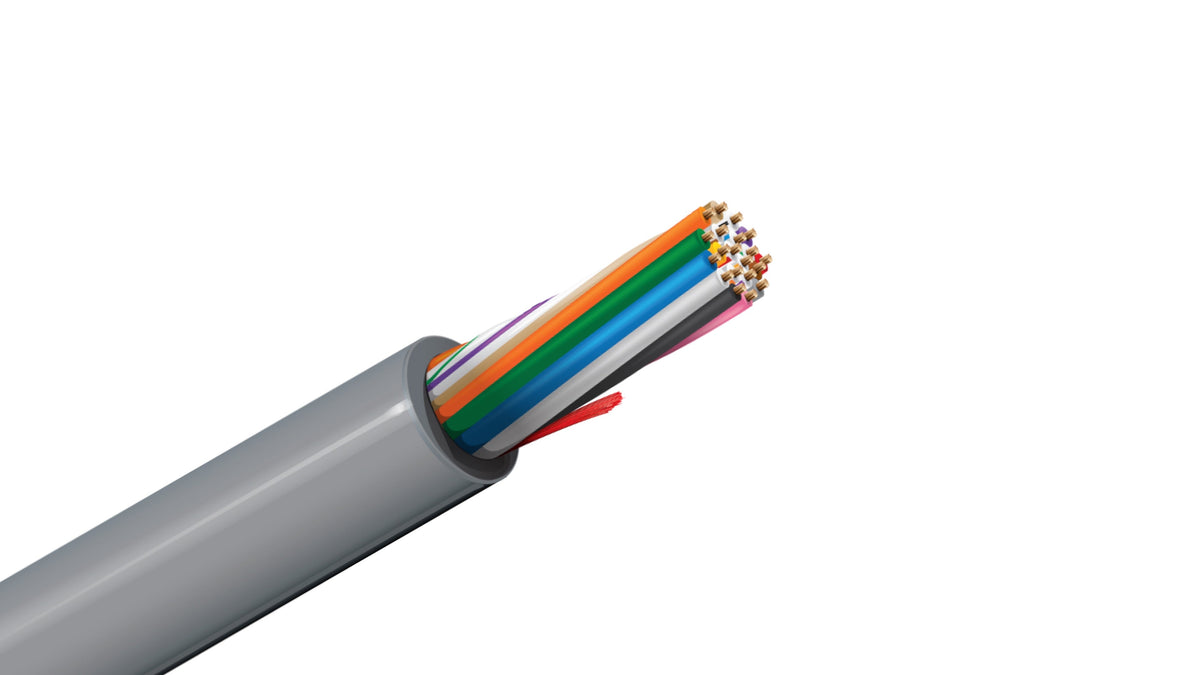

Belden 530BUE is a commercial-grade, multi-conductor unshielded security and audio cable engineered for high-density, low-voltage control and signal distribution. Featuring 20 independent 18 AWG conductors, this heavy-duty composite cable is built to handle multiple circuits simultaneously while delivering lower DC resistance over long distances than standard 22 AWG cables. It is UL-rated as CMR (Communications Riser), making it code-compliant for vertical installations inside riser shafts, between floors, or within walls, streamlining complex multi-zone layouts into a single pulled cable.

Key Features of Belden 530BUE

• Heavy-Duty 18 AWG Wire Gauge: Built with robust 18 AWG conductors to support longer cable runs and higher current demands with minimal voltage drop, ensuring stable signal transmission for complex low-voltage networks.

• Massive 20-Conductor Capacity: Combines 20 separate circuits under a single outer sheath, drastically lowering deployment time, labeling logistics, and conduit congestion compared to pulling multiple smaller wire pairs.

• CMR Riser Safety Rating: Certified with a UL 1666 Riser rating. The flame-retardant PVC jacket is engineered to prevent the spread of fire vertically from floor to floor, satisfying strict commercial building code requirements.

• Highly Conductive Stranded Copper: Manufactured with premium stranded bare copper conductors in a 7x26 stranding layout. This design balances robust cross-sectional mass with optimal physical flexibility for routing through crowded wall channels or junction enclosures.

• Premium PVC Insulation: Conductors are wrapped in a high-dielectric polyvinyl chloride (PVC) insulation. This thin-wall formulation delivers dependable physical protection and isolation to ensure circuit integrity between all 20 conductors.

• Rip Cord Integration: Includes a built-in nylon rip cord beneath the jacket, allowing installers to easily score and strip back long sections of the outer sheath without risking damage to the inner conductor insulation.

Common Applications

• High-Density Access Control Systems: Interconnecting multi-door control panels, centralized mainframes, biometric scanner arrays, card readers, request-to-exit buttons, and electronic locking hardware within a single home-run path.

• Commercial Security & Alarm Matrices: Wiring extensive commercial alarm hubs to whole-building sensor loops, multi-zone security windows, perimeter sensors, and system status indicators.

• Intercom & Complex PA Networks: Routing master control stations, multi-line paging grids, and signaling channels across vast multi-floor complexes like schools and office buildings.

• Industrial Automation & HVAC Control: Distributing multiple discrete low-voltage control loops, relays, motorized valve linkages, dampers, and environmental thermostat arrays.

Conductor Identification: Belden Multi-Conductor Color Code Chart

• 1: Black

• 2: Red

• 3: White

• 4: Green

• 5: Brown

• 6: Blue

• 7: Orange

• 8: Yellow

• 9: Purple

• 10: Gray

• 11: Pink

• 12: Tan

• 13: White/Black

• 14: White/Red

• 15: White/Green

• 16: White/Orange

• 17: White/Blue

• 18: White/Brown

• 19: White/Yellow

• 20: White/Violet

Technical Specifications

• Part Number: Belden 530BUE

• Conductor Size: 18 AWG

• Number of Conductors: 20

• Conductor Type: Stranded Bare Copper (7x26 layout)

• Insulation Material: PVC (Polyvinyl Chloride)

• Shielding: None (Unshielded)

• Jacket Material: PVC (Polyvinyl Chloride) with Rip Cord - Gray

• Nominal Outer Diameter: 0.400 inches

• Voltage Rating: 300V RMS

• Current Rating: 2.5 Amps per conductor at 25 degrees C

• Temperature Rating: -20 degrees C to +75 degrees C (Operating)

• Flame Test Ratings: UL1666 Riser, FT4, IEC 60332-1-2

• Compliance Standards: NEC Article 800 Type CMR, CEC Type CMG, RoHS Compliant

Technical Note: Because Belden 530BUE contains 20 unshielded conductors carrying up to 2.5 Amps per circuit simultaneously, be mindful of cumulative thermal conditions when bundle-routing this cable tightly through long conduits. As an unshielded cable, it is highly efficient for power and general control signaling but lacks integrated foil shielding against severe high-frequency electromagnetic interference (EMI). To avoid signal degradation, noise coupling, or data corruption, do not route this low-voltage cable parallel to high-voltage AC power lines (120V/240V or higher) within the same wall cavity or conduit unless separated by an approved physical barrier or a minimum distance of 50 mm (2 inches). If your layout requires installation through drop ceilings utilized for environmental air exchange, a plenum-rated cable alternative must be used instead.

CABLE TYPE: 18 AWG / 20-Conductor Stranded Unshielded Riser Cable

DISCLAIMER: The technical information provided is for general reference only. Low-voltage electrical and security installations must strictly adhere to the National Electrical Code (NEC), local building structures, and relevant NFPA fire safety standards. Always cross-reference the official Belden manufacturer data sheet prior to finalizing physical system designs.
