Parent SKU : BDN5307FE
SKU : BDN5307FE-500
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Bare Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.254 in. |
| Jacket Type | PVC |
| Conductor Count | 9 |
| Shield Coverage % | 1 |
| Shield Type | Bi-Laminate (Alum+Poly) |
| Shield | Shielded |
| Riser Rating | true |
| Insulation Type | PP - Polypropylene |
| UL Listing Numbers | UL1666 |
| Voltage Rating | 300V |
| Ampacity Rating | 3.5 |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | -20°C To +75°C |
| Standards | Indoor, Outdoor UL1666 Riser, FT4 Article 800, CMR CMG EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) China RoHS II (GB/T 26572-2011) |
| Miscellaneous Information | Because pricing for the Belden 5307FE fluctuates based on copper market spot prices and volume requirements, we provide custom quotes to ensure you get the most competitive project rate. |
| RoHS Compliance | Yes |
| Primary Applications | Commercial Security Systems, Intercom & PA Systems, Access Control, Background Music (BGM), High-Rise Security Grids, Card Access Headers, Industrial Monitoring. |
| Common Uses |
|
| Weight per Foot | 0.064 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||||||

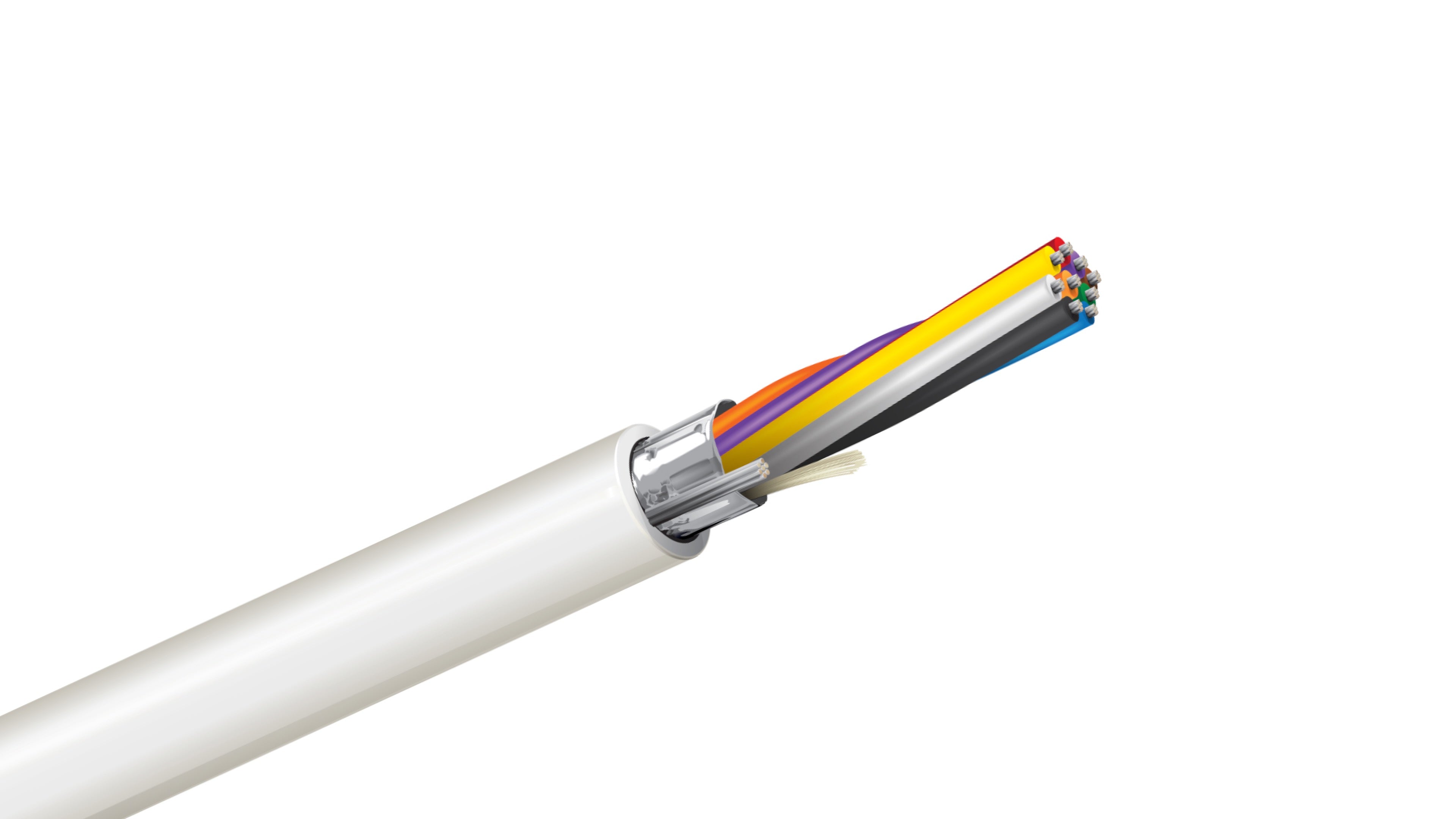

The Belden 5307FE is a multi-conductor shielded cable designed for complex commercial sound, security, and control installations. With nine 18 AWG conductors, it is frequently used for high-density applications such as access control panels, multi-zone paging systems, and building automation where multiple power and signal lines need to be pulled in a single jacket. Its 18-gauge size provides a good balance between signal integrity and power delivery for devices like card readers and keypad controllers.
No. The 5307FE carries a CMR (Riser) rating, which means it is tested to resist the spread of fire in vertical shafts between floors. It is suitable for general in-wall use and riser applications, but it is not approved for use in environmental air plenums. If your project requires the cable to be run in plenum ceilings or air handling spaces, you will need to use the plenum-rated equivalent, Belden 6307FE.
This cable utilizes an overall Beldfoil® shield (aluminum foil-polyester tape) that provides 100% coverage. In a high-conductor-count cable like this, shielding is vital to protect sensitive data signals from external electromagnetic interference (EMI) and to minimize internal crosstalk between the nine conductors. It also includes a tinned copper drain wire to ensure a quick and reliable ground connection for the entire assembly.
Using 18 AWG (American Wire Gauge) provides a higher current-carrying capacity and lower resistance compared to standard 22 AWG "station wire." This makes the 5307FE ideal for powering multiple security devices over a single cable run without experiencing significant voltage drop. The stranded bare copper construction ensures the cable remains flexible enough to navigate conduit bends, even with a high conductor count.
The 5307FE consists of nine stranded bare copper conductors insulated with polypropylene (PP). These are wrapped in the Beldfoil shield and encased in a PVC (Polyvinyl Chloride) jacket. Due to the high number of conductors, it has a larger nominal outside diameter of approximately 0.264 inches. The jacket is designed for durability and ease of stripping, ensuring efficient terminations at control panels and junction boxes.
