Parent SKU : BDN5305FE
SKU : BDN5305FE-500
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Bare Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.230 in. |
| Jacket Type | PVC |
| Conductor Count | 7 |
| Shield Coverage % | 1 |
| Shield Type | Bi-Laminate (Alum+Poly) |
| Shield | Shielded |
| Riser Rating | true |
| Insulation Type | PP - Polypropylene |
| UL Listing Numbers | UL1666 |
| Voltage Rating | 300V |
| Ampacity Rating | 3.5 |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | -20°C To +75°C |
| Standards | Indoor - Riser, Indoor UL 1666 Riser, FT4, IEC 60332-1-2 CPR Euroclass: Eca Article 800, CMR CMG EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) UKCA Mark China RoHS II (GB/T 26572-2011) |
| Miscellaneous Information | Because pricing for the Belden 5305FE fluctuates based on copper market spot prices and volume requirements, we provide custom quotes to ensure you get the most competitive project rate. |
| RoHS Compliance | Yes |
| Primary Applications | Commercial Security Systems, Intercom & PA Systems, Access Control, Background Music (BGM), High-Rise Security Grids, Card Access Headers, Industrial Monitoring. |
| Common Uses |
|
| Weight per Foot | 0.052 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||||||
The Belden 5305FE is a multi-conductor shielded cable designed for commercial control, sound, and security systems. With seven 18 AWG conductors, it is typically used for applications such as access control systems, keypad wiring, and multi-zone audio where multiple signal or power paths are needed in a single run. Its 18-gauge construction makes it robust enough to handle moderate power requirements for devices like magnetic locks or card readers over long distances.
No. The 5305FE is CMR (Riser) rated, which means it is designed for vertical installations in building shafts (risers) and general-purpose in-wall use. It is not approved for use in environmental air plenums (such as the space above a suspended ceiling used for air circulation). For plenum-rated environments, the Belden 6305FE is the required equivalent.
This cable features Belden’s proprietary Beldfoil® shield, an aluminum foil-polyester tape that provides 100% coverage. This shielding is essential for blocking electromagnetic interference (EMI) and radio frequency interference (RFI) from distorting audio signals or causing data errors in security systems. A 24 AWG tinned copper drain wire is included to facilitate a quick and reliable ground for the shield.
The seven-conductor configuration allows for high-density wiring, enabling an installer to provide power, ground, and multiple signal lines for a single device or zone with one pull. The 18 AWG (American Wire Gauge) stranded bare copper conductors offer lower electrical resistance than standard 22 AWG wire, significantly reducing voltage drop. This ensures that electronic security components receive the consistent voltage necessary for reliable operation at the end of long cable runs.

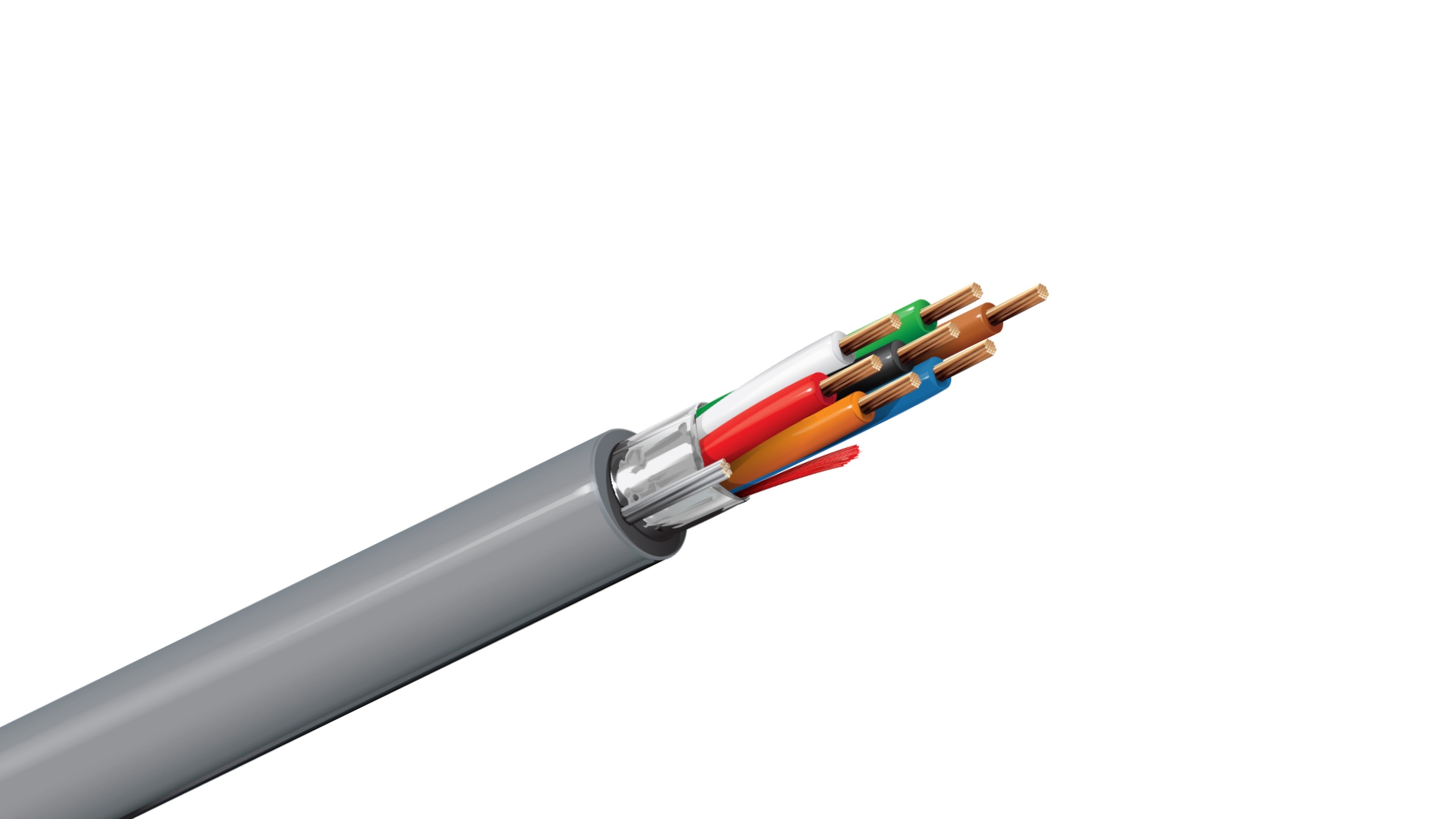

The 5305FE is constructed with seven stranded bare copper conductors insulated with polypropylene (PP). The assembly is wrapped in the Beldfoil shield and encased in a durable Gray PVC (Polyvinyl Chloride) jacket. It has a nominal outside diameter of approximately 0.228 inches. This relatively slim profile, combined with the flexibility of stranded conductors, makes it easier to navigate through conduit and around tight corners in commercial building structures.
