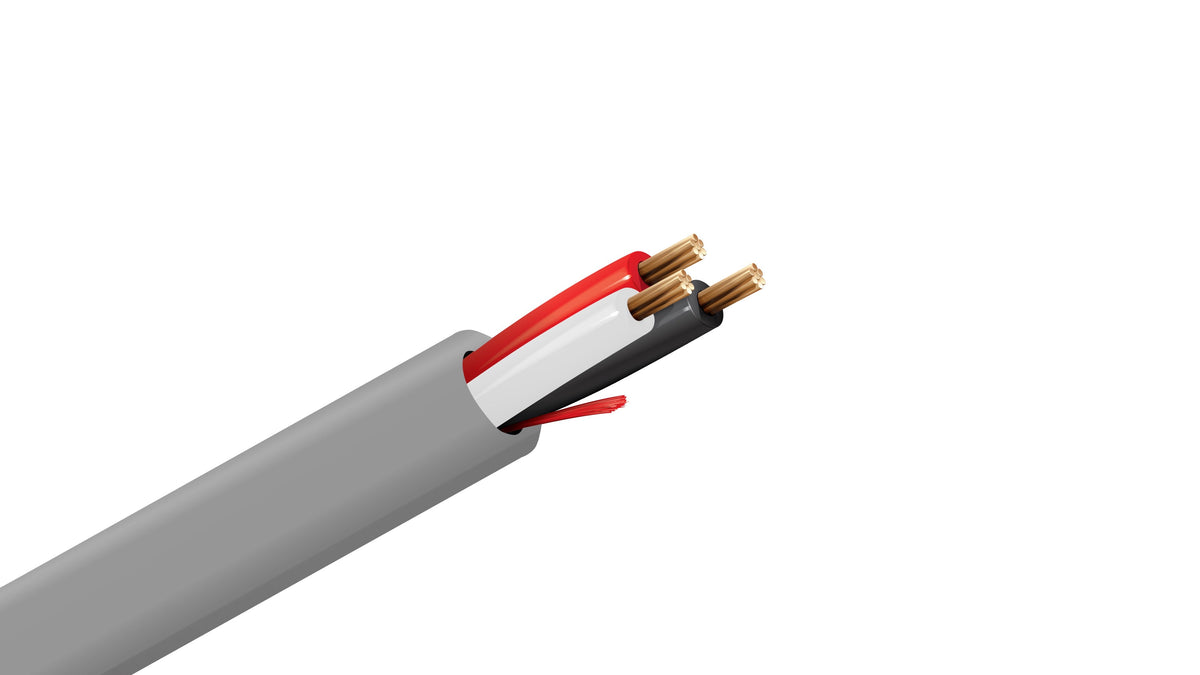

Belden 5201UE 16 AWG 3 Conductor Unshielded Sound & Security Cable | CMR Riser Rated

Belden 5201UE is a commercial-grade, multi-conductor unshielded security and audio cable engineered for multi-circuit, low-voltage installations requiring an elevated current capacity or lower resistance than standard 18 AWG or 22 AWG wiring. Featuring 3 independent 16 AWG conductors, this cable balances robust current distribution with excellent space efficiency. It is UL-rated as CL3R / CMR (Communications Riser), making it safe and legally compliant for vertical pathways inside riser shafts, between floors, or within walls.

Key Features of Belden 5201UE

• Enhanced 16 AWG Power Profile: Built with larger 16 AWG conductors to support long operational runs and higher current demands, significantly lowering voltage drop and power loss compared to thinner cables.

• Streamlined Multi-Conductor Build: Packages 3 discrete 16 AWG circuits into a single, cohesive cable profile, minimizing installation labor and streamlining wire management behind multi-zone audio racks or control panels.

• CMR / CL3R Riser Safety Rating: Certified with a UL 1666 Riser rating. The flame-retardant outer jacket is engineered to prevent the spread of fire vertically from floor to floor, satisfying strict commercial building code requirements.

• Highly Conductive Stranded Copper: Manufactured with premium stranded bare copper conductors in a 19x29 stranding layout. This configuration delivers exceptional electrical conductivity while maintaining excellent physical flexibility for clean routing through wall cavities and conduits.

• Premium Polypropylene Insulation: Conductors are wrapped in a high-dielectric polypropylene (PP) insulation. This material ensures stable electrical performance and prevents physical conductor-to-conductor shorts within the outer jacket.

• Rip Cord Integration: Includes a built-in nylon rip cord beneath the jacket, allowing installers to easily score and strip back long sections of the outer sheath without risking damage to the inner conductor insulation.

Common Applications

• High-Power Sound & Commercial Audio: Perfect for high-wattage, low-impedance (4-ohm/8-ohm) speaker runs, professional monitoring setups, and long-distance constant-voltage (70V/100V) speaker networks in auditoriums, commercial venues, and places of worship.

• Access Control & Critical Security: Powering multi-device security arrays, heavy-duty magnetic door locks, electronic crash bars, motorized gates, and hardware nodes requiring stable low-voltage power supply loops.

• Addressable Fire & Emergency Systems: Connecting power-limited fire alarm components, multi-circuit notification appliances, and signaling networks requiring heavy-gauge multi-conductor infrastructure.

• Building Control & Signaling: Routing high-current low-voltage digital signals, power-limited relay controls, ventilation damper actuators, and climate control automation networks.

Conductor Identification: Belden Standard Multi-Conductor Color Code

• 1: Black

• 2: White

• 3: Red

Technical Specifications

• Part Number: Belden 5201UE

• Conductor Size: 16 AWG

• Number of Conductors: 3

• Conductor Type: Stranded Bare Copper (19x29 layout)

• Insulation Material: PP (Polypropylene)

• Shielding: None (Unshielded)

• Jacket Material: PVC (Polyvinyl Chloride) with Rip Cord - Gray

• Voltage Rating: 300V RMS

• Temperature Rating: -20 degrees C to +75 degrees C (Operating)

• Flame Test Ratings: UL1666 Riser, FT4

• Compliance Standards: NEC Article 725 Type CL3R / Article 800 Type CMR, California State Fire Marshal Approved, RoHS Compliant

Technical Note: Because Belden 5201UE is an unshielded cable, it is optimized for higher-power distribution and speaker pathways but lacks protection against severe high-frequency electromagnetic interference (EMI). To avoid signal degradation or inductive noise coupling, do not route this low-voltage cable parallel to high-voltage AC power lines (120V/240V or higher) within the same wall cavity or conduit unless separated by an approved physical barrier or a minimum distance of 50 mm (2 inches). If your project layout requires installation through drop ceilings utilized for environmental air exchange, the plenum-rated equivalent (Belden 6201UE) must be used instead.

CABLE TYPE: 16 AWG / 3-Conductor Stranded Unshielded Riser Cable

DISCLAIMER: The technical information provided is for general reference only. Low-voltage electrical, audio, and fire safety installations must strictly adhere to the National Electrical Code (NEC), local building structures, and relevant NFPA fire safety standards. Always cross-reference the official Belden manufacturer data sheet prior to finalizing physical system designs.
