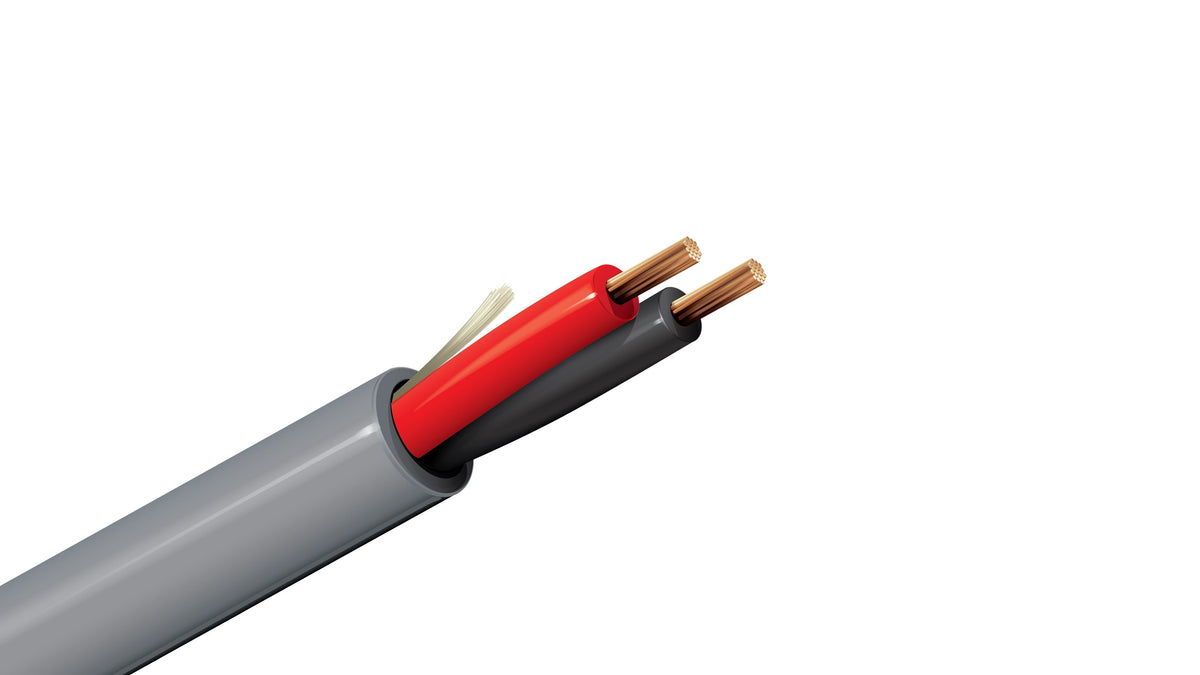

Belden 5200UE 16 AWG 2 Conductor Unshielded Sound & Security Cable | CMR Riser Rated

Belden 5200UE is an industry-standard, high-capacity 2-conductor unshielded security and audio cable engineered for high-power, low-voltage installations in commercial, institutional, and residential structures. Featuring 2 independent 16 AWG conductors, this cable strikes a perfect balance between robust current capacity and flexible routing. It is UL-rated as CL3R / CMR (Communications Riser), making it safe and legally compliant for vertical pathways inside riser shafts, between floors, or within walls, offering an optimized, low-resistance solution for high-current power and audio pathways.

Key Features of Belden 5200UE

• High-Capacity 16 AWG Wire Gauge: Built with thick 16 AWG conductors to support long operational runs and higher current demands, significantly lowering voltage drop and line loss compared to standard 18 AWG or 22 AWG options.

• Ultra-Compact 2-Conductor Build: Packages a single twisted pair (2 discrete 16 AWG conductors) into an optimized, narrow-profile cable jacket, maximizing conduit space and easing routing inside crowded terminal junction boxes.

• CMR / CL3R Riser Safety Rating: Certified with a UL 1666 Riser rating. The flame-retardant outer jacket is engineered to prevent the spread of fire vertically from floor to floor, satisfying strict commercial building code requirements.

• Highly Conductive Stranded Copper: Manufactured with premium stranded bare copper conductors in a 19x29 stranding layout. This configuration delivers exceptional electrical conductivity while maintaining excellent physical flexibility for clean routing through wall cavities and tight structural bends.

• Premium Polypropylene Insulation: Conductors are wrapped in a high-dielectric polypropylene (PP) insulation. This material ensures stable electrical performance and prevents physical conductor-to-conductor shorts within the outer jacket.

• Rip Cord Integration: Includes a built-in nylon rip cord beneath the jacket, allowing installers to easily score and strip back long sections of the outer sheath without risking damage to the inner conductor insulation.

Common Applications

• High-Power Sound & Commercial Audio: Perfect for high-wattage, low-impedance (4-ohm/8-ohm) speaker runs, distributed audio zones, and long-distance constant-voltage (70V/100V) speaker networks in auditoriums, commercial venues, and residential theaters.

• Access Control & Critical Security: Powering single-zone security arrays, heavy-duty magnetic door locks, electronic crash bars, motorized gates, and hardware nodes requiring stable low-voltage power supply loops.

• Addressable Fire & Emergency Systems: Connecting power-limited fire alarm components, emergency notification appliances, and signaling networks requiring heavy-gauge multi-conductor infrastructure.

• Building Control & Signaling: Routing high-current low-voltage digital signals, power-limited relay controls, ventilation damper actuators, and climate control automation networks.

Conductor Identification: Belden Standard Multi-Conductor Color Code

• 1: Black

• 2: White

Technical Specifications

• Part Number: Belden 5200UE

• Conductor Size: 16 AWG

• Number of Conductors: 2

• Conductor Type: Stranded Bare Copper (19x29 layout)

• Insulation Material: PP (Polypropylene)

• Shielding: None (Unshielded)

• Jacket Material: PVC (Polyvinyl Chloride) with Rip Cord - Gray (White and other jacket options available)

• Voltage Rating: 300V RMS

• Temperature Rating: -20 degrees C to +75 degrees C (Operating)

• Flame Test Ratings: UL1666 Riser, FT4

• Compliance Standards: NEC Article 725 Type CL3R / Article 800 Type CMR, California State Fire Marshal Approved, RoHS Compliant

Technical Note: Because Belden 5200UE is an unshielded cable, it is optimized for high-power distribution and speaker pathways but lacks protection against severe high-frequency electromagnetic interference (EMI). To avoid signal degradation or inductive noise coupling, do not route this low-voltage cable parallel to high-voltage AC power lines (120V/240V or higher) within the same wall cavity or conduit unless separated by an approved physical barrier or a minimum distance of 50 mm (2 inches). If your project layout requires installation through drop ceilings utilized for environmental air exchange, the plenum-rated equivalent (Belden 6200UE) must be used instead.

CABLE TYPE: 16 AWG / 2-Conductor Stranded Unshielded Riser Cable

DISCLAIMER: The technical information provided is for general reference only. Low-voltage electrical, audio, and fire safety installations must strictly adhere to the National Electrical Code (NEC), local building structures, and relevant NFPA fire safety standards. Always cross-reference the official Belden manufacturer data sheet prior to finalizing physical system designs.
