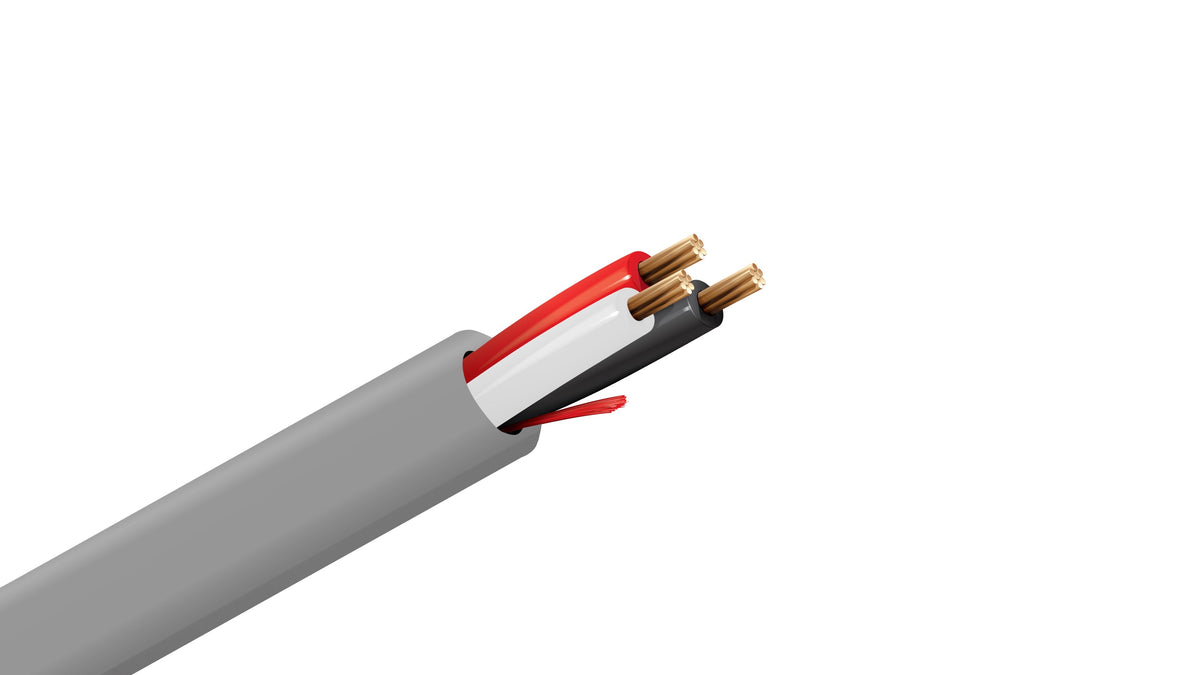

Belden 5001UE 12 AWG 3 Conductor Unshielded Sound & Security Cable | CMR Riser Rated

Belden 5001UE is a commercial-grade, multi-conductor unshielded security and audio cable engineered for high-power low-voltage installations in commercial, institutional, and residential structures. Featuring 3 independent, thick 12 AWG conductors, this cable is UL-rated as CL3R / CMR (Communications Riser), making it safe and code-compliant for vertical pathways between floors, inside riser shafts, or within walls. It offers a low-resistance pathway for high-current applications, ensuring minimal power drop over long distances.

Key Features of Belden 5001UE

• High-Capacity 12 AWG Wire Gauge: Built with thick 12 AWG conductors to support long commercial runs and heavier current demands, significantly lowering voltage drop compared to thinner 18 AWG or 22 AWG cables.

• CMR / CL3R Riser Safety Rating: Certified with a UL 1666 Riser rating. The flame-retardant outer jacket is engineered to prevent the spread of fire vertically from floor to floor, satisfying strict commercial building code requirements.

• Highly Conductive Stranded Copper: Manufactured with premium stranded bare copper conductors in a 19x25 stranding layout. This configuration ensures excellent electrical conductivity while remaining remarkably flexible for its thickness.

• Premium Polypropylene Insulation: Conductors are wrapped in a high-dielectric polypropylene (PP) insulation. This material ensures stable electrical performance and prevents physical conductor-to-conductor shorts within the outer jacket.

• Rip Cord Integration: Includes a built-in nylon rip cord beneath the jacket, allowing installers to easily score and strip back long sections of the outer sheath without risking damage to the inner conductor insulation.

Common Applications

• High-Power Sound & Commercial Audio: Wiring high-wattage, low-impedance (4-ohm/8-ohm) or long-distance constant-voltage (70V/100V) speaker lines in auditoriums, stadiums, and performance venues.

• Access Control & Critical Security: Powering motorized gates, heavy-duty magnetic door locks, electronic latches, and multi-device security nodes that require stable low-voltage power supply loops.

• Addressable Fire & Emergency Systems: Connecting power-limited fire alarm components, notification appliances, and signaling networks requiring heavy-gauge multi-conductor infrastructure.

• Building Control & Signaling: Routing high-current low-voltage digital signals, power-limited relay controls, ventilation damper actuators, and climate control automation networks.

Conductor Identification: Belden Standard Multi-Conductor Color Code

• 1: Black

• 2: White

• 3: Red

Technical Specifications

• Part Number: Belden 5001UE

• Conductor Size: 12 AWG

• Number of Conductors: 3

• Conductor Type: Stranded Bare Copper (19x25 layout)

• Insulation Material: PP (Polypropylene)

• Shielding: None (Unshielded)

• Jacket Material: PVC (Polyvinyl Chloride) with Rip Cord - Gray

• Voltage Rating: 300V RMS

• Temperature Rating: 0 degrees C to +75 degrees C (Operating)

• Flame Test Ratings: UL1666 Riser, FT4

• Compliance Standards: NEC Article 725 Type CL3R / Article 800 Type CMR, California State Fire Marshal Approved, RoHS Compliant

Technical Note: Because Belden 5001UE is an unshielded cable, it is optimized for high-power distribution and speaker pathways but lacks protection against severe high-frequency electromagnetic interference (EMI). To avoid signal degradation or inductive noise coupling, do not route this low-voltage cable parallel to high-voltage AC power lines (120V/240V or higher) within the same wall cavity or conduit unless separated by an approved physical barrier or a minimum distance of 50 mm (2 inches). If your project layout requires installation through drop ceilings utilized for environmental air exchange, the plenum-rated equivalent (Belden 6001UE) must be used instead.

CABLE TYPE: 12 AWG / 3-Conductor Stranded Unshielded Riser Cable

DISCLAIMER: The technical information provided is for general reference only. Low-voltage electrical, audio, and fire safety installations must strictly adhere to the National Electrical Code (NEC), local building structures, and relevant NFPA fire safety standards. Always cross-reference the official Belden manufacturer data sheet prior to finalizing physical system designs.
