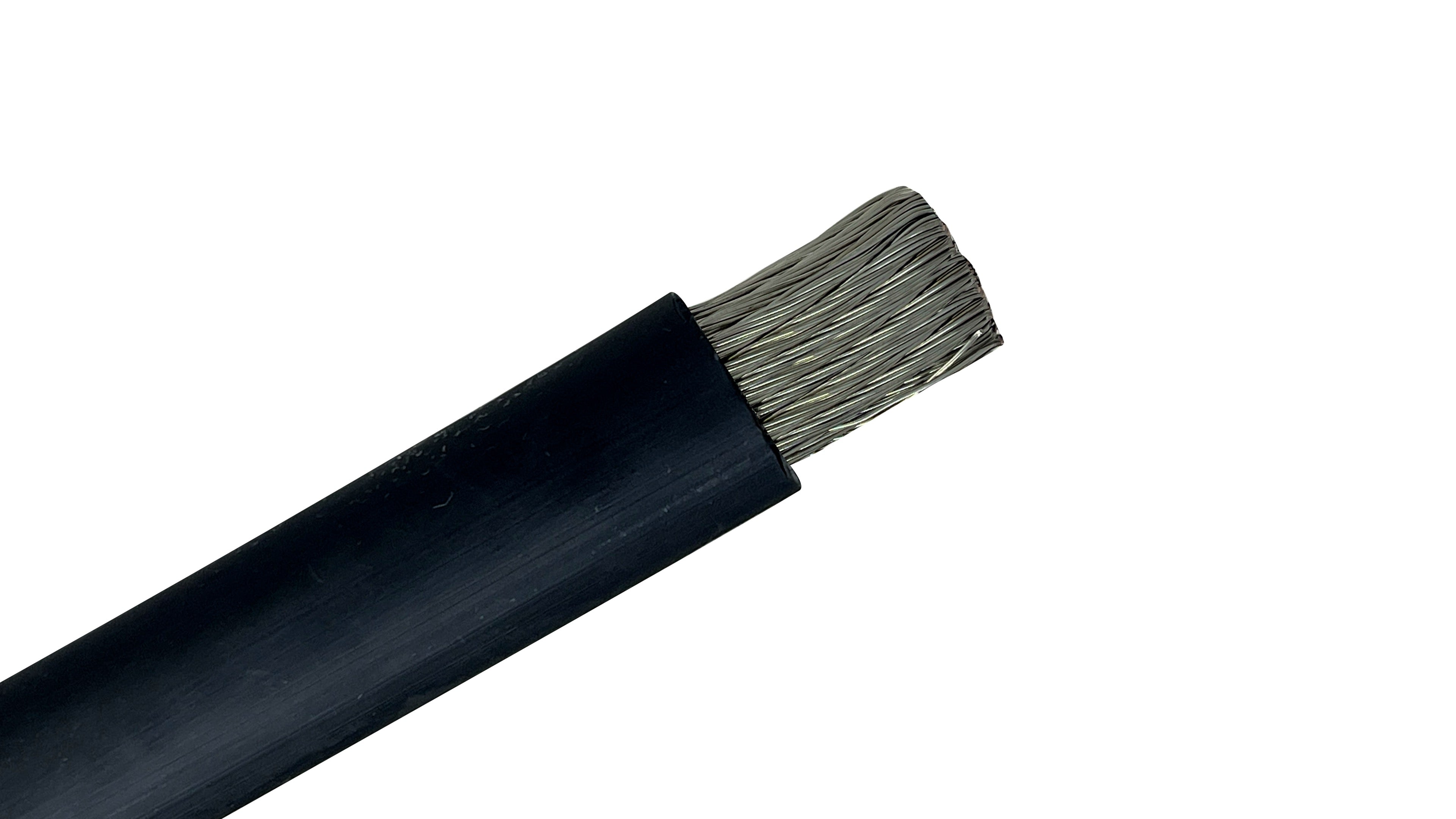

929 MCM DLO Diesel Locomotive Cable, RHH/RHW-2, 2000V

929 MCM Diesel Locomotive Cable (DLO) is an industrial-grade, single-conductor portable power cable designed for high-capacity electrical setups, infrastructure engineering, and extreme bulk power distribution networks. Rated for a maximum continuous electrical pressure of 2000 Volts, this ultra-heavy-duty power line is engineered to thrive under relentless physical vibration, severe environmental hazards, and continuous structural flexing.

While originally engineered to transmit raw energy from centralized diesel generator blocks to heavy traction wheel motors in locomotives, its durability makes it a top choice for industrial ecosystems. It functions as an ultra-flexible alternative to standard commercial building wire (such as THHN or XHHW-2) in complex installations where a tight bending radius or dynamic structural shifts make rigid wire impractical.

ELECTRICAL AMPACITY & PERFORMANCE DATA

Driven by its dense network of fine-drawn strands and a thick dual-layer insulation profile, 929 MCM DLO exhibits outstanding thermal dissipation properties and heavy-current handling limits:

• Maximum Current Capacity (30 degrees C Ambient Air): 1005 AMPS This threshold is calculated using a continuous 90 degrees C conductor temperature operating as a single conductor in an open-air cable tray environment.

• National Electrical Code Adjustments: When grouping multiple single-conductor 929 MCM DLO lines inside a closed structural conduit, wire trough, or enclosed raceway, installers must apply standard NEC Article 310 derating adjustments based on ambient room temperatures and total enclosed conductor counts.

Key Features

• Extreme-Flexibility Class I Tinned Copper Conductor: Composed of roughly 2,300 individual strands of fully annealed tinned copper (2300/24 layout configuration). This ultra-fine layout allows a massive 929,000 circular mil (MCM) core to bend smoothly around corners without kinking, while the outer tin layer neutralizes copper oxidation and simplifies lug terminations.

• Premium EPR (Ethylene Propylene Rubber) Insulation: Shielded by a thick layer of high-dielectric EPR insulation. This thermoset compound handles extreme temperature swings without softening, cracking, or experiencing internal voltage tracking breakdowns under 2000V strains.

• Heavy-Duty CPE (Chlorinated Polyethylene) Outer Jacket: Protected by an industrial-grade, abrasion-resistant black CPE jacket. It provides excellent defense against grease, fuel oils, petrochemical solvents, ozone, severe impacts, and continuous open-air sunlight exposure.

• Dual-Listed RHH/RHW-2 Standard Ratings: Certified under UL 44 as Type RHH/RHW-2, allowing code-compliant, permanent installation at 90 degrees C in both wet and dry architectural applications.

Common Applications

• Diesel-Electric Locomotive Infrastructure: Supplying core high-amp energy lines between central diesel generator blocks, dynamic braking grids, and heavy-duty traction wheel motors.

• Oil and Gas Drilling Rigs: Powering massive mud pumps, top drives, drawworks equipment, and offshore marine drilling platforms.

• Data Centers & Bulk Battery Storage Hubs: Interconnecting massive Uninterruptible Power Supply (UPS) systems, utility-scale battery storage arrays, and high-voltage emergency backup setups.

• Industrial Motor & Generator Leads: Serving as flexible high-current feeder links on large manufacturing motors, mining machinery, and mobile generator sets.

• Shipboard & Marine Power Distribution: Supplying heavy-duty flexible power trunks across shipyards, commercial transport vessels, and marine docks.

Cable Layer Architecture (From Core to Jacket)

1. Central Conductor: 929 MCM rope-lay, bunch-stranded tinned copper core (approx. 2300/24 configuration).

2. Separator Layer: Clear polyester or paper binding tape to prevent the fine copper strands from sticking to the primary insulation during high-heat stripping and termination operations.

3. Primary Insulation: Premium-grade Ethylene Propylene Rubber (EPR).

4. Outer Protective Armor: Rugged, thermoset, weather-proof Black Chlorinated Polyethylene (CPE) jacket.

Technical Specifications

• Conductor Size: 929 MCM / 929.2 kcmil

• Conductor Stranding Count: Approx. 2300 Strands (24 AWG individual strand size)

• Conductor Material: Tinned Annealed Copper

• Insulation Material: Ethylene Propylene Rubber (EPR)

• Jacket Material: Chlorinated Polyethylene (CPE)

• Nominal Outer Diameter: Approx. 1.516 inches (Varies slightly by manufacturer)

• Approximate Net Weight: Approx. 3,455 lbs per 1000 feet

• Voltage Rating: 2000 Volts Maximum

• Maximum Conductor Temperature: 90 degrees C (Continuous wet or dry)

• Compliance Standards: UL Listed Type RHH/RHW-2, Type RW90 (CSA), MSHA Approved (Mine Safety), ICEA S-95-658, NEMA WC-70, IEEE 1202/FT4 Flame Test Compliant, RoHS Compliant

Technical Note Regarding Lugs: Because 929 MCM DLO cable utilizes extra-fine Class I stranding, standard mechanical compression lugs or standard commercial building wire barrels must never be used. Attempting to force fine stranding into a standard building wire lug will tear the individual copper fibers and create a serious fire hazard from loose connections. Installers must exclusively use specialty chamfered compression lugs explicitly stamped and rated for "Flexible Strand, Class I, or DLO Cable" and secure them using calibrated crimping dies.

CABLE TYPE: 929 MCM Single-Conductor Flexible 2000V Diesel Locomotive Power Cable (Black CPE Jacket)

DISCLAIMER: The technical information provided is for general reference only. Industrial high-voltage power networks and flexible cable trays must strictly comply with the National Electrical Code (NEC), local municipal safety enforcement mandates, and individual equipment installation datasheets. Always verify official product submittal listings and exact core metrics with your electrical component manufacturer prior to configuring terminal arrays or subjecting lines to high pulling forces.

⚠️ The applications listed below are for informational and educational purposes only. Electrical code requirements vary significantly by region. Always consult a licensed electrician and your local building authority to verify compliance with the National Electrical Code (NEC®) for your specific project before purchasing or installing cable.

Common 929 MCM DLO 2000V Use Cases

• High-Horsepower Traction Motor Power: Connects high-output diesel-electric generators directly to traction motors on commercial freight trains, passenger railcars, and heavy rolling stock.
• Oil & Gas Drilling Rig Mains: Functions as the primary power trunk line on onshore and offshore drilling rigs, supplying reliable 2000V electricity to massive top drives, drawworks, and high-pressure mud pumps.
• Hyperscale Data Center Backup Feeder: Serves as a heavy-duty, high-flexibility distribution trunk cable connecting massive backup generator plants and central UPS battery rooms to primary power grid systems.
• Heavy Mining Shovel & Dragline Articulation: Routes raw electrical power across the dynamic pivot points of massive continuous miners, draglines, and electric excavators operating in severe open-pit environments.
• Shipboard Propelling & Shore Power Leads: Utilized as primary shipboard distribution lines, marine propulsion leads, and high-wattage ship-to-shore utility links due to its outstanding resistance to salt spray and moisture.
• Industrial Utility Substation Jumpers: Deployed by utility providers as highly flexible, heavy-duty temporary bypass cabling or permanent transformer grounding leads within high-voltage substations.

Who Relies on 929 MCM DLO 2000V?

Target Industries

• Railroad & Mass Transit Engineering: Required by major locomotive builders and regional rail transit authorities for heavy freight and high-speed passenger train overhauls.
• Offshore Energy & Marine Infrastructure: Extensively utilized by marine engineering firms, oilfield operators, and deep-sea drilling platforms.
• Enterprise Cloud & Telecom Infrastructure: Integrated into hyperscale data center designs to handle bulk power distribution for massive server blocks.
• Heavy Industrial Mills & Processing Foundries: Selected by mining operators, steel factories, and heavy manufacturing foundries for high-power machinery leads.

Core Professionals & Buyers

• Industrial & Marine Electrical Engineers: Field specialists who specify 929 MCM Diesel Locomotive Cable (DLO) because its fine Class I tinned copper stranding (consisting of 2299 individual 24 AWG strands) allows an ultra-thick cable to flex smoothly into tight radius layouts.
• Data Center Facility Architects: Procurement managers who rely on DLO's premium Ethylene Propylene Rubber (EPR) insulation to provide unmatched 2000V dielectric protection and heat handling in dense spaces.
• Industrial Project Estimators: Procurement officers tracking long-term maintenance cycles who count on the heavy Chlorinated Polyethylene (CPE) thermoset jacket to resist oil, chemicals, acids, and ozone without cracking.
• Safety & Code Compliance Inspectors: Field regulatory officers who look for Dual-Rated RHH/RHW-2 attributes and MSHA flame-retardant listings to approve hazardous location or open cable tray wire configurations.
